User Manual for Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument
- Product category: Instrument Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Instrument Microphones
 |
User manual for the Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica AE5100 is a large diaphragm condenser microphone designed for capturing instruments. The sensitivity and frequency response make it suitable for overheads, percussion and acoustic instruments such as guitar and strings. The large diaphragm element delivers natural, transparent signal reproduction and withstands high transients without distortion and noise. The sleek low-profile design allows flexible microphone placement options. A high pass filter switch eliminates noise below 80Hz and a 10dB provides additional headroom when capturing excessively loud signal sources. The AE5100 is powered via external 11V to 52V phantom power source. - High SPL Response
- The AE-3000 excels in reproducing signals with high SPL response. Guitar cabinets, drums and percussion are all accurately reproduced without noise and distortion.
- Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes noise and ambiance at the off-axis sections of the microphone.
- High Pass Filter
- A high pass filter switch eliminates low frequency noise and rumble below 80Hz.
- 10dB Pad
- A 10dB pad switch increases headroom when capturing excessively loud signal sources.
- Low-Profile Design
- The sleek low-profile design allows flexible microphone placement options.

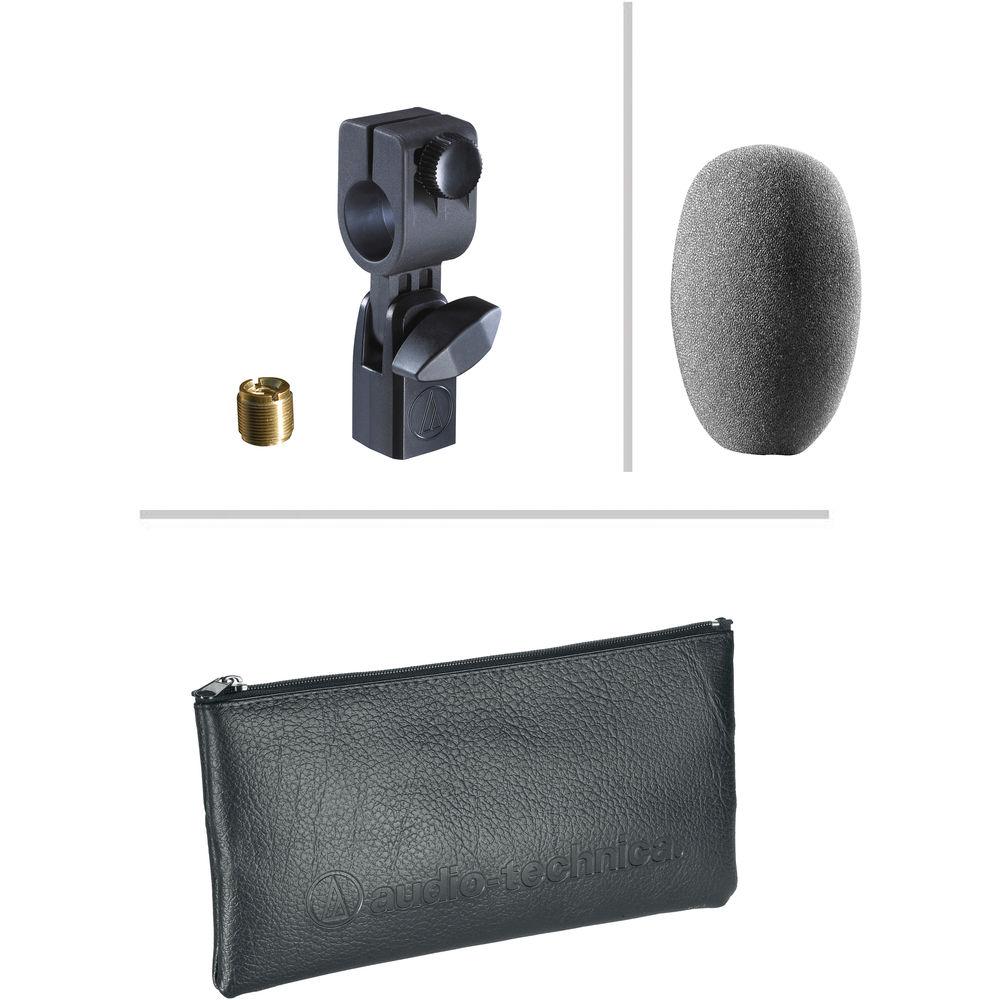

UPC: 042005128143 In the Box Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument Microphone AT8471 Isolation Clamp 3/8"-16 Threaded Adapter AT8136 Foam Windscreen Protective Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AE-5100 - Large-Diaphragm Cardioid Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AE5100 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | 137dB, 1kHz @ Max. SPL | | Signal-to-Noise Ratio | 83 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 148 dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 11-52V, 3.2 mA typical | | Output Impedance | 150 ohms | | Output Connectors | 3-pin XLR male-type | | Pad | 10 dB pad | | Low Frequency Roll-Off | 80 Hz, 12 dB per octave | | Dimensions | 5.85 x 1.02" (148.5 x 26mm) (Length x Diameter) | | Weight | 5.0 oz (143 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.5 x 5.0 x 2.9" |
