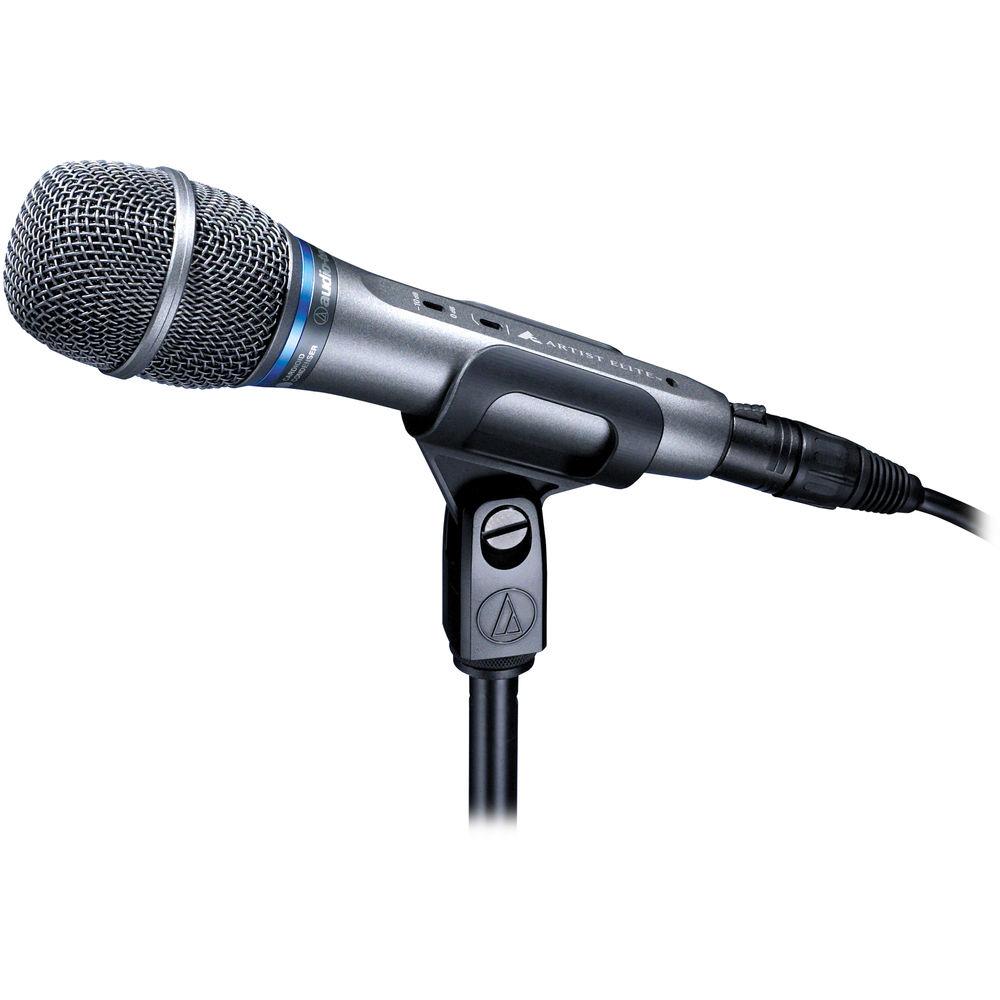

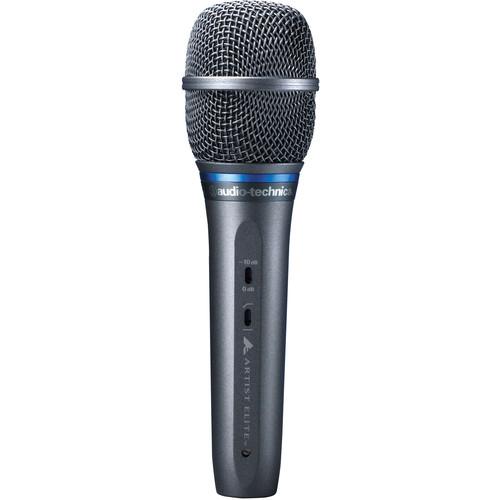

User Manual for Audio-Technica AE-5400 Large-Diaphragm Cardioid Condenser Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AE-5400 Large-Diaphragm Cardioid Condenser Handheld
- Product category: Handheld Performance Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Handheld Performance Microphones
 |
User manual for the Audio-Technica AE-5400 Large-Diaphragm Cardioid Condenser Handheld contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Designed for the demanding musician, the Audio-Technica Artist Elite series AE-5400 brings studio grade sonic quality and performance to the stage. This large diaphragm condenser microphone features the same element found in the famed AT4050 studio microphone. Primarily designed for vocal capturing the wide, linear frequency response renders the microphone more than adequate to perform in a variety of applications. The cardioid polar pattern features a uniform frequency response and optimum rejection at the off-axis sections of the capsule. The result is excellent rejection of noise and feedback. The large diaphragm condenser element handles high Sound Pressure Levels (SPL) resulting in maximum protection against noise and distortion. The AE-5400 is the ideal choice for stage performances, speech and broadcast applications. - Recording Microphone Element
- The AE-5400 features the same element found in the famed AT4050 studio recording microphone. The result is professional studio grade quality on stage.
- Cardioid Polar Pattern
- The cardioid polar pattern features a uniform response and excellent rejection of off-axis noise and feedback.
- Wide Frequency Response
- The wide, linear frequency response is more than capable to accurately reproduce vocals and instruments.
- High Pass Filter
- A high pass filter switch eliminates low frequency noise below 80Hz.
- 10dB Pad Switch
- A 10dB Pad switch provides additional headroom when capturing excessively loud audio signals.

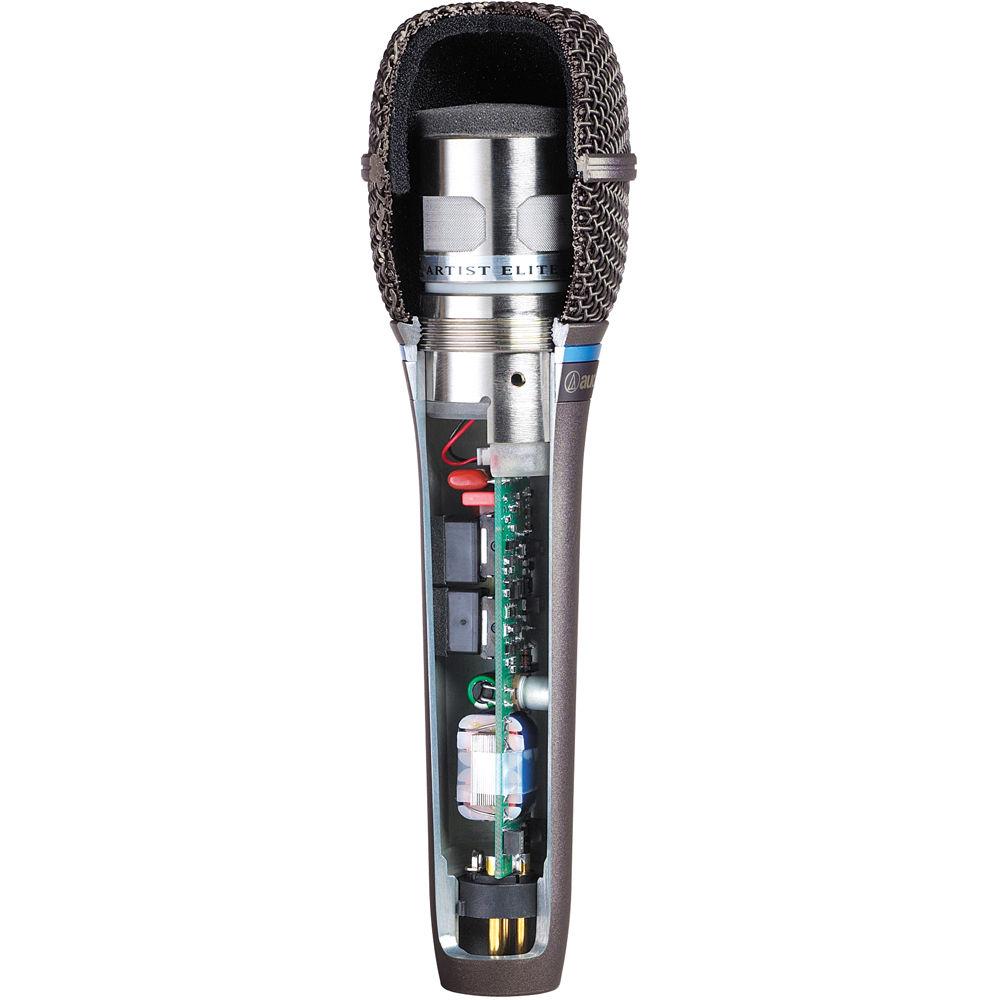

- Internal Shock Mount System
- The AE-5400 features an internal shock mount system that cradles the element and effectively reduces handling noise and damage caused by shock.
- On/Off Switch
- A power switch is featured providing added control.
- Rugged Design
- The rugged construction of the AE-5400 renders the microphone a reliable tool on the road or in the studio.

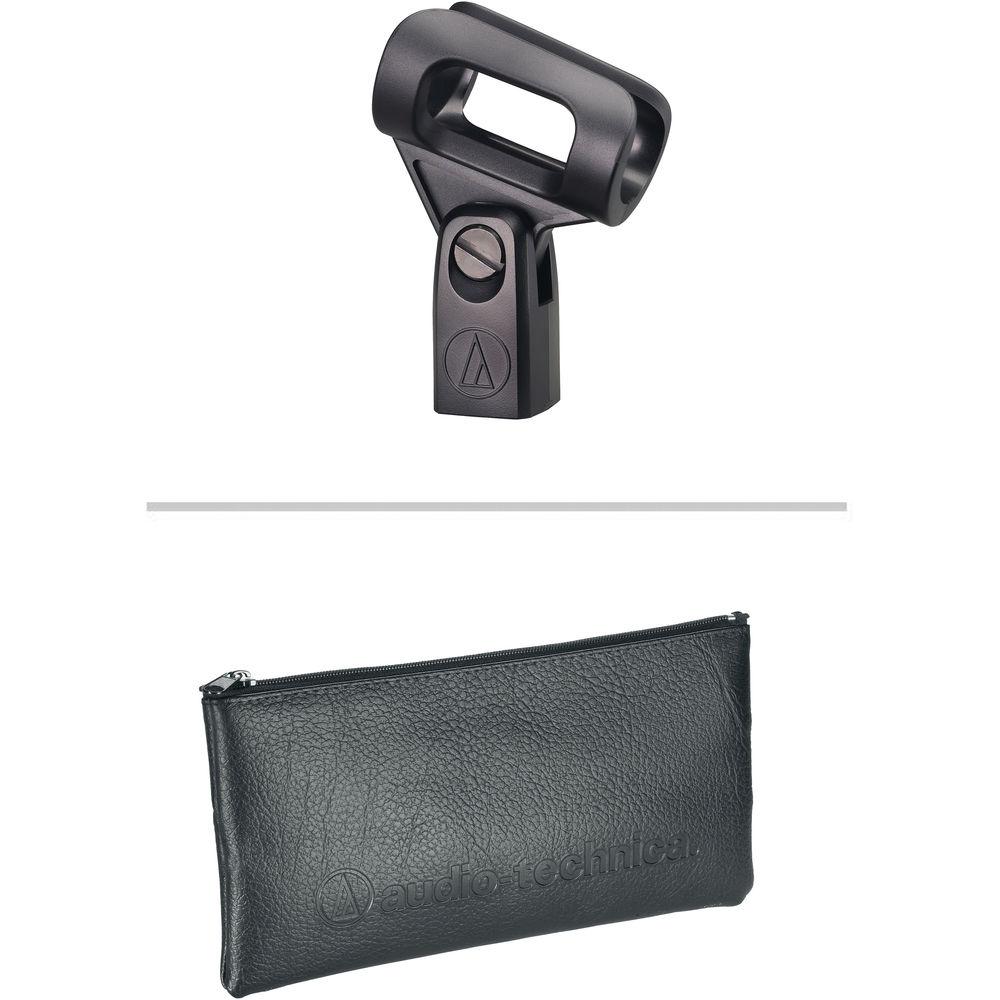

UPC: 042005125135 In the Box Audio-Technica AE-5400 Large-Diaphragm Cardioid Condenser Handheld Microphone AT8470 Quiet-Flex Stand Clamp 5/8"-27 Thread 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AE-5400 Large-Diaphragm Cardioid Condenser Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AE5400 Specs | Transducer | Externally polarized (DC Bias) condenser | | Polar Pattern | Cardioid | | Frequency Response | 20Hz to 20kHz | | Dynamic Range (Typical) | 133 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 80 dB, 1 kHz at 1 Pa | | Maximum Input Sound Level | 147 dB SPL, 1 kHz at 1% T.H.D.;
157 dB SPL, with 10 dB pad (nominal) | | Power Requirements | 11-52V DC, 4 mA typical | | Output Impedance | 150 ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | 10dB Pad | | Low Frequency Roll-Off | 80 Hz, 12 dB/octave | | Dimensions | 7.05 x 1.97" (179 x 50mm) (Length x Diameter) | | Weight | 11.6 oz (330 g) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.528 x 5.276 x 2.913" |
