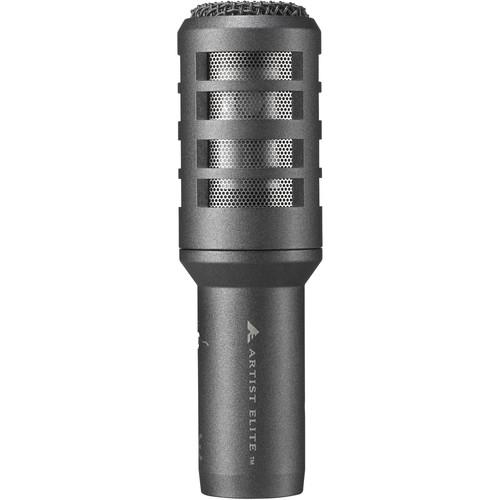

User Manual for Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone
- Product category: Dynamic Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Dynamic Microphones
 |
User manual for the Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

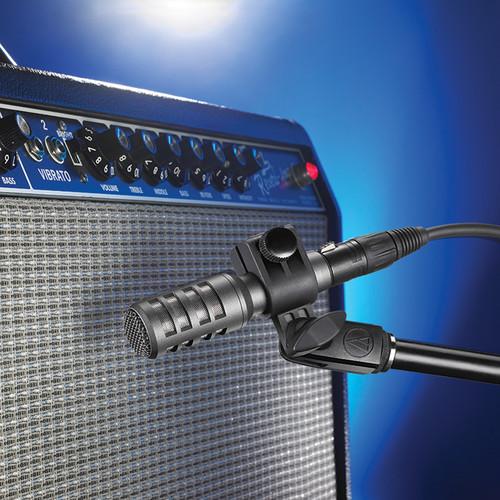

Product description The Audio-Technica AE2300 is a cardioid instrument microphone that features a proprietary double-dome diaphragm construction, giving it high-frequency and transient response that exceeds typical dynamic microphones. With a rugged, low-profile design and the ability to handle high SPLs, the AE2300 is a versatile performer, able to accurately capture sound from guitar amps, brass and woodwinds, and drums and percussion instruments with equal clarity and precision.
The double-dome diaphragm construction allows the AE2300 to maintain directionality across the entire frequency range, while introducing only the slightest off-axis coloration (frequency response is nearly identical at 0, 90 and 180°) for phase cohesion in multiple-mic setups. The microphone is also equipped with a switchable low-pass filter that cuts out harsh, high-frequency noise, such as hiss from a guitar amp or hi-hat bleed into the snare, without negatively affecting the overall tone of an instrument. This mic is an especially useful tool in live settings to get a clear, focused sound. -
- Excels in high-SPL applications
- Proprietary double-dome diaphragm construction that improves high-frequency and transient response
- Maintains directionality across the entire frequency range
- Minimal off-axis coloration (frequency response is nearly identical at 0, 90, and 180°) helps to maintain phase cohesion in multiple-microphone setups
- Switchable low-pass filter removes harsh, high-frequency hiss without negatively affecting the overall tone of an instrument
- Low-profile design allows microphone to be placed easily and unobtrusively in a wide variety of setups
- Rugged, brass-metal construction ensures dependable performance in live-music applications

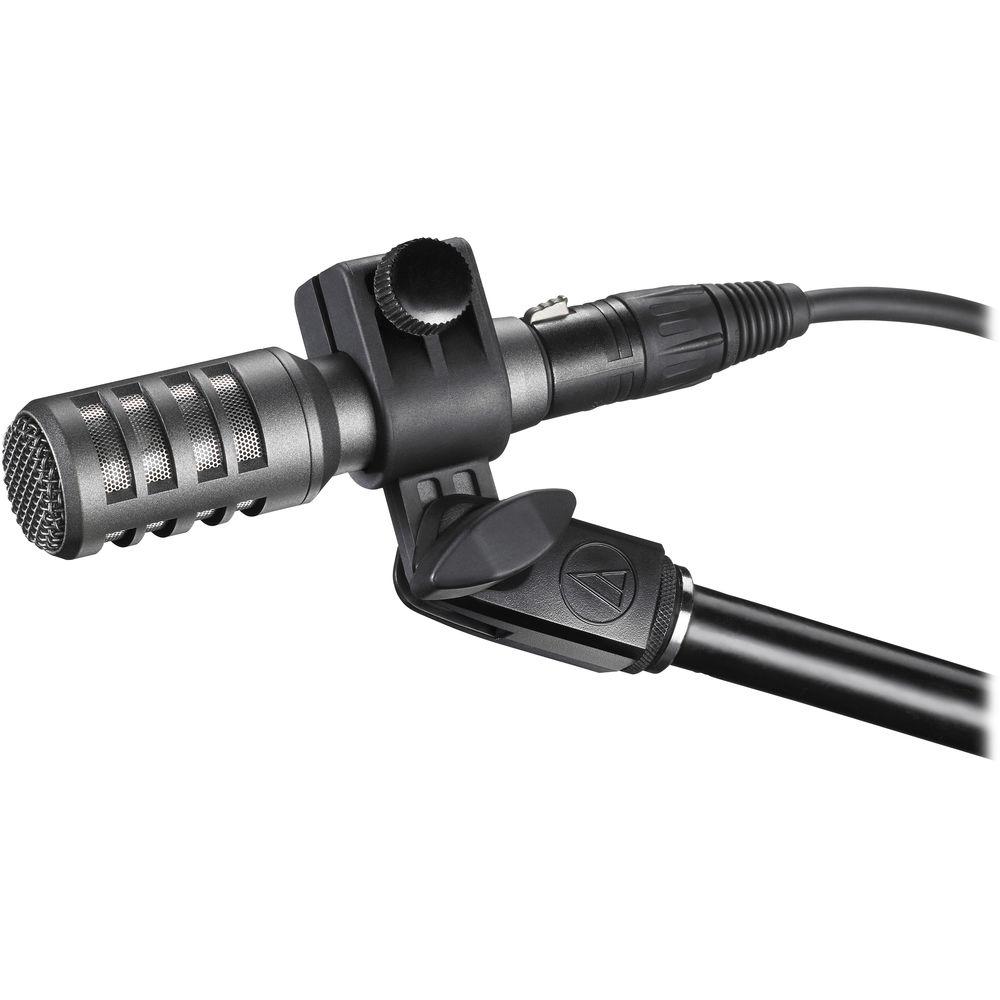

- Includes AT8471 isolation stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, and a soft protective pouch
In the Box Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone 8471 Isolation Clamp vurxqxevtsyazequfsdrsx 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AE2300 Specs | | | Sound Field | Mono | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 60 Hz to 20 kHz | | Impedance | 250 Ohms | | Sensitivity | -57 dBV/Pa | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 3.70" / 94 mm | | Diameter | 1.1" / 27.94 mm | | Weight | 4.87 oz / 138 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
