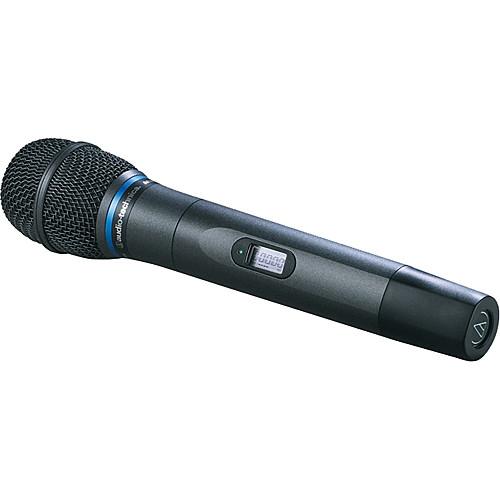

User Manual for Audio-Technica AEW-T5400A Cardioid Handheld Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Audio-Technica AEW-T5400A Cardioid Handheld Microphone Transmitter
- Product category: Wireless Transmitters Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Wireless Transmitters
|
User manual for the Audio-Technica AEW-T5400A Cardioid Handheld Microphone Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio Technica AEW-T5400A is a handheld microphone transmitter designed for use with the 5000 Series dual wireless microphone systems. The transmitter features a cardioid polar pattern, minimizing pick up at the off-axis sections of the capsule. This minimizes noise and provides higher gain before feed-back. The transmitter features a rugged, ergonomic metal design able to withstand rigorous road use. Additional features include IntelliScan automated frequency detection, On/Off/Mute switch and back-lit LCD display. The transmitter operates up to 10 hours on 2 AA alkaline batteries. - Cardioid Polar Pattern
- The AEW-T5400A features a cardioid pattern for optimum resistance against noise and feedback.
- Frequency Agile
- The system operates on UHF frequencies allowing greater channel selection and range. The transmitter and receiver feature 1000 user selectable channels.
- High Battery Life
- The transmitter operates up to 10 hours on 2 AA alkaline batteries.
In the Box Audio-Technica AEW-T5400A Cardioid Handheld Microphone Transmitter (Band D: 655.500 MHz to 680.375 MHz) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AEW-T5400A Cardioid Handheld Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AEW-T5400 Specs | Type of Transmitter | AEW-T5400A Frequency Agile Handheld | | # Of Channels | 1000 Channels | | Type of Input Connector | not applicable | | Type of Microphone | Dynamic | | Polar Pattern | Cardioid | | Interchangeable Mic Heads | No | | Frequency Response | 70 Hz to 15 kHz system response | | Battery Type/Approx. Life | (2) 1.5v AA Alkaline not included | | Mute Switch | Power / Mute switch dual function | | Level Control | Input Level Control: -6dB / 0dB / +6dB / +12dB | | Antenna Type | Internal | | Display | Back-Lit LCD Display & Battery / Signal Status LED | | Dimensions | 9.41 x 1.97" (239 x 50mm) (Length x Diameter) | | Weight | 2.4 lbs (1.1 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 11.1 x 3.0 x 2.8" |
