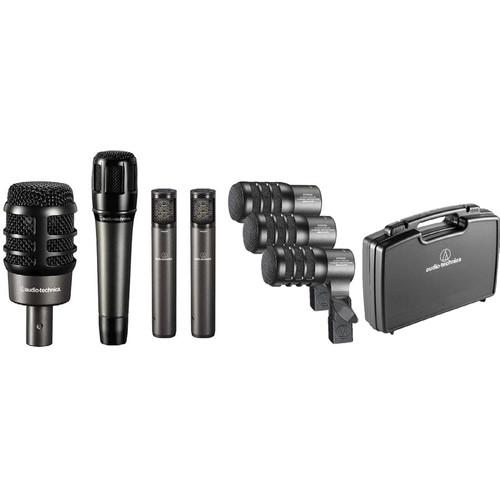

User Manual for Audio-Technica Artist Series Drum Kit Click to enlarge the picture
Contents of the user manual for the Audio-Technica Artist Series Drum Kit
- Product category: Instrument Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Instrument Microphones
|
User manual for the Audio-Technica Artist Series Drum Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description This Audio-Technica Artist Series Drum Microphone Set provides seven microphones suitable for the recording of drums. For your kick, use the ATM250, a dynamic, hypercardioid mic with low-end emphasis that flatters bass drums. The ATM650 with its hypercardioid polar pattern will work for your snare. Use the three ATM230 hypercardioid microphones to mic your tom drums. The two ATM450 microphones, with their high-pass filter switch at 80 Hz, are cardioid condenser microphones and can work as your overheads. A carrying case is included, as are mounting accessories. - ATM250 Dynamic Hypercardioid Instrument Microphone The Audio-Technica ATM250 is a dynamic microphone with a hypercardioid pick up pattern. The sensitivity is custom tailored to withstand high-sound pressure, ideal for capturing kick drum, brass, percussion, bass cabinets and other high-sound pressure sources. The neodymium magnet and output stage results in high gain and very low noise floor. The hypercardioid polar pattern delivers maximum off-axis signal and feedback rejection. The ATM250 includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
- High SPL Capability
- The ATM-250 is capable of capturing drums, brass, percussion and guitar cabinets at close proximity without distortion and noise.
- Optimized for Low Frequencies
- The frequency response is contoured for accurate, rich low-frequency response.
- Hypercardioid Polar Pattern
- The hypercardioid polar pattern is effective in rejecting off-axis noise and feedback.
- ATM650 Dynamic Hypercardioid Instrument Microphone The Audio-Technica ATM650 is a hypercardioid dynamic microphone designed for vocal or general instrument pickup. The rugged design of the ATM650 allows for a long term performance under the most adverse conditions. The ATM650 features a hypercardioid polar pattern for optimum rejection of off-axis noise and feedback. The wide frequency response is tailored for smooth, natural sound reproduction. The ATM650 is a workhorse solution for stage performances.
- Dynamic Element
- The dynamic element handles high-sound pressure without distortion and noise.
- Hypercardioid Polar Pattern
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
- Dual-Wall Floating Construction
- Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic.
- Hi-ENERGY Neodymium Magnet
- Hi-ENERGY neodymium magnet for articulate vocal reproduction.
- Multi-Stage Flat Grille
- Multi-stage flat grille design is engineered to enable easy placement as close as possible to sound source.
- ATM450 Cardioid Condenser Instrument Microphone The ATM450 Cardioid Condenser Instrument Microphone from Audio-Technica is designed with a side-address capsule, allowing for easy placement and flexible positioning on percussion, guitar cabinets, piano, and similar applications. The cardioid polar pattern is effective in reducing off-axis noise and feedback, and the wide frequency response results in rich, natural detail. There is a low frequency roll-off switch for reducing low frequency ambiance and noise and a -10 dB Pad switch for providing additional headroom and minimizing noise caused by transient peaks. The package includes an isolation clamp, an adapter, a windscreen, and a soft protective pouch.
- Side Address Capsule
- Side-address stick design maximizes placement options with minimal obstructions
- 80 Hz High Pass Filter
- Integral 80 Hz HPF switch minimizes low frequency noise
- 10 dB Pad
- -10 dB pad switch provides additional headroom and minimizes noise caused by peaking audio signal
- ATM230 Hypercardioid Dynamic Instrument Microphone The Audio-Technica ATM230 is a hypercardioid dynamic instrument microphone made for capturing drums and percussion. The mic's proprietary capsule is designed to excel in high-SPL applications, delivering full, well-rounded audio with accurate low-end reproduction.
The hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source. It also sports a low-profile design which allows for a wide variety of placements. The ATM230 is ideally suited for miking toms, snares, and other percussion instruments. -
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Handles high SPL at close range
- Big, warm low-frequency response with accurate attack
- Low-profile design permits versatile placement around drum kit
- Rare earth magnet for improved output and transient response
- Rugged, all-metal design and construction
- Includes AT8665 drum mount and a soft protective pouch
In the Box Bundle Items ATM250 Dynamic Hypercardioid Instrument Microphone eveaeyscyytxasavfyayzvbadwzxrwtdzzvy - 5/8"-27 to 3/8"-16 Threaded Adapter
ATM650 Dynamic Hypercardioid Instrument Microphone - AT8470 Quiet-Flex Mic Clamp
- 5/8"-27 to 3/8"-16 Threaded Adapter
2 x ATM450 Cardioid Condenser Instrument Microphone - 5/8"-27 to 3/8"-16 Threaded Adapter
3 x ATM230 Hypercardioid Dynamic Instrument Microphone
Also Includes - Carrying Case with Accessories
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica Artist Series Drum Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ATM250 Dynamic Hypercardioid Instrument Microphone
| Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 40 Hz to 15 kHz | | Dynamic Range (Typical) | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Maximum Input Sound Level | Not specified by manufacturer | | Power Requirements | Dynamic Element, No Power Required | | Output Impedance | 600 Ohms | | Output Connectors | 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 5.02 x 2.17" / 127.5 x 55 mm (Length x Diameter) | | Weight | 8.9 oz / 252 g | | | | Box Dimensions (LxWxH) | 9.6 x 5.2 x 3.1" | - ATM650 Dynamic Hypercardioid Instrument Microphone
| Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Response | 80 Hz to 17 kHz | | Dynamic Range (Typical) | Not specified by manufacturer | | Signal-to-Noise Ratio | Not specified by manufacturer | | Maximum Input Sound Level | Not specified by manufacturer | | Power Requirements | Dynamic Element phantom power not required | | Output Impedance | 300 Ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 6.46 x 1.53" / 164 x 38.8 mm (Length x Diameter) | | Weight | 9.8 oz / 279 g | | | | Box Dimensions (LxWxH) | 9.6 x 5.2 x 2.8" | - ATM450 Cardioid Condenser Instrument Microphone
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 40 Hz to 20 kHz | | Signal to Noise Ratio | 69 dB | | Maximum SPL | 152 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -41 dB | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 127 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.5 mA | | Operating Voltage | 11 to 52 V | | Length | 5.00" / 126.9 mm | | Diameter | 0.83" / 21 mm | | Weight | 3.46 oz / 98 g | | | | Box Dimensions (LxWxH) | 9.5 x 5.1 x 2.8" | - ATM230 Hypercardioid Dynamic Instrument Microphone
| | | Sound Field | Mono | | Transducer | Dynamic | | Polar Pattern | Hypercardioid | | Frequency Range | 30 Hz to 12 kHz | | Impedance | 600 Ohms | | Sensitivity | 54 dBV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 3.25" / 82.5 mm | | Diameter | 1.5" / 38.10 mm | | Weight | 10.3 oz / 292 g | | | | Box Dimensions (LxWxH) | 9.65 x 5.12 x 2.76" |
