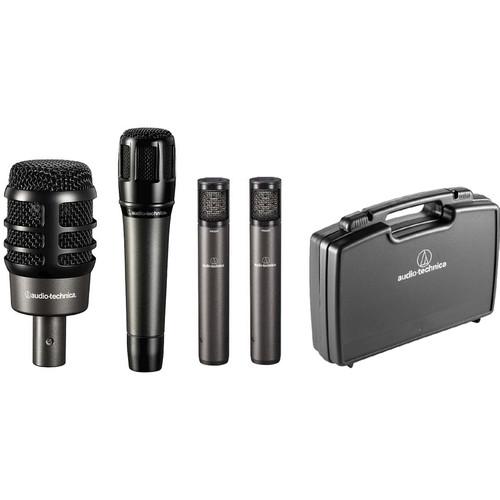

Audio-Technica Artist Series Drum Microphone Set

User Manual for Audio-Technica Artist Series Drum Microphone Set

• Product category: Instrument Microphones Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Instrument Microphones

Product description

• ATM250 Dynamic Hypercardioid Instrument Microphone The Audio-Technica ATM250 is a dynamic microphone with a hypercardioid pick up pattern. The sensitivity is custom tailored to withstand high-sound pressure, ideal for capturing kick drum, brass, percussion, bass cabinets and other high-sound pressure sources. The neodymium magnet and output stage results in high gain and very low noise floor. The hypercardioid polar pattern delivers maximum off-axis signal and feedback rejection. The ATM250 includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
  High SPL Capability
  • The ATM-250 is capable of capturing drums, brass, percussion and guitar cabinets at close proximity without distortion and noise.
  Optimized for Low Frequencies
  • The frequency response is contoured for accurate, rich low-frequency response.
  Hypercardioid Polar Pattern
  • The hypercardioid polar pattern is effective in rejecting off-axis noise and feedback.
• ATM650 Dynamic Hypercardioid Instrument Microphone The Audio-Technica ATM650 is a hypercardioid dynamic microphone designed for vocal or general instrument pickup. The rugged design of the ATM650 allows for a long term performance under the most adverse conditions. The ATM650 features a hypercardioid polar pattern for optimum rejection of off-axis noise and feedback. The wide frequency response is tailored for smooth, natural sound reproduction. The ATM650 is a workhorse solution for stage performances.
  Dynamic Element
  • The dynamic element handles high-sound pressure without distortion and noise.
  Hypercardioid Polar Pattern
  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
  Dual-Wall Floating Construction
  • Special dual-wall floating construction reduces handling noise and assures consistent performance from mic to mic.
  Hi-ENERGY Neodymium Magnet
  • Hi-ENERGY neodymium magnet for articulate vocal reproduction.
  Multi-Stage Flat Grille
  • Multi-stage flat grille design is engineered to enable easy placement as close as possible to sound source.
• ATM450 Cardioid Condenser Instrument Microphone The ATM450 Cardioid Condenser Instrument Microphone from Audio-Technica is designed with a side-address capsule, allowing for easy placement and flexible positioning on percussion, guitar cabinets, piano, and similar applications. The cardioid polar pattern is effective in reducing off-axis noise and feedback, and the wide frequency response results in rich, natural detail. There is a low frequency roll-off switch for reducing low frequency ambiance and noise and a -10 dB Pad switch for providing additional headroom and minimizing noise caused by transient peaks. The package includes an isolation clamp, an adapter, a windscreen, and a soft protective pouch.
  Side Address Capsule
  • Side-address stick design maximizes placement options with minimal obstructions
  80 Hz High Pass Filter
  • Integral 80 Hz HPF switch minimizes low frequency noise
  10 dB Pad
  • -10 dB pad switch provides additional headroom and minimizes noise caused by peaking audio signal

• 8471 Isolation Clamp

• 5/8"-27 to 3/8"-16 Threaded Adapter

• Soft Protective Pouch

• Limited 2-Year Warranty

• AT8470 Quiet-Flex Mic Clamp

• 5/8"-27 to 3/8"-16 Threaded Adapter

• Soft Protective Pouch

• Limited 2-Year Warranty

• 8471 Isolation Clamp

• 5/8"-27 to 3/8"-16 Threaded Adapter

• Windscreen

• Soft Protective Pouch

• Limited 2-Year Warranty

Also Includes

• Carrying Case and Accessories
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• ATM250 Dynamic Hypercardioid Instrument Microphone

  Transducer	Dynamic
  Polar Pattern	Hypercardioid
  Frequency Response	40 Hz to 15 kHz
  Dynamic Range (Typical)	Not specified by manufacturer
  Signal-to-Noise Ratio	Not specified by manufacturer
  Maximum Input Sound Level	Not specified by manufacturer
  Power Requirements	Dynamic Element, No Power Required
  Output Impedance	600 Ohms
  Output Connectors	3-pin XLR
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	5.02 x 2.17" / 127.5 x 55 mm (Length x Diameter)
  Weight	8.9 oz / 252 g

  Box Dimensions (LxWxH)	9.6 x 5.2 x 3.1"

• ATM650 Dynamic Hypercardioid Instrument Microphone

  Transducer	Dynamic
  Polar Pattern	Hypercardioid
  Frequency Response	80 Hz to 17 kHz
  Dynamic Range (Typical)	Not specified by manufacturer
  Signal-to-Noise Ratio	Not specified by manufacturer
  Maximum Input Sound Level	Not specified by manufacturer
  Power Requirements	Dynamic Element phantom power not required
  Output Impedance	300 Ohms
  Output Connectors	Integral 3-pin XLRM-type
  Pad	No
  Low Frequency Roll-Off	No
  Dimensions	6.46 x 1.53" / 164 x 38.8 mm (Length x Diameter)
  Weight	9.8 oz / 279 g

  Box Dimensions (LxWxH)	9.6 x 5.2 x 2.8"

• ATM450 Cardioid Condenser Instrument Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	40 Hz to 20 kHz
  Signal to Noise Ratio	69 dB
  Maximum SPL	152 dB SPL
  Pad	-10 dB
  THD	1%
  Impedance	200 Ohms
  Sensitivity	-41 dB
  Low-Cut Filter	18 dB/Octave @ 80 Hz
  Dynamic Range	127 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	3.5 mA
  Operating Voltage	11 to 52 V
  Length	5.00" / 126.9 mm
  Diameter	0.83" / 21 mm
  Weight	3.46 oz / 98 g

  Box Dimensions (LxWxH)	9.5 x 5.1 x 2.8"
