Audio-Technica AT-875 - Shotgun Microphone Basic

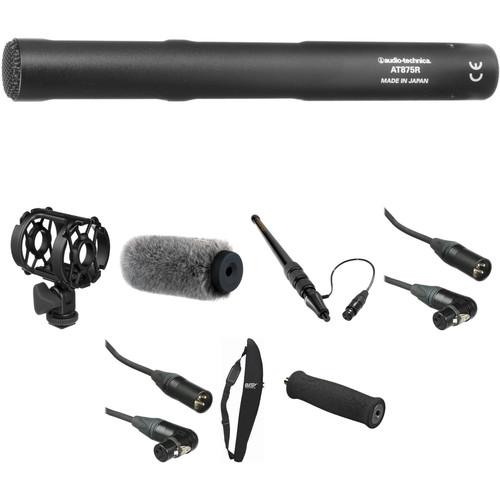

User Manual for Audio-Technica AT-875 - Shotgun Microphone Basic Kit

• Product category: Shotgun Microphones Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Shotgun Microphones

Product description

• Audio-Technica AT875R Line and Gradient Condenser Microphone The AT875R from Audio-Technica is a line and gradient condenser, phantom powered, short (7") shotgun microphone for capturing audio. It can be used in various environments for applications such as videos, TV broadcasts, and ENG (Electronic News Gathering) productions. The high-performance microphone features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of the mic. The AT875R operates on 11 to 52V phantom power, and has a standard XLR output connector and is compatible with some of the smaller professional cameras.
  Short Length
  • The AT875R measures about seven inches in length and is suitable for use with small video cameras
  Excellent Audio Rejection
  • Excellent off-axis audio rejection provides greater range and excellent fidelity in noisy environments
  Smooth Audio Reproduction
  • The AT875R captures nuances and detail with great accuracy
  Phantom Powered
  • The microphone is powered with 11 to 52V phantom power
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm) The Auray WSS Series Professional Windshields deliver superior 360° wind protection with acoustic transparency. They are engineered for dramatic reduction of unwanted broadband wind noise and vocal pops with very little high frequency loss, for exceptionally accurate recordings.

  This WSS-2012 Professional Windshield has an inside depth of 12cm and is designed for use with many shotgun microphones. It features a specially manufactured open-cell foam matrix surrounded by a layer of 25mm-thick simulated rabbit fur. This diffusion technology lowers wind velocity in a controlled air space around the microphone, thereby reducing wind noise without muffling the sound. It also features an airtight tapered rubber base that seals out wind from the rear of the microphone, greatly improving isolation and rear wind protection.

  When used on a shotgun microphone, this slip-on windshield is effective in minimizing wind noise and plosive sounds. It is most effective in light breeze to strong breeze conditions (4-25 mph) and users can generally expect a 24dB to 40dB reduction in wind noise with negligible dampening of high frequencies. For most applications, the negligible high frequency dampening is a worthwhile exchange for the dramatic wind noise reduction.

  In addition to superior 360° wind protection, the WSS-2012 helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Audio Technica, Sennheiser, Sony and others.

  The WSS-2012 Professional Windshield for Shotgun Microphones is an advanced solution for outstanding wind protection with acoustic transparency.
  Fits these and other similar sized microphones:
  • Audio-Technica BP4073, AT875R, AT 877, MC-230
  • Azden SGM-PD2
  • Ikegami HL DNS-201W, HL DV-7W, HLV 9, 55, 77, MC-10, 11, 230
  • Panasonic AJ HDC 27, AJ HDX 900, AJ MC 700P, 900P, AJD-700, 800, 910, DV 200, DVC200
  • Schoeps CMIT 5U
  • Shure VP82
  • Sennheiser MKH-8060, MKE-600
  • Sony ECM 673, 674, ECM NV1 (Camera Mic for BVP-550, 570, 950, DSR 130P, 200, 250, 300, PD150, 170, HVR A1U, V1, UVW-100)
  • Zoom SGH-6 (Capsule for H6)
  UPC: 847628552708
• Auray ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable (7') The ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable from Auray is designed to accommodate Electronic News Gathering (ENG), Electronic Field Production (EFP), documentary, and other field recording applications. Adjustable from about 2 to 7', it allows you to place a microphone in close proximity to the subject, while remaining at a distance and out of the frame.

  Auray ABP poles are manufactured with sturdy lightweight aluminum ensuring portability and reliability. Ergonomic twist locks along with anti-twist alignment make length adjustment effortless, and smooth telescoping is assured even in the most challenging conditions in the field.

  The high-quality coiled cable features an XLR connector and an XLR insert connector that provide secure connections and excellent signal transfer. This cable also features a unique strain relief system that absorbs tension, secures the cable, and protects the cable from damage at the edge of the tip exit. To see a complete list of Auray's selection of boom poles, please click heredqbxyseqfdfbxf.
  Coiled XLR Cable
  • The integrated coiled XLR cable smoothly extends and retracts with the telescoping tubes
  Rean XLR Connector
  • Rean XLR connector manufactured by Rean, a trademark of Neutrik
  Versatile
  • The ABP boom poles are Ideal for distance microphone placement during ENG and EFP recording projects
  Sturdy and Lightweight
  • Each boom pole is manufactured with sturdy lightweight aluminum for portability and reliability
  Smooth Telescoping
  • The ABP boom pole allows for smooth telescoping for easy expansion and length adjustment even in extreme conditions during road use
  Twist Locks
  • The ergonomic twist locks are comfortable to grip and facilitate fast and effortless length adjustment
  Removable Tip
  • Custom removable tip and drop-through design for replacing the coiled XLR cable fast and easy, without the need of any special tools
  UPC: 847628571242
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• Auray Universal Microphone Pistol Grip The Auray Universal Microphone Pistol Grip is a handheld grip that features an ergonomic cushioned handle. This grip is great in "run & gun" situations in which a boom pole would be cumbersome, and in video scenarios in which the cameraman is also responsible for audio recording. The grip can be held with one hand, as opposed to a boom pole which requires two. It also provides the option of being able to record audio from a different direction than the camera is pointing, an advantage over camera mounting the mic. Furthermore, having the mic mounted off the camera prevents it from picking up motor noise from the lens focusing.

  In addition, the grip features standard 3/8" threads on both ends. This allows you to attach your shotgun mic (with shockmount) to one end of the grip and mount the other end to a boom pole. This gives you the flexibility of being able to quickly detach the pistol grip and the attached shotgun mic from the boom, an option that can come in handy for entering areas that are too small for a boom pole. UPC: 847628562738

• AT875R Short Condenser Shotgun Microphone for Video Applications dqbxyseqfdfbxf
• AT8405 Microphone Stand Clip
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Foam Windscreen
• Soft Protective Pouch
• Limited 5-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Auray - WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)

• Auray - ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable (7')

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• Auray - Universal Microphone Pistol Grip

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT875R Line and Gradient Condenser Microphone

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Polar Pattern	Supercardioid
  Frequency Range	90 Hz to 20 kHz
  Signal to Noise Ratio	74 dB
  Maximum SPL	127 dB SPL
  THD	1%
  Impedance	100 Ohms ± 1%
  Sensitivity	-30 dB
  Dynamic Range	107 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	11 to 52 V
  Length	6.89" / 175.01 mm
  Diameter	0.83" / 21.08 mm
  Weight	2.8 oz / 79 g

  Box Dimensions (LxWxH)	9.6 x 5.2 x 2.9"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Auray WSS-2012 Professional Windshield for Shotgun Microphones - (12cm)

  Compatible Mic Diameter	0.75 to 0.9" / 19 to 23 mm
  Inner Depth	4.7" / 12 cm

  Box Dimensions (LxWxH)	11.4 x 4.2 x 3.2"

• Auray ABP-47B Aluminum Telescoping Boom Pole with Integrated XLR Cable (7')

  Sections	4
  Minimum Length	2.3' (0.7 m)
  Maximum Length	7.3' (2.2 m)
  Weight	1.45 lb. (0.66 kg)

  Box Dimensions (LxWxH)	31.0 x 2.8 x 1.5"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• Auray Universal Microphone Pistol Grip

  Box Dimensions (LxWxH)	6.1 x 2.8 x 1.7"
