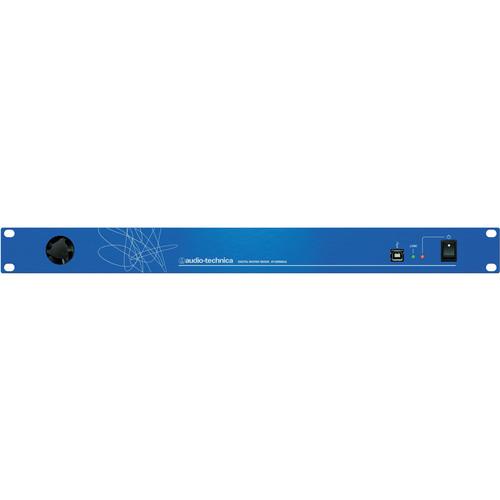

User Manual for Audio-Technica AT-DMM828 SmartMixer - Eight-Channel Digital Matrix Mixer Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT-DMM828 SmartMixer - Eight-Channel Digital
- Product category: System Processors Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica System Processors
|
User manual for the Audio-Technica AT-DMM828 SmartMixer - Eight-Channel Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica AT-DMM828 SmartMixer is designed for automatic mixing within installed sound applications such as for houses of worship, broadcast companies, and conferencing. The 1 RU rackmountable mixer is controlled through a Windows software GUI and will automatically keep the number of open microphones being mixed down to a minimum to reduce background room noise and feedback.
The mixer features eight balanced inputs over phoenix connectors that can use either microphone or line level signals. Each input offers +48 VDC of individually selectable phantom power, individual gain and volume controls, adjustable gate attenuation, and an individually adjustable low-cut filter. The mixer can connect to a Windows PC via RS232 and USB data points for use with Audio-Technica's SmartMixer Software.
The system includes select-able Number of Open Mics Attenuated (NOMA) circuitry that helps control feedback and features a priority pre-select setting that lets the priority of each microphone be independently assigned. The last mic on can also be selected to maintain continuous room ambiance. The mixing software also enables the use of the device's external contact closures to force connected devices to turn on or off. A VCA control enables the volume to be adjusted up or down.
The mixer features eight balanced audio outputs on phoenix connectors to drive amplification systems and other equipment. The unit is compatible with both Crestron and AMX systems, and up to sixteen units can be linked together for a total of 128 channels. - SmartMixer Software
- Enables control over automatic digital mixer using Windows PC connected via RS232 or USB
- Linking Multiple Units
- Enables up to sixteen units to be connected for a total of 128 channels
- Contact Enclosures
- Forces connected devices to turn on or off
- Number of Open Mics Attenuated Circuitry
- Helps control feedback
- Selectable Last Mic On
- Provides continuous room ambiance
- Eight Balanced Audio Outputs
- Drive amplification systems or other equipment
- Rack Mount
- Enables installation of mixer into a 19" rack
UPC: 042005182596 In the Box Audio-Technica AT-DMM828 SmartMixer - Eight-Channel Digital Matrix Mixer Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT-DMM828 SmartMixer - Eight-Channel Digital Matrix Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT-DMM828 Specs | PC Requirements | Windows | | I/O | 8x balanced selectable microphone or line level audio inputs via Phoenix connectors
8x balanced audio outputs via Phoenix connectors | | Computer I/O | USB
RS232 | | Input Impedance | Mic level: 6600 Ω
Line level: 8500 Ω | | Output Impedance | Balanced: 200 Ω | | Maximum Input Level | -42 dBU (gain at max) | | Maximum Output Level | 24 dBm (THD+N at 1%) | | Maximum Gain | 64 dB | | Frequency Response | 20 to 20,000 Hz (± 3 dB) | | Equivalent Input Noise | -120 dBu | | Phantom Power | +48 VDC | | Control Voltage Out | 3.3 VDC | | Power Supply | 100/240 VAC auto select 50/60 Hz | | Power Requirements | 20 W | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Dimensions (W x D x H) | 18.98 x 9.05 x 1.75" (482 x 230 x 44.0 mm)
Not including feet, knobs, and connectors | | Weight | 5 lb 5 oz (2.4 kg) |
