User Manual for Audio-Technica AT2005USB Cardioid Dynamic USB XLR Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2005USB Cardioid Dynamic USB XLR
- Product category: USB Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica USB Microphones
 |
User manual for the Audio-Technica AT2005USB Cardioid Dynamic USB XLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

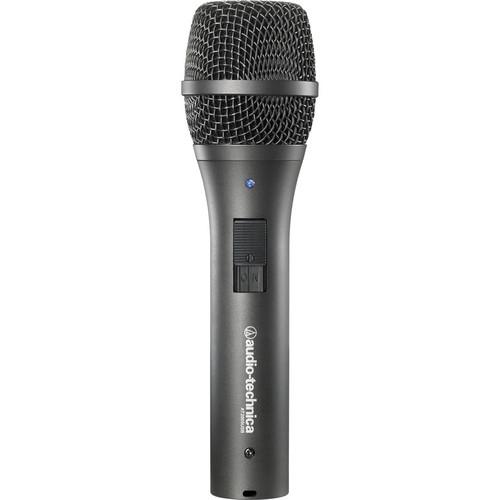

Product description The AT2005USB Cardioid Dynamic USB/XLR Microphone from Audio-Technica is a versatile handheld microphone with USB and XLR outputs. The microphone may be connected to an XLR input while simultaneously recording to your favorite Mac or Windows OS software. The AT2005USB features a rugged, handheld build and an extended frequency response for maximum detail. High quality 16-bit, 44.1 and 48 kHz converters ensure high resolution and quality digital recordings. The AT2005USB also features a headphone output and adjustable level control for accurate, latency-free monitoring. The AT2005USB ships with an XLR cable, USB cable and tripod desk stand ideal for singers, podcasters, and more. - Handheld dynamic microphone with USB digital output and XLR analog output
- USB output connects to your computer for digital recording, while the XLR output connects with your sound system's conventional microphone input for use in live performance
- Smooth, extended frequency response ideally suited for podcasting, home studio recording, field recording, voiceover, and on-stage use

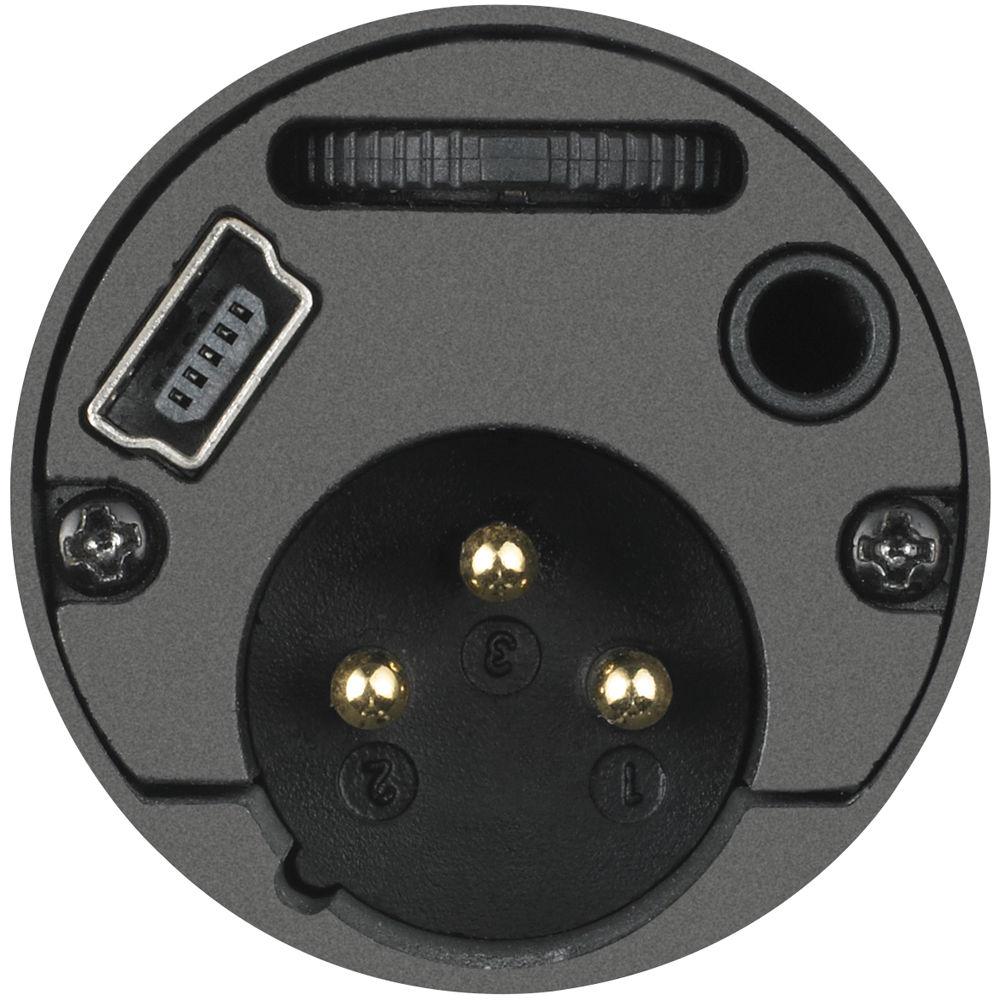

- Built-in headphone jack allows you to directly monitor from your microphone
- Adjust headphone volume with easy-to-use controls on the bottom of the microphone
- High-quality AD convertor with 16 Bit, 44.1/48 kHz sampling rate
- Compatible with Windows and Mac
- Low-mass diaphragm provides excellent frequency response
- Cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear, improving isolation of desired sound source

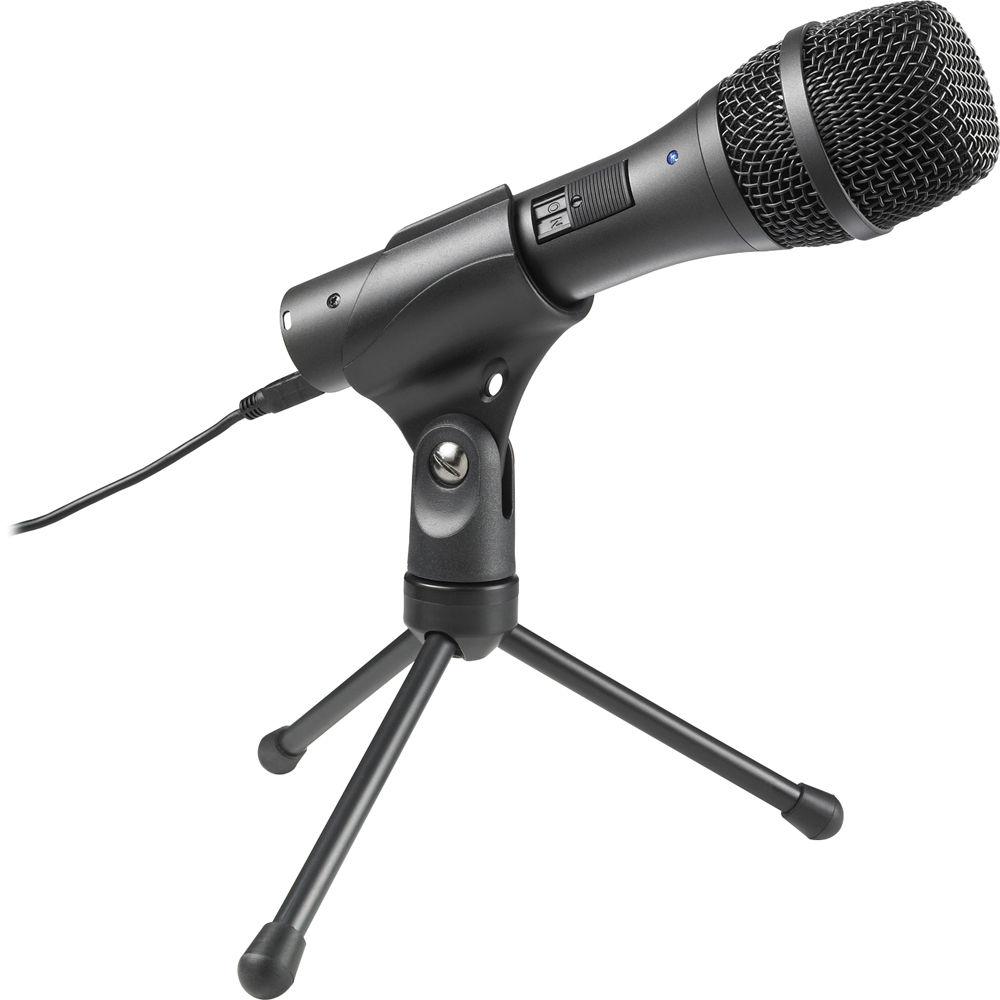

- Tripod desk stand with folding legs for secure and easily portable tabletop use
- Threaded stand clamp attaches securely to the supplied tripod or to a conventional microphone stand
- USB and XLR cables included
- Durable metal construction for long-lasting performance
- On/off switch functions for both USB and analog operation

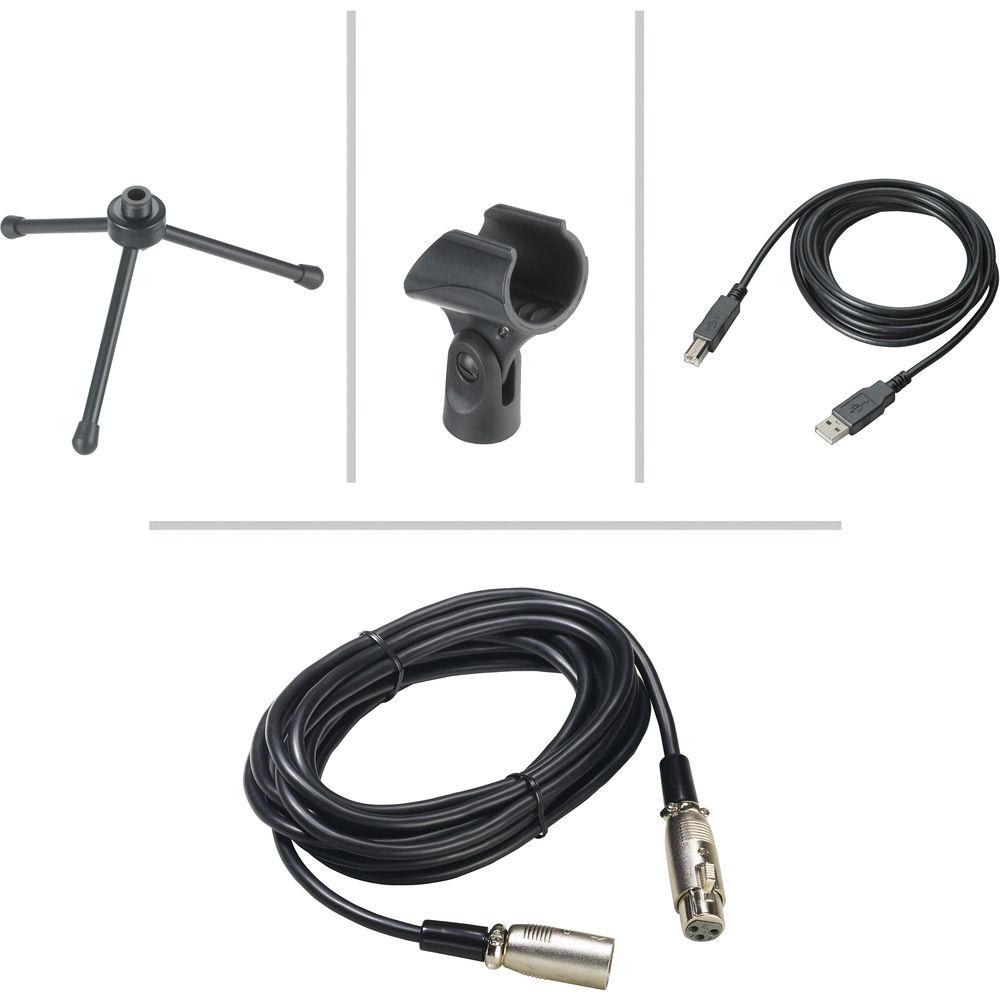

UPC: 042005175154 In the Box Audio-Technica AT2005USB Cardioid Dynamic USB/XLR Microphone Stand Clamp for 5/8"-27 Threaded Stands Tripod Desk Stand 6.6' Mini USB Cable 9.8' XLR to XLR Limited 1-Year Warranty User Manual PDF 927.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2005USB Cardioid Dynamic USB XLR Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT2005 Specs | | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 15 kHz | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | RAM | 64 MB Minimum | | Available Port | USB (Interface Unspecified) | | | | Output Connectors | 1 x 3-Pin XLR
1 x USB (Type Unspecified) | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Length | 7.23" / 183.64 mm | | Diameter | 2.01" / 51.05 mm | | Weight | 9.4 oz / 266 g | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.1 x 9.8 x 2.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
