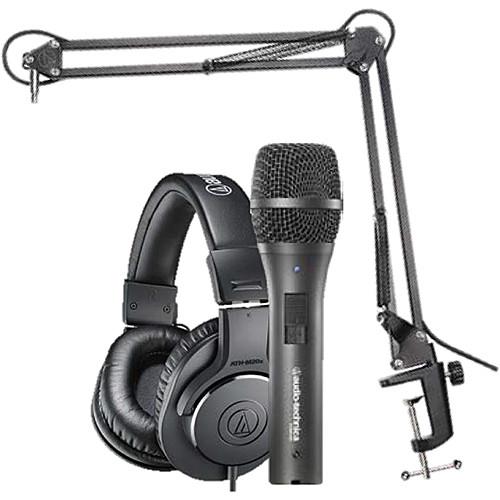

Product description This Audio-Technica bundle brings together an AT2005USB Cardioid Dynamic Microphone, a pair of ATH-M20x Headphones, and a boom with a mini-USB cable for connecting the mic to your computer. As such, it's suitable for podcasters and voice-over artists. The microphone provides USB and XLR outputs, as well as a frequency response of 50 Hz to 15 kHz, a cardioid pattern that rejects off-axis sound, and a headphone monitoring output. It also records audio at 16-bit resolutions and sample rates up to 48 kHz. The circumaural ATH-M20x headphones provides 40mm neodymium drivers. They offer a frequency response of 15 Hz to 20 kHz and a 9.8' cable length. - AT2005USB Cardioid Dynamic USB/XLR Microphone The AT2005USB Cardioid Dynamic USB/XLR Microphone from Audio-Technica is a versatile handheld microphone with USB and XLR outputs. The microphone may be connected to an XLR input while simultaneously recording to your favorite Mac or Windows OS software. The AT2005USB features a rugged, handheld build and an extended frequency response for maximum detail. High quality 16-bit, 44.1 and 48 kHz converters ensure high resolution and quality digital recordings. The AT2005USB also features a headphone output and adjustable level control for accurate, latency-free monitoring. The AT2005USB ships with an XLR cable, USB cable and tripod desk stand ideal for singers, podcasters, and more.
- Handheld dynamic microphone with USB digital output and XLR analog output

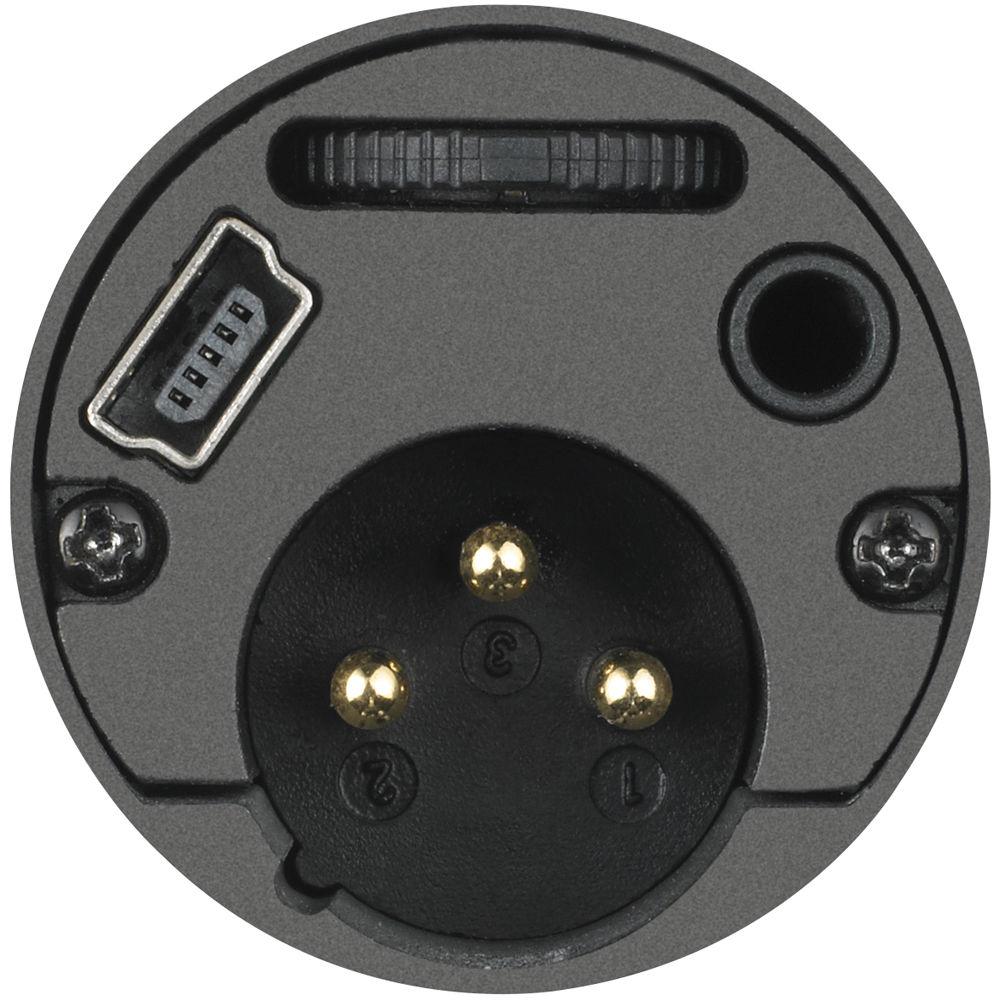

- USB output connects to your computer for digital recording, while the XLR output connects with your sound system's conventional microphone input for use in live performance
- Smooth, extended frequency response ideally suited for podcasting, home studio recording, field recording, voiceover, and on-stage use
- Built-in headphone jack allows you to directly monitor from your microphone
- Adjust headphone volume with easy-to-use controls on the bottom of the microphone
- High-quality AD convertor with 16 Bit, 44.1/48 kHz sampling rate
- Compatible with Windows and Mac
- Low-mass diaphragm provides excellent frequency response
- Cardioid polar pattern reduces pickup of unwanted sounds from the sides and rear, improving isolation of desired sound source

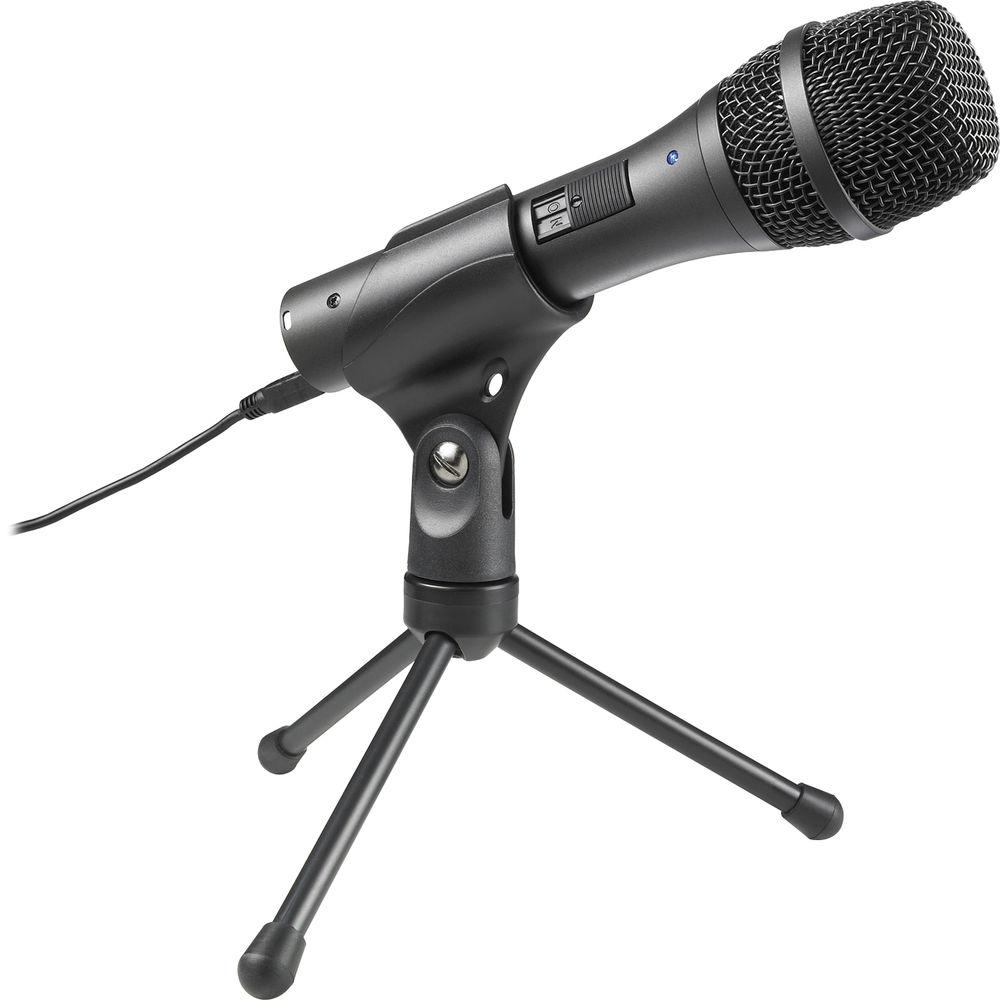

- Tripod desk stand with folding legs for secure and easily portable tabletop use
- Threaded stand clamp attaches securely to the supplied tripod or to a conventional microphone stand

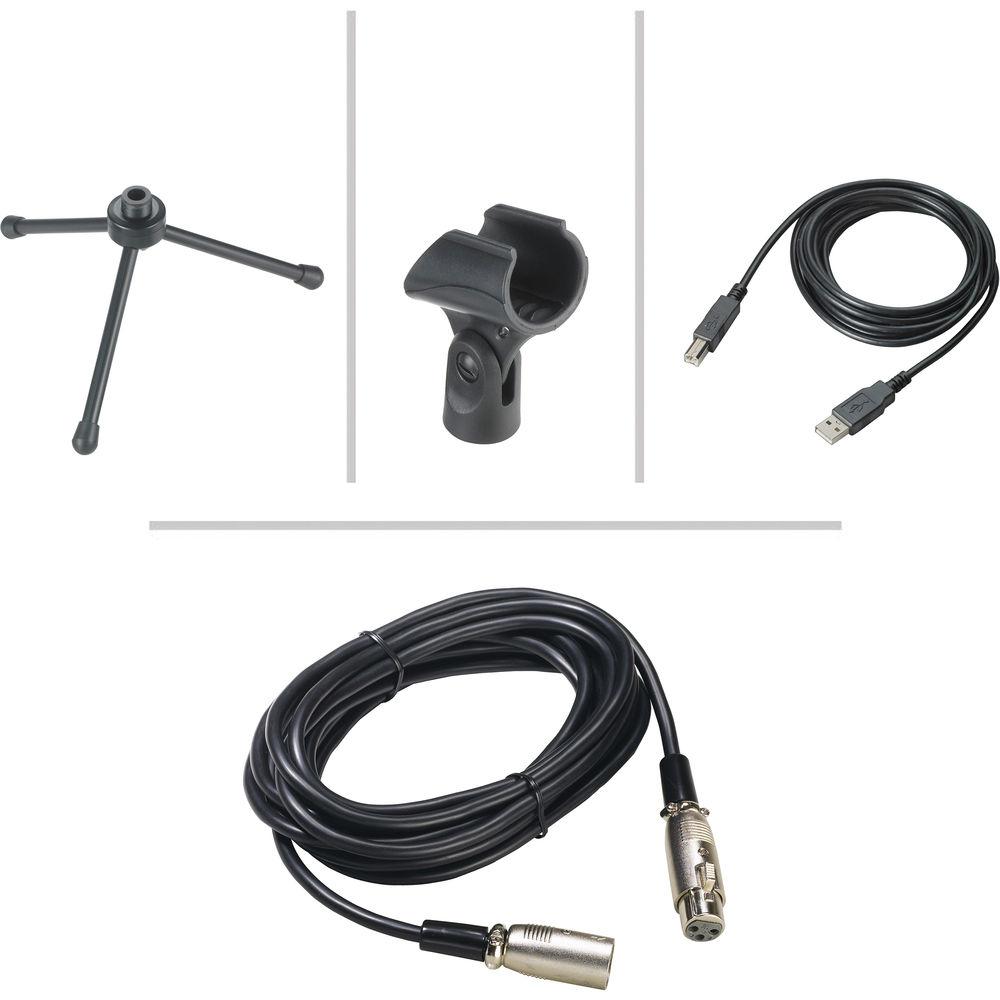

- USB and XLR cables included
- Durable metal construction for long-lasting performance
- On/off switch functions for both USB and analog operation

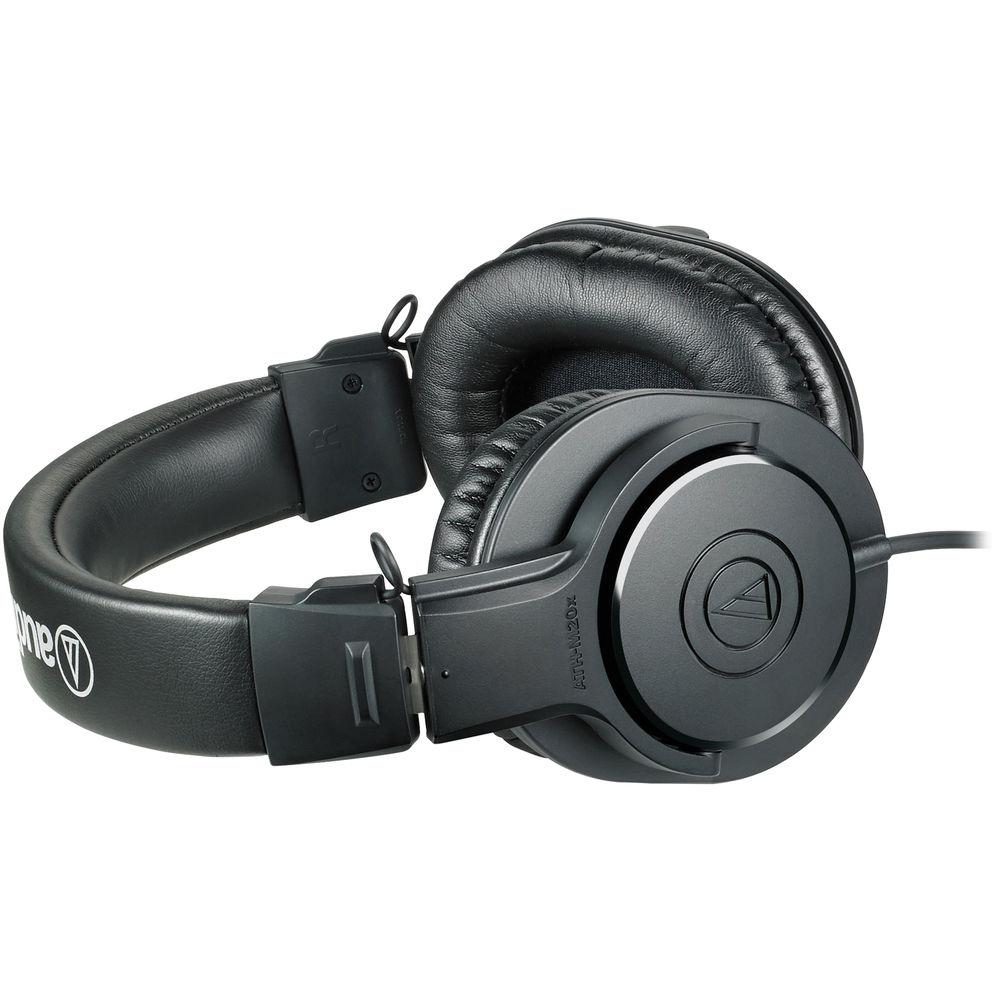

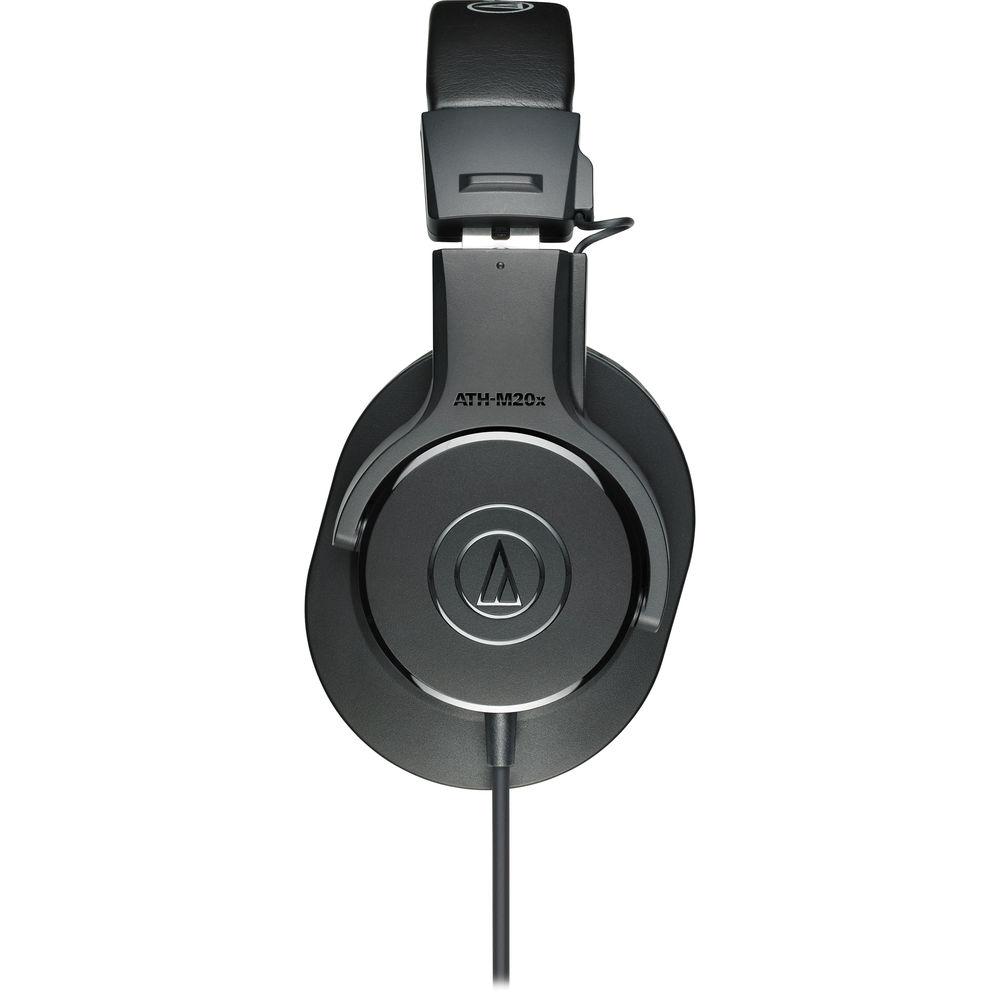

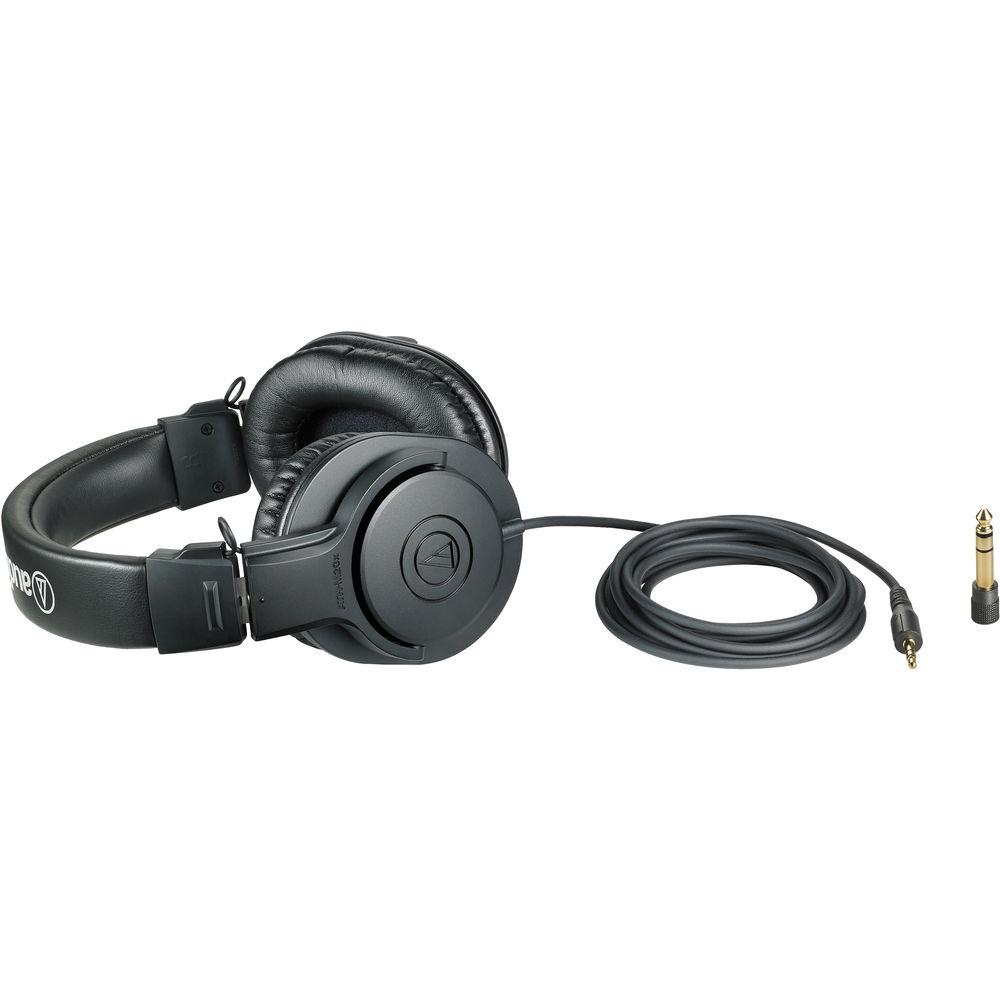

UPC: 042005175154 - ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.
In the Box Bundle Items AT2005USB Cardioid Dynamic USB/XLR Microphone xxuyexxzrcdfwccasrbfwawvseysfvayac - Stand Clamp for 5/8"-27 Threaded Stands
ATH-M20x Monitor Headphones (Black)
Also Includes - Boom with Mini-USB Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2005USB Microphone Pack with ATH-M20x, Boom & Mini-USB Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT2005USB Cardioid Dynamic USB/XLR Microphone
| | | Transducer | Dynamic | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 15 kHz | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | RAM | 64 MB Minimum | | Available Port | USB (Interface Unspecified) | | | | Output Connectors | 1 x 3-Pin XLR
1 x USB (Type Unspecified) | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Length | 7.23" / 183.64 mm | | Diameter | 2.01" / 51.05 mm | | Weight | 9.4 oz / 266 g | | | | Box Dimensions (LxWxH) | 10.1 x 9.8 x 2.3" | - ATH-M20x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 96 dB | | Impedance | 47 Ohms | | Maximum Power Handling | 700 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 2.9" |
