User Manual for Audio-Technica AT2020 Studio Microphone Pack with ATH-M20x, Boom & XLR Cable Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2020 Studio Microphone Pack with
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT2020 Studio Microphone Pack with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

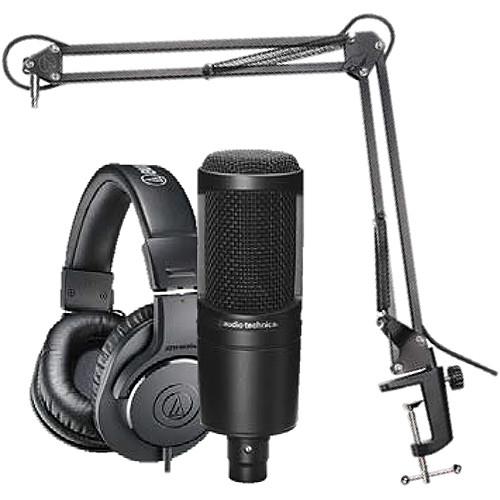

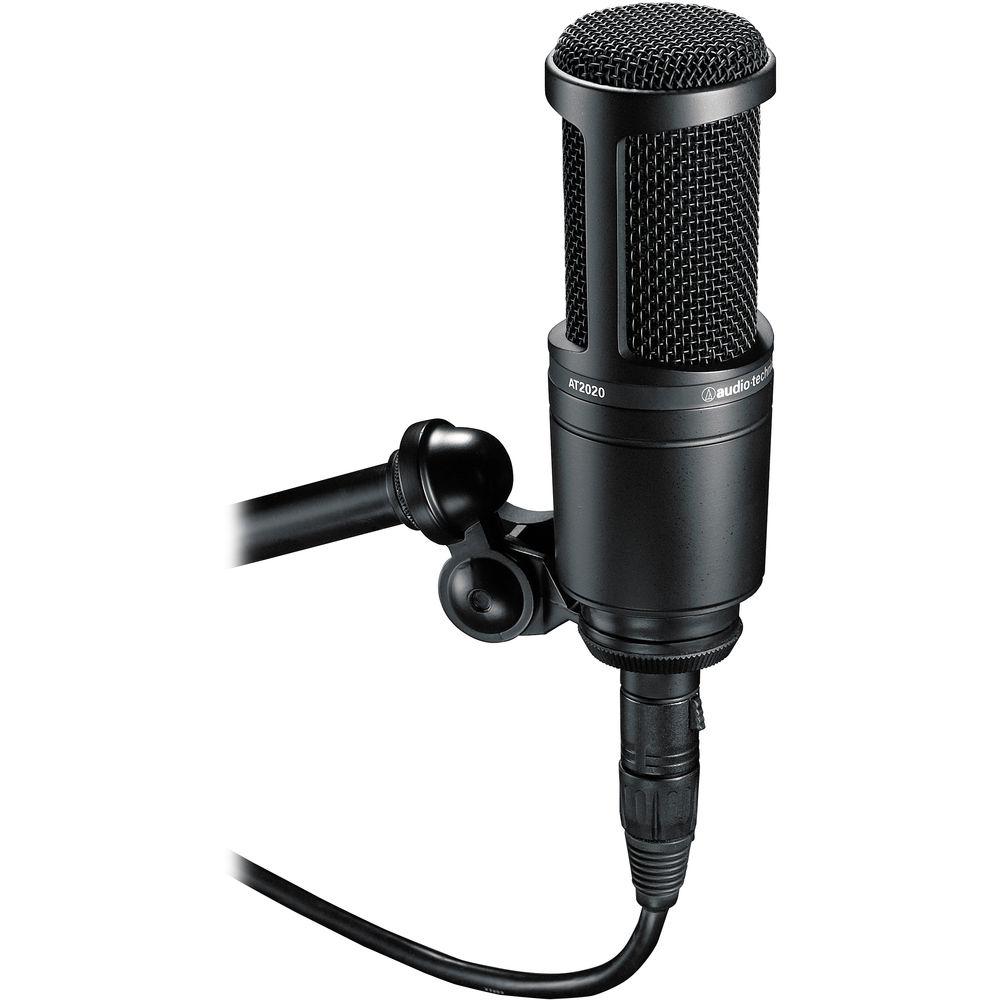

Product description This Audio-Technica bundle includes an AT2020 Cardioid Condenser Microphone, a pair of ATH-M20x Headphones, and a boom with an XLR cable. As such, it's suitable for podcasters and voice-over artists. The side-address condenser microphone gives you a cardioid pattern that rejects off-axis sound and handles up to 144 dB SPL without distortion. The circumaural ATH-M20x headphones provide 40mm neodymium drivers. They offer a frequency response of 15 Hz to 20 kHz and a 9.8' cable length. - AT2020 Cardioid Condenser Microphone The AT2020 Cardioid Condenser Microphone from Audio-Technica is designed for vocal and general instrument capturing in project and professional studio environments. The capsule features a low-mass, side-address diaphragm with a cardioid polar pattern for rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 20 kHz enables the flexibility to accurately reproduce signals from a wide variety of sources. High SPL handling and wide dynamic range allow the AT2020 to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning.
- Suitable for project/home-studio applications
- High SPL handling and wide dynamic range provide maximum versatility
- Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

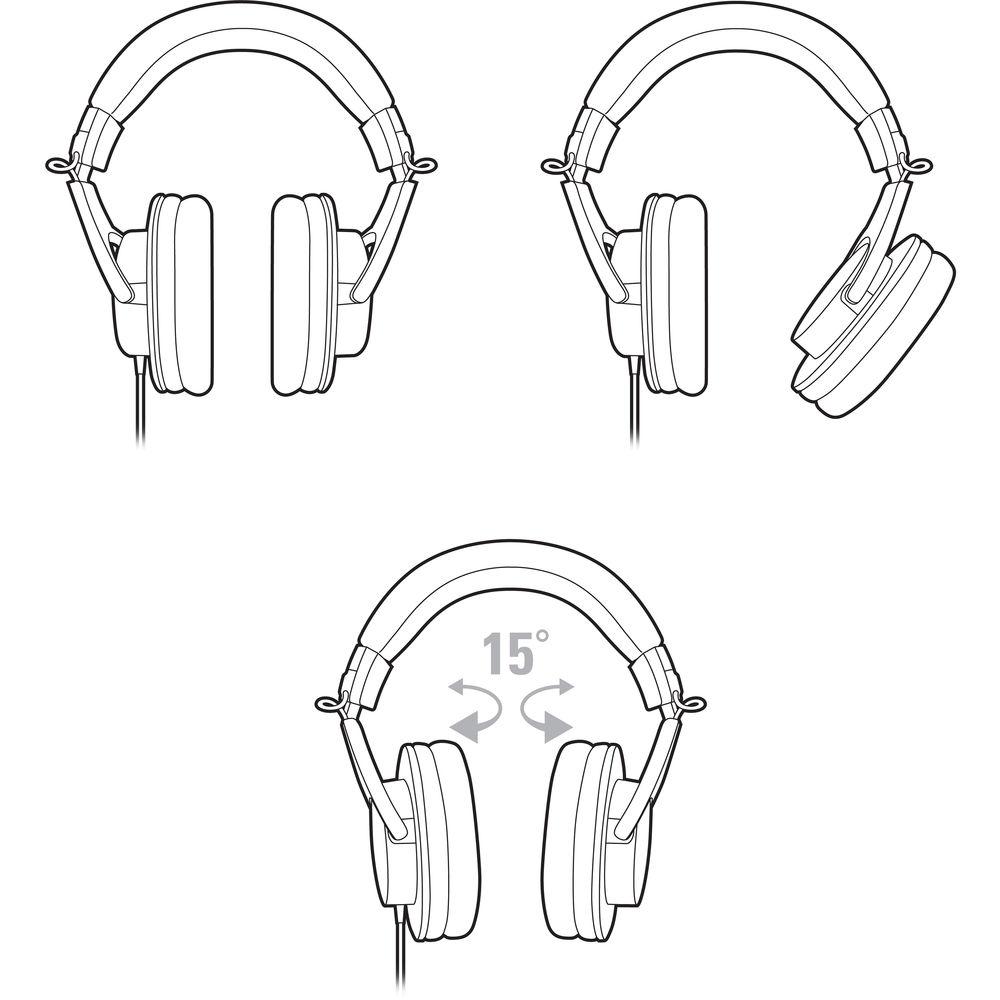

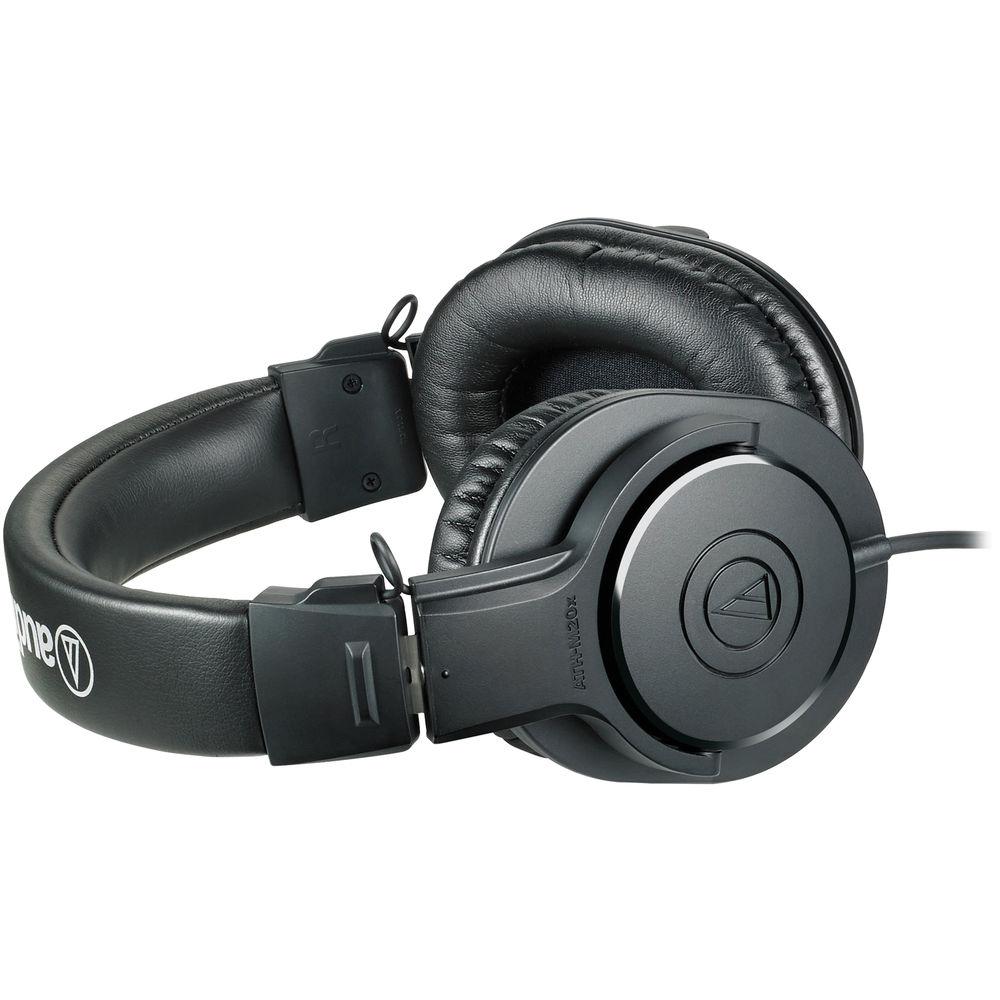

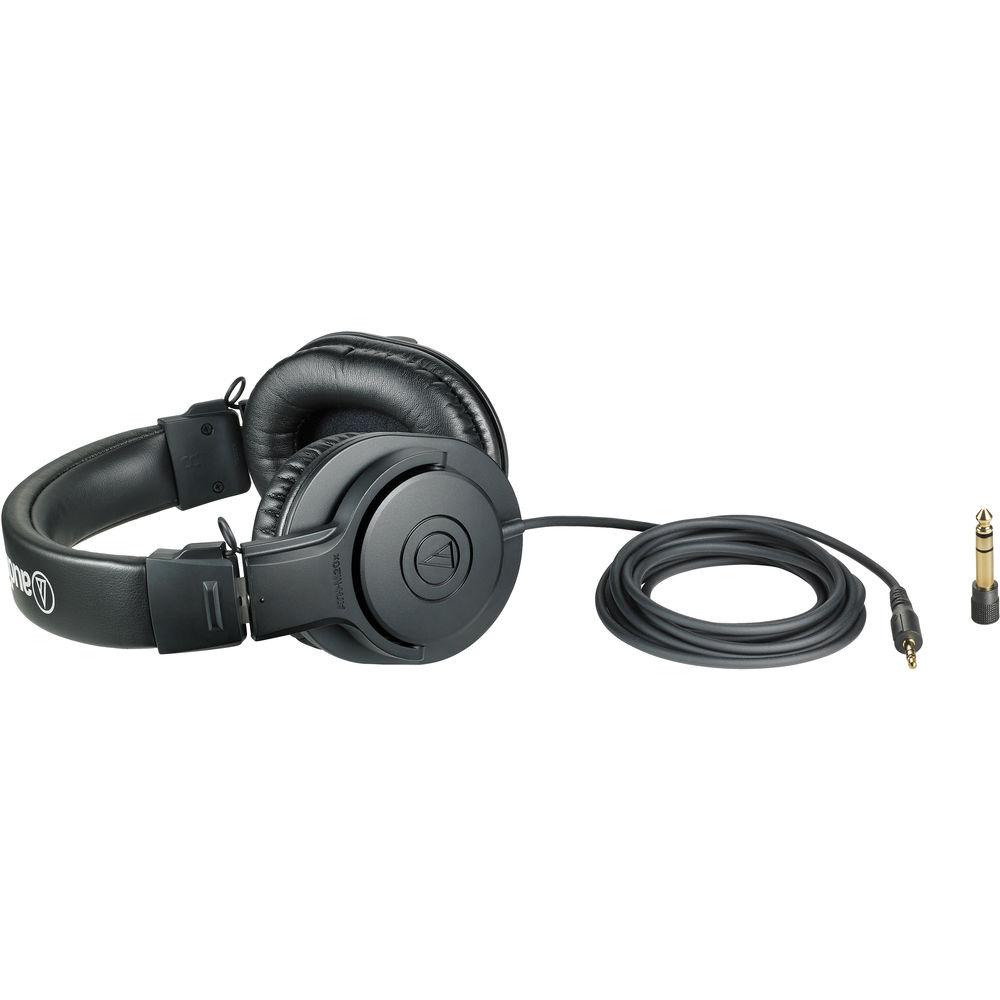

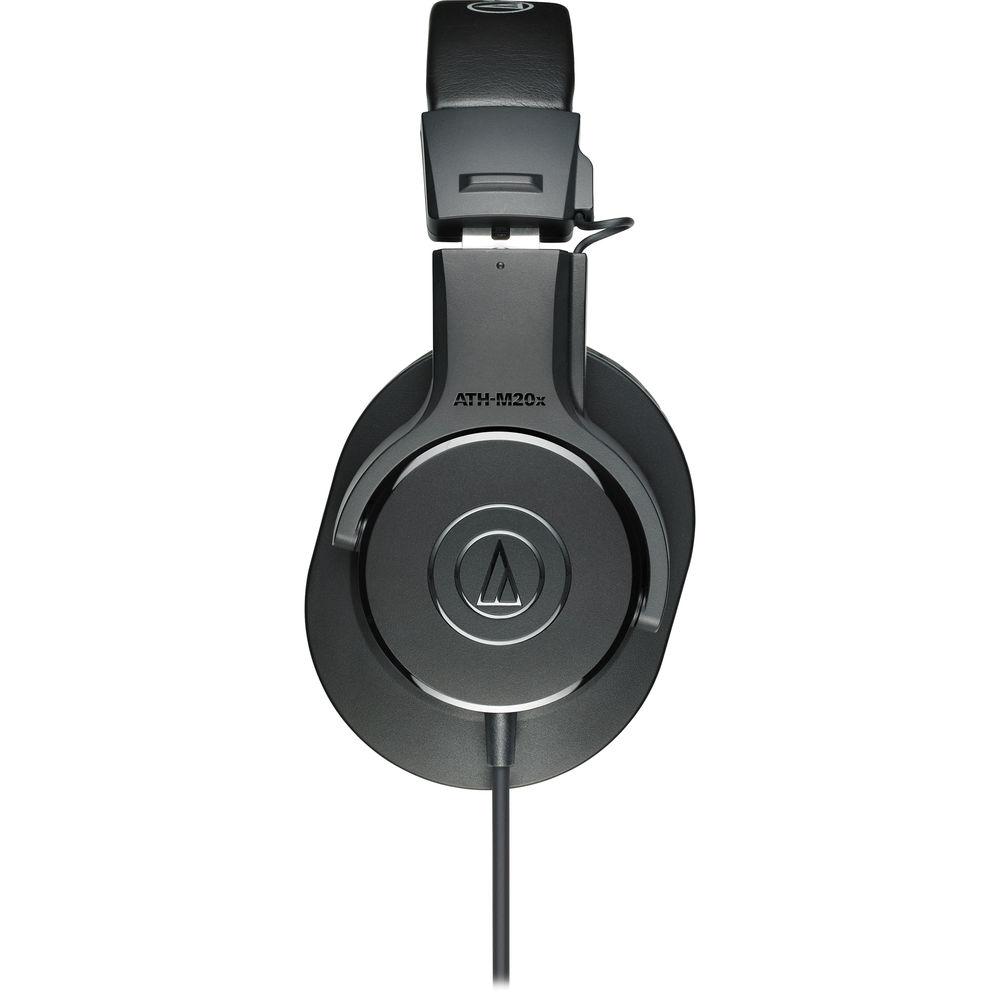

UPC: 042005134953 - ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.
In the Box Bundle Items AT2020 Cardioid Condenser Microphone - Stand Mount for 5/8"- 27 Threaded Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
ATH-M20x Monitor Headphones (Black) atfcrterdvwwsxafew
Also Includes - Boom with XLR Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2020 Studio Microphone Pack with ATH-M20x, Boom & XLR Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT2020 Cardioid Condenser Microphone
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 74 dB | | Equivalent Noise Level | 20 dB | | Maximum SPL | 144 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | 14.1 mV/Pa | | Dynamic Range | 124 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 µA | | Operating Voltage | 48 V | | Length | 6.38" / 162.0 mm | | Diameter | 2.05" / 52.0 mm | | Weight | 12.17 oz / 345 g | | | | Box Dimensions (LxWxH) | 9.7 x 9.6 x 2.8" | - ATH-M20x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 96 dB | | Impedance | 47 Ohms | | Maximum Power Handling | 700 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 2.9" |
