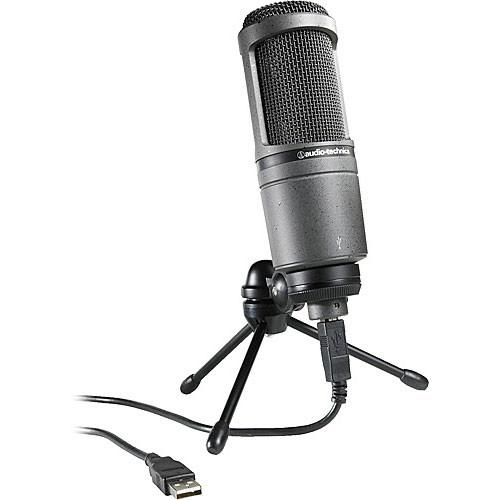

User Manual for Audio-Technica AT2020USB - Condenser Microphone with USB Connection Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2020USB - Condenser Microphone with
- Product category: Uncategorized Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Uncategorized
|
User manual for the Audio-Technica AT2020USB - Condenser Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica AT2020USB is a cost effective condenser microphone with a USB connector for direct integration with Windows and Mac computers. Podcasting, studio recording and other computer recording applications are achieved with superb results, low noise and crystal-clear quality. The capsule features a 16mm low-mass, side-address diaphragm with a cardioid polar pattern.The cardioid pattern is effective in rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 16 kHz enables the flexibility to accurately reproduce signals from any source. High SPL handling and wide dynamic range allow the AT2020USB to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning. - USB Connection
- The USB connector provides direct integration with Windows and Mac computers. Podcasting, studio recording and other computer recording applications are achieved with superb results, low noise and crystal-clear quality.
- Cardioid Condenser Element
- The 16mm low-mass diaphragm features a cardioid polar pattern. The cardioid pattern effectively minimizes ambient room noise, noise from adjacent instruments or vocalists and minimizes feed-back caused by monitors.
- Wide Frequency Response
- The wide frequency response of 20 Hz to 16 kHz allows accurate signal reproduction from any source.
- Wide Dynamic Range & Transient Response
- The AT2020USB boasts a wide dynamic range of 124 dB (typical). The capsule reproduces loud signals and transients with minimal noise and peak distortion.
In the Box Audio-Technica AT2020USB - Condenser Microphone with USB Connection Pivoting Stand Mount 5/8" - 27 threaded Soft Protective Pouch 10 Foot (3.1m) USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2020USB - Condenser Microphone with USB Connection in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz - 16 kHz | | Dynamic Range (Typical) | 124 dB, 1 kHz @ Max SPL | | Signal-to-Noise Ratio | 74 dB, 1 kHz @ 1 Pa | | Maximum Input Sound Level | 144 dB SPL, 1 kHz @ Max SPL | | Power Requirements | USB Power (5 VDC) | | Output Impedance | Not Specified By Manufacturer | | Output Connectors | USB | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | 6.38 x 2.05" (162 x 52 mm) (Length x Diameter) | | Weight | 13.2 oz (374 g) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
