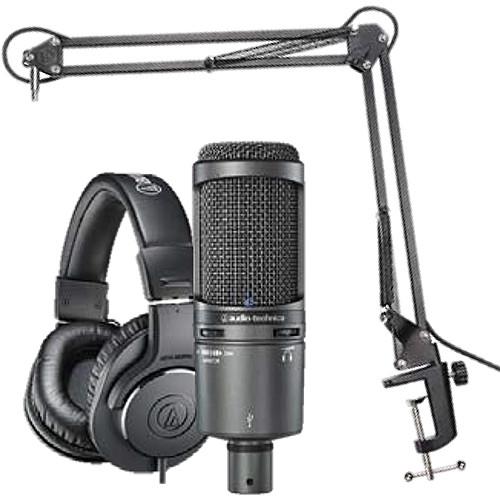

Product description This Audio-Technica bundle includes an AT2020USB+ Cardioid Condenser Microphone, a pair of ATH-M20x Headphones, and a boom with a USB cable for connecting the mic to your computer. As such, it's suitable for podcasters and voice-over artists who wish to forego analog XLR microphones.

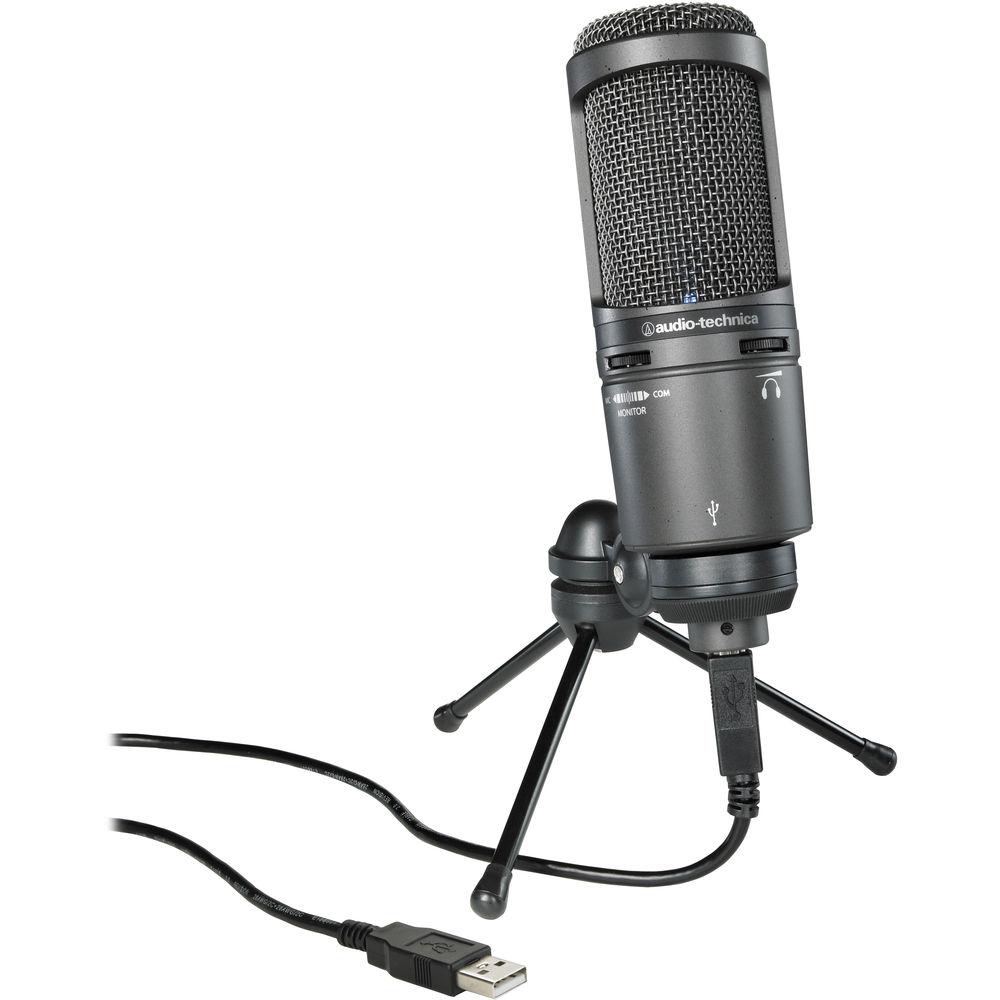

The microphone provides a cardioid pattern that rejects off-axis sound. It also records audio at 16-bit resolutions and sample rates up to 48 kHz, while providing you with zero-latency monitoring from the built-in headphone jack. The circumaural ATH-M20x headphones provide 40mm neodymium drivers, a frequency response of 15 Hz to 20 kHz, and a 9.8' cable. - AT2020USB+ Cardioid Condenser USB Microphone The AT2020USB+ Cardioid Condenser USB Microphone from Audio-Technica is designed to digitally capture music as well as other audio sources. It is ideal for singer/songwriters, podcasters, voiceover artists, field recorders, and home studio recordings. The microphone features a cardioid pickup pattern, off-axis rejection and 16-bit/44.1 or 48 kHz resolution.
The AT2020USB+ also incorporates monitoring features, like a built-in headphone jack with a volume control— allowing you to directly monitor your microphone signal with no delay. It also offers a mix control that blends the microphone's input and pre-recorded audio from your DAW. The high-output internal headphone amplifier delivers clear sound with enough headroom to create ample volume.

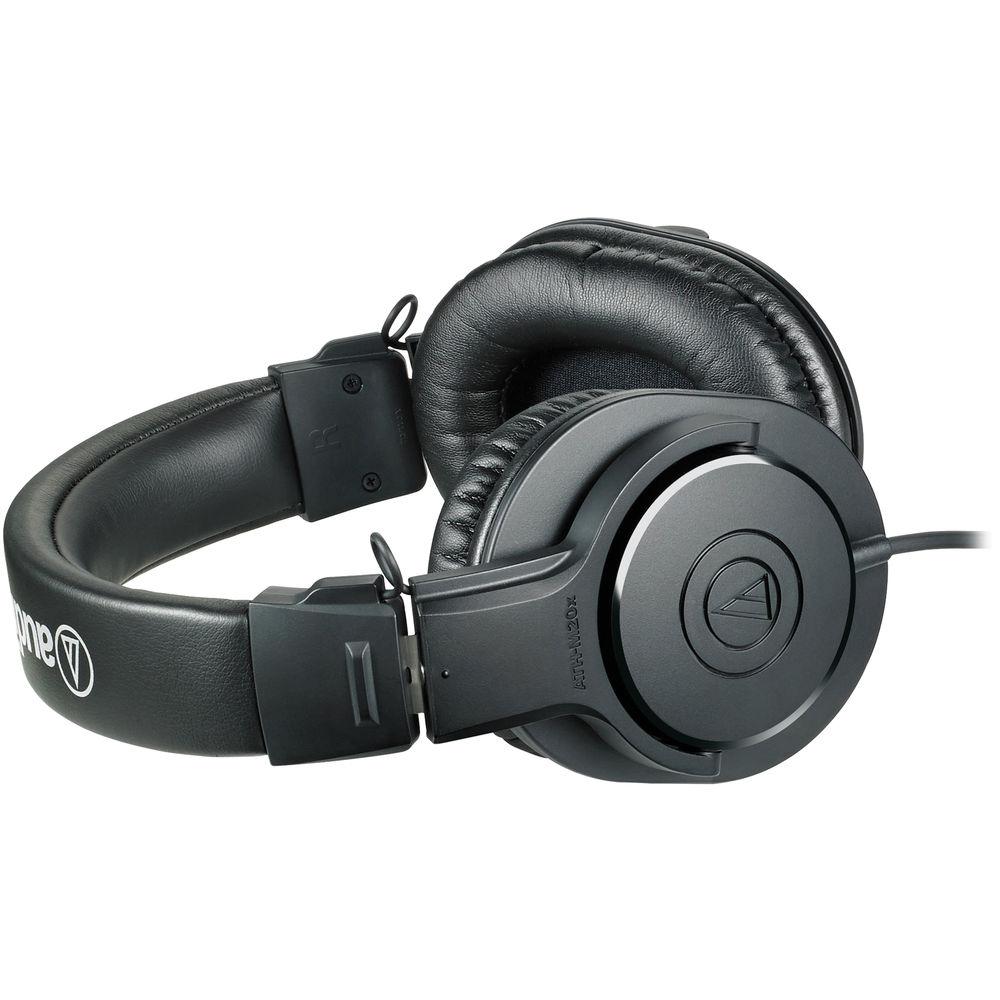

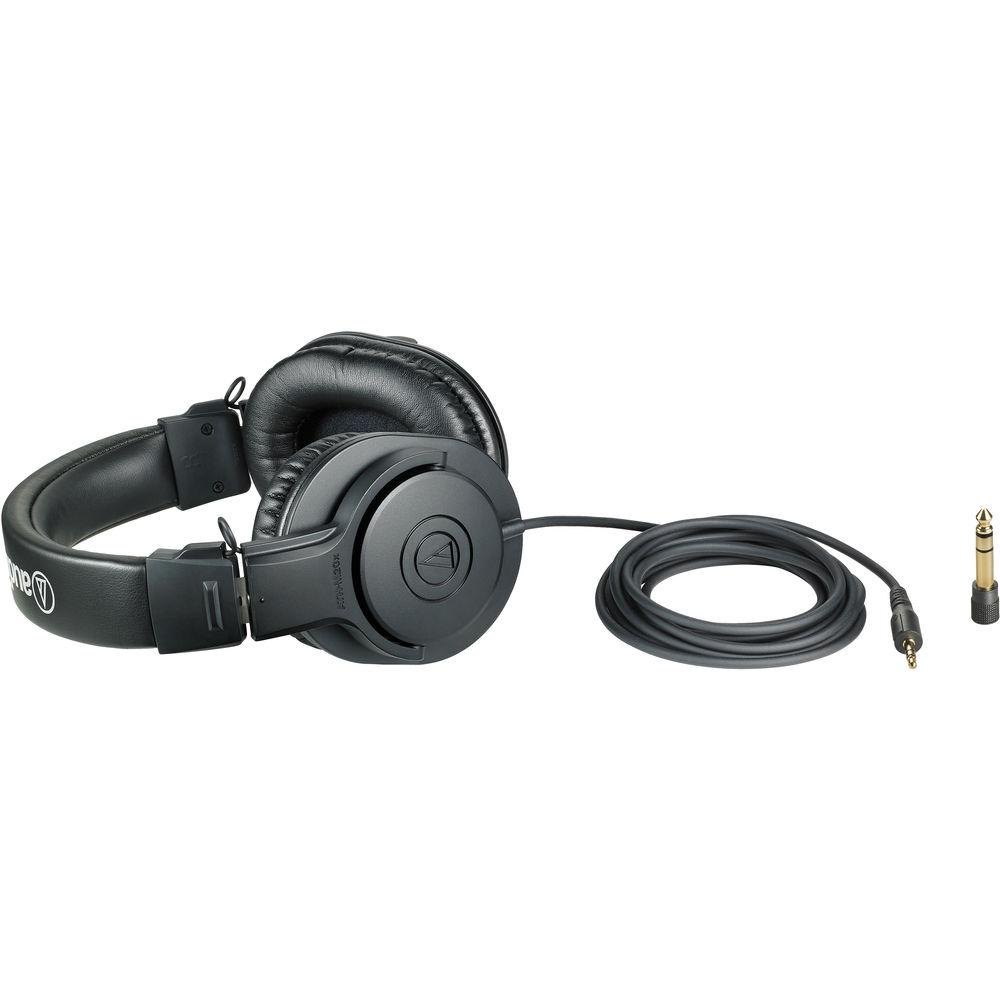

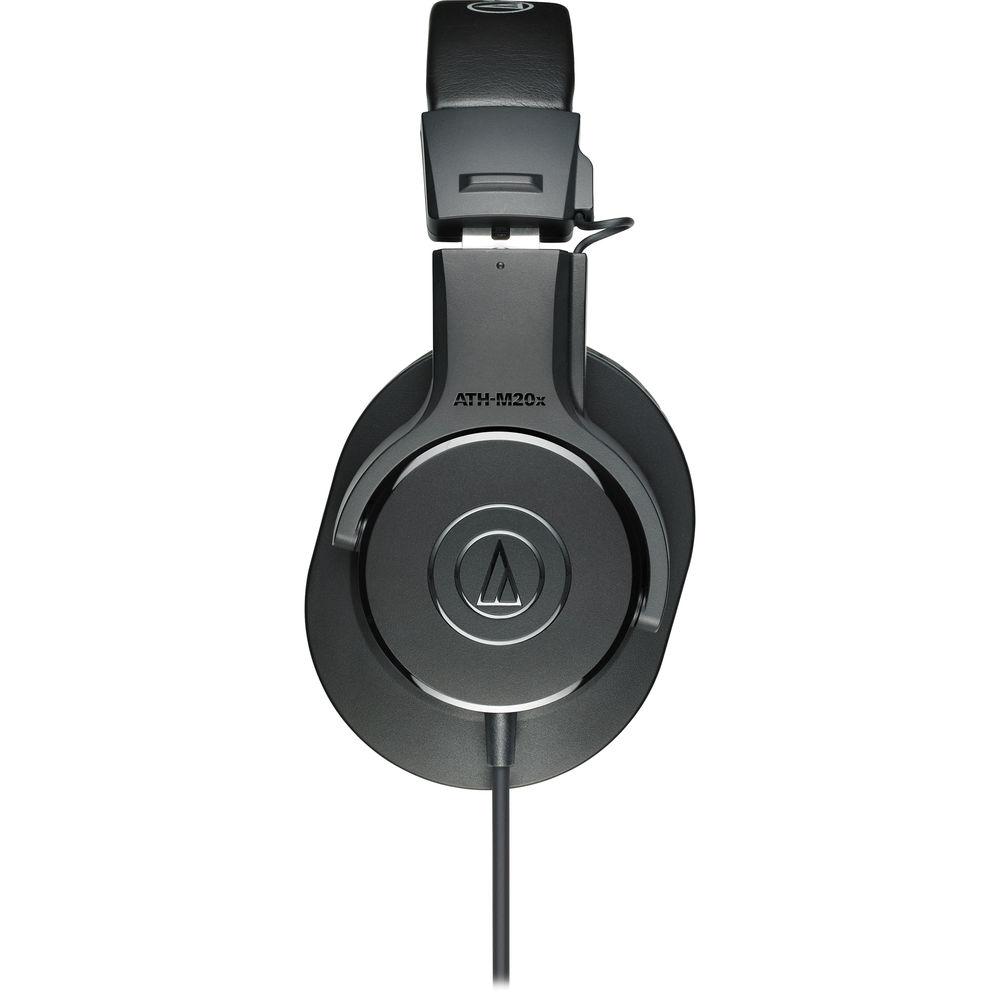

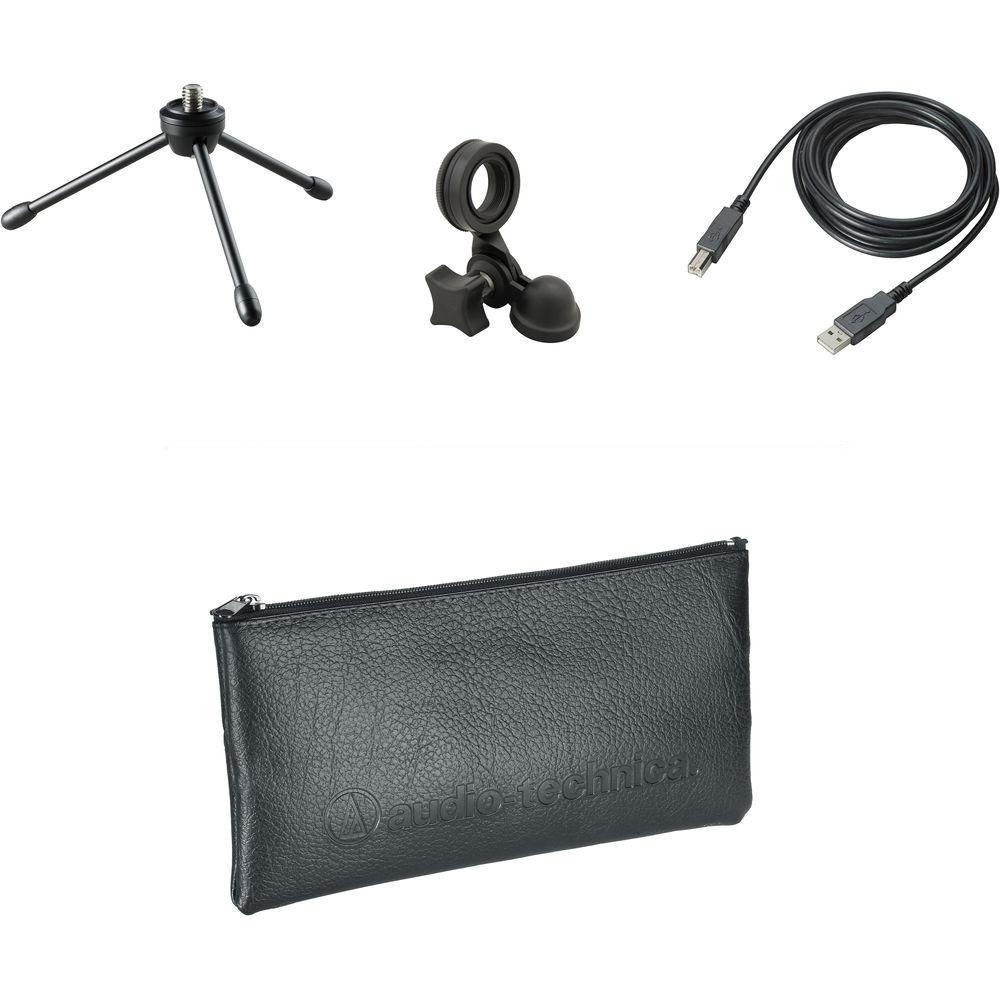

The AT2020USB+ microphone is compatible with Windows 7, Vista, XP and Mac OS X. It includes a tripod desk stand, a protective pouch, a microphone stand mount and a USB cable. UPC: 042005178988 - ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.
In the Box Bundle Items AT2020USB+ Cardioid Condenser USB Microphone - Pivoting Stand Mount for 5/8"-27 Threaded Stands
- 5/8"-27 to 3/8"-16 Threaded Adapter
ATH-M20x Monitor Headphones (Black)
Also Includes - Boom with USB Cable
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2020USB Microphone Pack with ATH-M20x, Boom & USB Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AT2020USB+ Cardioid Condenser USB Microphone
| | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | RAM | 64 MB Minimum | | Available Port | USB (Interface Unspecified) | | | | Output Connectors | 1 x USB (Type Unspecified) | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Length | 6.38" / 162.05 mm | | Diameter | 2.05" / 52.07 mm | | Weight | 13.6 oz / 386 g | | | | Box Dimensions (LxWxH) | 9.7 x 9.6 x 2.8" | - ATH-M20x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 96 dB | | Impedance | 47 Ohms | | Maximum Power Handling | 700 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 2.9" |
