User Manual for Audio-Technica AT2021 Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2021 Cardioid Condenser Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
 |
User manual for the Audio-Technica AT2021 Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

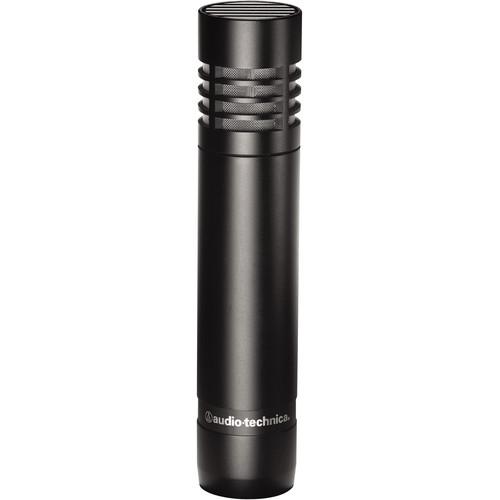

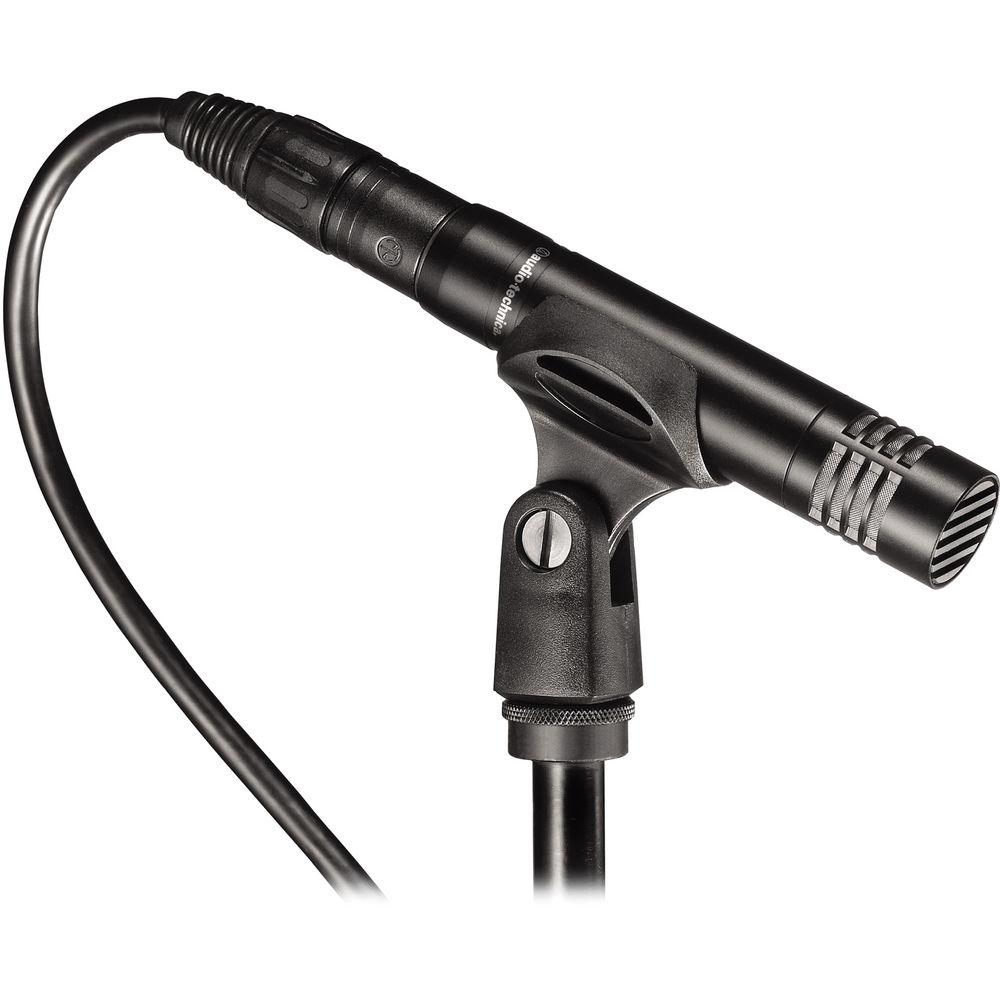

Product description The AT2021 Cardioid Condenser Microphone from Audio-Technica is designed for general instrument capturing, vocals, amplifier cabinets, and similar applications. The microphone's small diaphragm condenser element yields a cardioid polar pattern for minimal noise at the off-axis sections of the capsule. There is an extended frequency response, providing versatility both in the studio and on stage. High SPL handling suppresses distortion when capturing transient sources such as drums, percussion, electric guitars, bass, and piano. The package includes a microphone stand clamp and a soft protective pouch. - Suitable for acoustic guitar, overheads, piano, and group vocal scenarios
- Condenser design for studio-quality vocal and instrument applications
- Can be used in high-SPL applications
- Extended response for smooth, natural sonic characteristics
- Low-mass element for maximum transient response
- Corrosion-resistant contacts from gold-plated XLRM-type connector
- Cardioid polar pattern reduces sound pickup from the sides and rear, improving isolation of a desired sound source

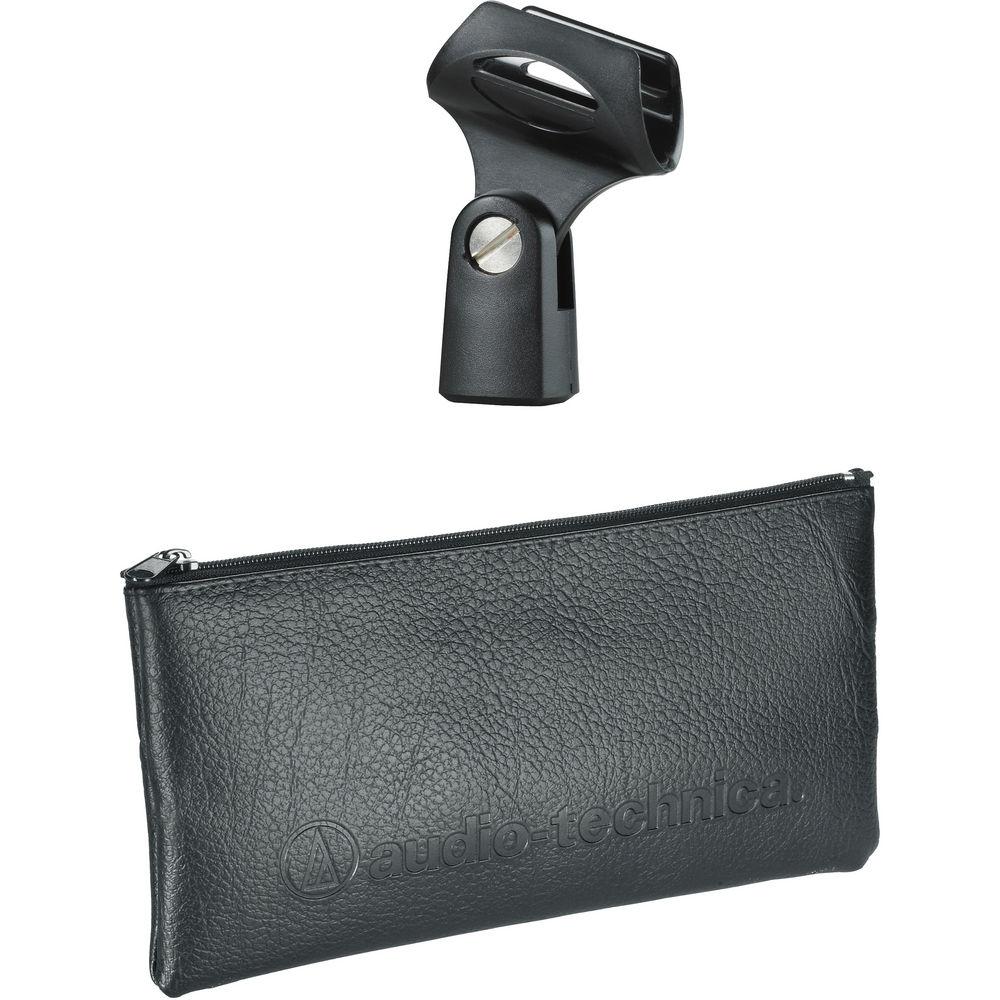

UPC: 042005165247 In the Box Audio-Technica AT2021 Cardioid Condenser Microphone Stand Clamp Soft Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2021 Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT2021 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 75 dB | | Equivalent Noise Level | 19 dB | | Maximum SPL | 145 dB SPL | | THD | 1% | | Impedance | 250 Ohms | | Sensitivity | -39 dB | | Dynamic Range | 126 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 48 V | | Length | 4.00" / 101.5 mm | | Diameter | 0.83" / 21.0 mm | | Weight | 2.93 oz / 83 g | | | | Package Weight | 0.71 lb | | Box Dimensions (LxWxH) | 9.75 x 5.15 x 3.05" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
