User Manual for Audio-Technica AT2022 X Y Stereo Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2022 X Y Stereo Microphone
- Product category: Stereo & Specialty Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Stereo & Specialty Microphones
 |
User manual for the Audio-Technica AT2022 X Y Stereo Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

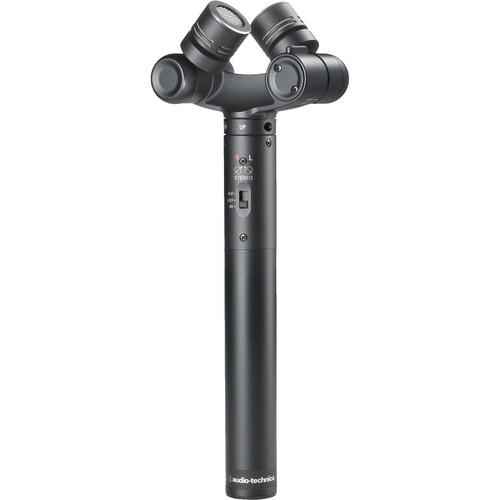

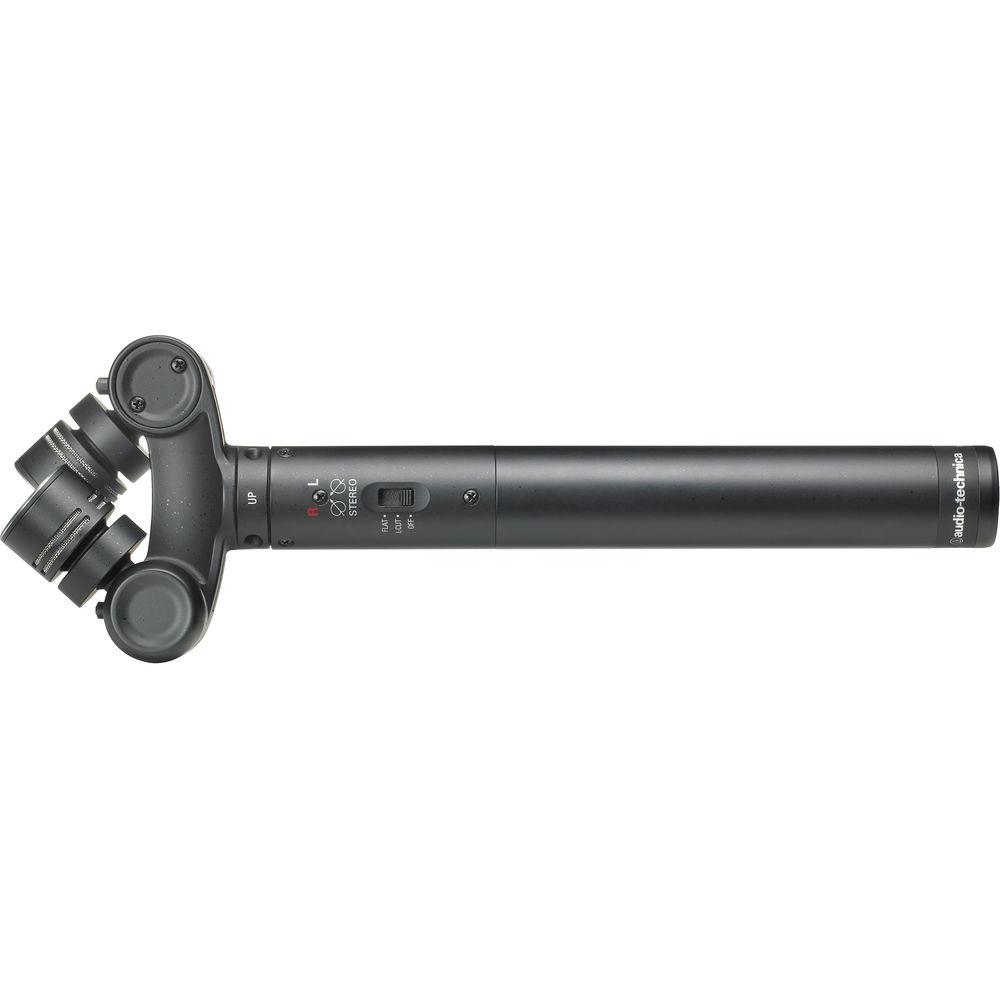

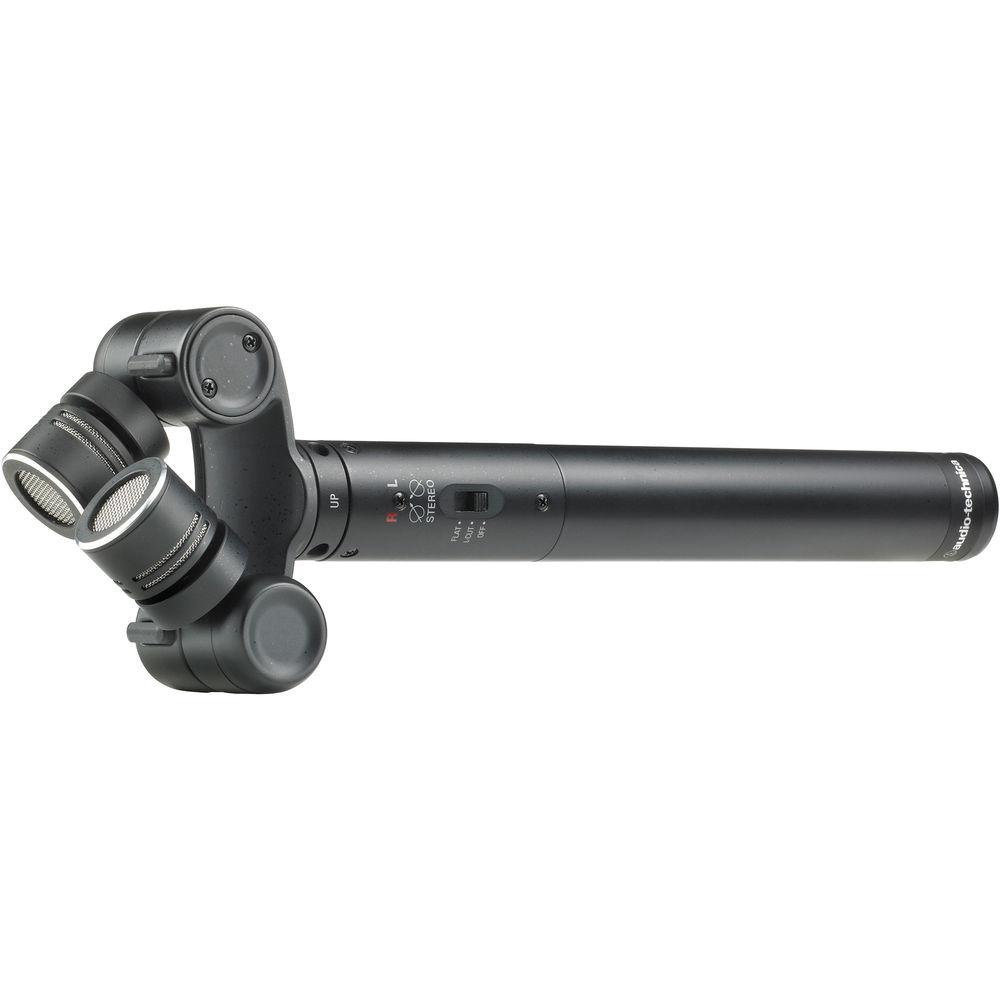

Product description The Audio-Technica AT2022 X/Y Stereo Microphone is designed to capture instruments, ambiance, vocals and performances in stereo. There are two cardioid swiveling capsules that can fold flat for storage and transportation. Easily position the capsules to allow for narrow or wide stereo operation. A low frequency roll-off switch minimizes noise due to proximity effect, ambiance, wind and more. The AT2022 is battery operated (only) and includes a cable, stand clamp and windscreen. Note: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result. - X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
- Provides the spatial impact and realism of a live sound field
- Battery operation allows use with most recording devices
- Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
- User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
- Ideal for general stereo recording and field sound capture
- Excellent channel separation
- Included fuzzy windscreen offers excellent wind protection

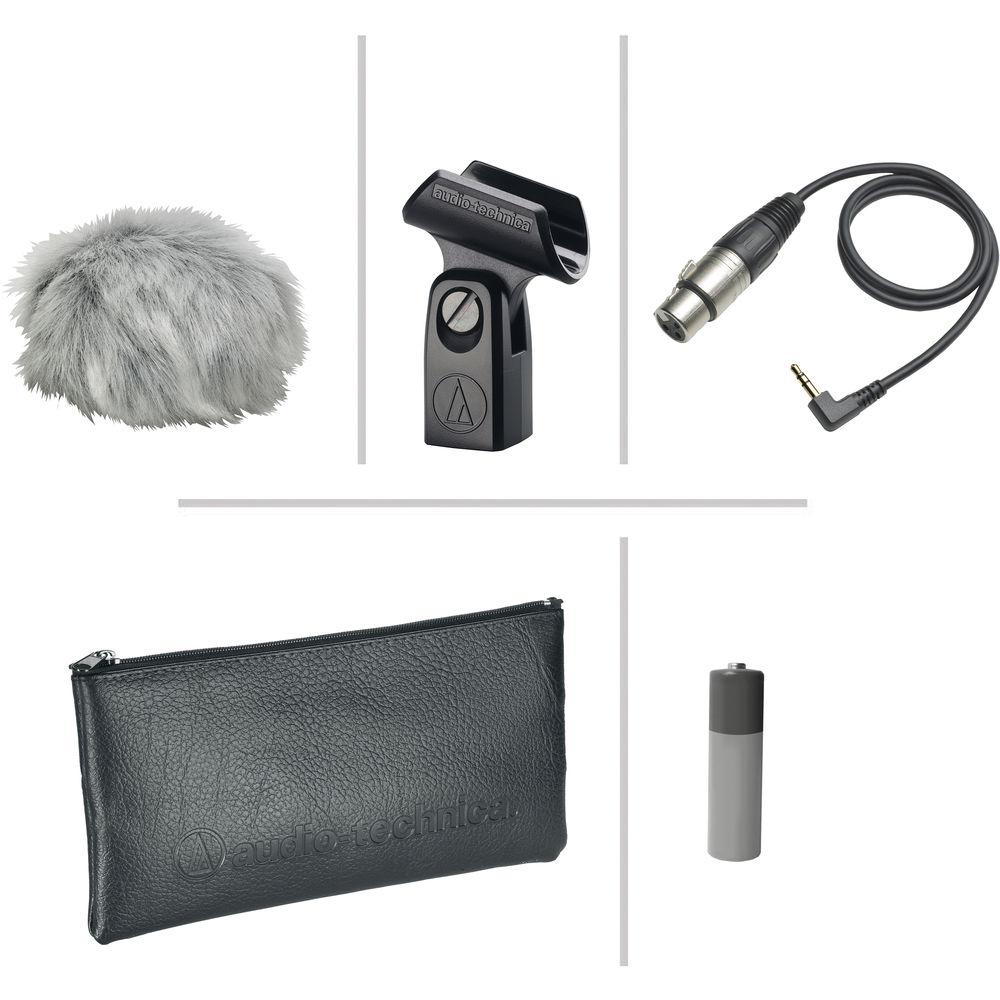

In the Box Audio-Technica AT2022 X/Y Stereo Microphone AT8405a Stand Clamp for 5/8"-27 Threaded Stands 1/8" (3.5mm) Mini Terminated Microphone Cable - 1.64'' (0.5m) Fuzzy Windscreen Battery Soft Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2022 X Y Stereo Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT2022 Specs | Transducer | Fixed-charge back plate, permanently polarized condenser | | Polar Pattern | X/Y Stereo | | Frequency Response | 20Hz - 20kHz | | Dynamic Range (Typical) | 103dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 75dB, 1kHz at 1 Pa | | Maximum Input Sound Level | 122 dB SPL, 1 kHz at 1% T.H.D. | | Power Requirements | 1.5V AA/UM3
WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result. BATTERY CURRENT / LIFE 1.2 mA / 500 hours typical (alkaline) | | Output Impedance | 200 ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | None | | Low Frequency Roll-Off | 150Hz, 6 dB/octave | | Dimensions | 7.56" (192.0mm) Length
2.56" (65.0mm) Head Diameter 0.83" (21.0mm) Body Diameter | | Weight | 9.5 oz (270g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.8 x 9.6 x 3.0" |
