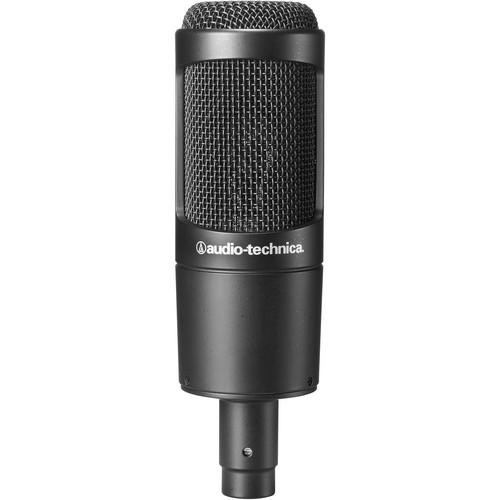

User Manual for Audio-Technica AT2035 Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2035 Cardioid Condenser Microphone
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT2035 Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

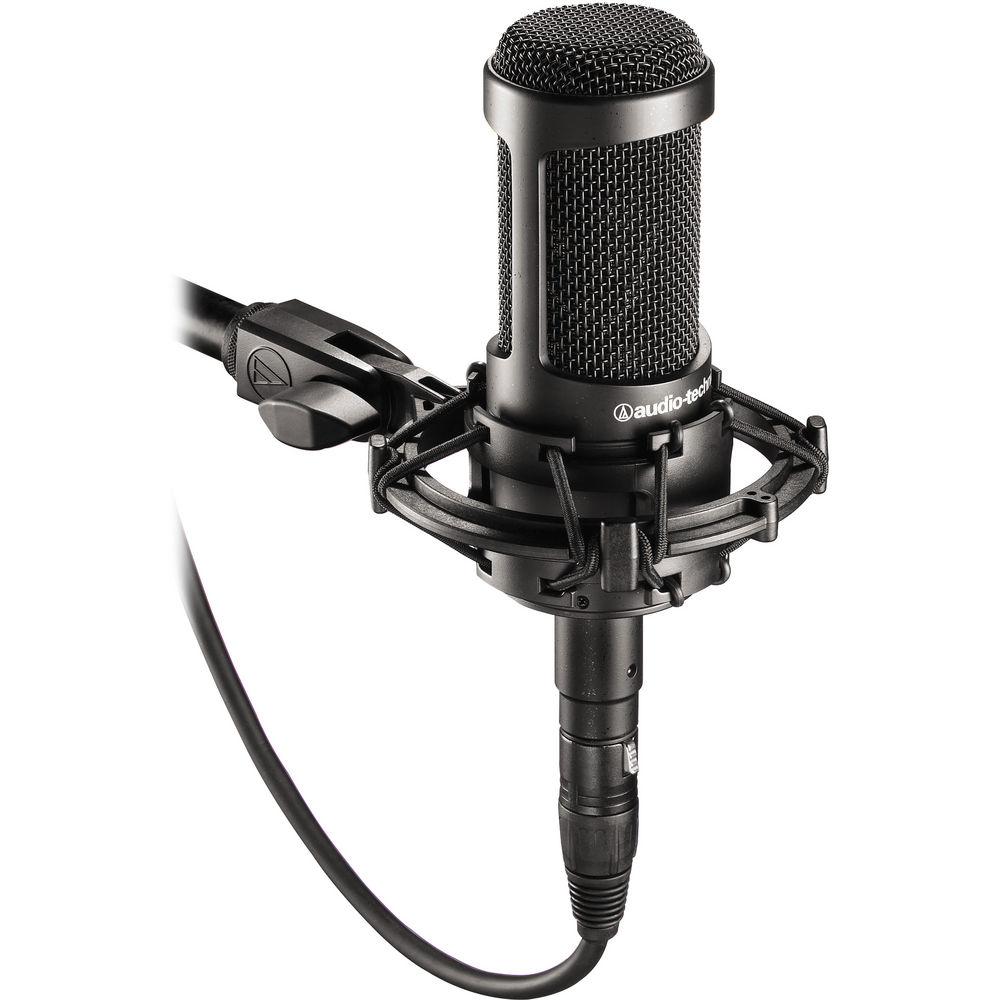

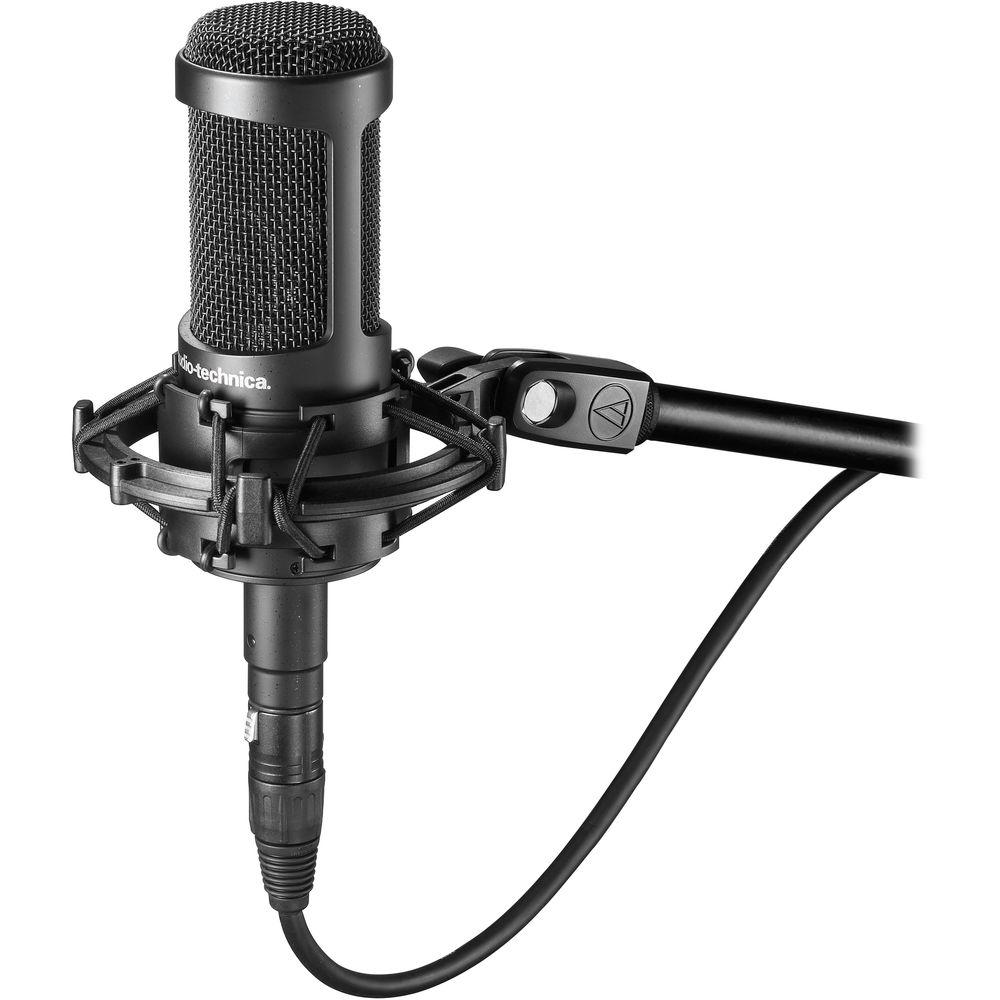

Product description The AT2035 Cardioid Condenser Microphone from Audio-Technica features a side-address design and can be used in critical home, project, or professional studio applications as well as live performances. The microphone offers a cardioid polar pattern for minimal feedback and off-axis noise. The element and output stage combine to produce a smooth yet natural audio quality with low noise. There is an 80 Hz high-pass filter switch for eliminating low frequency hum and other associated noises, and a -10 dB pad switch provides more headroom when capturing transient signals that may otherwise cause peak distortion. The microphone also includes a shock mount, a threaded adapter, and a protective pouch. - Large diaphragm for smooth, natural sound and low noise
- High SPL handling and wide dynamic range provide unmatched versatility
- Custom shock mount provides superior isolation
- Switchable 80 Hz high-pass filter and 10 dB pad
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Includes custom shock mount and protective pouch
UPC: 042005156733 In the Box Audio-Technica AT2035 Cardioid Condenser Microphone AT8458 Shockmount for 5/8"-27 Threaded Stands 5/8"-27 to 3/8"-16 Threaded Adapter Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2035 Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT2035 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 12 dB | | Maximum SPL | 148 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 120 Ohms | | Sensitivity | 22.4 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 136 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.8 µA | | Operating Voltage | 11 to 52 V | | Length | 6.69" / 170.0 mm | | Diameter | 2.05" / 52.0 mm | | Weight | 14.22 oz / 403 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.8 x 9.6 x 3.0" |
