Audio-Technica AT2035 Studio Microphone Pack with

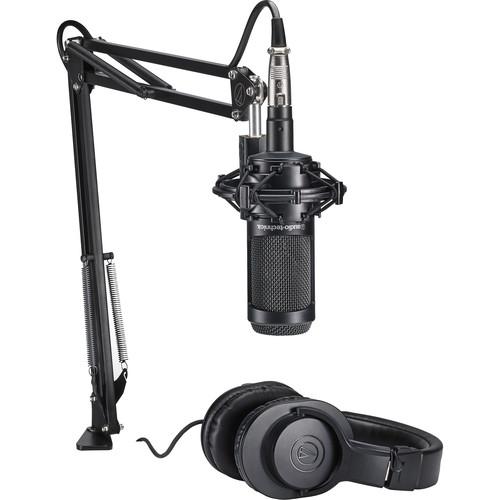

User Manual for Audio-Technica AT2035 Studio Microphone Pack with ATH-M20x, Boom & XLR Cable

• Product category: Large Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Large Diaphragm Condenser

Product description

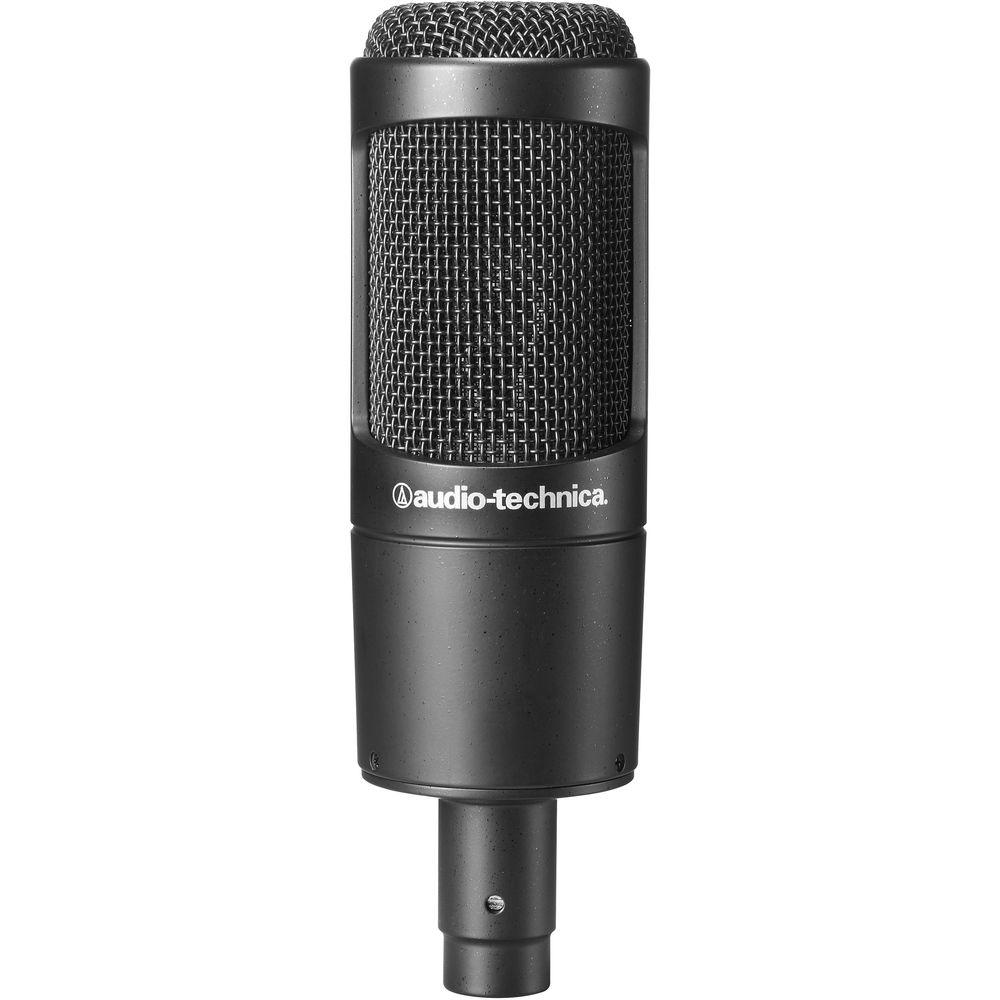

• AT2035 Cardioid Condenser Microphone The AT2035 Cardioid Condenser Microphone from Audio-Technica features a side-address design and can be used in critical home, project, or professional studio applications as well as live performances. The microphone offers a cardioid polar pattern for minimal feedback and off-axis noise. The element and output stage combine to produce a smooth yet natural audio quality with low noise. There is an 80 Hz high-pass filter switch for eliminating low frequency hum and other associated noises, and a -10 dB pad switch provides more headroom when capturing transient signals that may otherwise cause peak distortion. The microphone also includes a shock mount, a threaded adapter, and a protective pouch.
  • Large diaphragm for smooth, natural sound and low noise
  • High SPL handling and wide dynamic range provide unmatched versatility
  • Custom shock mount provides superior isolation
  • Switchable 80 Hz high-pass filter and 10 dB pad
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Includes custom shock mount and protective pouch
  UPC: 042005156733

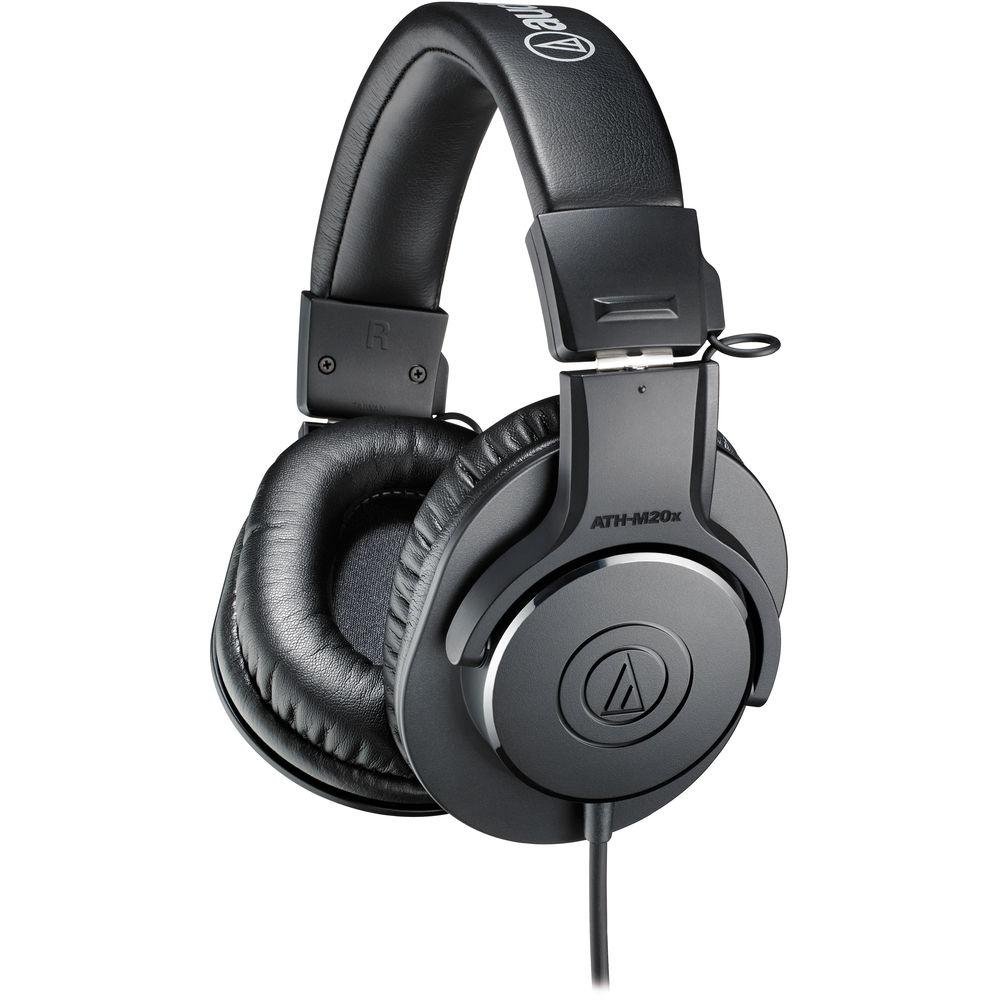

• ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.

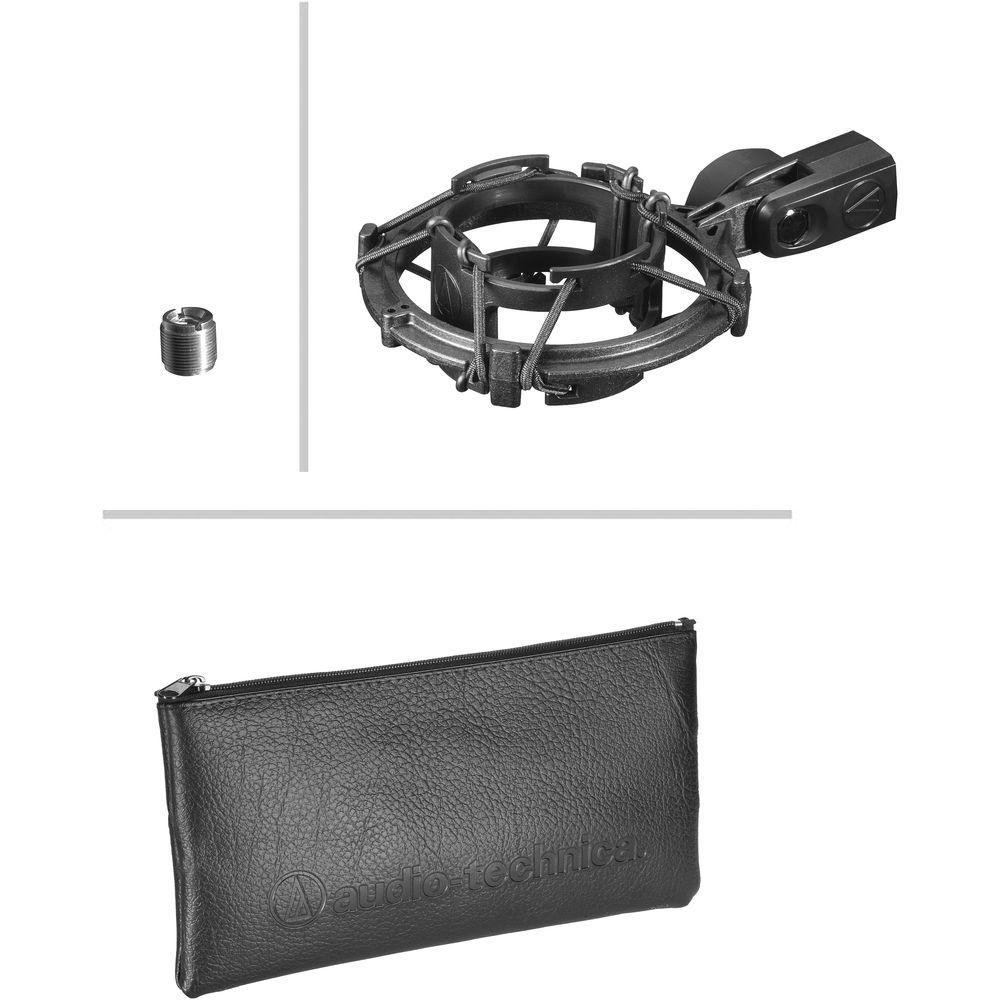

• AT8458 Shockmount for 5/8"-27 Threaded Stands

• 5/8"-27 to 3/8"-16 Threaded Adapter

• Protective Pouch

• Limited 1-Year Warranty

• 1/4" Snap-On Adapter

• Limited 2-Year Warranty

Also Includes

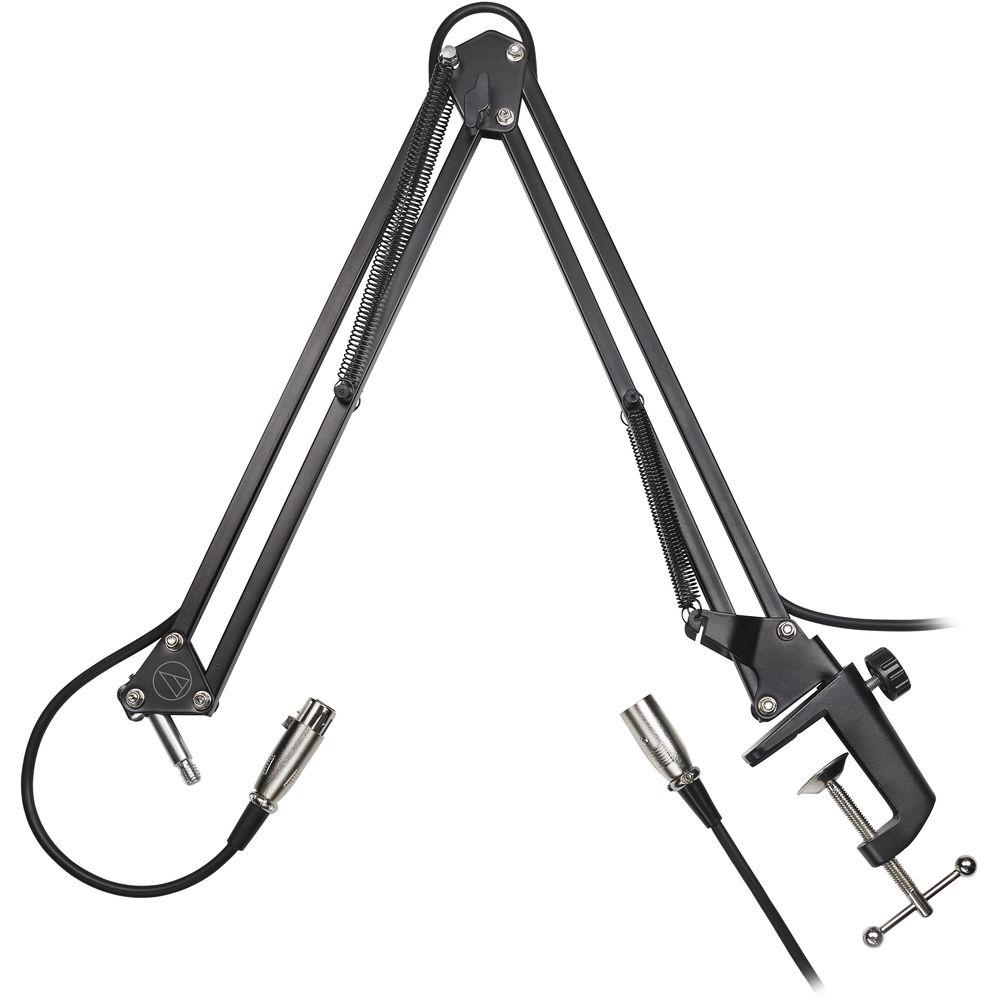

• Boom with XLR Cable
• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AT2035 Cardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	80 dB
  Equivalent Noise Level	12 dB
  Maximum SPL	148 dB SPL
  Pad	-10 dB
  THD	1%
  Impedance	120 Ohms
  Sensitivity	22.4 mV/Pa
  Low-Cut Filter	12 dB/Octave @ 80 Hz
  Dynamic Range	136 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	3.8 µA
  Operating Voltage	11 to 52 V
  Length	6.69" / 170.0 mm
  Diameter	2.05" / 52.0 mm
  Weight	14.22 oz / 403 g

  Box Dimensions (LxWxH)	9.8 x 9.6 x 3.0"

• ATH-M20x Monitor Headphones (Black)

  Driver Size	1.6" / 40 mm
  Magnet Type	Neodymium
  Voice Coil	Copper-Clad Aluminum Wire
  Design	Over-Ear (Circumaural)
  Earcup Style	Open-Back

  Frequency Response	15 Hz to 20 kHz
  Sensitivity	96 dB
  Impedance	47 Ohms
  Maximum Power Handling	700 mW

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Cable Length	9.8' / 2.99 m

  Weight	6.7 oz / 190 g

  Box Dimensions (LxWxH)	11.7 x 10.2 x 2.9"
