User Manual for Audio-Technica AT2050 Multi-Pattern Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT2050 Multi-Pattern Condenser Microphone
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT2050 Multi-Pattern Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

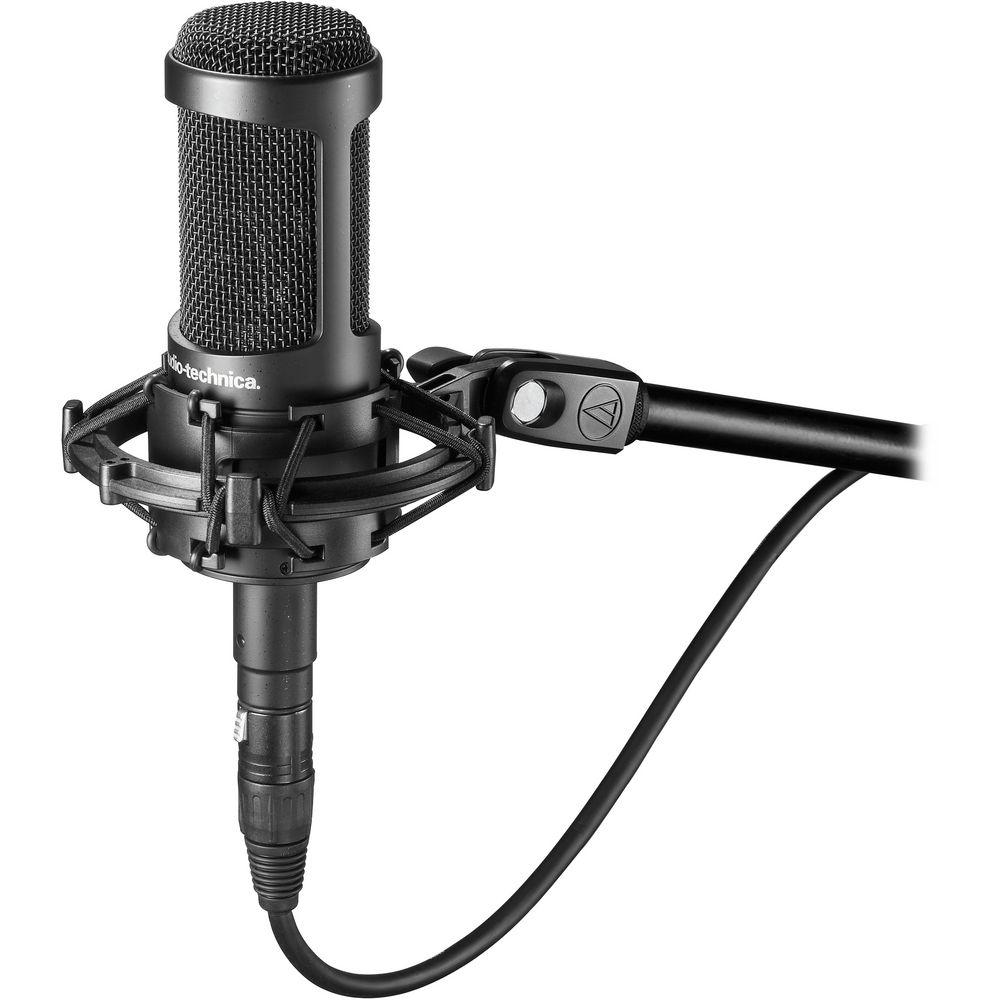

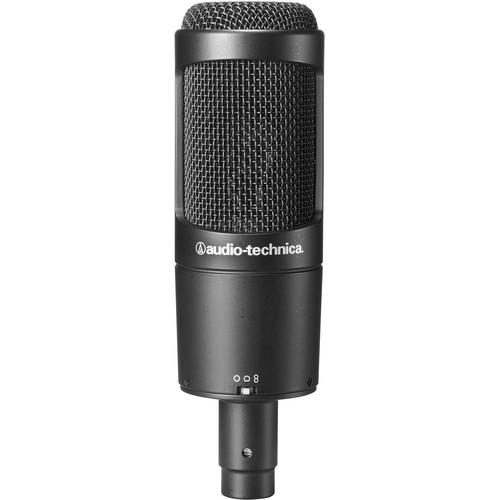

Product description The AT2050 Multi-Pattern Condenser Microphone from Audio-Technica is designed for use in home studios, project recording, and live sound reinforcement applications. It can be used for capturing vocals, general instruments, and speaker cabinets. The side-address condenser microphone features user switchable cardioid, omnidirectional and figure-eight polar patterns for versatile operation. The element and output stage combine to produce a smooth yet natural audio quality with low noise. An 80 Hz high-pass filter switch minimizes low frequency hum and other associated noise and a -10 dB pad switch provides more headroom when capturing transient signals that may otherwise cause peak distortion. - Three switchable polar patterns: omni, cardioid, and figure-of-eight
- Switchable 80Hz high-pass filter and 10 dB pad
- Large diaphragm for smooth, natural sound and low noise
- Surface-mount electronics are compliant with the company's consistency and reliability standards
- Includes shock mount and protective pouch

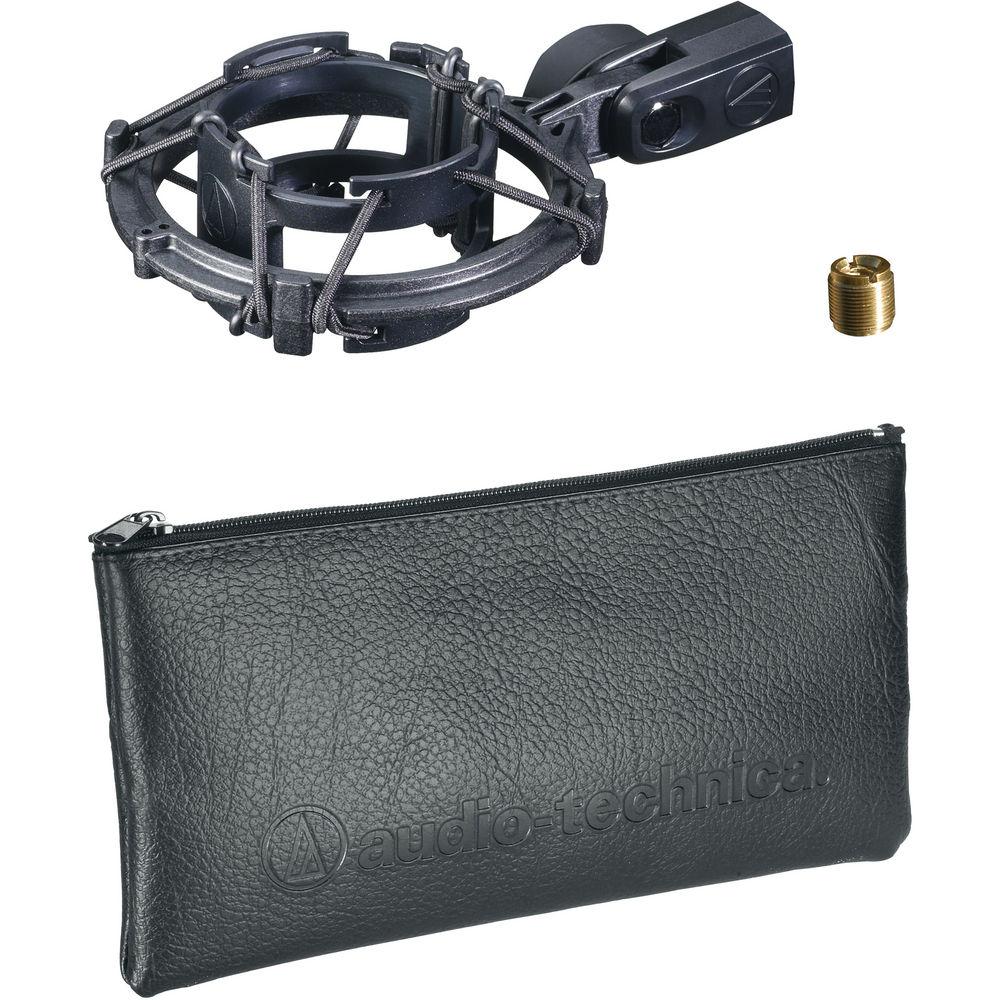

In the Box Audio-Technica AT2050 Multi-Pattern Condenser Microphone Shockmount for 5/8"-27 Threaded Stands 5/8"-27 to 3/8"-16 Threaded Adapter Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT2050 Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT2050 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 77 dB | | Equivalent Noise Level | 17 dB | | Maximum SPL | 149 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 120 Ohms | | Sensitivity | 7.9 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 132 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.7 µA | | Operating Voltage | 11 to 52 V | | Length | 6.69" / 170.0 mm | | Diameter | 2.05" / 52.0 mm | | Weight | 14.53 oz / 412 g | | | | Package Weight | 1.885 lb | | Box Dimensions (LxWxH) | 9.75 x 9.7 x 2.85" |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
