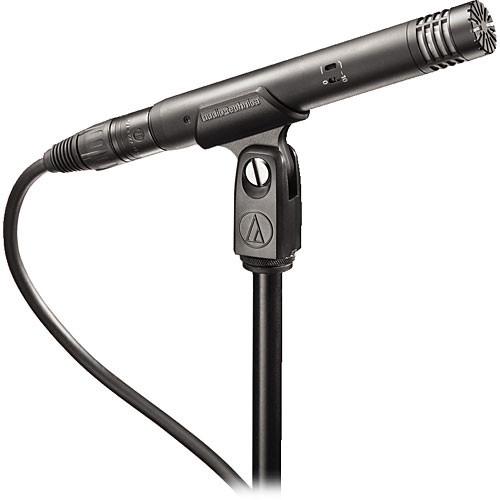

User Manual for Audio-Technica AT4021 Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4021 Cardioid Condenser Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
|
User manual for the Audio-Technica AT4021 Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The AT4021 Cardioid Condenser Microphone from Audio-Technica features a low-profile design and small-diaphragm condenser element. The microphone's sensitivity, frequency response, and SPL capabilities are suitable for use with speaker cabinets, vocals, percussion instruments, drums, and spot placement on guitars, and stringed instruments. There is a cardioid polar pattern for minimizing noise and off-axis feedback and an 80 Hz high-pass filter switch for reducing low frequencies and associated noise. Additionally, a -10 dB Pad switch provides extra headroom and minimizes distortion when capturing transient (peaking) audio signals. The package includes a stand clamp, a windscreen, and a protective carrying case. - Cardioid Polar Pattern
- The cardioid polar pattern minimizes noise and off-axis feedback.
- Switchable 80 Hz High Pass Filter
- The 80 Hz high-pass filter switch reduces hum, low frequency noise, and rumble.
- -10 dB Pad Switch
- A -10 dB Pad provides additional headroom for capturing peaking audio signals without distortion and noise.
In the Box Audio-Technica AT4021 Cardioid Condenser Microphone AT8405a Snap-in Microphone Stand Clamp bcazszwfvsebxwrae Windscreen Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4021 Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4021 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB | | Maximum SPL | 146 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 250 Ohms | | Sensitivity | -34 dB | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 132 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V | | Length | 5.67" / 144 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.20 oz / 119 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.2 x 4.4 x 1.6" |
