User Manual for Audio-Technica AT4033a Cardioid Studio Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4033a Cardioid Studio Condenser Microphone
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT4033a Cardioid Studio Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

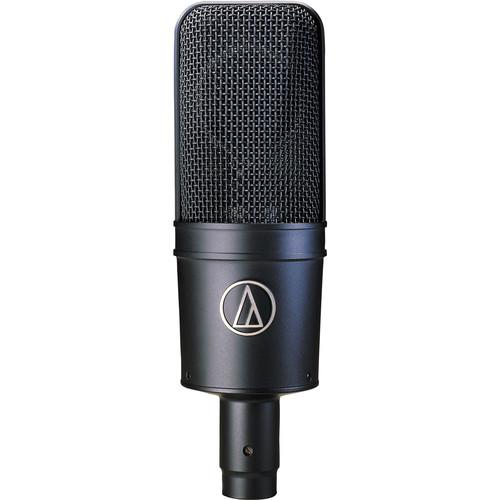

Product description The Audio-Technica AT4033a is a cardioid studio condenser microphone designed for full-range reproduction of vocals and various instruments for audio engineers, musicians, and hobbyists in recording facilities, project studios, and home setups. The 2-micron, vapor-deposited gold diaphragm is pre-aged to stay sonically consistent over time. Transformerless circuitry minimizes low-end breakup and contributes to enhanced transient response. Additionally, the precision-machined acoustic baffle yields increased stability.The capsule assembly’s floating construction lessens vibration and a switchable 80 Hz high-pass filter offers at-the-source reduction of rumble and low-frequency buildup. The AT4033a boasts a wide frequency response of 30 Hz to 20 kHz and a high maximum SPL of 145 dB (155 dB with the -10 dB pad engaged). It ships with a custom shockmount and protective case. - Cardioid polar pattern for directional focus and rejection of off-axis sounds
- High maximum SPL of 145 dB (155 db SPL with -10 dB pad engaged)
- Transformerless circuitry minimizes low-frequency distortion and provides enhanced correlation of high-speed transients
- Precision-machined, nickel-plated brass acoustic baffle provides enhanced element stability and optimal sensitivity
- The 2-micron, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use

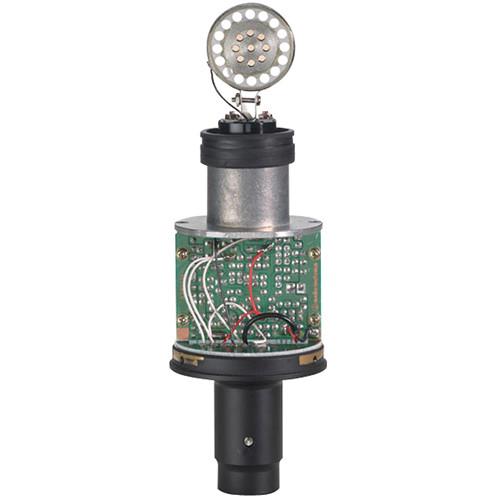

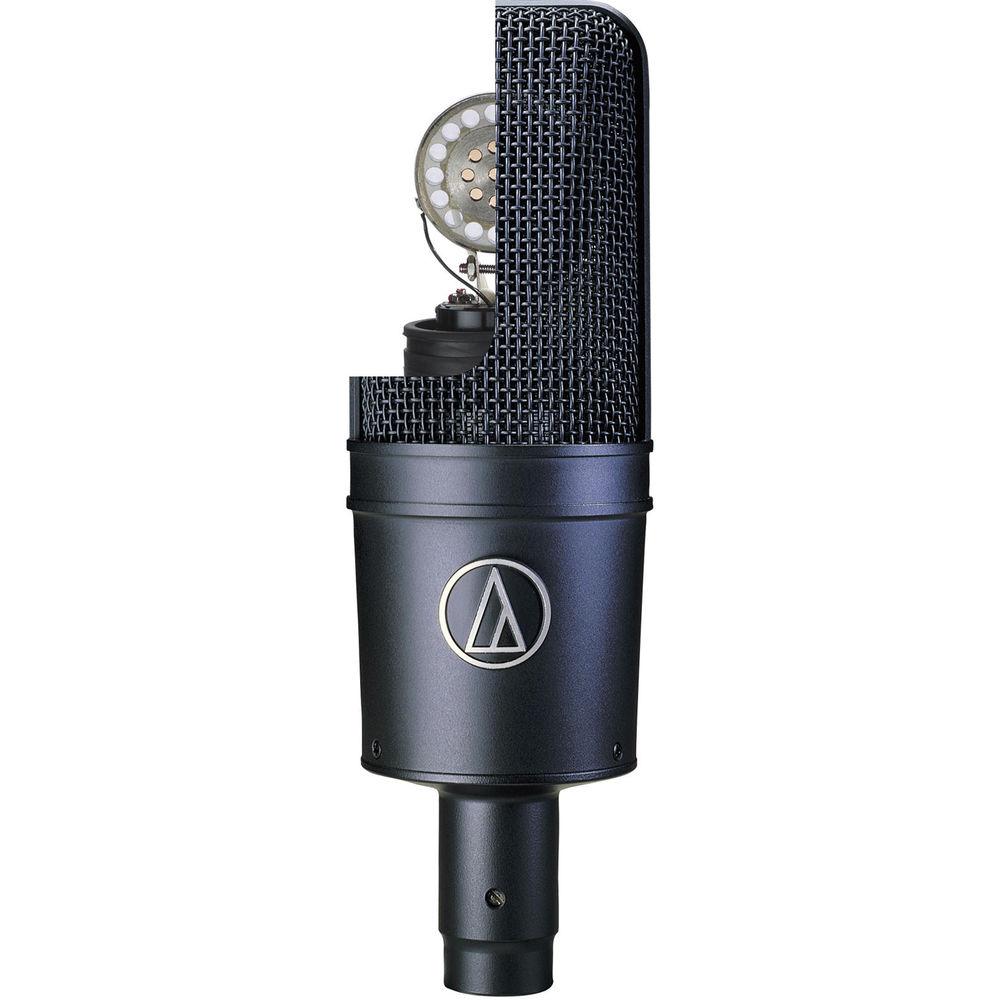

- Floating-construction capsule assembly provides isolation from noise and vibration
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- Surface-mount electronics ensure compliance with Audio-Technica's stringent consistency and reliability standards

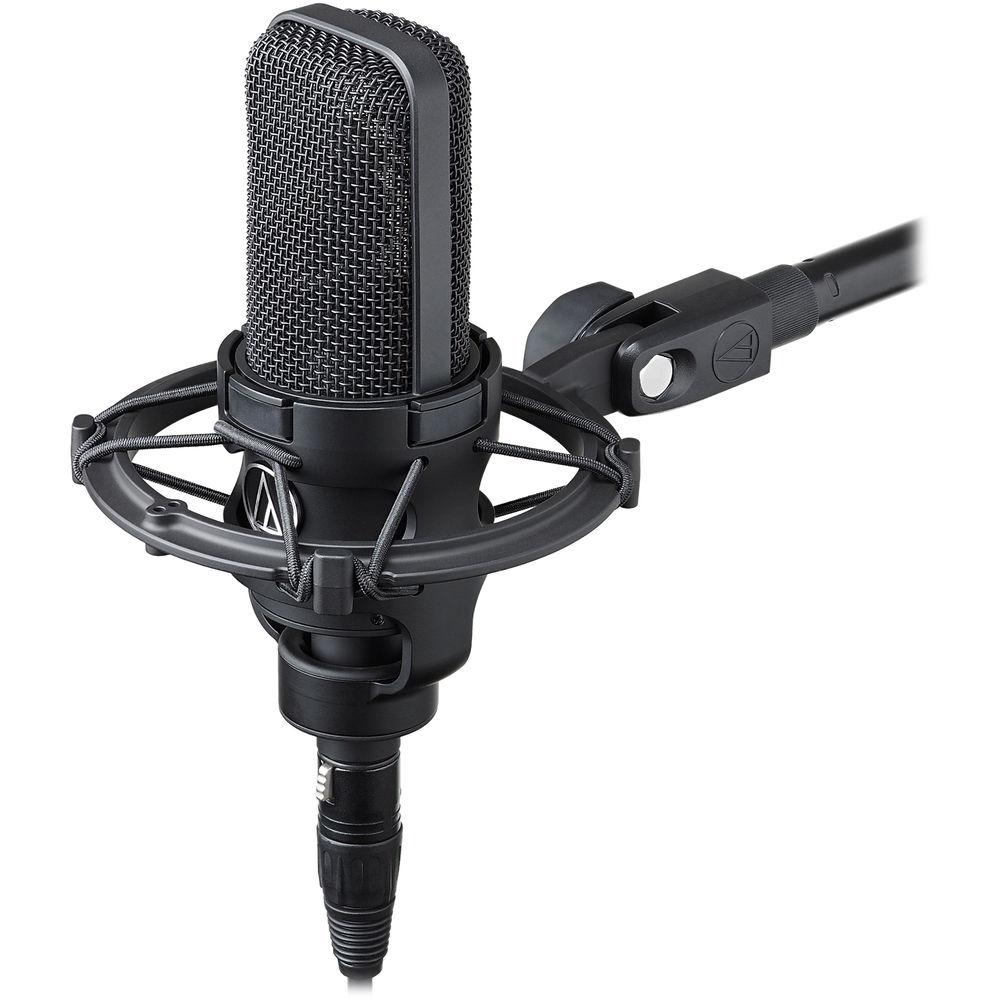

- Custom shockmount provides superior isolation

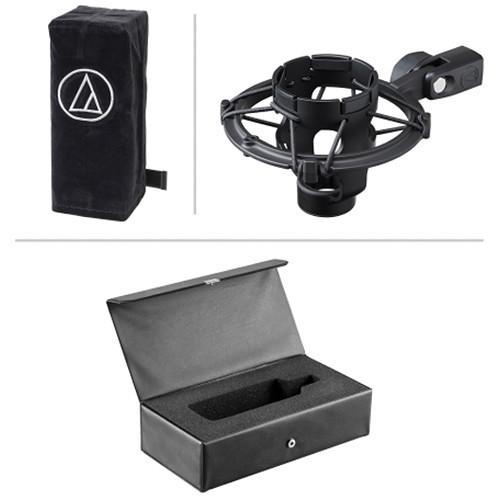

In the Box Audio-Technica AT4033a Cardioid Studio Condenser Microphone AT8449a Microphone Shockmount (Black) cqzustwxybfbwreec Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4033a Cardioid Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4033a Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 30 Hz to 20 kHz | | Signal to Noise Ratio | 77 dB | | Equivalent Noise Level | 17 dB | | Maximum SPL | 145 dB SPL | | Pad | -10 dB | | Impedance | 100 Ohms | | Sensitivity | -32 dB | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 128 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6.69" / 170 mm | | Diameter | 2.10" / 53.4 mm | | Weight | 13.40 oz / 380 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 11.4 x 9.8 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
