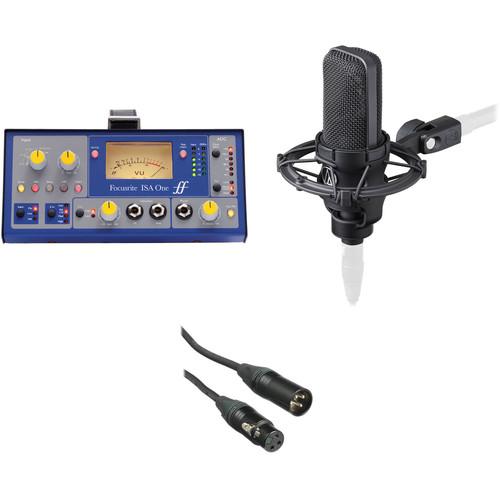

Audio-Technica AT4040 Condenser Microphone with Preamp

User Manual for Audio-Technica AT4040 Condenser Microphone with Preamp & Cable Kit

• Product category: Large Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Large Diaphragm Condenser

Product description

• Audio-Technica AT4040 Studio Microphone The Audio-Technica AT4040 is a large-diaphragm, cardioid capacitor microphone designed for use in the most demanding recording applications. Intended for vocal and general instrument recording (piano, guitars, string instruments, etc.), the microphone's cardioid polar pattern minimizes off-axis signal, reducing ambient and residual noise, and delivers pristine low-noise recordings. The AT4040 has an integral 80 Hz hi-pass filter which provides easy switching from a flat frequency response to a low-end roll-off. The high-pass position reduces the microphone's sensitivity to popping in close vocal use. It also reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation, and mechanically-coupled vibrations.
  Cardioid Polar Pattern
  • The cardioid polar pattern effectively minimizes off-axis signal, reducing residual noise caused by instruments, ambience, etc.
  Quality Element and Baffle
  • The Audio-Technica AT 4040 features a gold-plated element and nickel-plated brass element baffle, providing pristine audio fidelity with a very low noise floor.
  Transformerless Circuitry
  • In addition to the element, the transformerless design ensures even less noise and best possible presence.
  Shockmount
  • The AT 4040 features the AT 8449 spring-loaded shockmount, providing maximum protection against noise caused by shock and handling of the microphone and stand.
  UPC: 042005127955
• Focusrite ISA ONE - Microphone Preamp The ISA One from Focusrite is a single-channel, transformer-based microphone preamp, based on the original ISA 110 preamp that formed the cornerstone of each channel of the legendary Forte console. It features classic vintage topology and includes the Lundahl L1538 transformer and a custom Zobel network.In addition to switchable input impedance settings for the microphone preamp, the unit includes a line input on XLR and 1/4" TRS phone jacks. An independent DI channel features a dedicated gain control, active or passive impedance switch, a 1/4" TRS output for routing to an amplifier, and an independent XLR output on the rear.The ISA One features an insert point should the need arise to place extra signal processing between the preamp or DI, and the optional analog-to-digital converter. Phantom power, phase reverse and a 75 Hz, 18 dB/octave high-pass filter are also available from the angled front fascia.Independent input metering for both channels is provided by a moving coil VU meter with variable calibration to suit analog and digital recording media, alongside two six-LED peak meters. Inputs can be metered either pre- or post-insert. The meter calibrations utilize the same reference points as Digidesign's Pro Tools HD systems, allowing effortless integration with Pro Tools.
  • Classic single-channel Focusrite microphone preamp with Independent DI
  • Ideal for both engineers and demanding performers alike, featuring independent gain control, an output for routing to an amp, an independent XLR output on the rear and routing to the optional ADC
  • Four, carefully selected, switchable input-impedance levels (including the original ISA 110 setting), to match or enhance the performance of any microphone
  • Headphone output with volume control can feed either a sum of the two inputs to the headphones output, or an external stereo cue mix (such as a stereo mix feed from an interface) via two TRS Jack inputs on the rear of the unit
  • Optional stereo 192 kHz analog-to-digital conversion card utilizes cutting-edge conversion technology and Focusrite analog circuitry to deliver the highest A/D performance with a dynamic range of 119 dB
  • Dedicated insert point allows the user to place extra processing such as an EQ or compressor, between the preamplifier or DI and the optional converter
  UPC: 815301005100
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

• AT4040 - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone yacwbrwwyczfztfuvcftufwcyfvbsvwdtwre
• AT8449 Shock Mount
• Microphone Dust Cover
• Protective Carrying Case
• Limited 5-Year Warranty

• Focusrite - ISA ONE - Microphone Preamp

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT4040 Studio Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Response	20 Hz - 20 kHz
  Dynamic Range (Typical)	133 dB, (1 kHz at Maximum SPL)
  Signal-to-Noise Ratio	82 dB, (1 kHz at 1 Pa)
  Maximum Input Sound Level	145 dB SPL, (1 kHz at 1% T.H.D.)
  Power Requirements	Phantom, 48 V
  Output Impedance	100 Ohms
  Output Connectors	XLR-3M Type
  Pad	Yes, 10 dB Pad; Roll-Off
  Low Frequency Roll-Off	Yes, 80 Hz, (12 dB Per Octave)
  Dimensions (L x Diam)	6.69 x 2.10" / 170.0 x 53.4 mm
  Weight	12.7 oz / 360 g

  Box Dimensions (LxWxH)	11.2 x 10.0 x 4.3"

• Focusrite ISA ONE - Microphone Preamp

  Number of Channels	Single
  Inputs	1 x XLR Microphone 1 x XLR Line 1 x 1/4" TRS phone Line 1 x 1/4" TRS phone Instrument 1 x 1/4" TRS phone External Input 1 x 1/4" TRS phone Cue Left 1 x 1/4" TRS phone Cue Right 1 x 1/4" TRS phone Return
  Output	1 x XLR Line 1 x XLR DI 1 x 1/4" TS DI Thru 1 x 1/4" TRS phone Send 1 x 1/4" TRS phone Headphone
  Phantom Power	48V
  Multi Function	No
  Gain Range	Mic: 0dB to 60dB in 10dB steps with 20dB of variable gain Line: -20dB to +10dB in 10dB steps with 20dB of variable gain
  Maximum Output Level	Not specified by manufacturer
  Frequency Response	16Hz to 118kHz, -3.0dB @ maximum gain
  Noise	Mic SNR: 106dB Line SNR: 120dB
  Dimensions (WxDxH)	8.7 x 10/11.4 x 4.1" (220 x 254/290 x 104 mm)
  Weight	8.6 lbs (3.9 kg)

  Box Dimensions (LxWxH)	16.2 x 15.5 x 9.3"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
