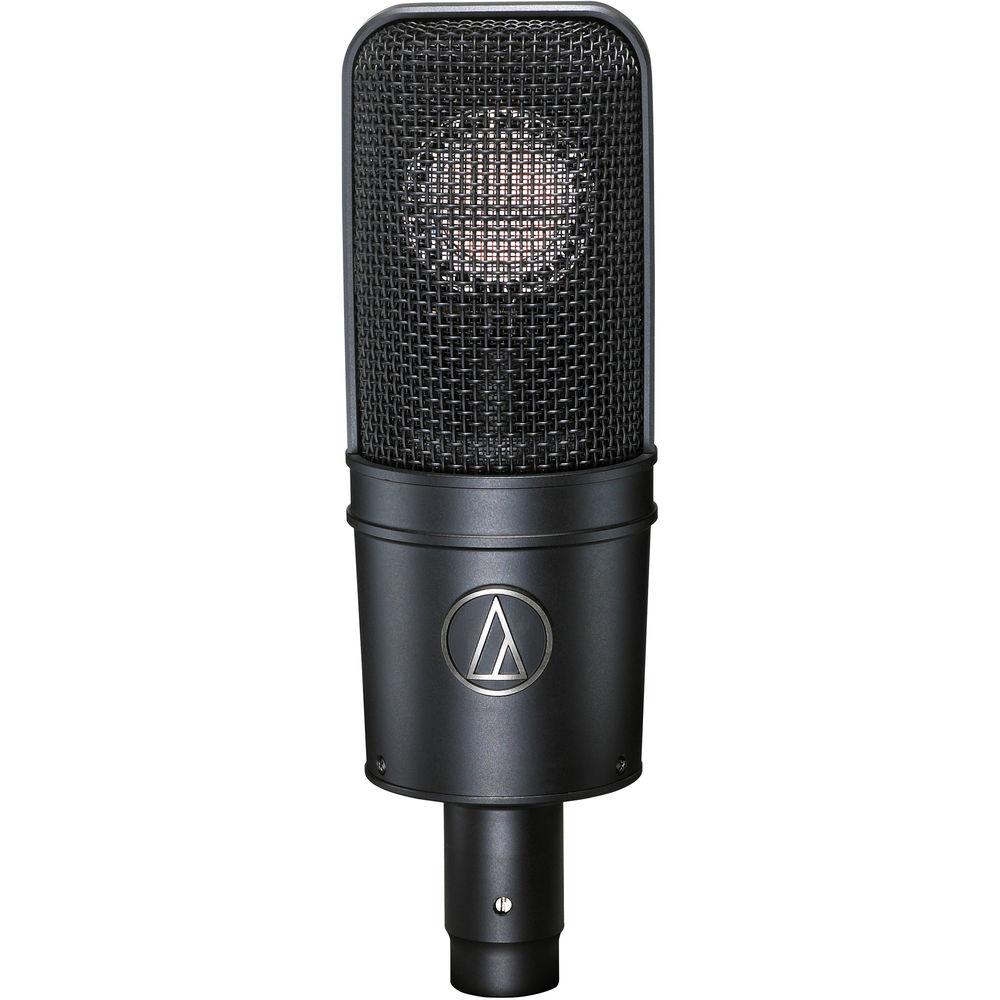

Product description The Audio-Technica AT4040 is a large-diaphragm, cardioid capacitor microphone designed for use in the most demanding recording applications. Intended for vocal and general instrument recording (piano, guitars, string instruments, etc.), the microphone's cardioid polar pattern minimizes off-axis signal, reducing ambient and residual noise, and delivers pristine low-noise recordings. The AT4040 has an integral 80 Hz hi-pass filter which provides easy switching from a flat frequency response to a low-end roll-off. The high-pass position reduces the microphone's sensitivity to popping in close vocal use. It also reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation, and mechanically-coupled vibrations. - Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes off-axis signal, reducing residual noise caused by instruments, ambience, etc.

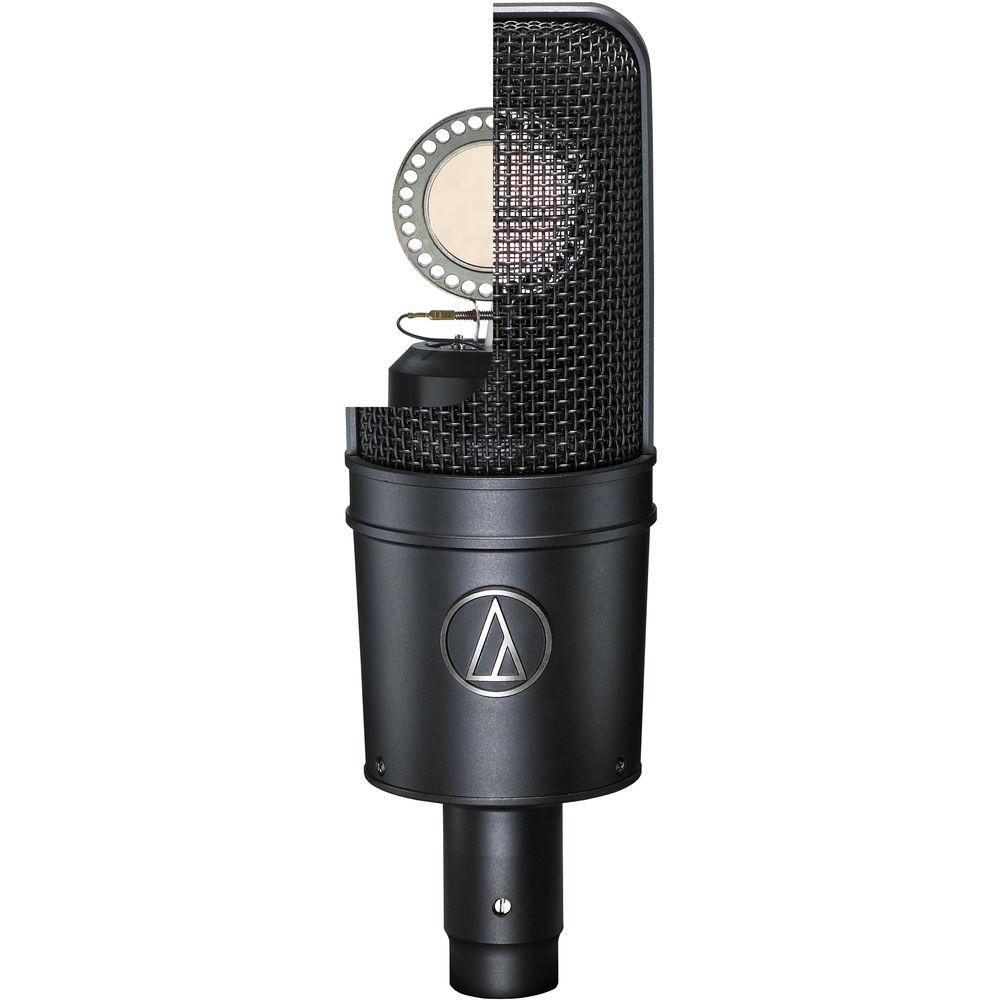

- Quality Element and Baffle

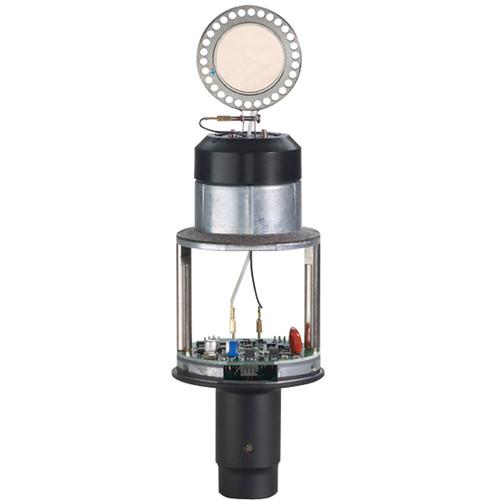

- The Audio-Technica AT 4040 features a gold-plated element and nickel-plated brass element baffle, providing pristine audio fidelity with a very low noise floor.
- Transformerless Circuitry
- In addition to the element, the transformerless design ensures even less noise and best possible presence.
- Shockmount
- The AT 4040 features the AT 8449 spring-loaded shockmount, providing maximum protection against noise caused by shock and handling of the microphone and stand.

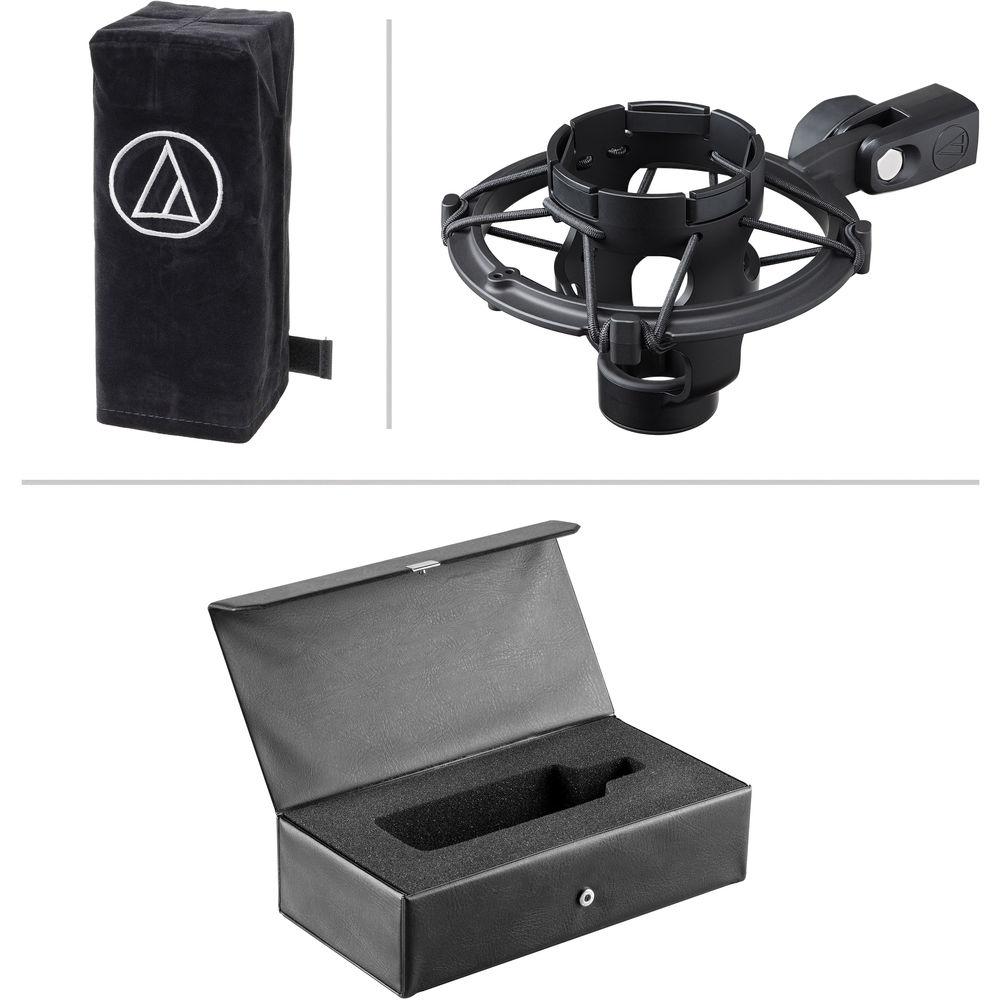

In the Box Audio-Technica AT4040 - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone AT8449 Shock Mount Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4040 Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 133 dB, (1 kHz at Maximum SPL) | | Signal-to-Noise Ratio | 82 dB, (1 kHz at 1 Pa) | | Maximum Input Sound Level | 145 dB SPL, (1 kHz at 1% T.H.D.) | | Power Requirements | Phantom, 48 V | | Output Impedance | 100 Ohms | | Output Connectors | XLR-3M Type | | Pad | Yes, 10 dB Pad; Roll-Off | | Low Frequency Roll-Off | Yes, 80 Hz, (12 dB Per Octave) | | Dimensions (L x Diam) | 6.69 x 2.10" / 170.0 x 53.4 mm | | Weight | 12.7 oz / 360 g |
