User Manual for Audio-Technica AT4040 Studio Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4040 Studio Microphone
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT4040 Studio Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

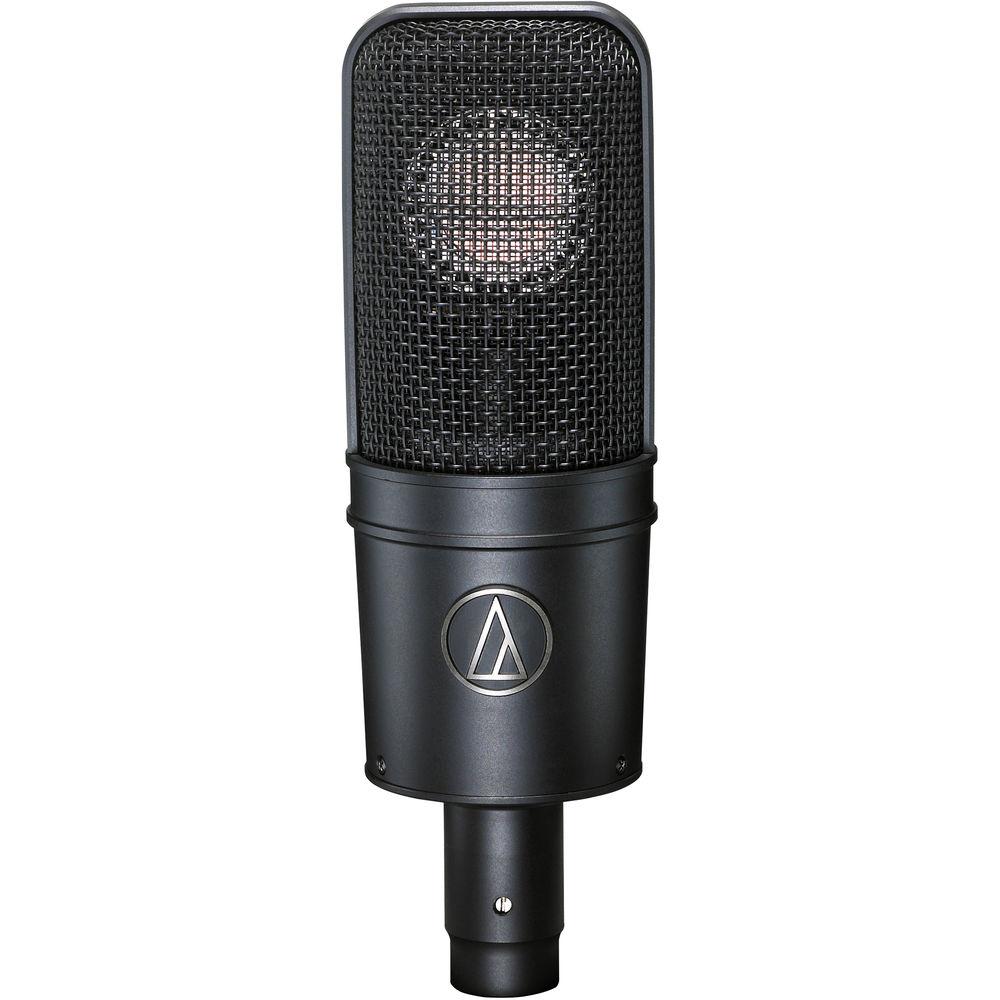

Product description The Audio-Technica AT4040 is a large-diaphragm, cardioid capacitor microphone designed for use in the most demanding recording applications. Intended for vocal and general instrument recording (piano, guitars, string instruments, etc.), the microphone's cardioid polar pattern minimizes off-axis signal, reducing ambient and residual noise, and delivers pristine low-noise recordings. The AT4040 has an integral 80 Hz hi-pass filter which provides easy switching from a flat frequency response to a low-end roll-off. The high-pass position reduces the microphone's sensitivity to popping in close vocal use. It also reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation, and mechanically-coupled vibrations. - Cardioid Polar Pattern
- The cardioid polar pattern effectively minimizes off-axis signal, reducing residual noise caused by instruments, ambience, etc.
- Quality Element and Baffle

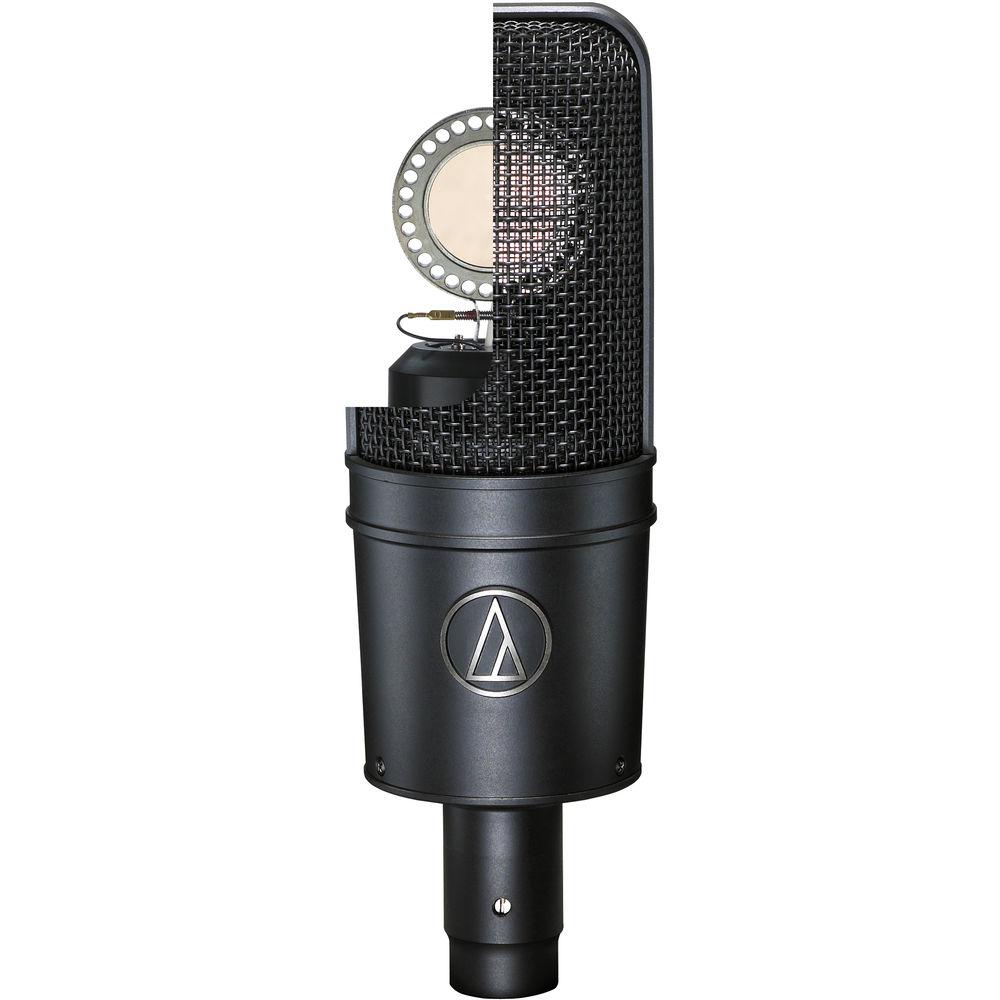

- The Audio-Technica AT 4040 features a gold-plated element and nickel-plated brass element baffle, providing pristine audio fidelity with a very low noise floor.

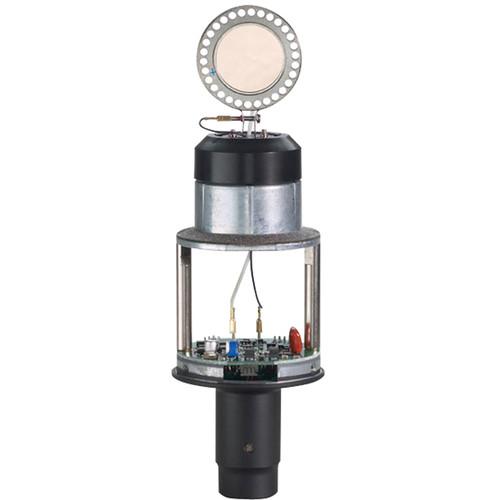

- Transformerless Circuitry
- In addition to the element, the transformerless design ensures even less noise and best possible presence.
- Shockmount

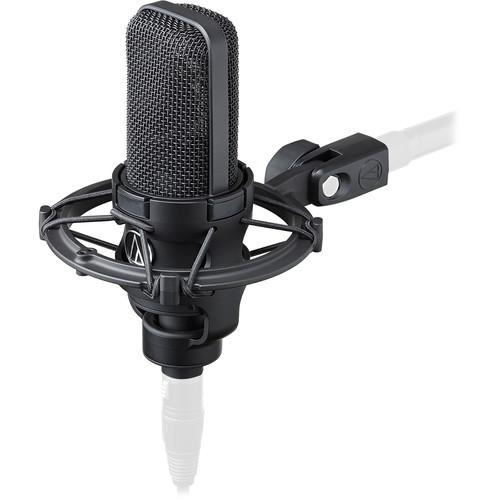

- The AT 4040 features the AT 8449 spring-loaded shockmount, providing maximum protection against noise caused by shock and handling of the microphone and stand.

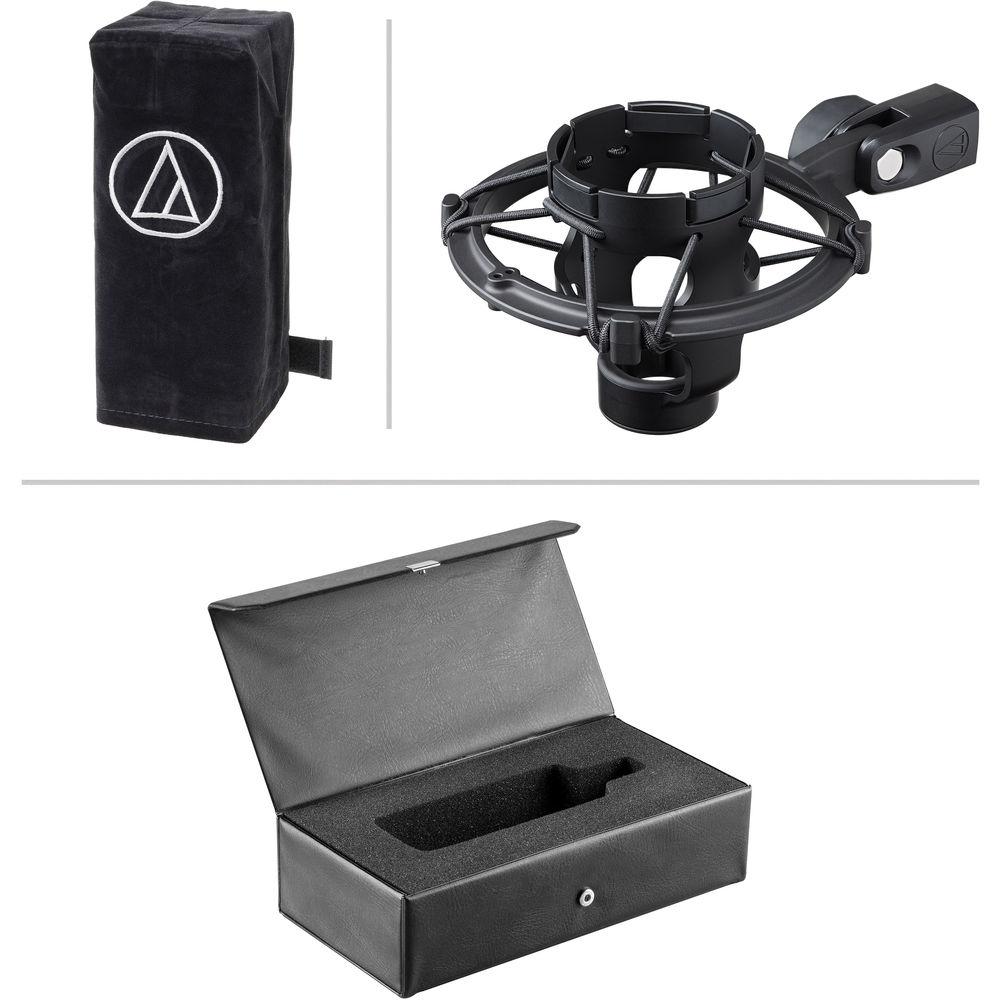

UPC: 042005127955 In the Box Audio-Technica AT4040 - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone AT8449 Shock Mount Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4040 Studio Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4040 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range (Typical) | 133 dB, (1 kHz at Maximum SPL) | | Signal-to-Noise Ratio | 82 dB, (1 kHz at 1 Pa) | | Maximum Input Sound Level | 145 dB SPL, (1 kHz at 1% T.H.D.) | | Power Requirements | Phantom, 48 V | | Output Impedance | 100 Ohms | | Output Connectors | XLR-3M Type | | Pad | Yes, 10 dB Pad; Roll-Off | | Low Frequency Roll-Off | Yes, 80 Hz, (12 dB Per Octave) | | Dimensions (L x Diam) | 6.69 x 2.10" / 170.0 x 53.4 mm | | Weight | 12.7 oz / 360 g | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 4.3" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
