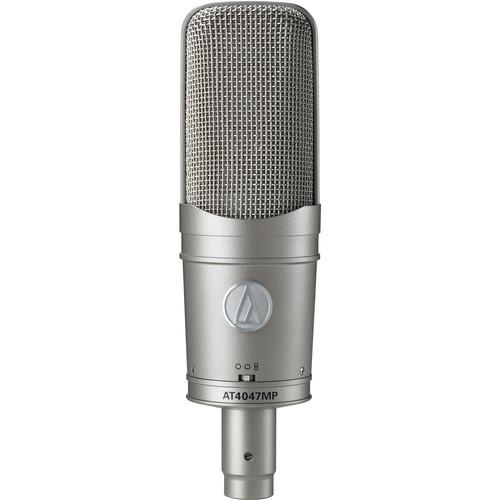

Product description The AT4047MP Multi-Pattern Condenser Microphone from Audio-Technica delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-eight polar patterns. The microphone's transformer-coupled output and specially tuned element provide sonic characteristics similar to early F.E.T. studio microphone designs. With a wide dynamic range, low self-noise, and high SPL capability, the microphone is suitable for vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voiceovers. - Three switchable polar patterns: cardioid, omnidirectional, and figure-of-eight
- Engineered to meet the critical acoustic requirements of professional recording, broadcast, and sound reinforcement

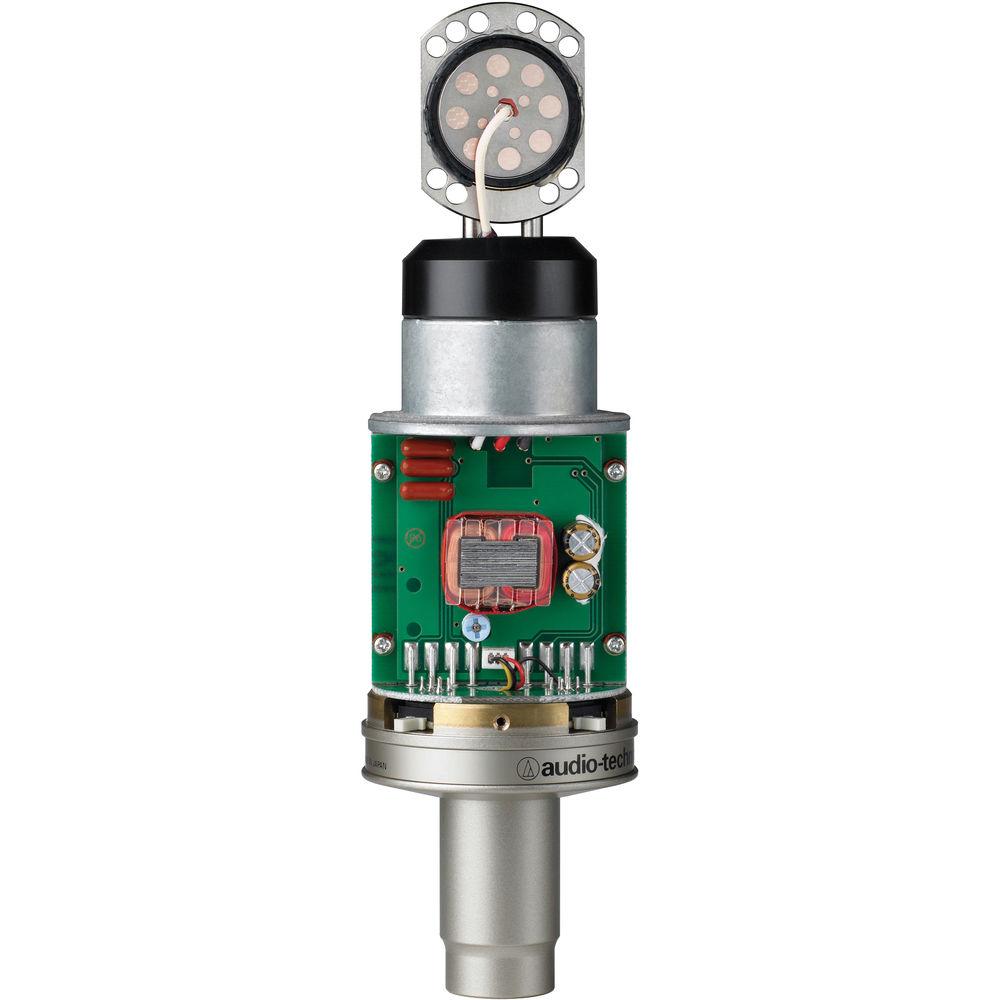

- Transformer-coupled output and specially tuned element provide sonic characteristics similar to early F.E.T. studio microphone designs
- Low self-noise, wide dynamic range, and high SPL capability

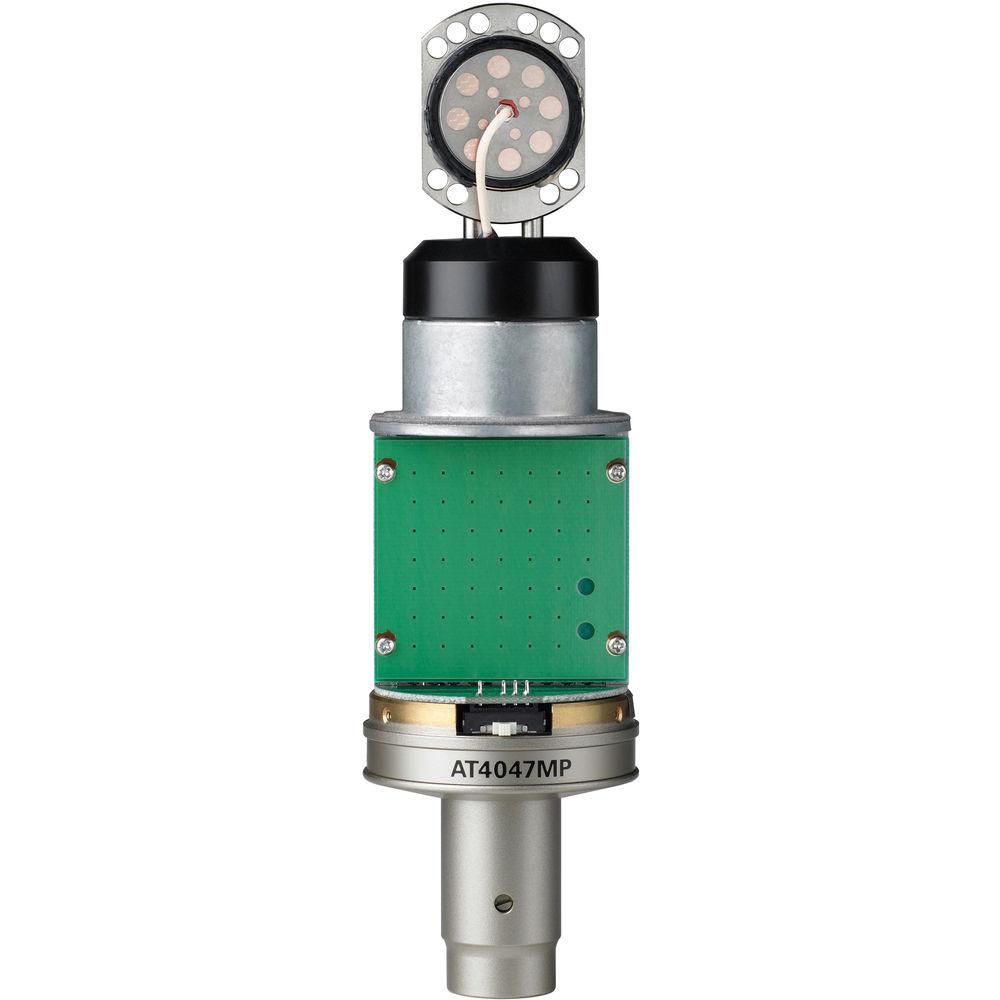

- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

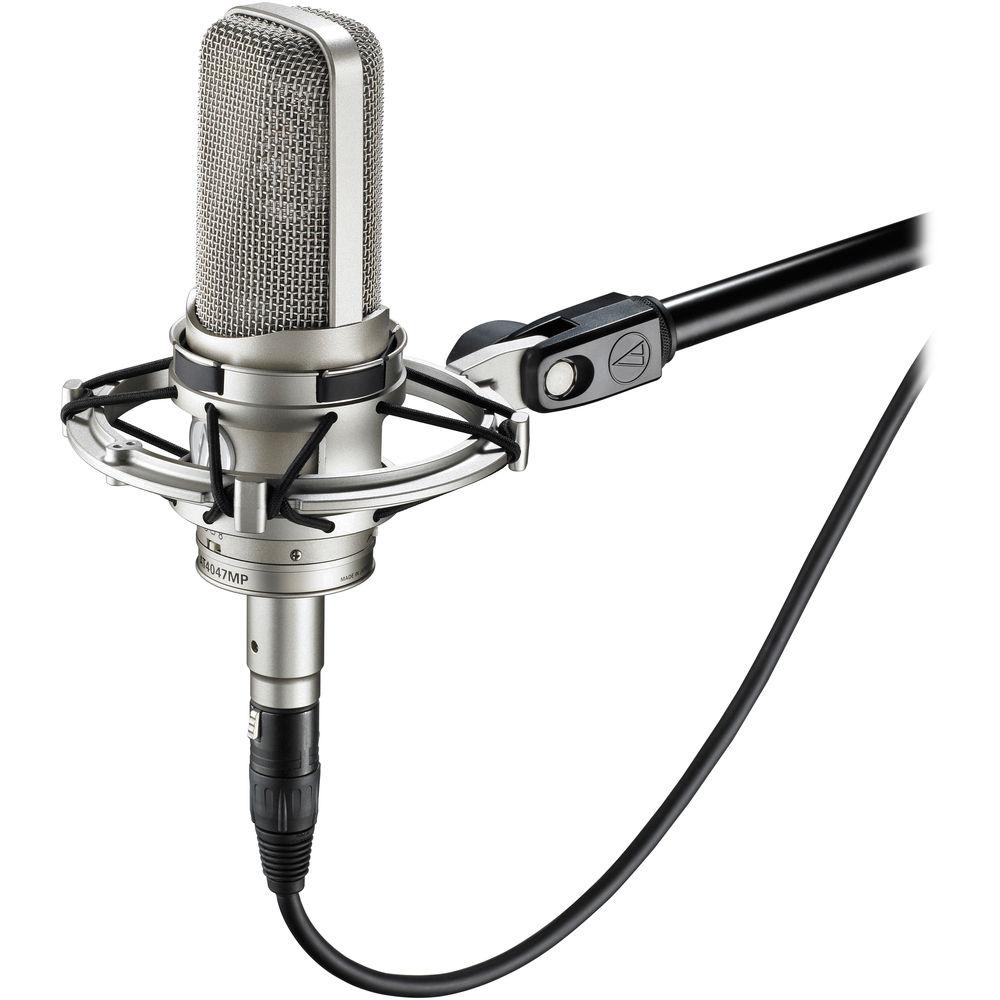

- Custom shock mount provides superior isolation
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- Certified by the METAlliance (Music Engineering and Technology Alliance)

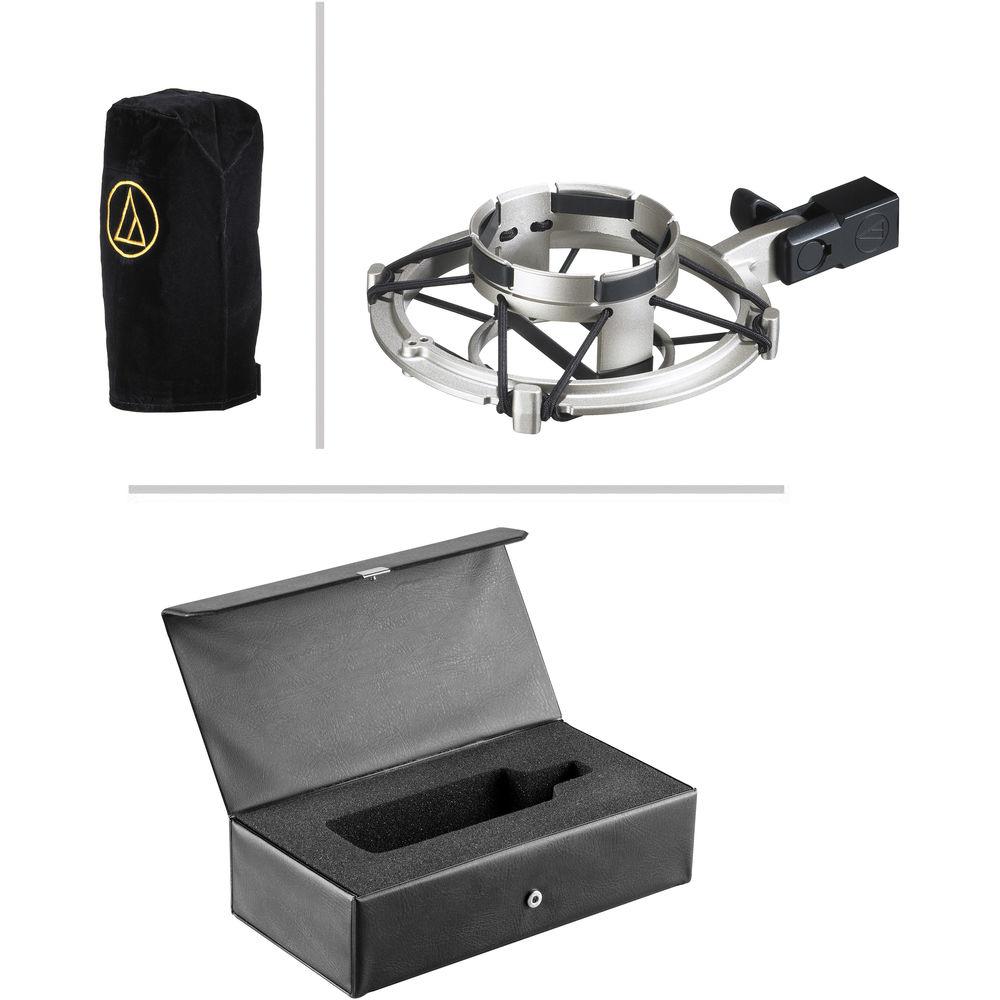

UPC: 042005160068 In the Box Audio-Technica AT4047MP Multi-Pattern Condenser Microphone AT8449/SV Shock Mount for 5/8"-27 Threaded Stands Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4047MP Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4047MP Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 80 dB | | Equivalent Noise Level | 14 dB | | Maximum SPL | 155 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | 7.9 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 141 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.4 µA | | Operating Voltage | 48 V | | Length | 7.40" / 188.0 mm | | Diameter | 2.10" / 53.4 mm | | Weight | 18.48 oz / 524 g | | | | Package Weight | 3.5 lb | | Box Dimensions (LxWxH) | 11.6 x 10.6 x 4.3" |
