User Manual for Audio-Technica AT4047SV - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4047SV - Cardioid Large Diaphragm
- Product category: Large Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Large Diaphragm Condenser
 |
User manual for the Audio-Technica AT4047SV - Cardioid Large Diaphragm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description - Mic Shootout 2: Affordable Large Diaphragm Condensers

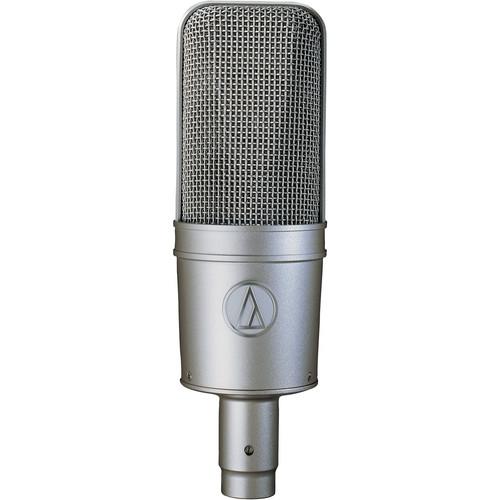

The AT4047/SV Cardioid Condenser Microphone from Audio-Technica is designed for studio recording and can be used with vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voiceovers. It features a dual diaphragm capsule design, maintaining precise cardioid polar pattern pick up and high-quality audio fidelity with a low noise floor. Low self-noise, wide dynamic range, and high SPL capability contribute to the microphone's sonic quality and versatility. The high SPL rating allows the microphone to be used with audio sources high in transient response which would otherwise have overloaded the circuit. The 4047/SV offers a frequency response of 20 Hz to 18 kHz, capturing low-end frequencies in great detail while maintaining the sonic presence of the mid- and high-frequency spectrum. - Designed for critical studio, live sound, and broadcast applications
- Transformer-coupled output and tuned element provide sonic characteristics similar to early F.E.T. studio microphone designs
- Low self-noise, wide dynamic range, and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- Surface-mount electronics comply with Audio-Technica's consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad

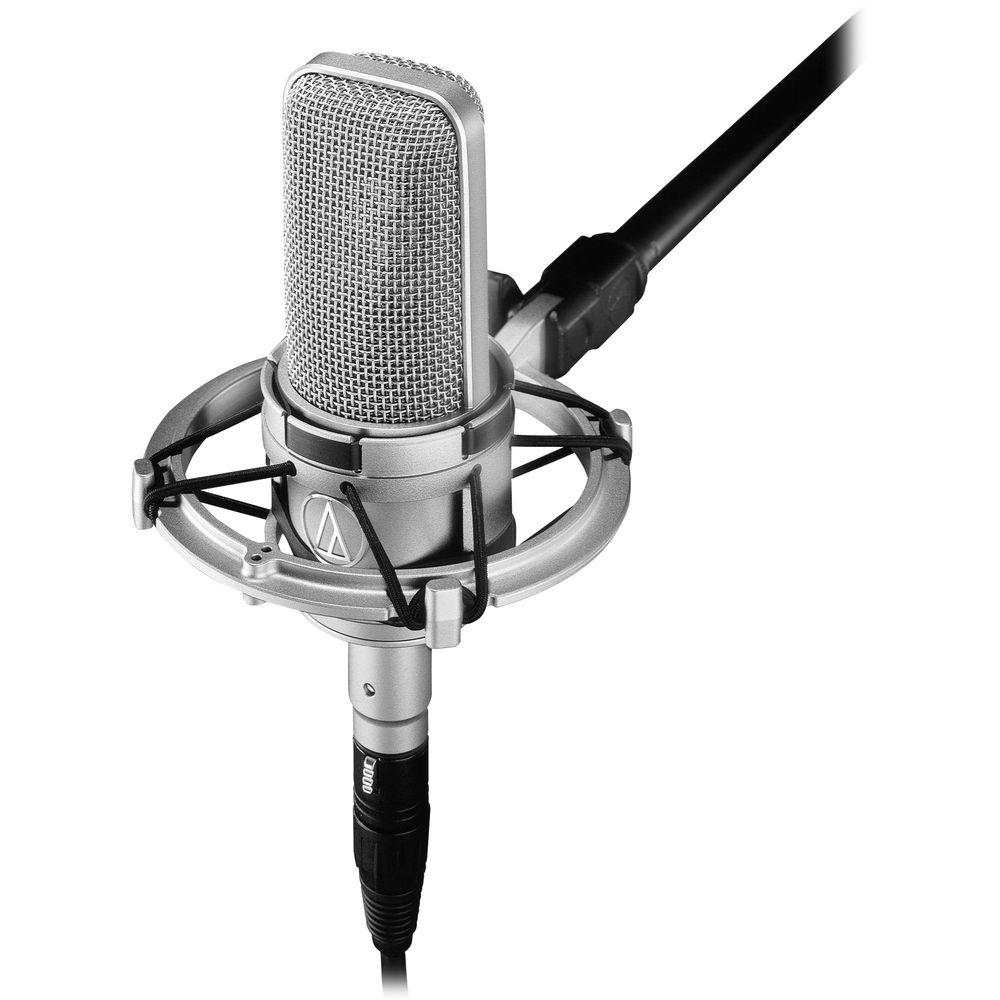

- Custom shock mount provides superior isolation

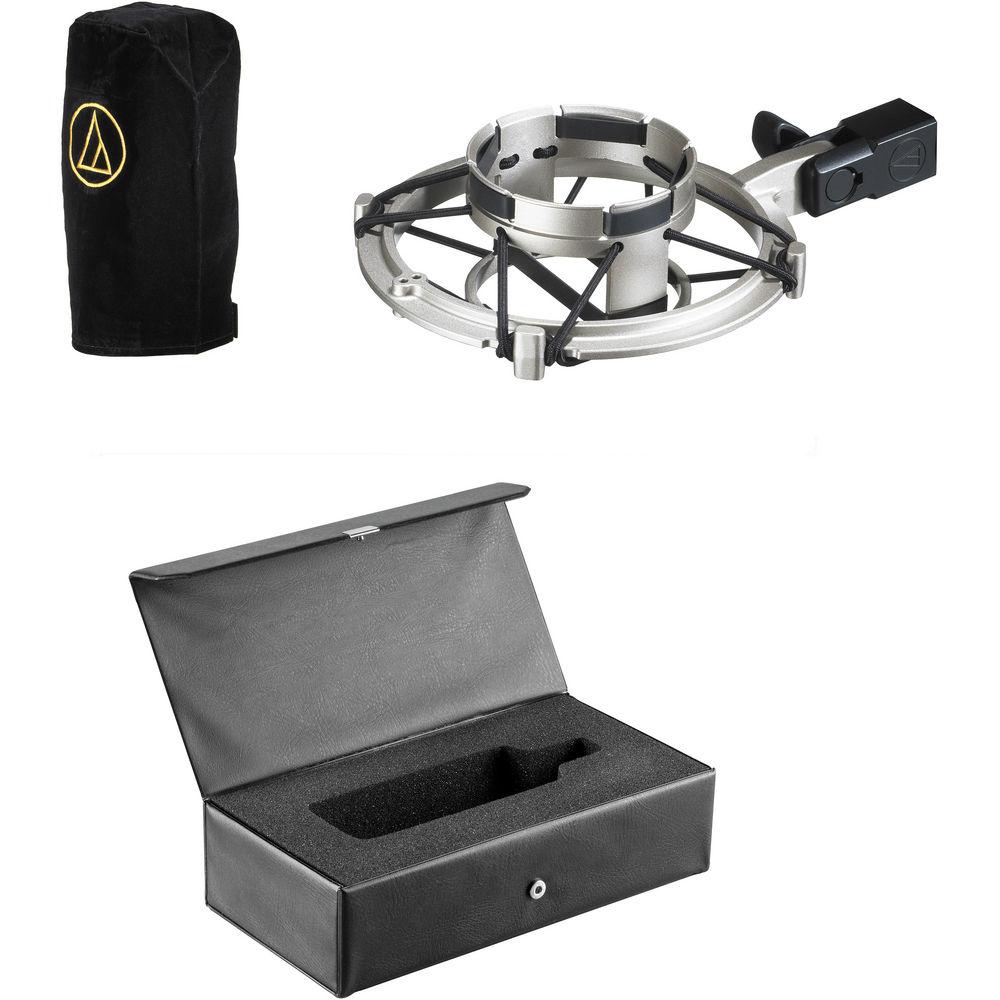

UPC: 042005308583 In the Box Audio-Technica AT4047SV - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone Shock Mount for 5/8"-27 Threaded Stands Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4047SV - Cardioid Large Diaphragm Studio Condenser Capacitor Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4047/SV Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 85 dB | | Equivalent Noise Level | 9 dB | | Maximum SPL | 149 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 250 Ohms | | Sensitivity | 17.7 mV/Pa | | Dynamic Range | 140 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 µA | | Operating Voltage | 48 V | | Length | 6.69" / 170.0 mm | | Diameter | 2.10" / 53.4 mm | | Weight | 14.46 oz / 410 g | | | | Package Weight | 3.32 lb | | Box Dimensions (LxWxH) | 15.95 x 13.0 x 8.55" |
