Product description - Mic Shootout 2: Affordable Large Diaphragm Condensers

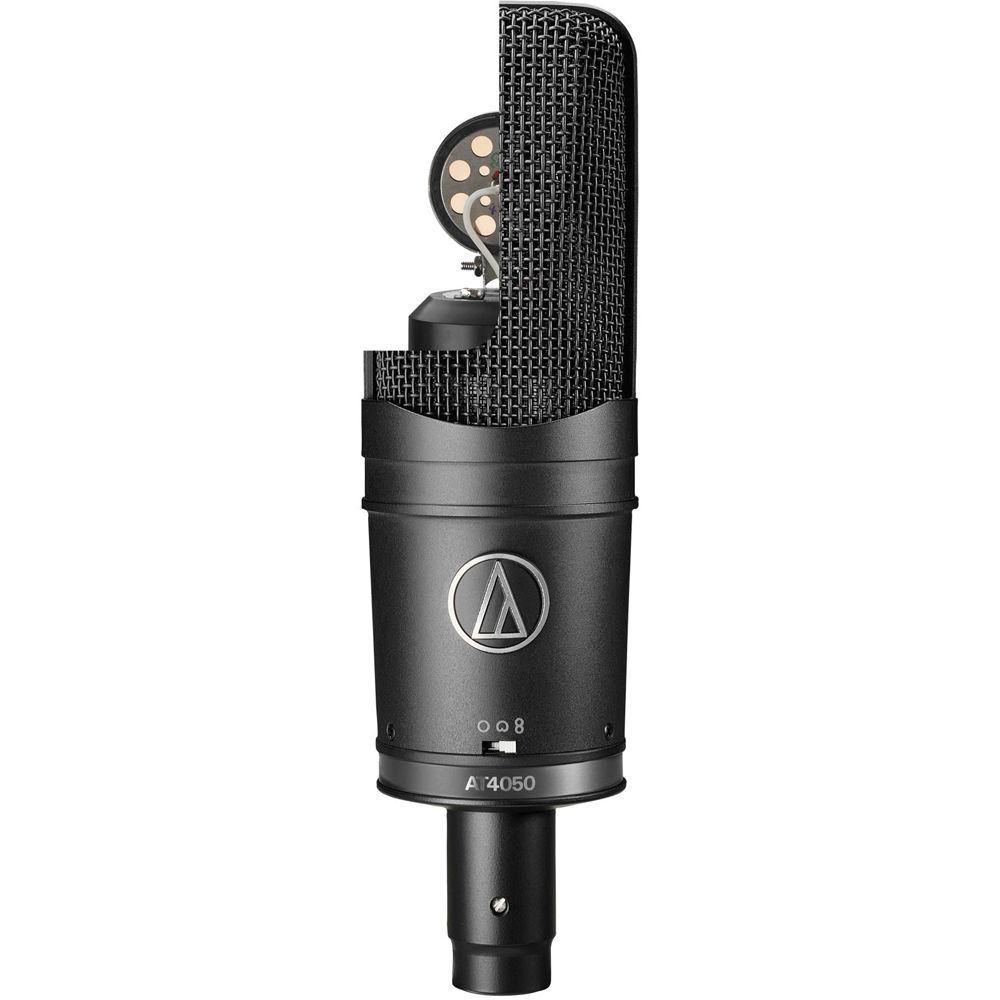

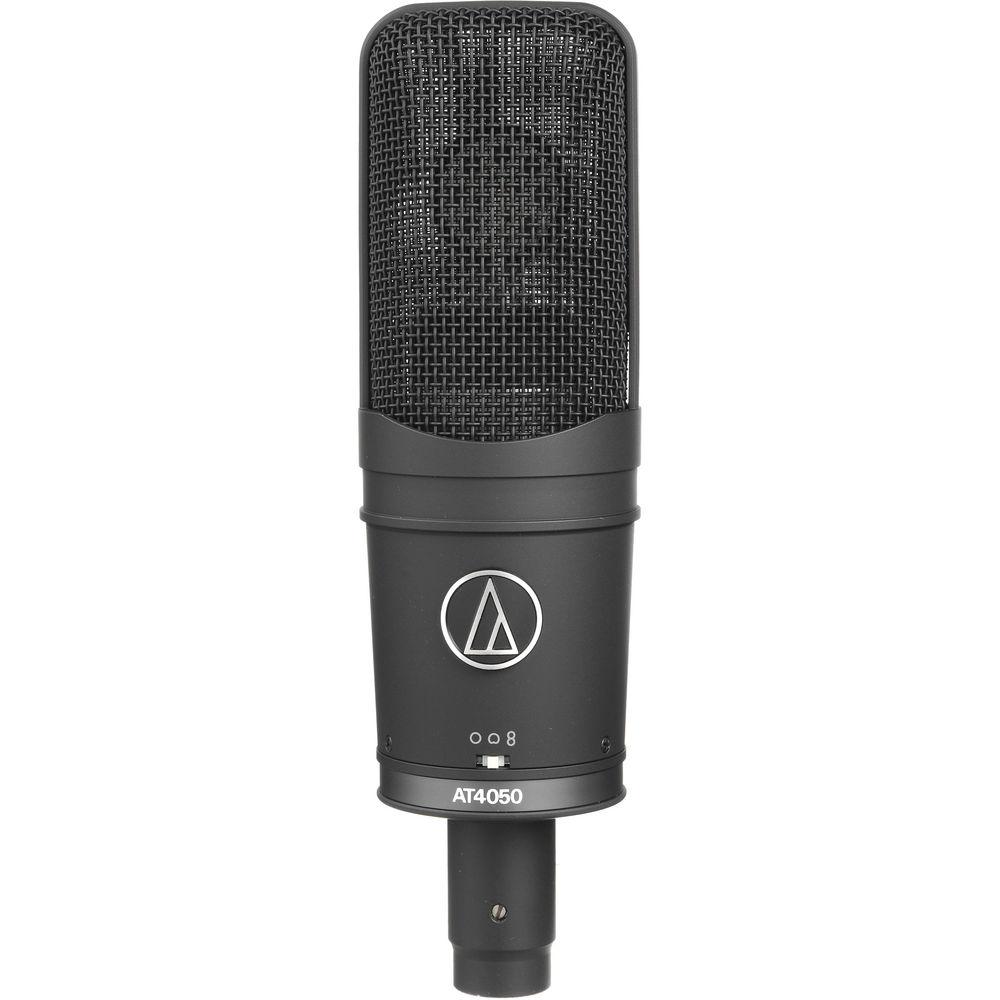

The AT4050 Multi-Pattern Condenser Microphone from Audio-Technica is a large-diaphragm side-address externally polarized condenser microphone with three switchable polar patterns: cardioid, omnidirectional, and figure-8. It can be used to capture audio for broadcast, studio, and sound reinforcement applications.The AT4050 is powered by 48V phantom power and built with a 3-pin XLR output connector. It is equipped with a -10 dB pad that lowers the microphone sensitivity and provides higher SPL capability. This makes it applicable in a wide range of applications like vocals, piano, strings, drum overheads, and guitar amp capture. Its dual large diaphragms are gold-vaporized and aged for consistent, high-quality performance.Furthermore, a precision-machined, nickel-plated brass acoustic element baffle provides solid element stability and maximum sensitivity. The AT4050 includes a shockmount, a microphone dust cover, and a protective carrying case. - Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and high quality
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process, allowing the optimum characteristics achieved to remain constant over years of use
- Three switchable polar patterns: omni, cardioid, and figure 8
- Transformerless circuitry minimizes low-frequency distortion and improves correlation of high-speed transients
- State-of-the-art surface-mount electronics are compliant with Audio-Technica's consistency and reliability standards

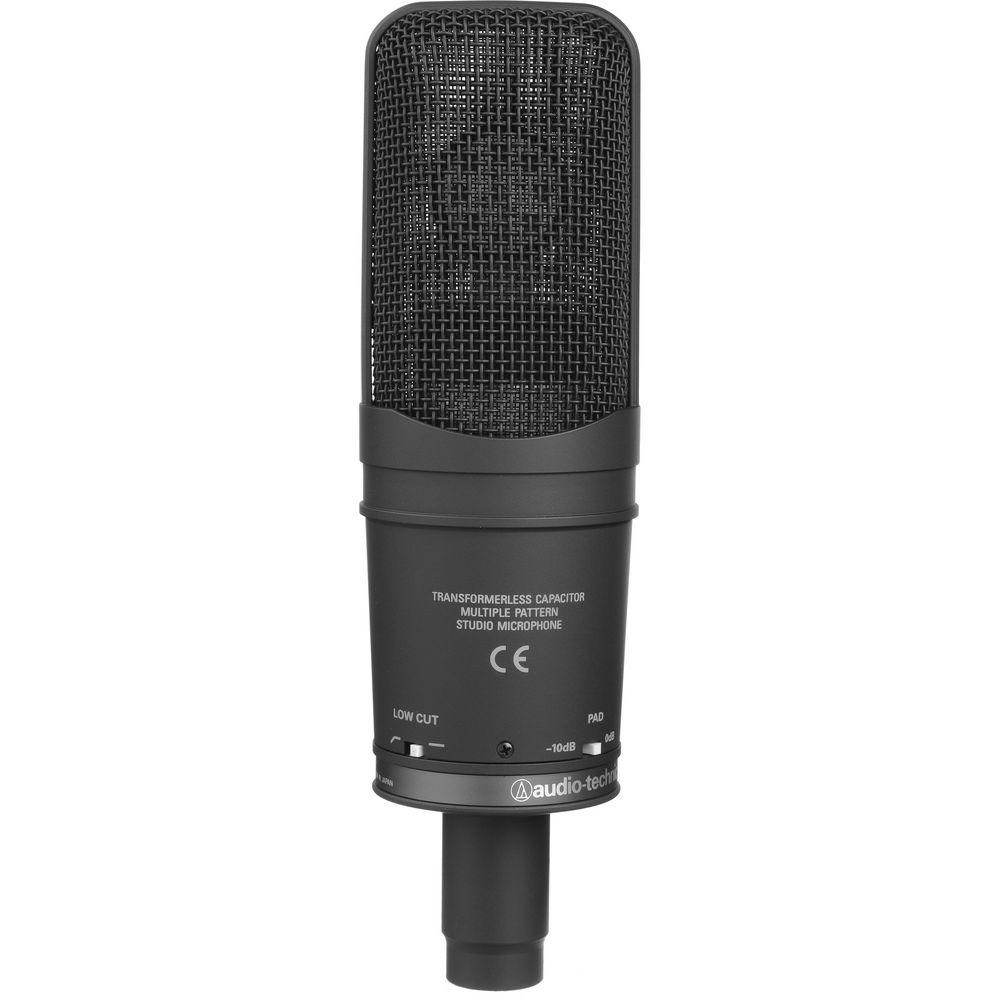

- Switchable 80 Hz hi-pass filter and 10 dB pad

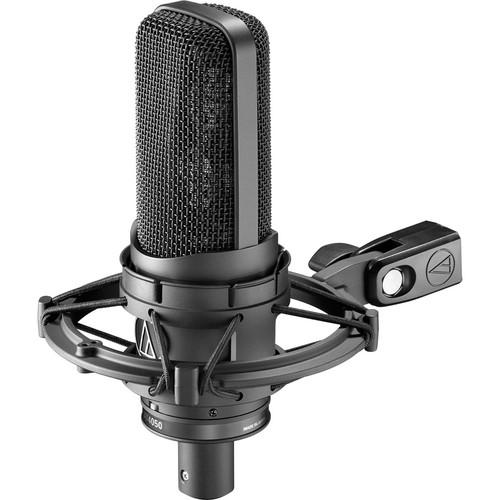

- Custom shockmount provides superior isolation
- Includes protective carrying case and microphone dust cover
UPC: 042005103164 In the Box Audio-Technica AT4050 Multi-Pattern Condenser Microphone 8449 Shock Mount Microphone Dust Cover Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4050 Multi-Pattern Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4050 Specs | | | Sound Field | Mono | | Transducer | Condenser | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Switched | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 77 dB A-Weighted | | Equivalent Noise Level | 17 dB A-Weighted | | Maximum SPL | 159 dB SPL Peak with -10 dB pad engaged | | Pad | -10 dB | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | 15.8 mV/Pa | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 132 dB A-Weighted | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.2 mA | | Operating Voltage | 48 V | | Length | 7.40" / 188.0 mm | | Diameter | 2.10" / 53.4 mm | | Weight | 17.99 oz / 510 g | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 11.2 x 10.1 x 4.3" |
