User Manual for Audio-Technica AT4050ST Stereo Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4050ST Stereo Condenser Microphone
- Product category: Stereo & Specialty Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Stereo & Specialty Microphones
 |
User manual for the Audio-Technica AT4050ST Stereo Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

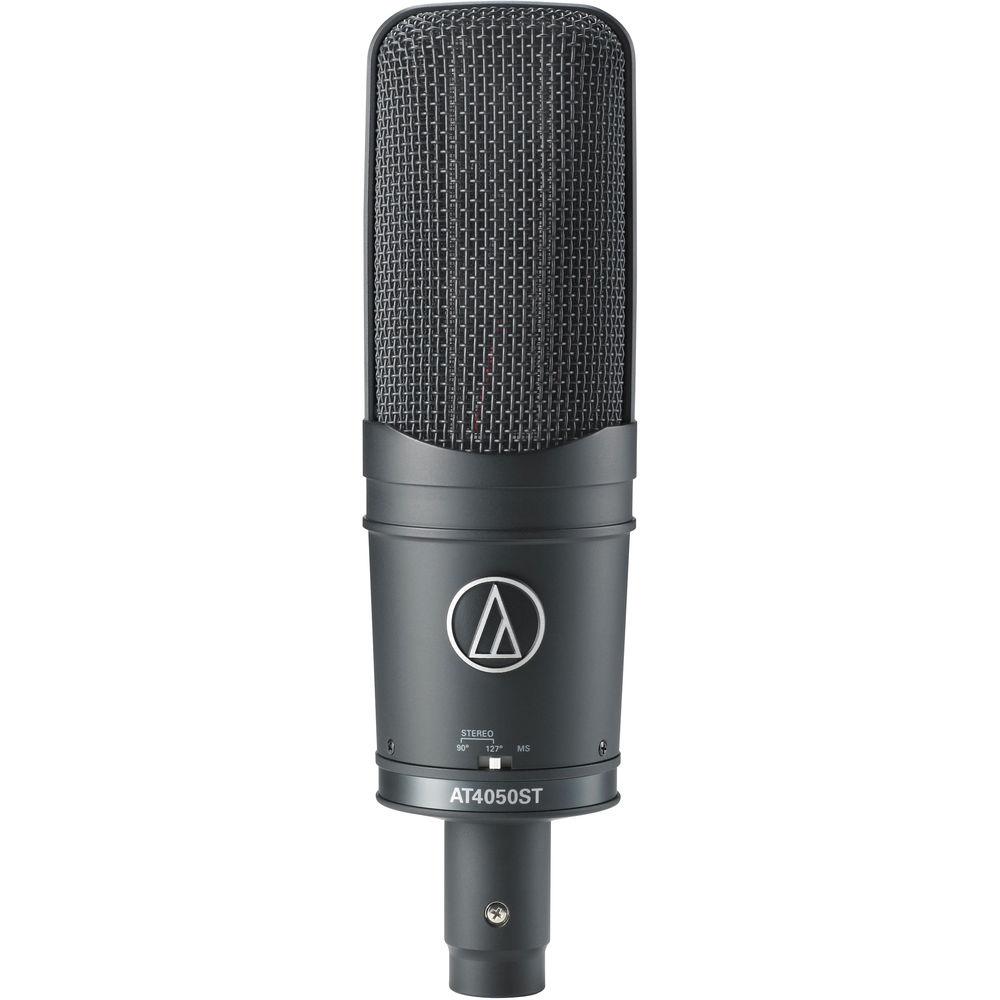

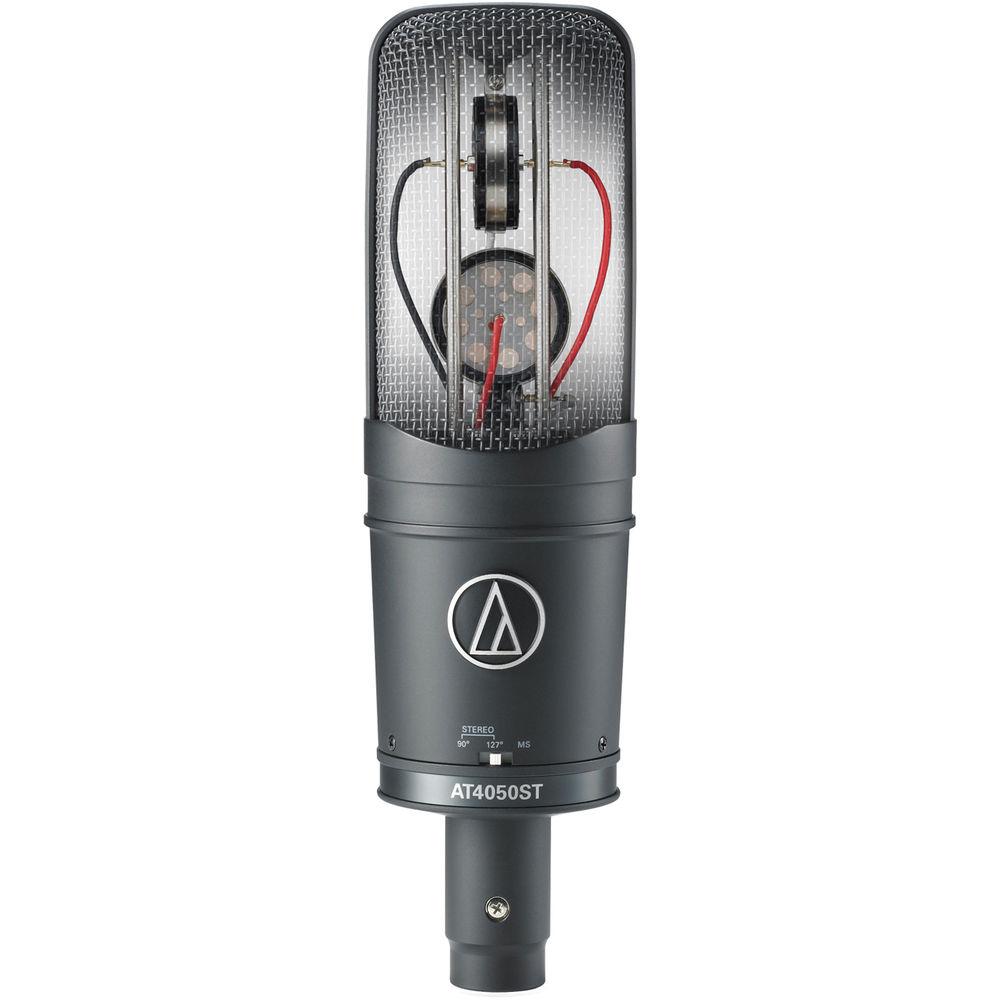

Product description The AT4050ST from Audio-Technica is a studio-grade side-address stereo microphone that offers terrific flexibility for a variety of applications. The mic housing contains independent cardioid and figure-8 condenser elements, which allows the mic to maintain precise pattern definition across a full frequency range. It also allows you to choose between a left-right stereo output or discrete mid-side signal.
The diaphragms are vapor-deposited with 2-micron thick gold, and undergo a 5-step aging process to ensure years of optimal use. Internal transformerless circuitry helps to eliminate low-frequency distortion and provides excellent correlation of high-speed transients. The housing has a symmetrical design that provides an open acoustical environment to minimize internal reflections.
For additional flexibility, the mic has an 80Hz high-pass filter to reduce low-frequency rumble and hum, as well as a 10dB pad switch, which provides extra headroom when recording loud sound sources. The AT4050ST comes complete with a custom shock mount, an extra-long XLR cable, a dust cover, and a protective carrying case. The mic is also certified by the METAlliance. - Independent cardioid and figure-8 condenser elements allow the mic to maintain precise pattern definition across a full frequency range
- Selectable left-right stereo output or discrete mid-side signal output
- Diaphragms are vapor-deposited with 2-micron thick gold, and undergo a 5-step aging process to ensure years of optimal use

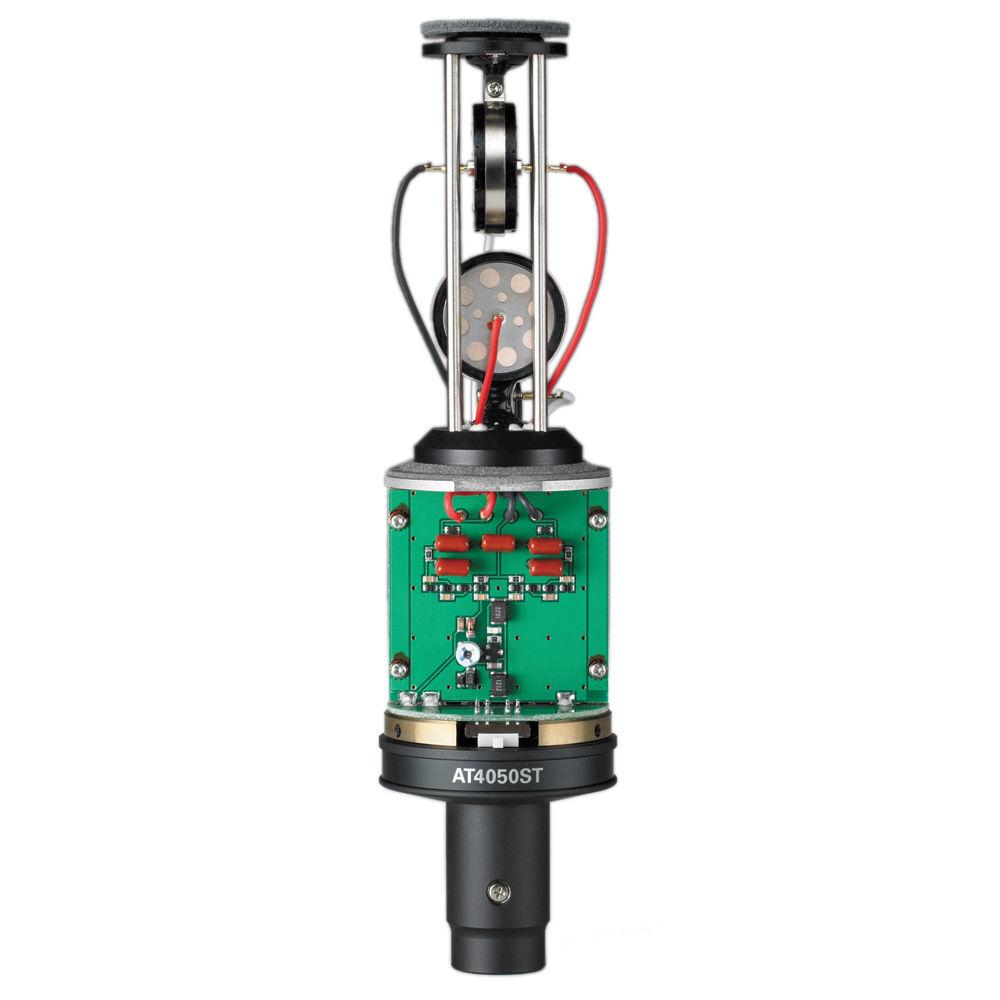

- Internal transformerless circuitry helps to eliminate low-frequency distortion and provides excellent correlation of high-speed transients
- Symmetrical housing design provides an open acoustical environment to minimize internal reflections
- Switchable 80Hz high-pass filter reduces low-frequency rumble and hum
- 10dB pad switch provides extra headroom when recording loud sound sources

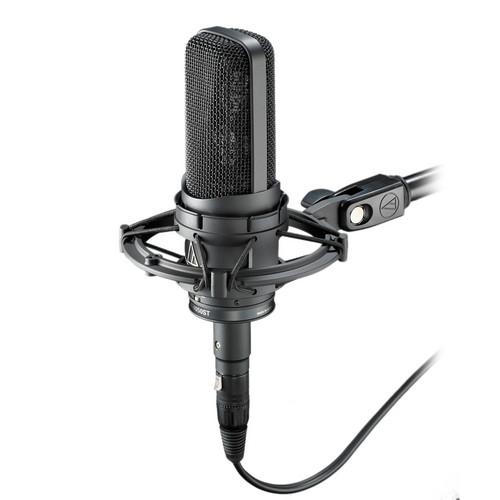

- Includes a custom shock mount, an extra-long 8-conductor shielded XLR cable, a dust cover, and a protective carrying case
- Certified by the METAlliance

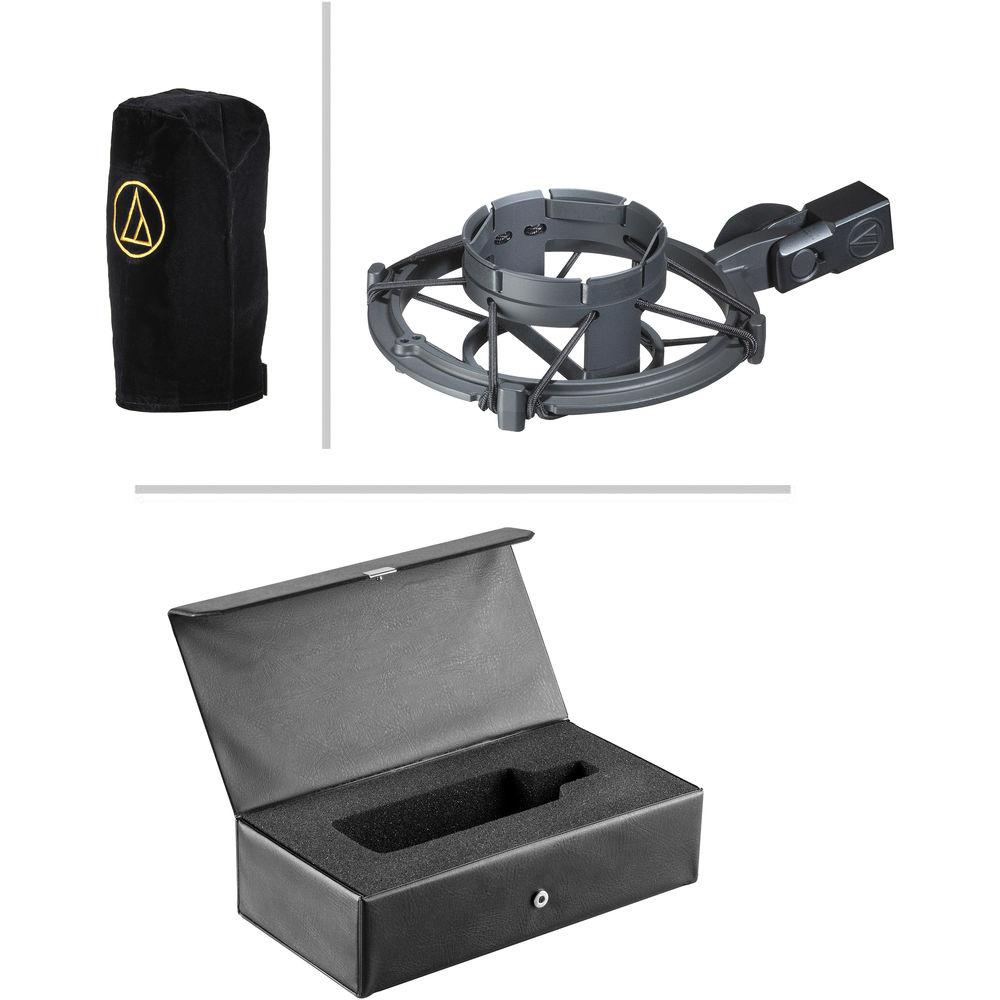

In the Box Audio-Technica AT4050ST Stereo Condenser Microphone XLR Cable Shock Mount Dust Cover Protective Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4050ST Stereo Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4050ST Specs | Transducer | Externally-Polarized (DC Bias) Condenser | | Polar Pattern | Cardioid and Figure-8 | | Frequency Response | 20Hz - 18kHz | | Dynamic Range (Typical) | Mid: 134dB (1kHz at Max SPL)
Side: 132dB (1kHz at Max SPL) | | Signal-to-Noise Ratio | Stereo 90°: 69dB (1kHz at 1Pa)
Stereo 127°: 78dB (1kHz at 1Pa)
Mid: 79dB (1kHz at 1Pa)
Side: 77dB (1kHz at 1 Pa) | | Maximum Input Sound Level | Mid and Side: 149dB SPL (1kHz at 1% THD)
159dB SPL (With 10dB Pad, Nominal) | | Power Requirements | 48V Phantom Power, 6.4mA | | Output Impedance | 50 Ohms | | Output Connectors | 5-Pin XLR Male | | Pad | Yes, 10dB | | Low Frequency Roll-Off | Yes, 80Hz @ 12dB/Oct | | Dimensions (LxDiameter) | 7.6 x 2.1" (193 x 53mm) | | Weight | 18.2 oz (517g) | | | | Package Weight | 4.21 lb | | Box Dimensions (LxWxH) | 11.0 x 10.0 x 4.0" |
