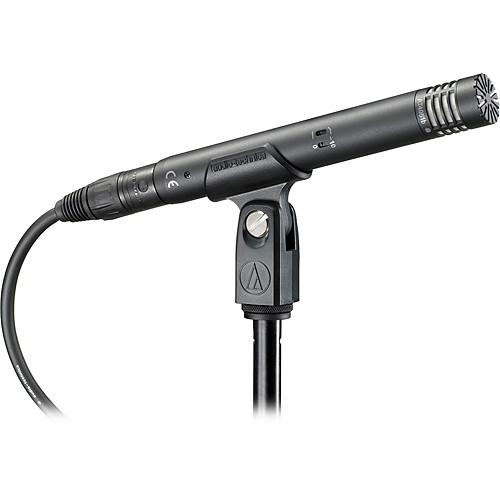

User Manual for Audio-Technica AT4051b Cardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4051b Cardioid Condenser Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
|
User manual for the Audio-Technica AT4051b Cardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The AT4051b Cardioid Condenser Microphone from Audio-Technica consists of the company's AT4900b-48 microphone body and the AT4051b-EL cardioid head capsule. It is suitable for field or studio use and features a cardioid pickup pattern that reduces off-axis pickup, providing isolation of the desired sound source. The microphone's internal transformerless circuitry reduces distortion and provides correlation of high-speed transients. There is a direct-coupled balanced output for a clean signal under high-output conditions and a strong turned-brass housing for durability. A switchable high-pass filter reduces low frequency noise, and a -10 dB pad picks up loud sound sources. The package includes a microphone stand clamp, a windscreen, and carrying case. - Can be used for professional recording, broadcast, and sound reinforcement
- The cardioid polar pattern improves isolation of the sound source for a high front-to-back rejection ratio
- Direct-coupled, balanced output results in a clean signal under high-output conditions
- Transformerless circuitry minimizes low-frequency distortion and provides correlation of high-speed transients
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Turned-brass microphone housing for durability
UPC: 042005156016 In the Box Audio-Technica AT4051b Cardioid Condenser Microphone AT8405a Snap-in Microphone Stand Clamp eqrtvtuxwxbueefvrqezdyewudyvvy Windscreen Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4051b Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4051b Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 16 dB | | Maximum SPL | 145 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -34 dB | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 129 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.8 mA | | Operating Voltage | 48 V | | Length | 6.10" / 155 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.44 oz / 126 g | | | | Package Weight | 1.135 lb | | Box Dimensions (LxWxH) | 10.4 x 4.55 x 1.7" |
