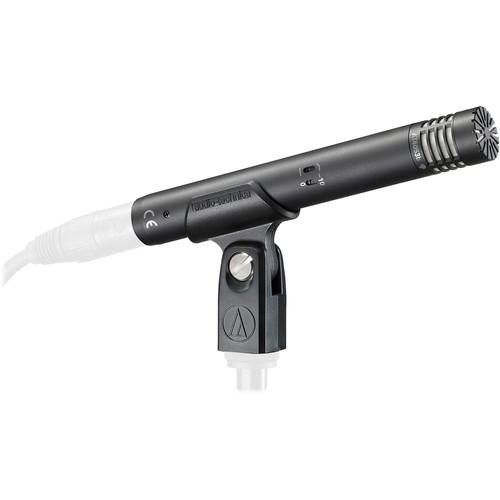

User Manual for Audio-Technica AT4053b Hypercardioid Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4053b Hypercardioid Condenser Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
|
User manual for the Audio-Technica AT4053b Hypercardioid Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The AT4053b Hypercardioid Condenser Microphone from Audio-Technica features a professional-quality shotgun design, suitable for field and studio use. It consists of the company's AT4900b-48 microphone body and AT4053b-EL hypercardioid head capsule, providing a hypercardioid pickup pattern for minimizing off-axis noise and improving the isolation of your desired sound source. The microphone's internal transformerless circuitry reduces distortion and provides correlation of high-speed transients. There is a direct-coupled balanced output for a clean signal under high-output conditions and a strong turned-brass housing for durability. A switchable high-pass filter reduces low frequency noise, and a -10 dB pad picks up loud sound sources. The package includes a microphone stand clamp, a windscreen, and carrying case. Note: Separately sold interchangeable head capsules with different pickup patterns are available. - For professional recording, broadcast, and sound reinforcement applications
- Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source
- Direct-coupled, balanced output results in a clean signal under high-output conditions
- Transformerless circuitry minimizes low-frequency distortion and provides superior correlation of high-speed transients
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Turned-brass microphone housing for durability
UPC: 042005156023 In the Box Audio-Technica AT4053b Hypercardioid Condenser Microphone AT8405a Snap-in Microphone Stand Clamp Windscreen Protective Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4053b Hypercardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4053b Specs | | | Transducer | Condenser | | Polar Pattern | Hypercardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 78 dB | | Equivalent Noise Level | 16 dB | | Maximum SPL | 145 dB SPL
155 dB SPL | | Pad | -10 dB | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | -34 dB | | Low-Cut Filter | 12 dB/Octave @ 80 Hz | | Dynamic Range | 129 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 4.8 mA | | Operating Voltage | 48 V | | Length | 6.10" / 155 mm | | Diameter | 0.83" / 21 mm | | Weight | 4.48 oz / 127 g | | | | Package Weight | 1.115 lb | | Box Dimensions (LxWxH) | 10.4 x 4.6 x 1.75" |
