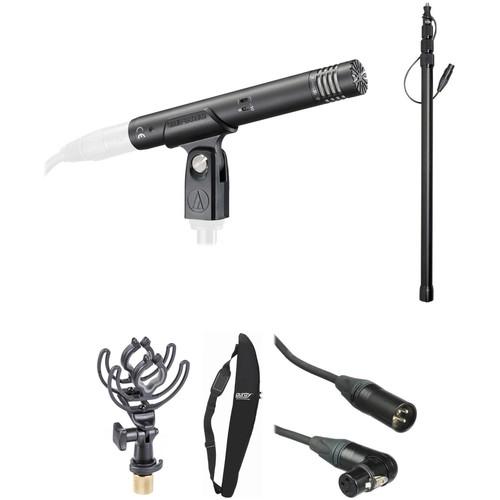

Audio-Technica AT4053b Hypercardioid Condenser Microphone Kit

User Manual for Audio-Technica AT4053b Hypercardioid Condenser Microphone Kit 2

• Product category: Small Diaphragm Condenser Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Small Diaphragm Condenser

Product description

• Audio-Technica AT4053b Hypercardioid Condenser Microphone The AT4053b Hypercardioid Condenser Microphone from Audio-Technica features a professional-quality shotgun design, suitable for field and studio use. It consists of the company's AT4900b-48 microphone body and AT4053b-EL hypercardioid head capsule, providing a hypercardioid pickup pattern for minimizing off-axis noise and improving the isolation of your desired sound source. The microphone's internal transformerless circuitry reduces distortion and provides correlation of high-speed transients. There is a direct-coupled balanced output for a clean signal under high-output conditions and a strong turned-brass housing for durability. A switchable high-pass filter reduces low frequency noise, and a -10 dB pad picks up loud sound sources. The package includes a microphone stand clamp, a windscreen, and carrying case. Note: Separately sold interchangeable head capsules with different pickup patterns are available.
  • For professional recording, broadcast, and sound reinforcement applications
  • Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source
  • Direct-coupled, balanced output results in a clean signal under high-output conditions
  • Transformerless circuitry minimizes low-frequency distortion and provides superior correlation of high-speed transients
  • Switchable 80 Hz hi-pass filter and 10 dB pad
  • Turned-brass microphone housing for durability
  • RoHS compliant
  UPC: 042005156023
• Rycote INV-6 InVision Microphone Suspension for Stand and Boompole Mounting The Rycote INV-6 InVision Microphone Suspension addresses the demand for a professional, Rycote-quality shockmount in the studio, conference settings and speech capturing applications.The entire mount is comprised of two large InVision lyres with two clips that accommodate microphone bodies measuring 19 to 25mm in diameter. The lyres rest on a bar with a 3/8" threaded stand adapter at the base.The stand adapter itself features an integrated cable clip for securing excess cable and minimizing noise. The unique lyre suspension is engineered with Hytrel for a virtually indestructible design that maximizes shock and noise suppression.The InVision suspension system is available in various clip sizes to accommodate different microphones. The versatile 19 to 25mm mounting clips included with this system are intended for mounting a wide variety of microphones (under 120mm in length).
  Large Lyre Suspension for Boom Operation
  • The large lyre suspension webs measure 70mm high and 40mm wide to accommodate heavier microphones. This is ideal for static stand mounting as well as boom placement.
  19 to 25mm Mounting Clips
  • The clips included with this system accommodate microphone diameters measuring between 19 to 25mm in diameter. The clips mount a wide variety of microphones that measure under 120mm long.
  Hytrel Construction
  • The unique lyre suspension is engineered with Hytrel for a virtually indestructible design that maximizes shock and noise suppression.
  Integrated 3/8" Threaded Stand Adapter
  • A 3/8" threaded stand adapter is featured at the base for microphone stand mounting.
• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie The Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie is a case designed to hold up to a 34" closed boompole with shotgun microphone, softie, and shock mount. Its interior end cap is strengthened to protect the bag from punctures. It features a zipper closure with protective interior lining to prevent snags and scratches. The bag is built with an interior pocket for accessories that opens or closes with hook and loop fasteners. An adjustable shoulder strap is included with a nametag holder. UPC: 847628562790
• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable The K-Tek KE-89CC Avalon Series Aluminum Boompole provides a moderately priced, lightweight boompole solution for ENG, EFP, and other field recording applications. Its sturdy aluminum design is tough enough to endure the rigors of road use, while remaining lightweight and travel-worthy. This pole features an internal coiled cable and an XLR connection at the base of the pole. A total of four aluminum sections telescope between 2' 5" to 7' 6" and will easily store in any standard equipment case. The captive-collet coupling system locks each section in place for even further reliability.
  • Internal coiled XLR cable and connection at the base
  • The KE-89CC features a bottom-mounted three-pin XLR connection
  • Designed to fit in any standard equipment case, for ENG, EFP, and DV location production work
  • Jam-resistant collar coupling
  • Unique pole-top design with cable retention slots and replaceable stainless steel mounting stud
  UPC: 791090332033
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558298

• AT4053b Hypercardioid Condenser Microphone vwsaafrdxrazwbreuzftzubqbacr
• AT8405a Snap-in Microphone Stand Clamp
• Windscreen
• Protective Carrying Case
• Limited 1-Year Warranty

• Rycote - INV-6 InVision Microphone Suspension for Stand and Boompole Mounting

• Auray - Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

• K-Tek - KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT4053b Hypercardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Hypercardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	78 dB
  Equivalent Noise Level	16 dB
  Maximum SPL	145 dB SPL 155 dB SPL
  Pad	-10 dB
  THD	1%
  Impedance	50 Ohms
  Sensitivity	-34 dB
  Low-Cut Filter	12 dB/Octave @ 80 Hz
  Dynamic Range	129 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	4.8 mA
  Operating Voltage	48 V
  Length	6.10" / 155 mm
  Diameter	0.83" / 21 mm
  Weight	4.48 oz / 127 g

  Box Dimensions (LxWxH)	10.4 x 4.6 x 1.75"

• Rycote INV-6 InVision Microphone Suspension for Stand and Boompole Mounting

  Dimensions

  Lyre (Suspension): 2.75 x 1.57" (70 x 40mm) (WxH) Clips: 19 to 25mm (0.74 to 0.98") (Both) Standard Bar Size (Small) Length Not Specified 3/8" Threaded Stand Adapter

  Box Dimensions (LxWxH)	5.1 x 3.2 x 3.2"

• Auray Neoprene Boompole Bag for 34" Closed Boompole with Shotgun Mic and Softie

  Material	Neoprene
  Type of Closure	Zipper with protective lining
  Dimensions (LxWxD)	36 x 6 x 2" (91.4 x 15.5 x 5.5 cm)
  Weight	15 oz (454 g)

  Box Dimensions (LxWxH)	39.0 x 7.8 x 1.0"

• K-Tek KE-89CC Avalon Series Aluminum Boompole with Internal XLR Cable

  Material	Aluminum
  Sections	4
  Load Capacity	Not specified by manufacturer
  Length	2' 5" to 7' 6" (0.7 to 2.3 m)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	33.0 x 3.0 x 2.8"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	7.0 x 3.2 x 2.6"
