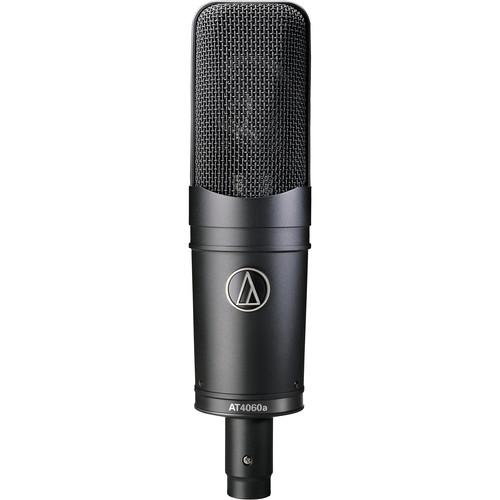

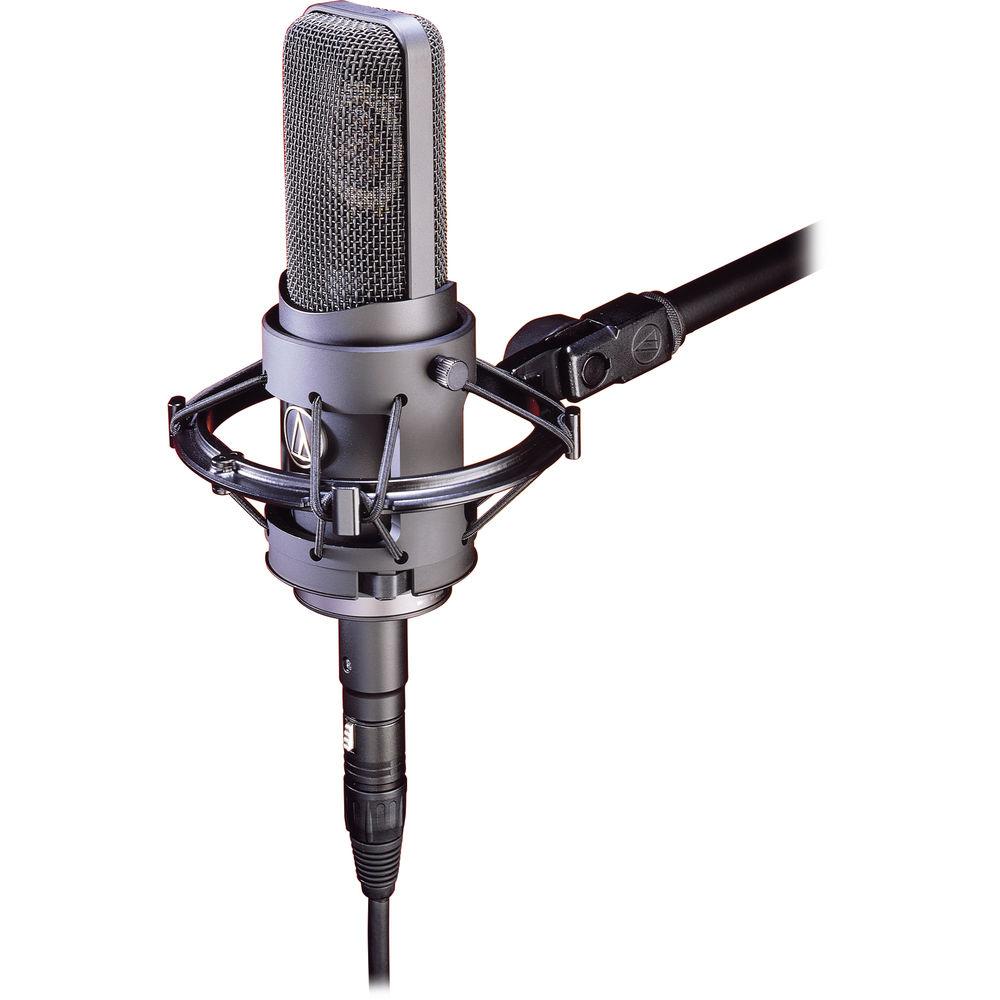

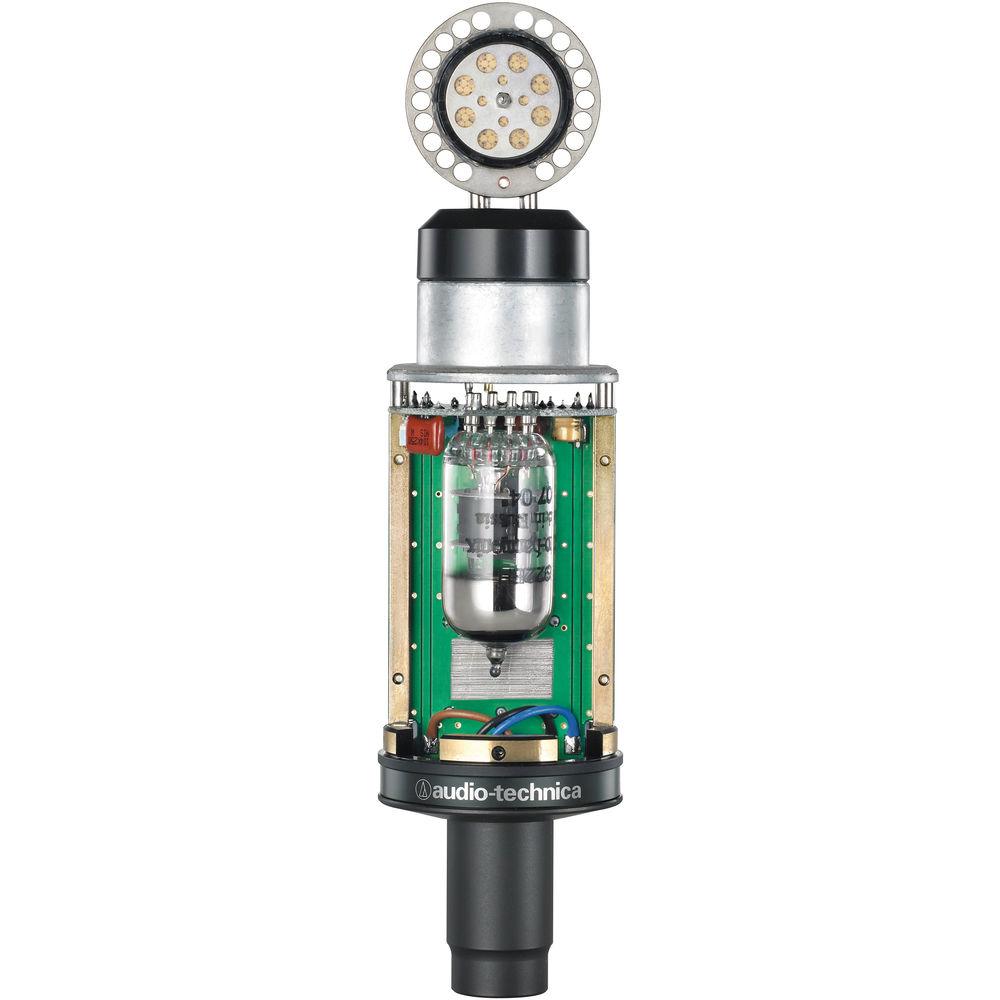

Product description The AT4060a Cardioid Condenser Microphone is designed for use in demanding studio applications. The tube is hand-selected, individually aged and tested, then employed in a uniquely configured circuit for enhanced tube performance. Specially tuned elements improve the dynamic range and the allow the AT4060a to handle high SPLs without sacrificing high-frequency characteristics. Floating-construction mounting of the elements provides isolation from noise and vibration. The AT4060a operates in conjunction with the included tube microphone powering unit, featuring low-impedance output and a ground-lift switch. -
- Vintage tube sound with the versatile performance necessary for the most demanding studio applications
- Hand-selected tubes are individually tested and aged to maintain peak performance
- Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
- Wide dynamic range, low self-noise and high max SPL capability
- Large coupling transformer provides superior low-frequency linearity
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity

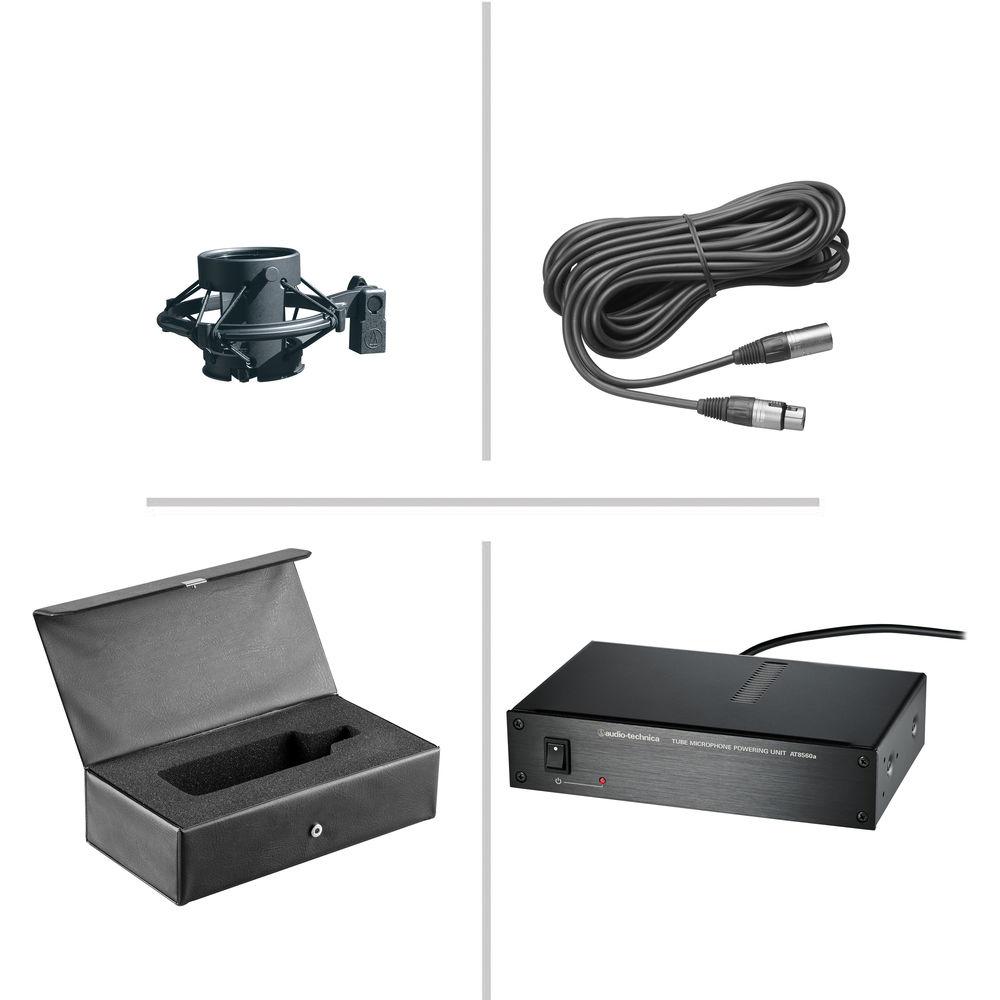

In the Box Audio-Technica AT4060a Cardioid Condenser Microphone AT8560a Tube Microphone Powering Unit AT8447 Shock Mount for 5/8"-27 Threaded Stands Rack-Mount Adapters for Tube Microphone Powering Unit Protective Microphone Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4060a Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4060A Specs | Transducer | Externally polarized (DC bias) condenser | | Polar Pattern | Cardioid | | Frequency Response | 20 Hz to 20000 Hz | | Open Circuit Sensitivity | -34 dB (19.9 mV) re 1V at 1 Pa | | Impedance | 200 ohms | | Max Input Sound Level (SPL) | 150 dB SPL, 1 kHz at 1% T.H.D., 149 dB SPL, 1 kHz at 0.5% T.H.D. | | Noise | 19 dB SPL | | Dynamic Range (Typical) | 131 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | 75 dB, 1 kHz at 1 Pa | | Power Requirements | AT8560a tube microphone powering unit (100-240 VAC) | | Output Connectors | 3-pin XLRM-type (on tube microphone powering unit) | | Cables | 25' (7.6 m) cable with 6-pin XLR-type connectors for use between microphone and tube microphone powering unit
AC power cable | | Dimensions | Microphone: 8.5 x 2.1" / 215.0 x 53.4 mm
Tube microphone powering unit: 8.5 x 5.2 x 1.8" / 212.0 x 131.5 x 46.0 mm | | Weight | 1.4 lb / 645 g
Tube microphone powering unit: 1.3 kg | | | | Box Dimensions (LxWxH) | 11.61 x 11.61 x 5.51" |
