User Manual for Audio-Technica AT4080 Bidirectional Active Ribbon Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4080 Bidirectional Active Ribbon Microphone
- Product category: Ribbon Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Ribbon Microphones
 |
User manual for the Audio-Technica AT4080 Bidirectional Active Ribbon Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

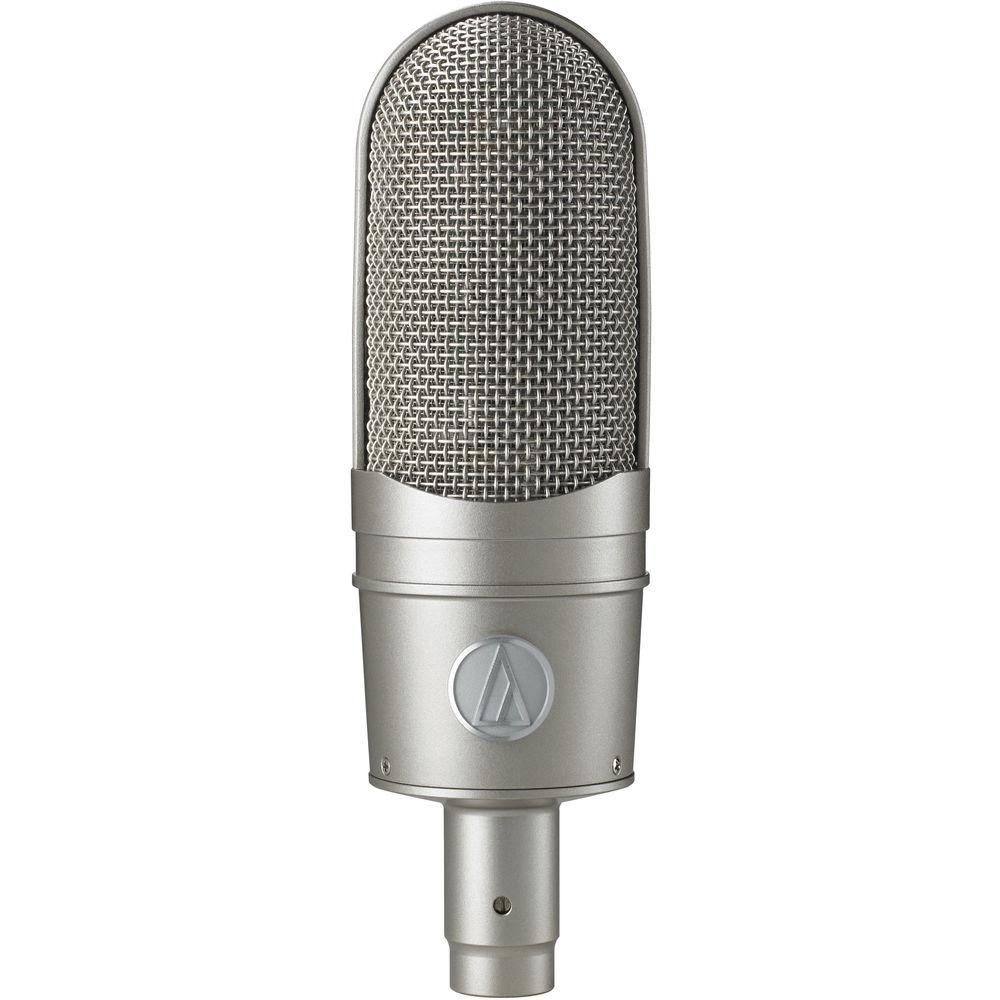

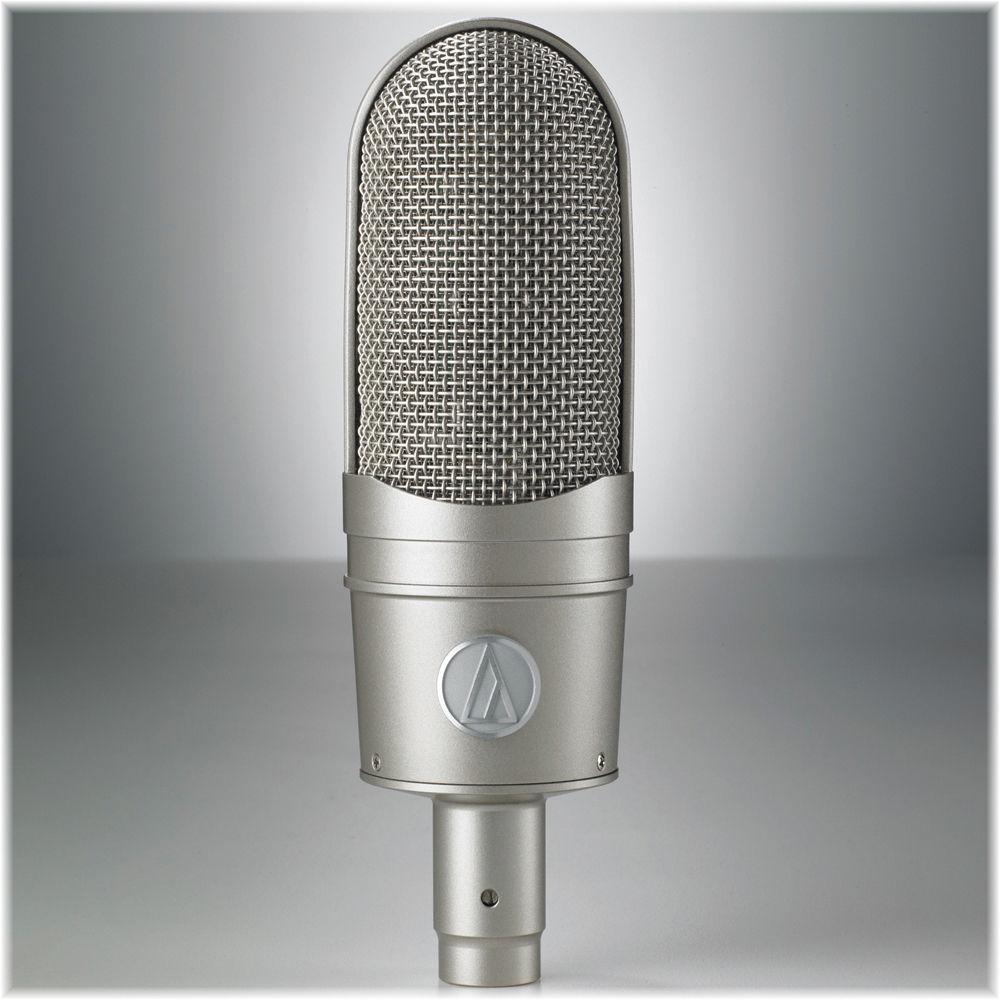

Product description The AT4080 from Audio-Technica is a professional-quality active ribbon microphone that offers a classic ribbon tone with warm, natural sound along with a robust build quality for lasting durability. The mic has a dual ribbon construction for increased sensitivity, and Audio-Technica's MicroLinear ribbon imprint technology, which protects the ribbons from lateral flexing and distortion. The mic has powerful N50 neodymium magnets to produce a high output level, along with a high SPL capability and extended frequency response.
The mic is produced by hand across the stages of corrugation, imprint, and assembly. The open housing design helps to minimize internal reflections, while the superfine mesh protects the ribbons. The mic has active electronics that require phantom power, which provides a stable impedance and high output. A custom shock mount is included to provide superior isolation. The AT4080 is certified by the METAlliance and is designed to provide years of reliable operation. - Classic ribbon tone with warm, natural sound

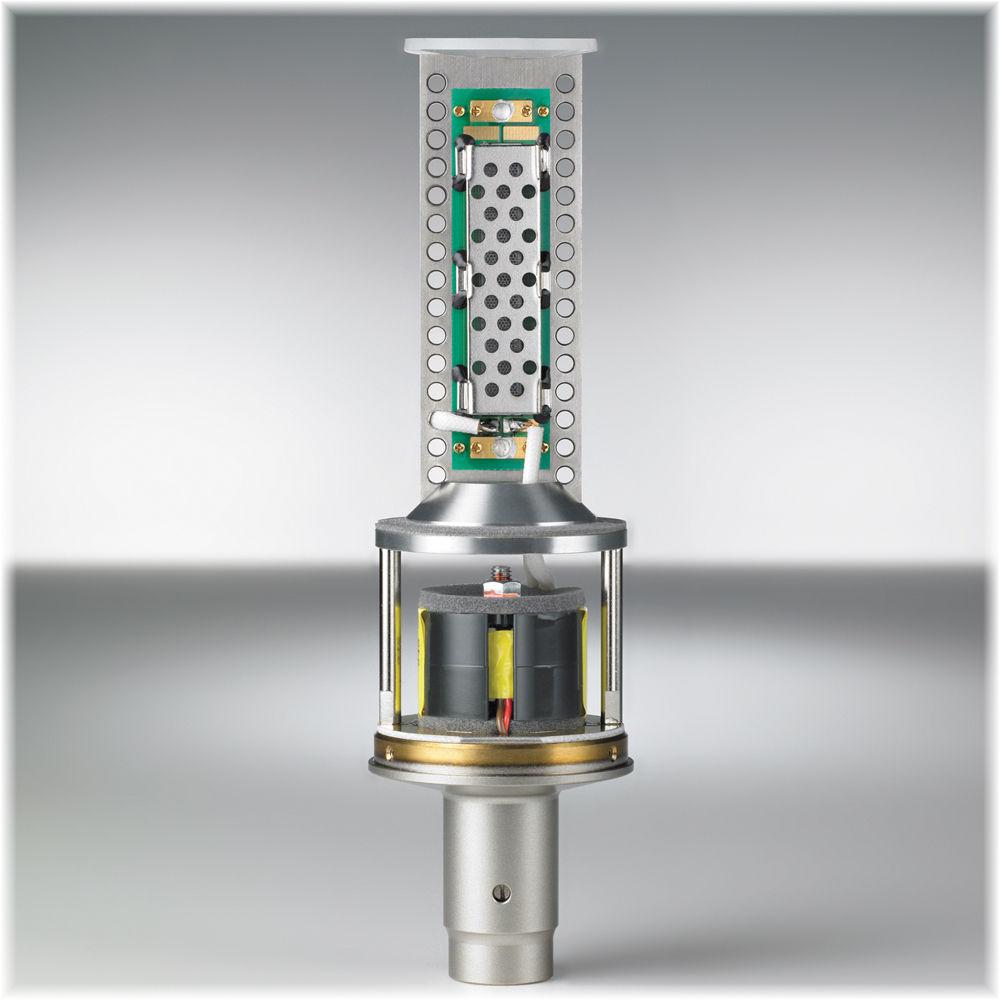

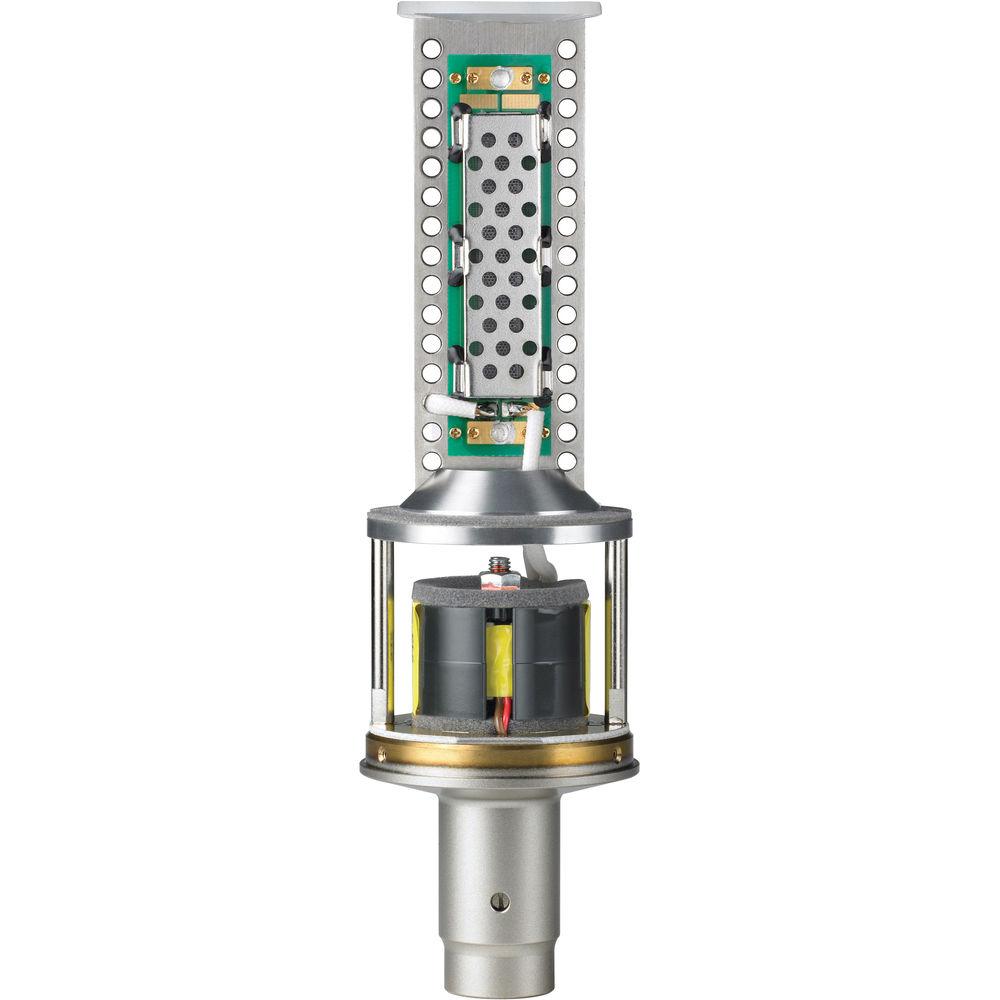

- Dual ribbon construction for increased sensitivity
- Proprietary MicroLinear ribbon imprint technology, which protects the ribbons from lateral flexing and distortion
- Powerful N50 neodymium magnets produce a high output level, along with a high SPL capability and extended frequency response
- Produced by hand across the stages of corrugation, imprint, and assembly
- Acoustic baffle system and extra-large output transformer provide natural low-frequency response and extended dynamic range
- Acoustically-open housing design minimizes internal reflections
- Superfine mesh protects the ribbons
- Active electronics require phantom power, which provides a stable impedance and high output

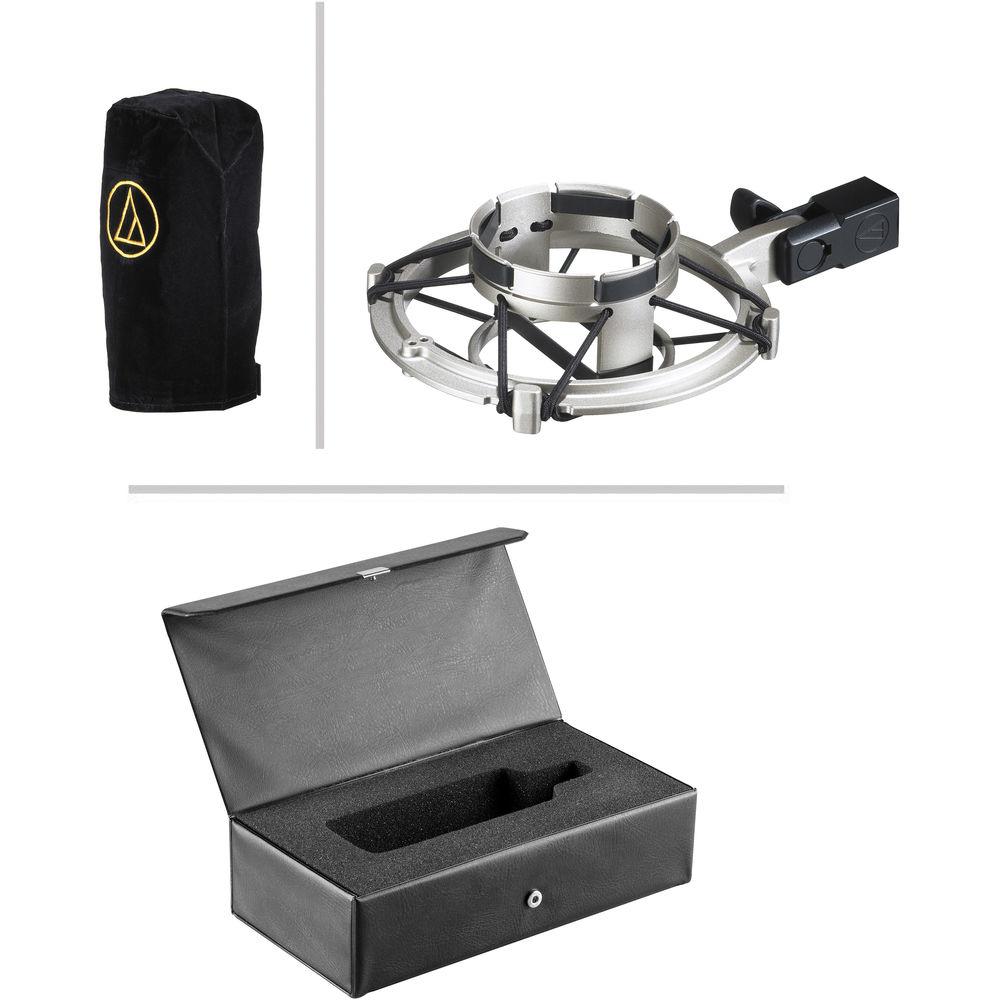

- Custom shock mount, dust cover, and protective carrying case included
- Certified by the METAlliance
UPC: 042005160051 In the Box Audio-Technica AT4080 Bidirectional Active Ribbon Microphone AT8449 Shock Mount wqxxderfyadeuuvurvzwzd Dust Cover Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4080 Bidirectional Active Ribbon Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4080 Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 20 Hz to 18 kHz | | Signal to Noise Ratio | 72 dB | | Equivalent Noise Level | 22 dB | | Maximum SPL | 150 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -39 dB | | Dynamic Range | 128 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.0 mA | | Operating Voltage | 48 V | | Length | 6.99" / 177.5 mm | | Diameter | 2.10" / 53.4 mm | | Weight | 16.72 oz / 474 g | | | | Package Weight | 3.44 lb | | Box Dimensions (LxWxH) | 11.0 x 9.75 x 4.25" |
