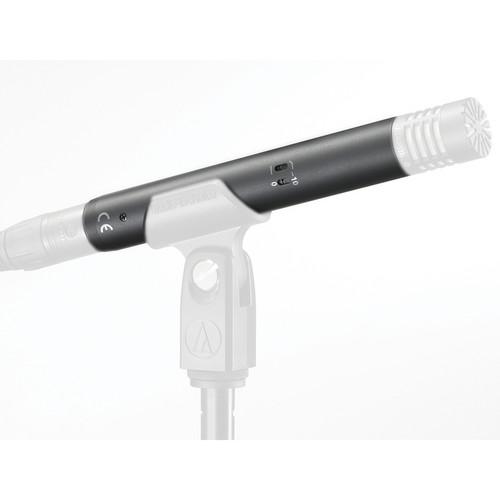

User Manual for Audio-Technica AT4900b-48 Condenser Microphone Body Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT4900b-48 Condenser Microphone Body
- Product category: Modular Microphone Components Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Modular Microphone Components
|
User manual for the Audio-Technica AT4900b-48 Condenser Microphone Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The AT4900b-48 from Audio-Technica is a professional-quality shotgun microphone body ideal for field or studio use. The mic is compatible with interchangeable head capsules, allowing you to choose between an omnidirectional, cardioid, or hypercardioid pickup pattern, depending on your needs.
The mic has a rugged turned-brass housing for exceptional durability. Internal transformerless circuitry greatly reduces distortion and provides excellent correlation of high-speed transients. The direct-coupled balanced output provides a clean signal, even under high-output conditions. Additional features of the mic include a switchable high-pass filter to reduce low frequency noise and a -10dB pad for picking up loud sound sources. The mic comes complete with a mic stand clip, foam windscreen, and carrying case. Note: Mic head capsules must be purchased separately. - Professional Quality
- The mic is specially engineered to meet professional standards
- Rugged Build
- The turned brass housing provides long-lasting durability
- High-Quality Audio
- The transformerless circuitry greatly reduces low-frequency distortion and provides excellent correlation of high-speed transients, while the direct-coupled balanced output provides a clean signal, even under high-output conditions
- Interchangeable Capsules
- Interchangeable head capsules allow you to select the pickup pattern that best suits your needs 1
Please Note: Head capsules sold separately close - Filter and Pad
- A switchable 80Hz high-pass filter and -10dB pad allow you to reduce low-frequency noises and extend the mic's headroom in order to capture loud sound sources
- Phantom Power
- The mic runs on 48V phantom power, which it receives via the standard XLR connector
- RoHS Compliant
- The mic is free from all substances specified in the EU directive on the reduction of hazardous substances
- Accessories Included
- The mic comes complete with a mic clip, windscreen, and carrying case
In the Box Audio-Technica AT4900b-48 Condenser Microphone Body Mic Clip Foam Windscreen Carrying Case 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT4900b-48 Condenser Microphone Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT4900B-48 Specs | Transducer | Externally Polarized (DC Bias) Capacitor | | Polar Pattern | Variable, Dependent on Capsule | | Frequency Response | 20Hz - 20kHz | | Dynamic Range (Typical) | 129dB | | Signal-to-Noise Ratio | 78dB | | Maximum Input Sound Level | 145dB
155dB (With Pad) | | Power Requirements | 48V Phantom | | Impedance | 50 Ohms | | Output Connectors | 3-Pin XLR | | Pad | Yes, -10dB, Switchable | | Low Frequency Roll-Off | 80Hz High-Pass Filter, Switchable | | Dimensions (LxDiameter) | 6.1 x 0.83" (155 x 21mm) | | Weight | 4.6 oz (130g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 10.4 x 4.4 x 1.5" |
