Product description - Product Demo 1
- Product Demo 2

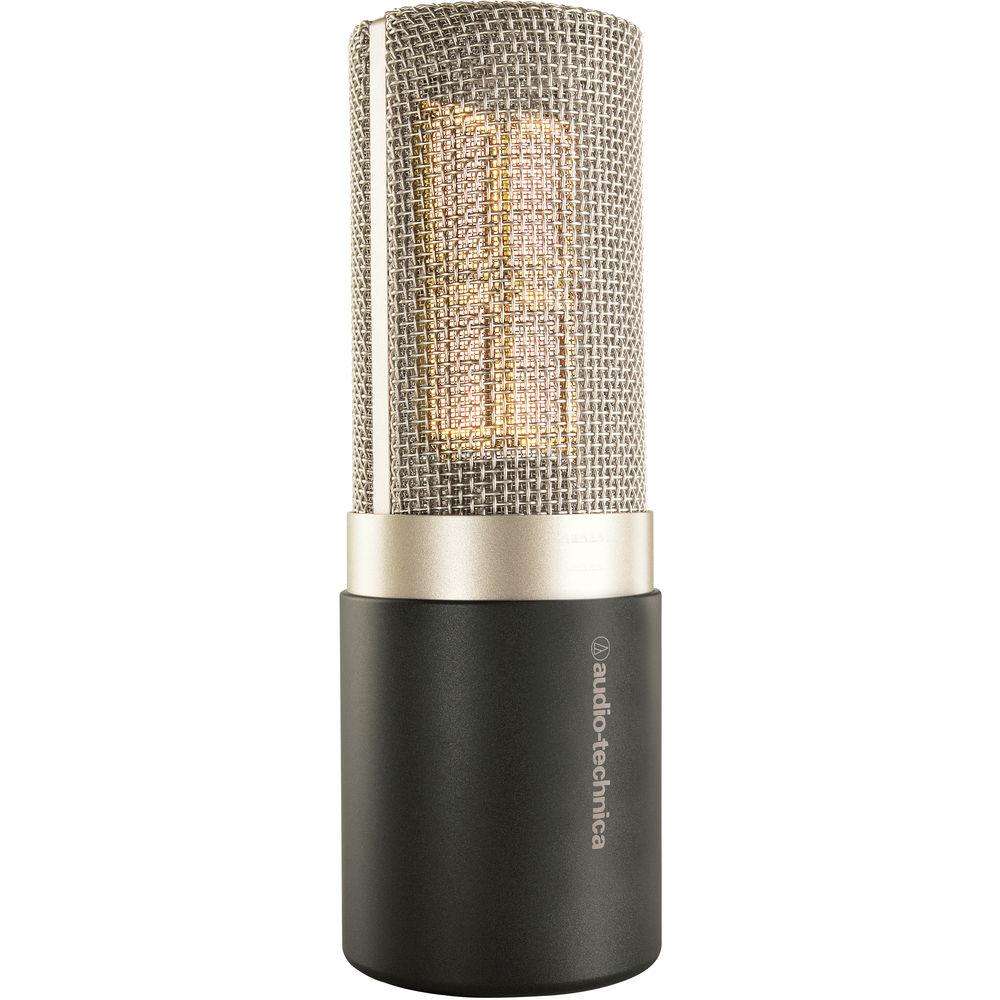

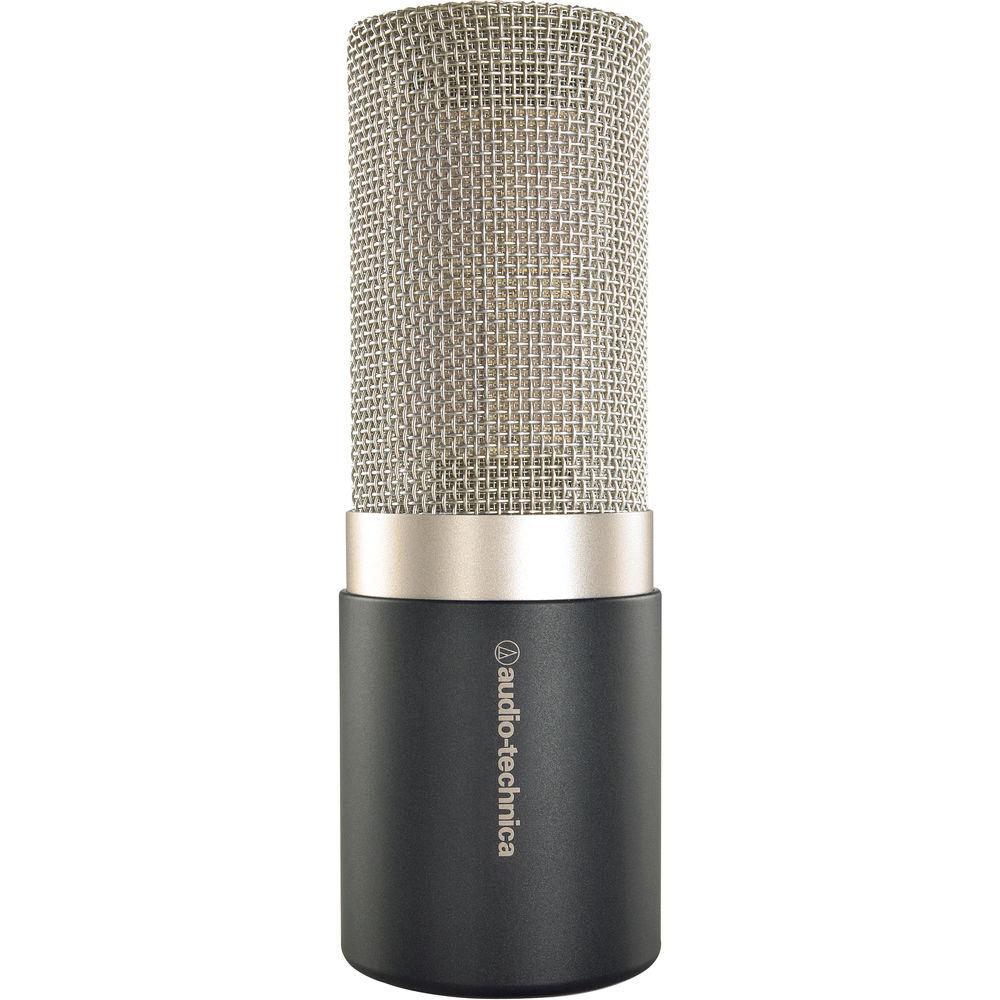

The AT5040 Cardioid Condenser Microphone by Audio-Technica is designed as a vocal microphone and features a smooth top end with controlled sibilance. It also offers fast transient response, making it suitable for acoustic instruments, such as piano, guitar, strings, and saxophone. The microphone employs a four-part rectangular element to provide purity of sound. Each of the four parts function together and provide a surface area twice the size of a standard 1.0" circular diaphragm. There is an advanced internal shockmounting system, effectively decoupling the capsule from the housing for vibration-free performance. The microphone includes a shockmount for additional isolation. The AT5040 is hand assembled and inspected for quality control and is enclosed in an aluminum and brass housing for durability. - Musical high-fidelity performance with realism, depth, presence, and purity of sound

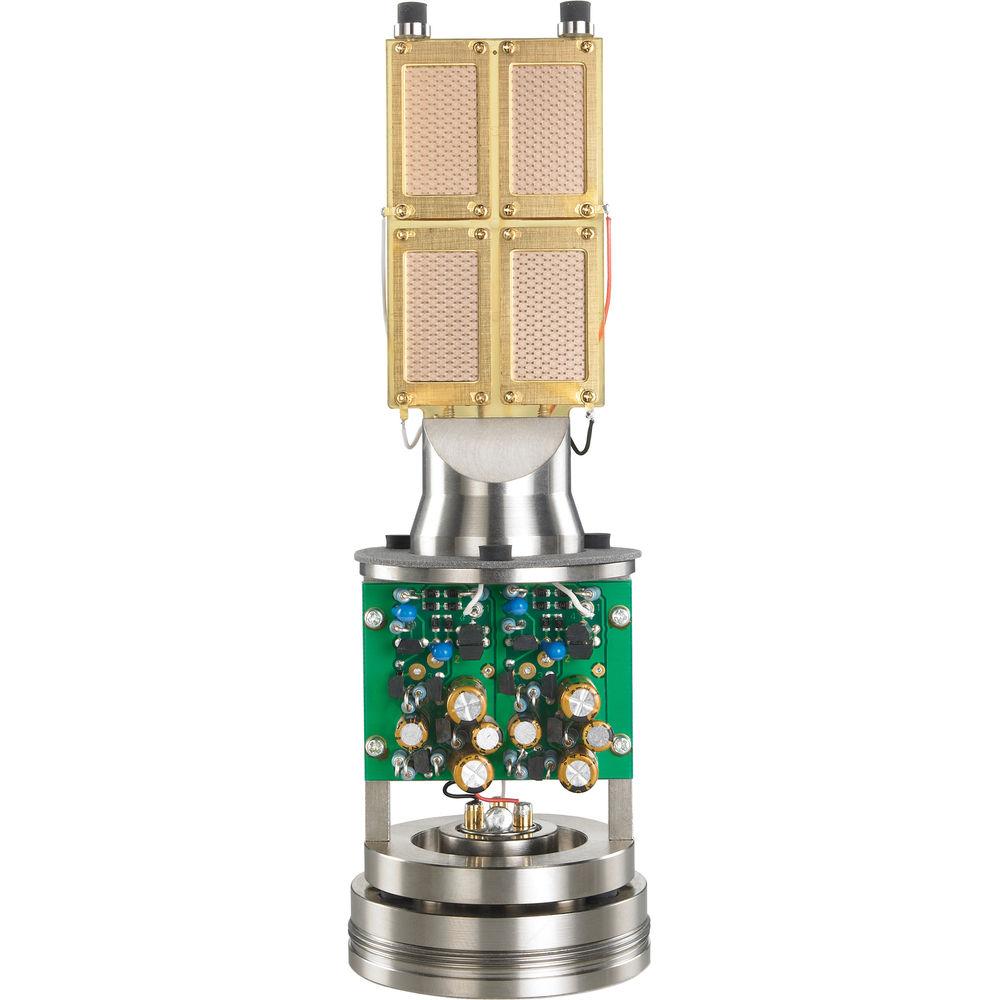

- Four rectangular diaphragms function together as a large element, providing a combined surface area twice the size of a standard 1.0" circular diaphragm
- Low noise and wide dynamic range suitable for studio vocals
- Discrete components for optimized capsule performance
- High-SPL capability and extended frequency response
- Hand assembled and inspected for quality control

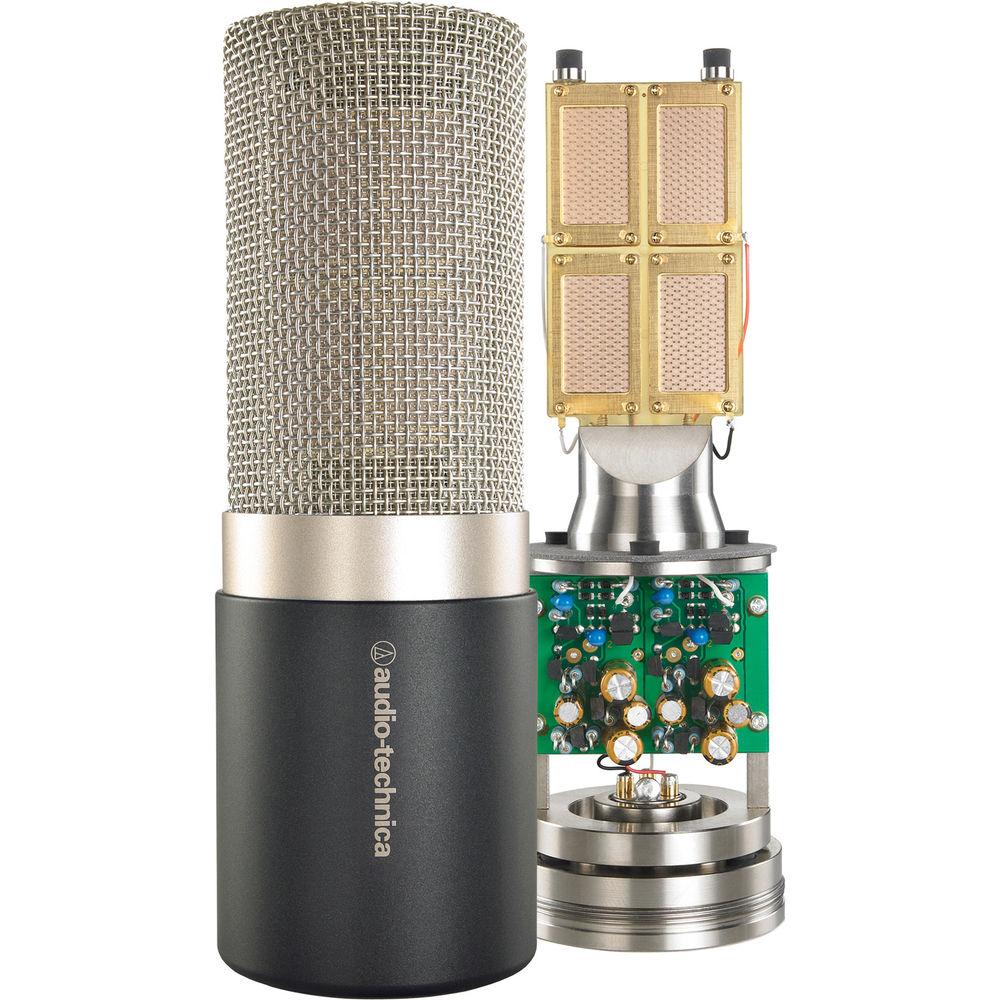

- Advanced internal shock mounting decouples the capsule from the microphone body
- Durable aluminum and brass housing

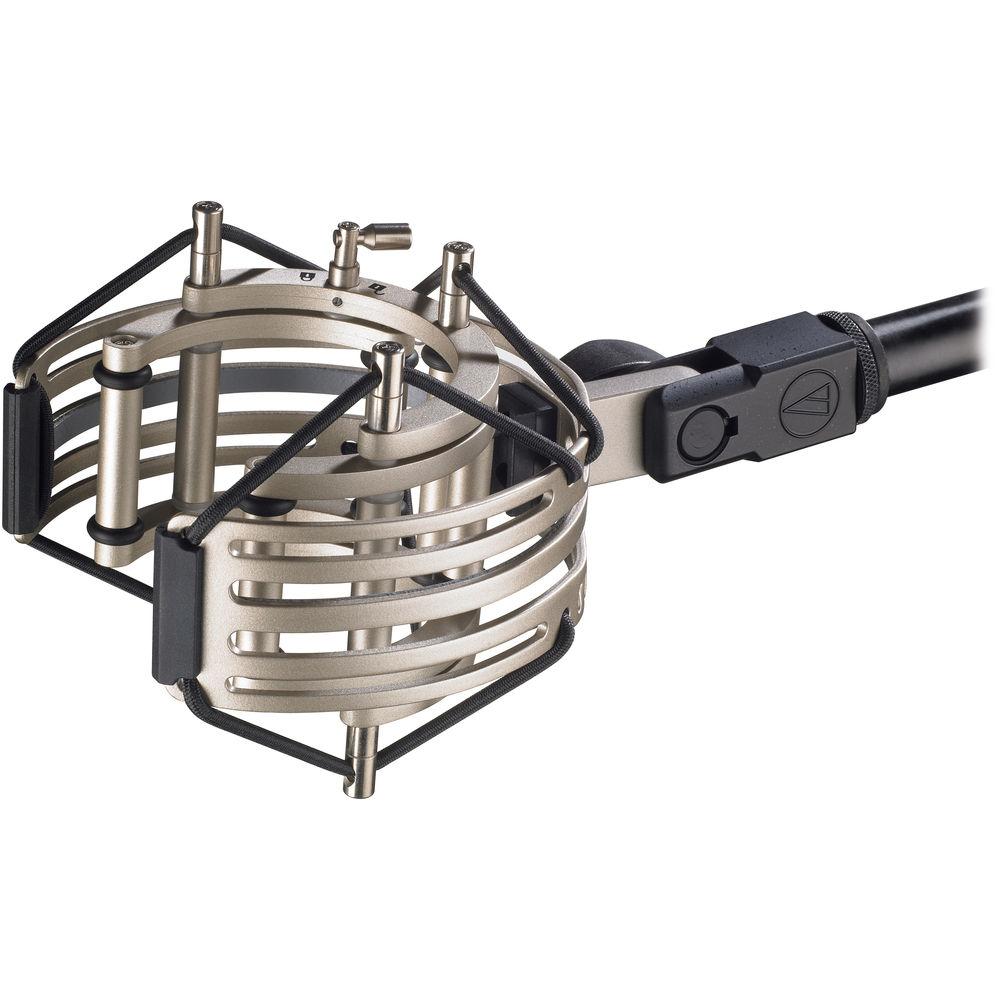

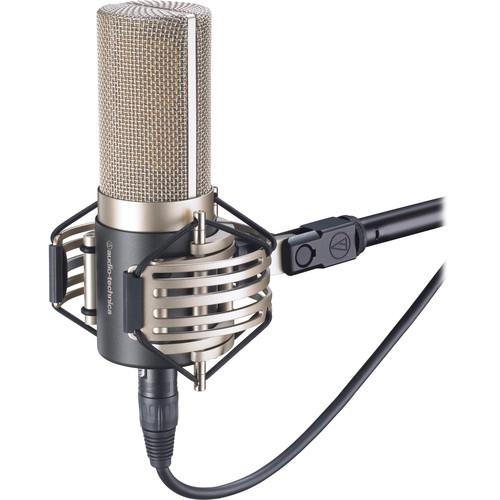

- Included custom AT8480 shockmount provides superior isolation
- Hard-shell carrying case with die-cut foam compartments for protection during storage and transport
In the Box Audio-Technica AT5040 Cardioid Condenser Microphone AT8480 Shockmount for 5/8"-27 Threaded Stands Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT5040 Cardioid Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

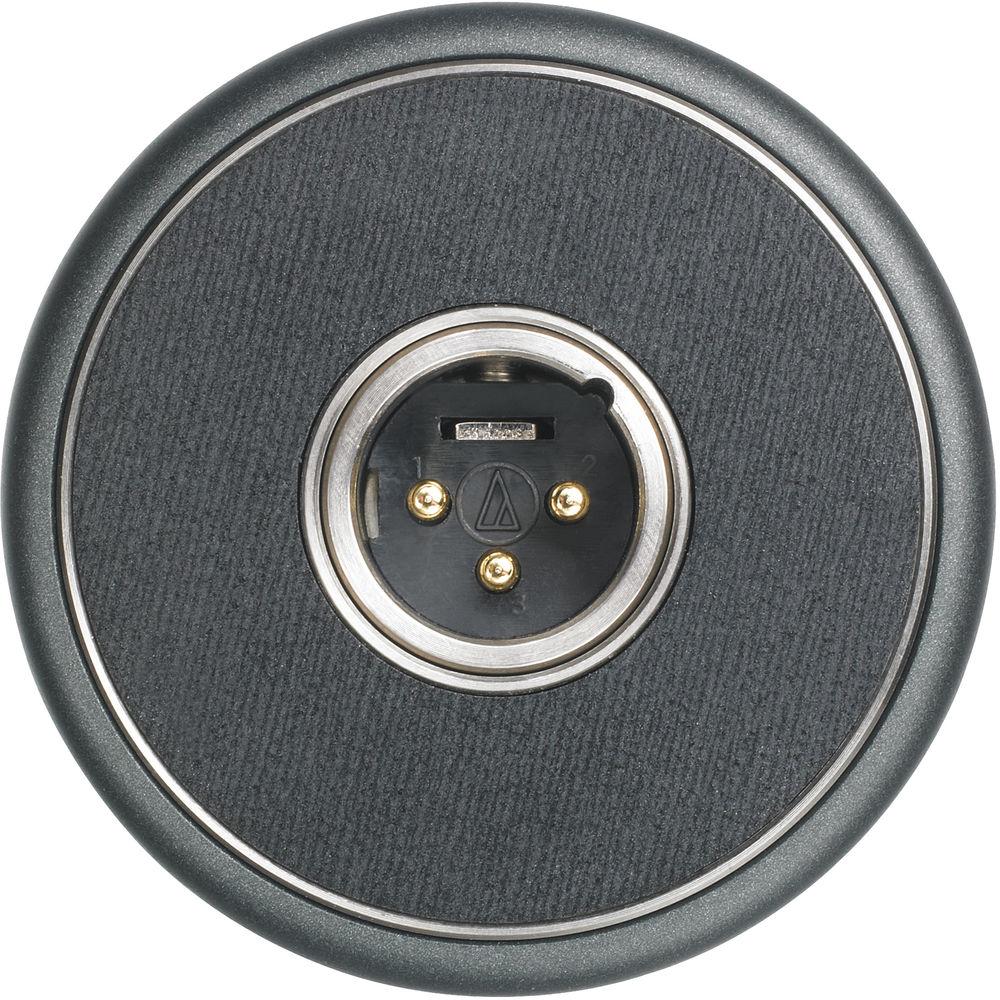

Technical parametersAudio-Technica AT5040 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 89 dB | | Equivalent Noise Level | 5 dB | | Maximum SPL | 142 dB SPL | | THD | 1% | | Impedance | 50 Ohms | | Sensitivity | 56.2 mV/Pa | | Dynamic Range | 137 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 3.8 µA | | Operating Voltage | 48 V | | Length | 6.51" / 165.3 mm | | Diameter | 2.24" / 57.0 mm | | Weight | 20.53 oz / 582 g | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 17.3 x 12.3 x 7.7" |
