User Manual for Audio-Technica AT5045P Cardioid Condenser Instrument Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT5045P Cardioid Condenser Instrument Microphone
- Product category: Small Diaphragm Condenser Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Small Diaphragm Condenser
 |
User manual for the Audio-Technica AT5045P Cardioid Condenser Instrument Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

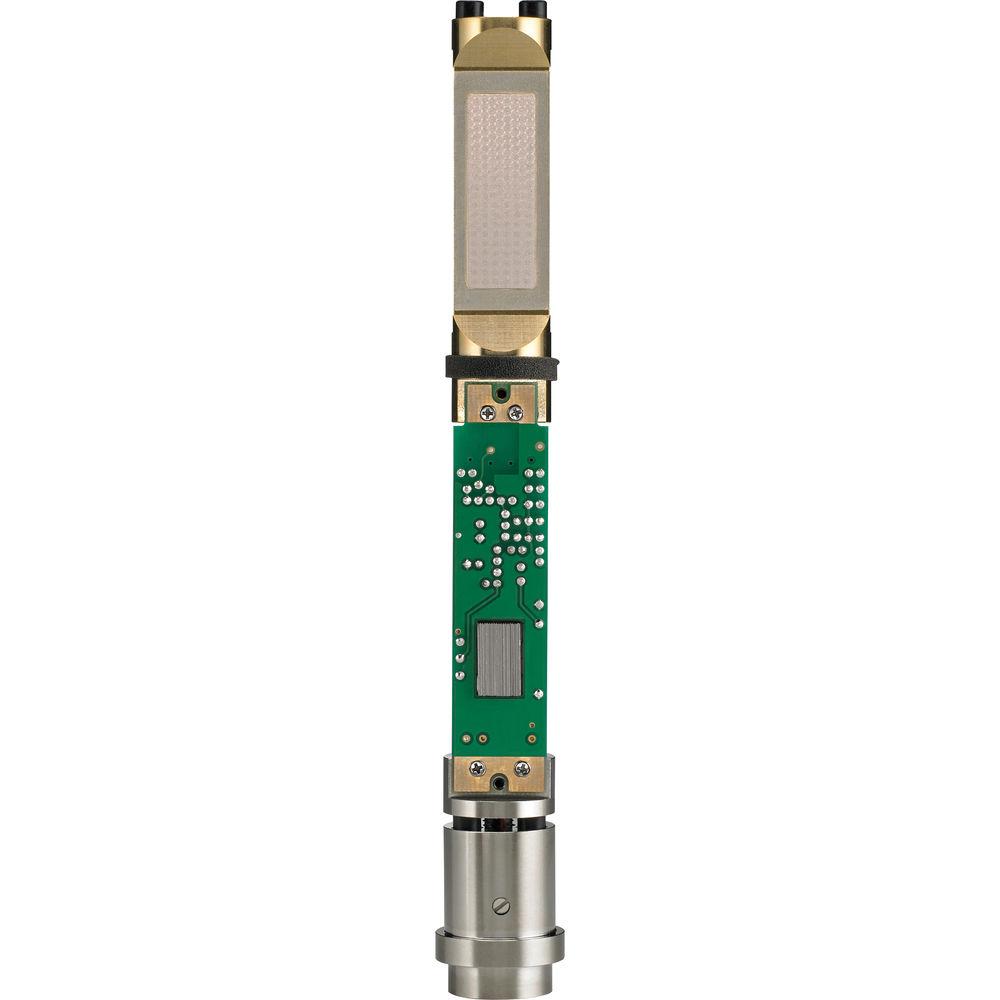

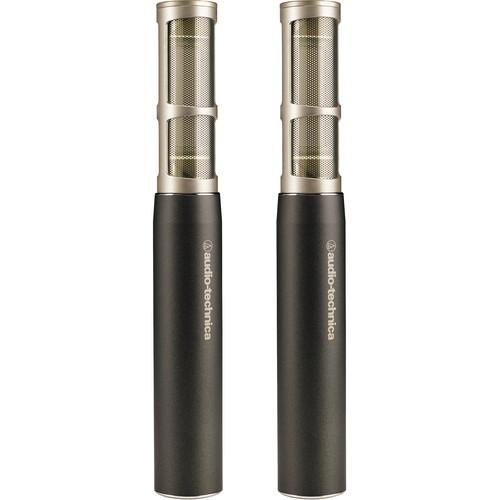

Product description The stereo pair of AT5045P Cardioid Condenser Instrument Microphones from Audio-Technica offer the performance of a large-diaphragm, side-address condenser in a convenient, stick-type body. They provide an aluminum and brass enclosure for durability and low reflectivity as well as discrete components for optimized functionality. The capsule assembly and circuitry are mounted as a single block within a floating internal shockmount, decoupling the capsule from the microphone body for vibration isolation. There is a transformer coupled output with low noise and 149 dB SPL handling throughout. Additional features include a cardioid polar pattern, a wide frequency response of 20 Hz to 20 kHz, and a high dynamic range of 141 dB. The microphones can be used for recording percussion, drums, acoustic guitar, other acoustic instruments, strings, and similar applications. The package includes two isolation clamps, two windscreens, and a protective carrying case. - Pure, realistic sound quality for overheads, percussion, acoustic guitar, strings, and other acoustic instruments
- Side-address, stick design microphone with large diaphragm surface area
- Discrete components for optimized performance
- Transformer-coupled output provides smooth sonic character
- Low noise with high-SPL capability
- Advanced internal shockmounting decouples the capsule from the microphone body
- Aluminum and brass housing for durability

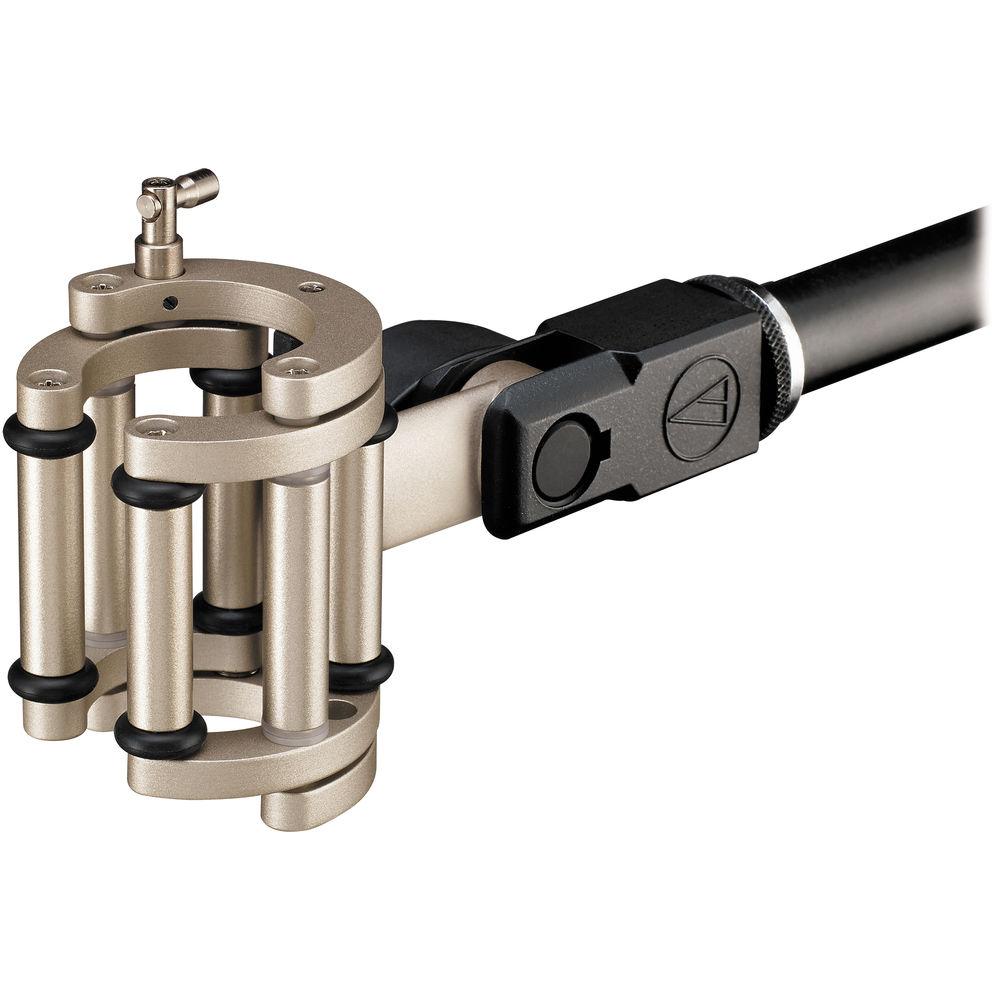

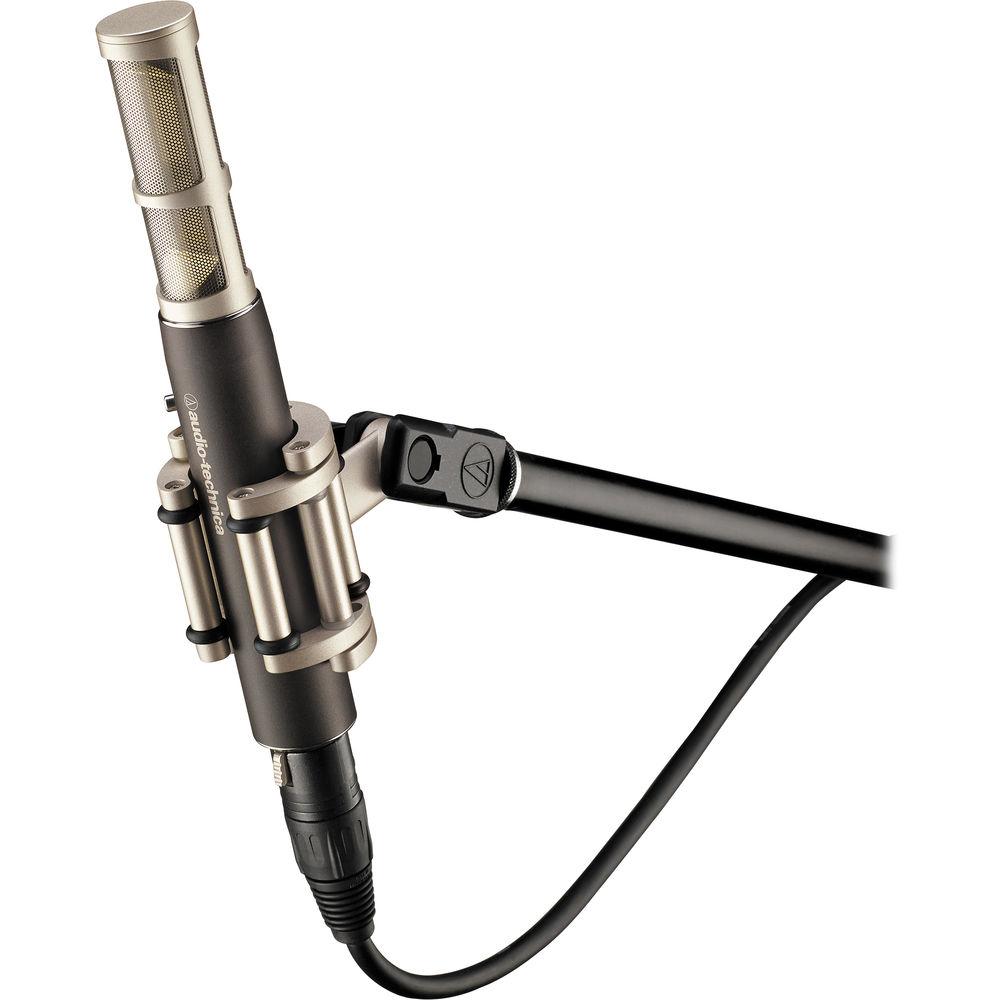

- Isolation clamp provides secure mounting, versatile positioning, and effective dampening of unwanted mechanical noise

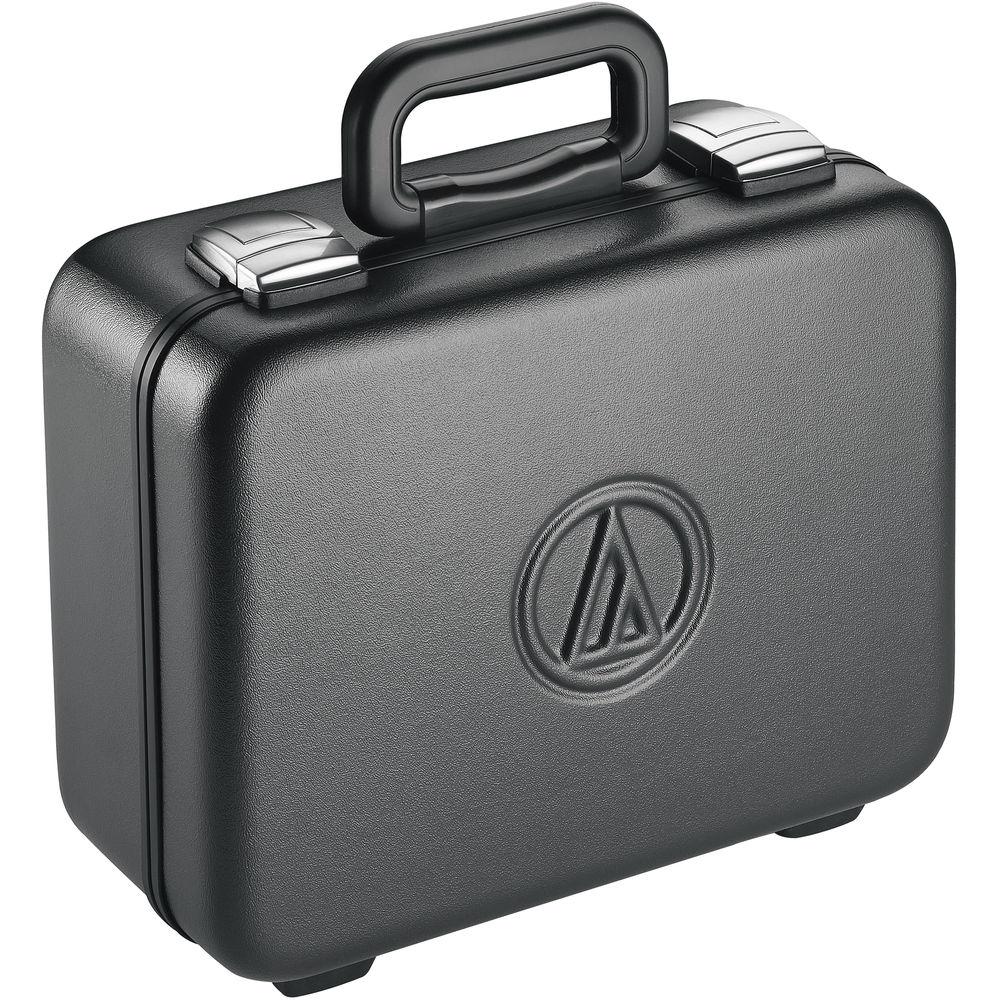

- Includes custom hard-shell carrying case with die-cut foam compartments for protection

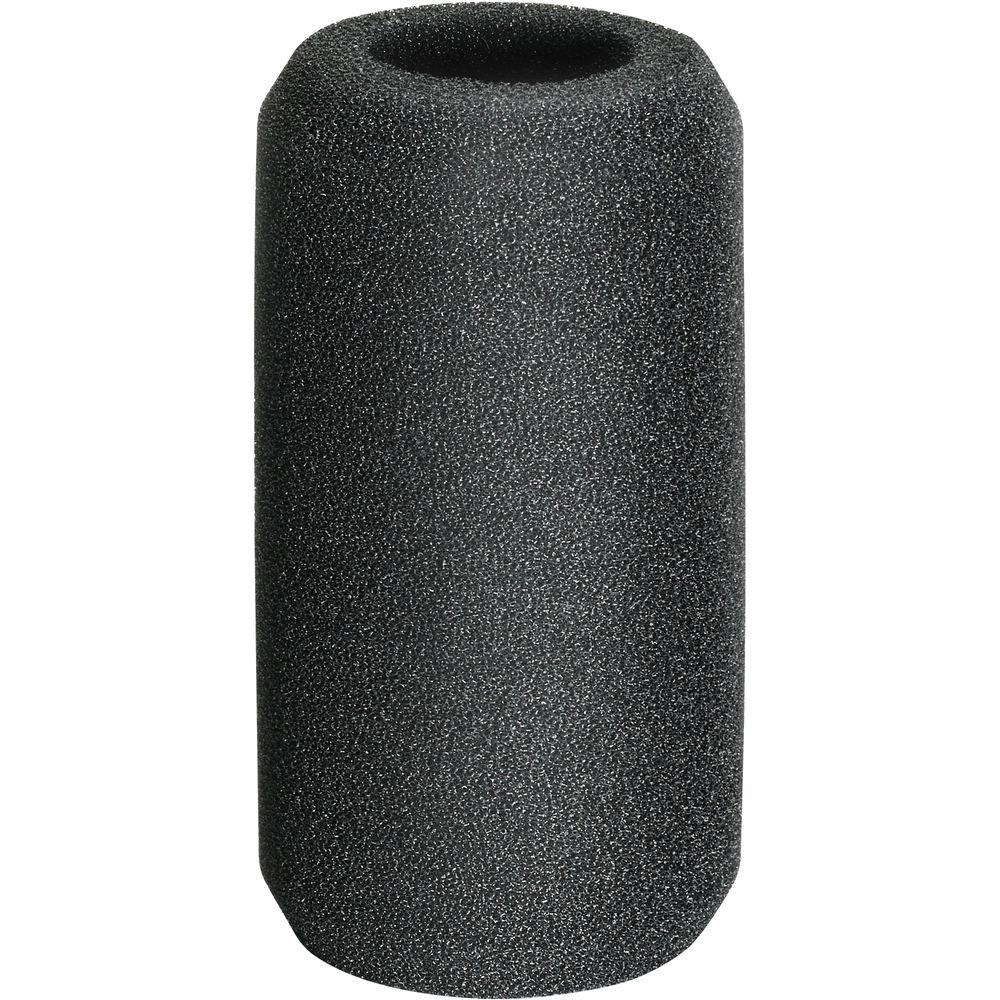

In the Box Audio-Technica AT5045P Cardioid Condenser Instrument Microphone (Stereo Pair) 2 x AT8481 Isolation Clamp for 5/8"-27 Threaded Stands 2 x AT8165 Windscreen Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT5045P Cardioid Condenser Instrument Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT5045 Specs | | | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 86 dB | | Equivalent Noise Level | 8 dB | | Maximum SPL | 149 dB SPL | | THD | 1% | | Impedance | 100 Ohms | | Sensitivity | -35 dB | | Dynamic Range | 141 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Current Consumption | 1.4 mA | | Operating Voltage | 48 V | | Length | 6.97" / 177 mm | | Diameter | 0.98" / 25 mm | | Weight | 6.95 oz / 197 g | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 17.402 x 12.284 x 7.638" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
