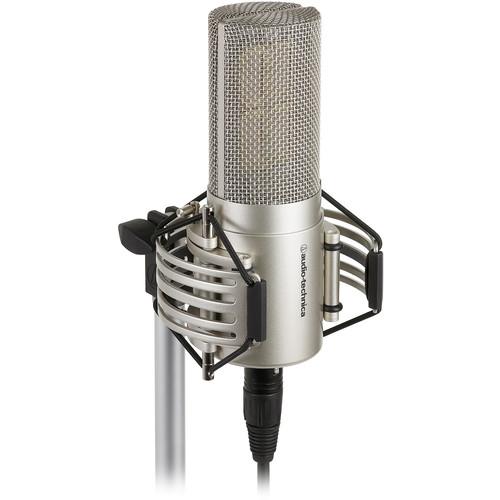

Product description The Audio-Technica AT5047 is a cardioid studio condenser microphone designed to provide engineers and musicians with an accurate, low-noise reproduction of vocals and instruments in high-end facilities, project studios, and home recording setups. It features four rectangular 2-micron, vapor-deposited gold diaphragms, which offer double the surface area of the 1” circular diaphragms commonly used in large-diaphragm condenser mics. The AT5047’s transformer-coupled output yields a consistent impedance for reliable performance with your preamp.A wide frequency response of 20 Hz to 20 kHz—combined with the ability to handle a maximum SPL of 148 dB—means that you can capture a variety of sources, from soft and nuanced to loud and brash, with detail and accuracy. By producing only 6 dB of self-noise, the mic contributes to a clean and clear signal.The AT5047 is assembled by hand and housed in a durable enclosure made of aluminum and brass. It ships with a custom shockmount and hardshell carrying case. - Cardioid polar pattern rejects off-axis sounds

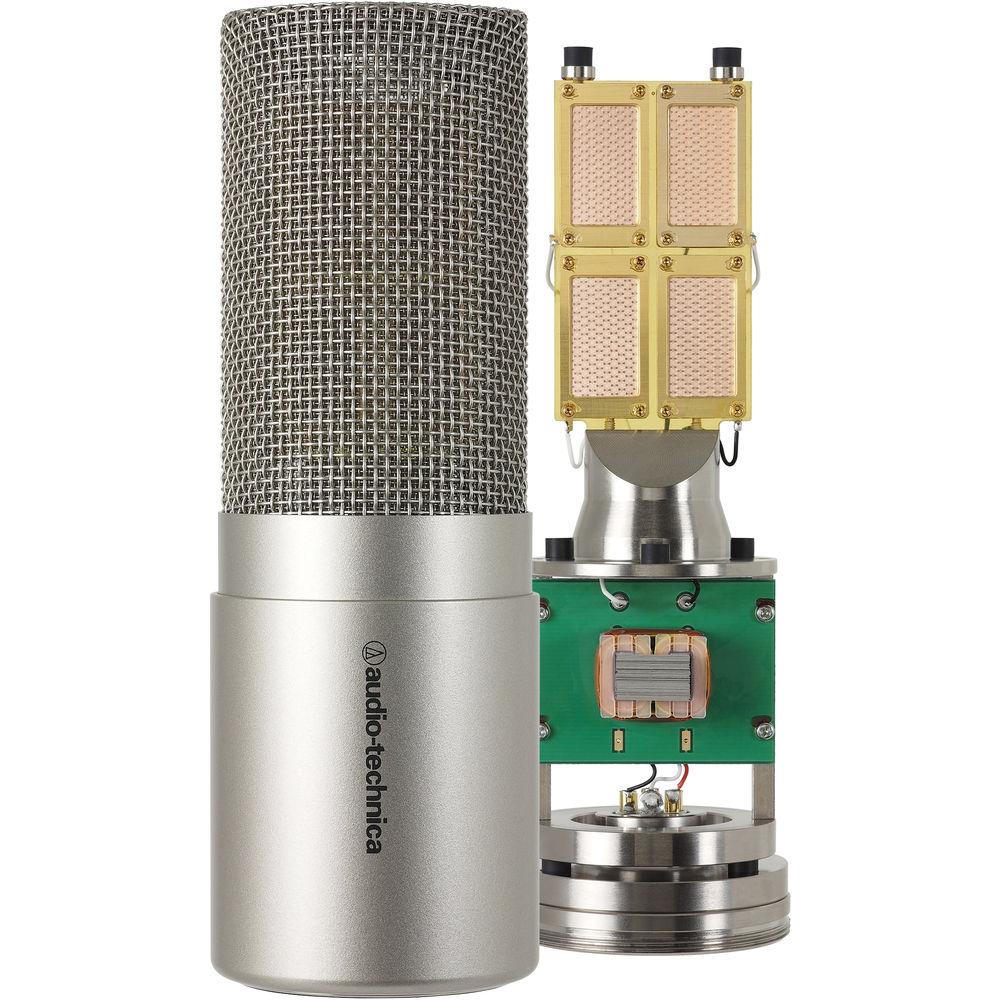

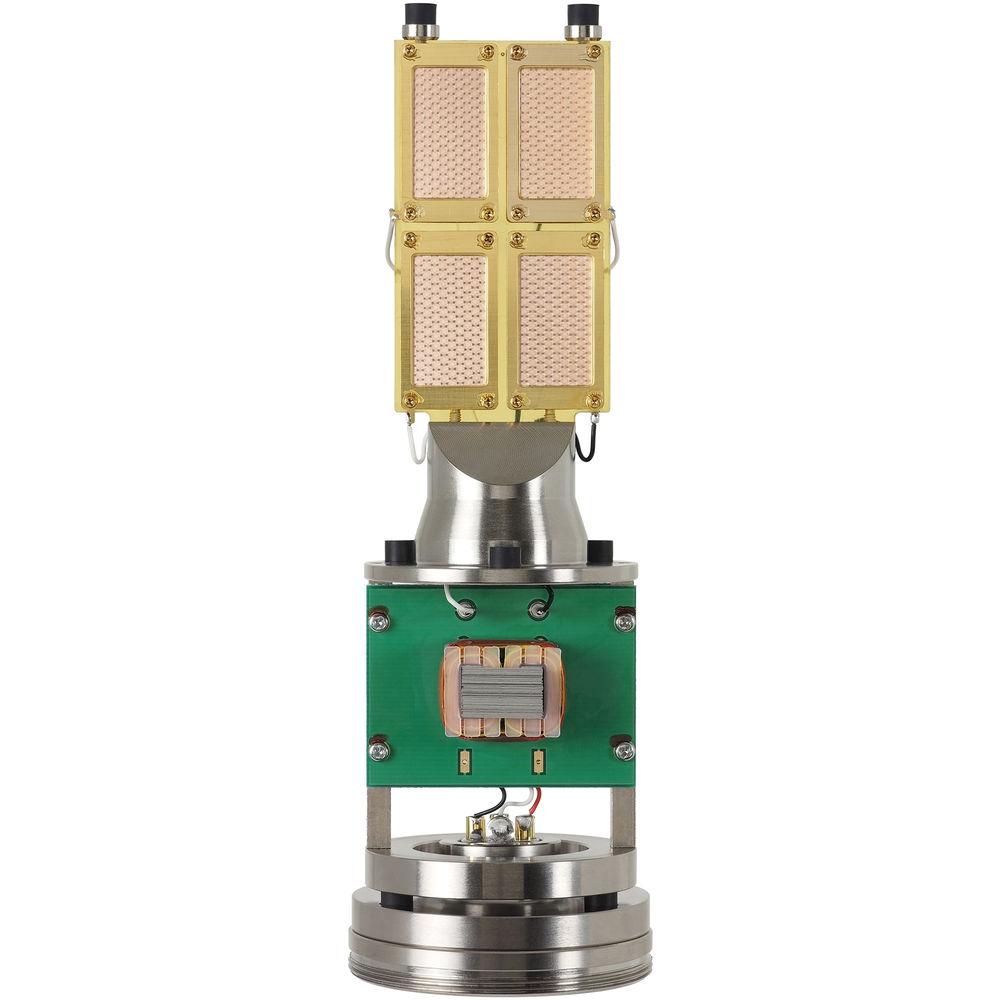

- Four rectangular 2-micron, vapor-deposited gold diaphragms function together to double the surface area of a typical 1" circular diaphragm
- Transformer-coupled output provides a constant load-output impedance
- 20 Hz to 20 kHz frequency response
- 148 dB maximum SPL can handle extremely loud sources
- Low noise output of 6 dB keeps signal path clean

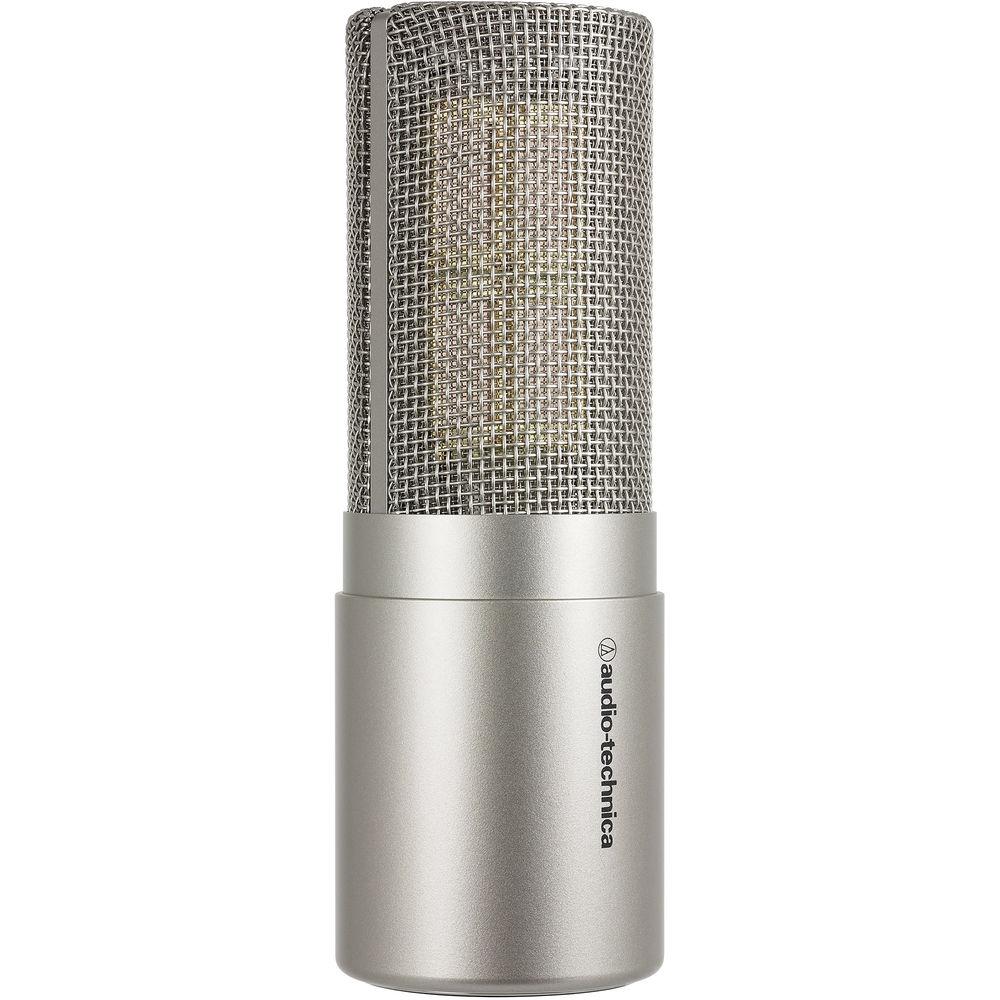

- Aluminum and brass housing is smooth and durable
- Assembled by hand and inspected discretely for optimal quality

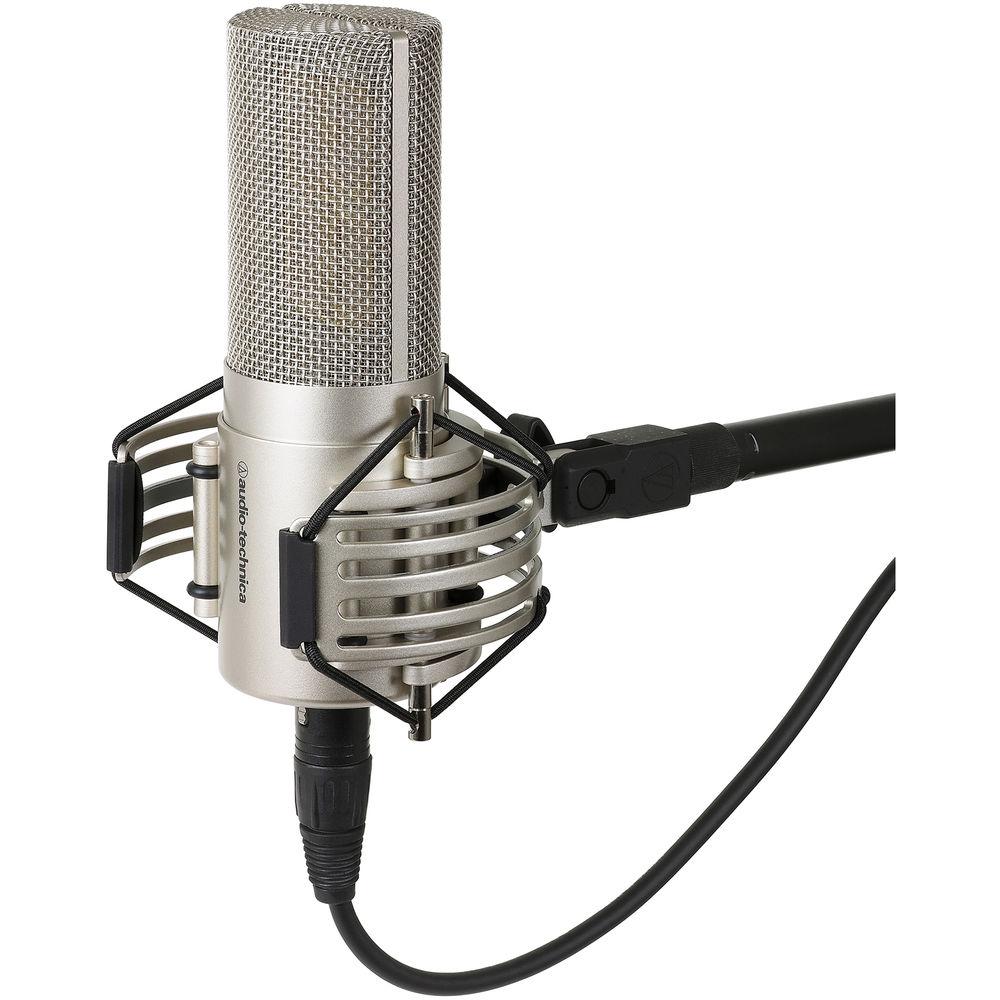

- Includes shockmount and hardshell carrying case

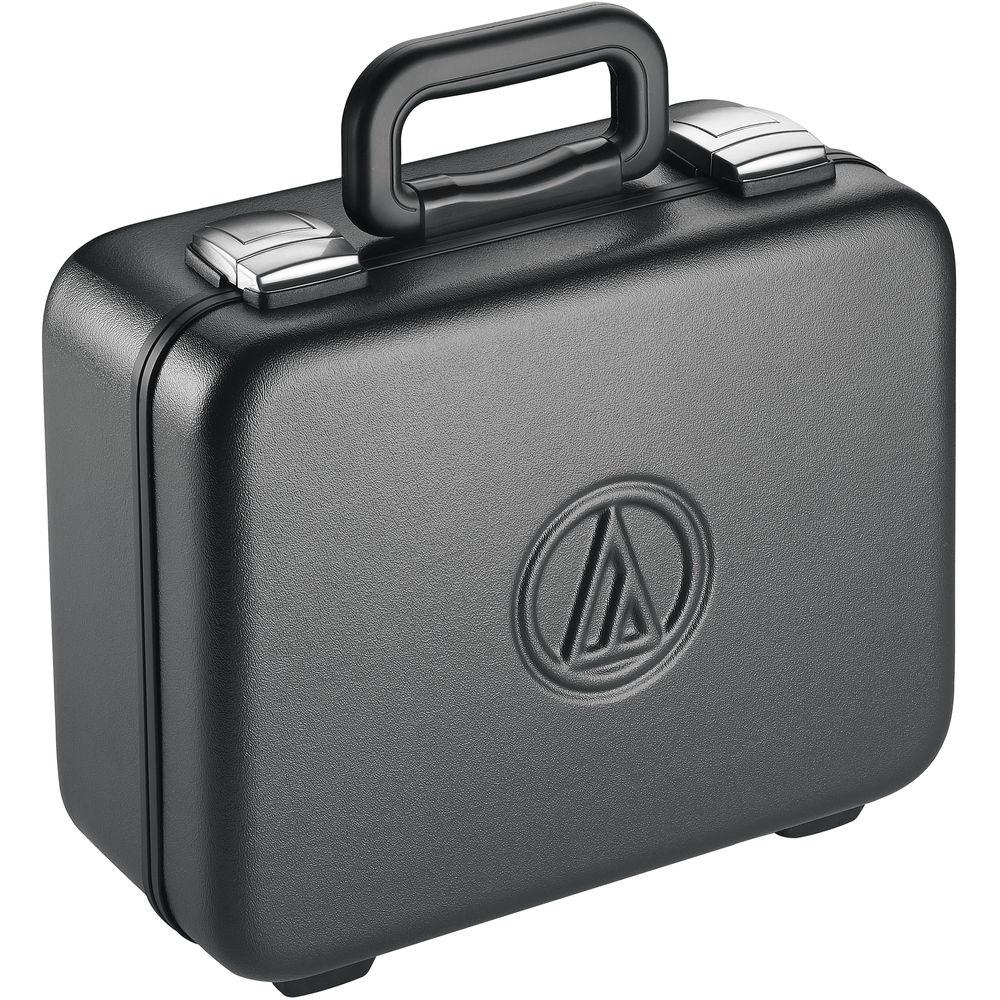

In the Box Audio-Technica AT5047 Cardioid Studio Condenser Microphone AT8480 Shockmount 3/8" to 5/8" Stand Adapter Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT5047 Cardioid Studio Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

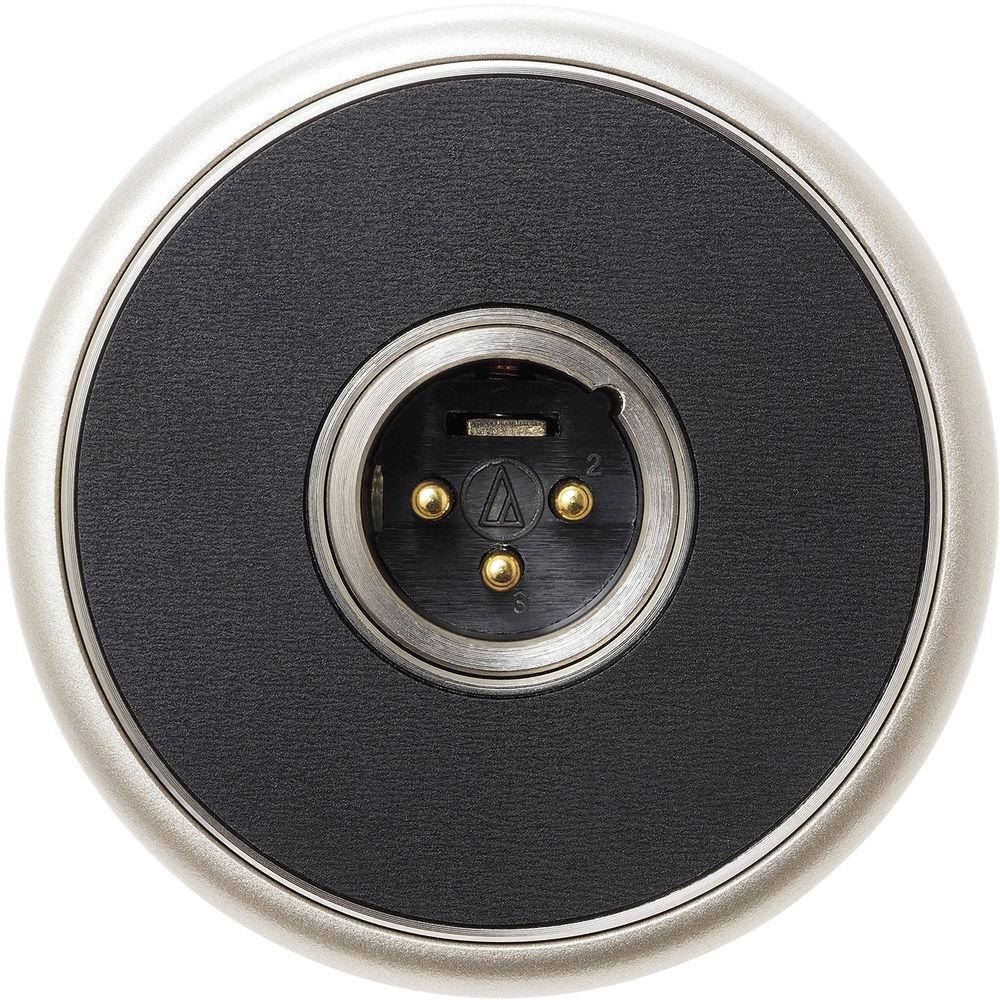

Technical parametersAudio-Technica AT5047 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 88 dB | | Equivalent Noise Level | 6 dB | | Maximum SPL | 148 dB SPL | | Pad | None | | Impedance | 150 Ohms | | Sensitivity | -29 dB | | Low-Cut Filter | None | | Dynamic Range | 142 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 48 V | | Length | 6.51" / 165.3 mm | | Diameter | 2.24" / 57 mm | | Weight | 1.30 lb / 592 g | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 17.0 x 12.0 x 8.0" |
