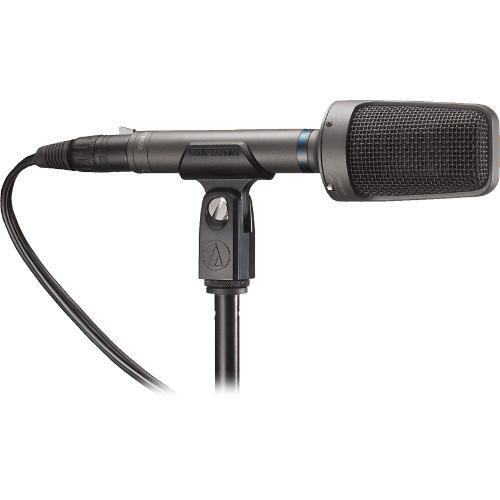

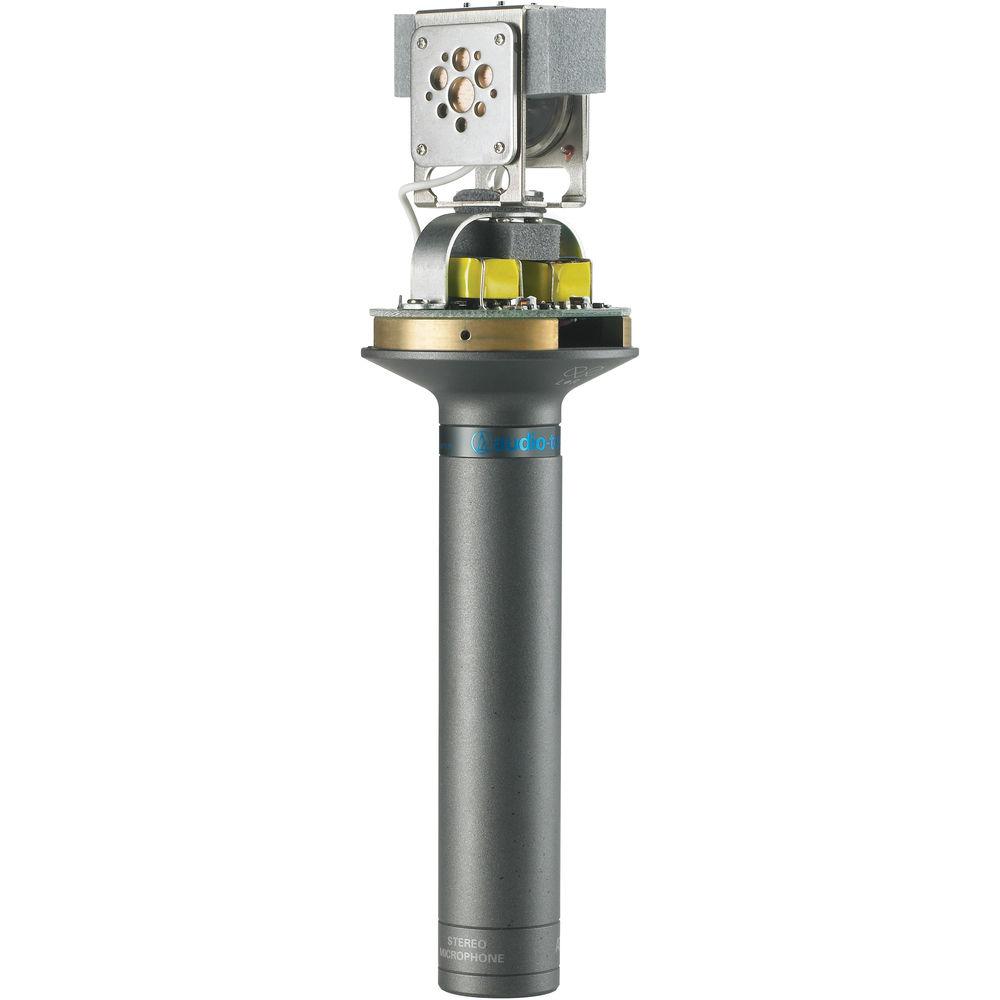

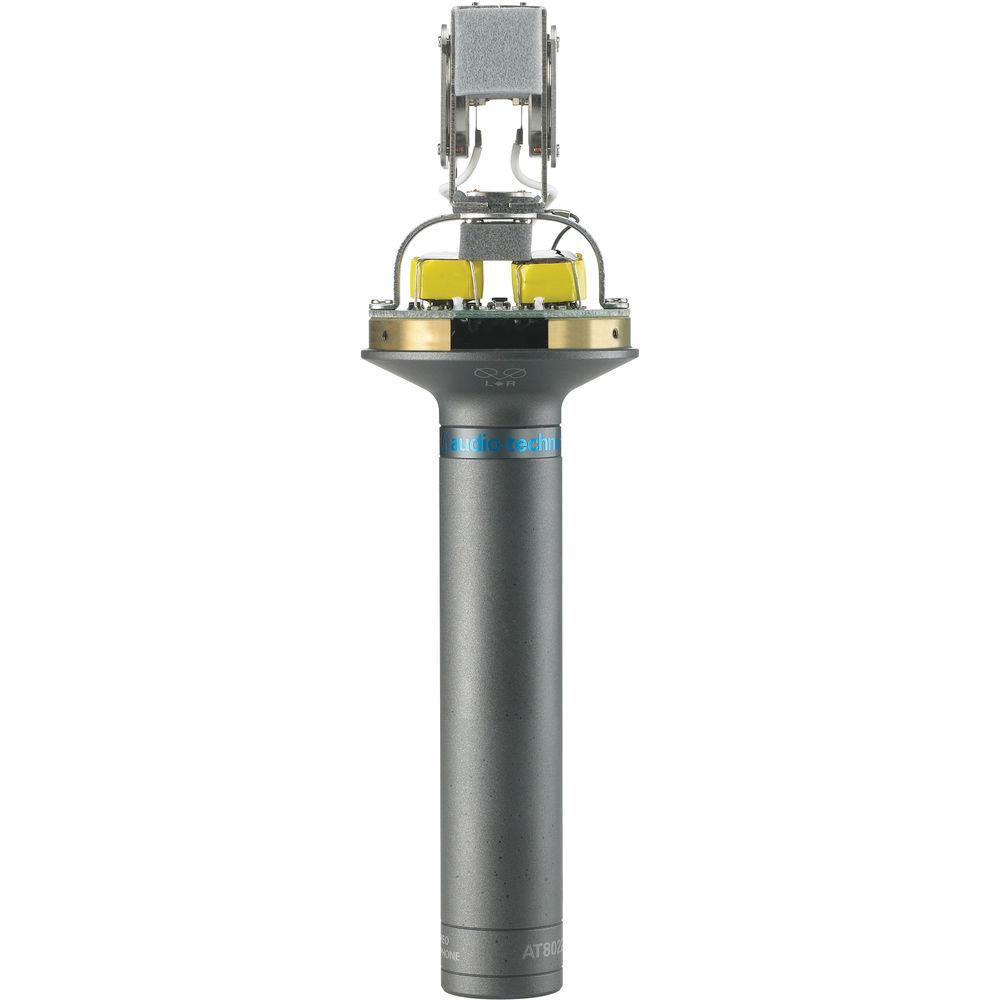

Product description The Audio-Technica AT8022 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The microphone is powered with external phantom power or a 1.5V AA battery making it ideal for use with cameras and portable recording devices.The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing. The microphone features a 5-pin XLR output connector. Dual 3-pin XLR and single 1/8" (1.5mm) stereo mini cables are supplied. Also included is a stand adapter, windscreen and protective pouch. - Stereo recording of ambiance, musical performances, vocals, and more
- Powered with a 1.5V AA battery or phantom power
- Dual 3-pin XLR and 1/8" stereo mini cables are supplied
- Coincidence element mounting for smaller capsule profile

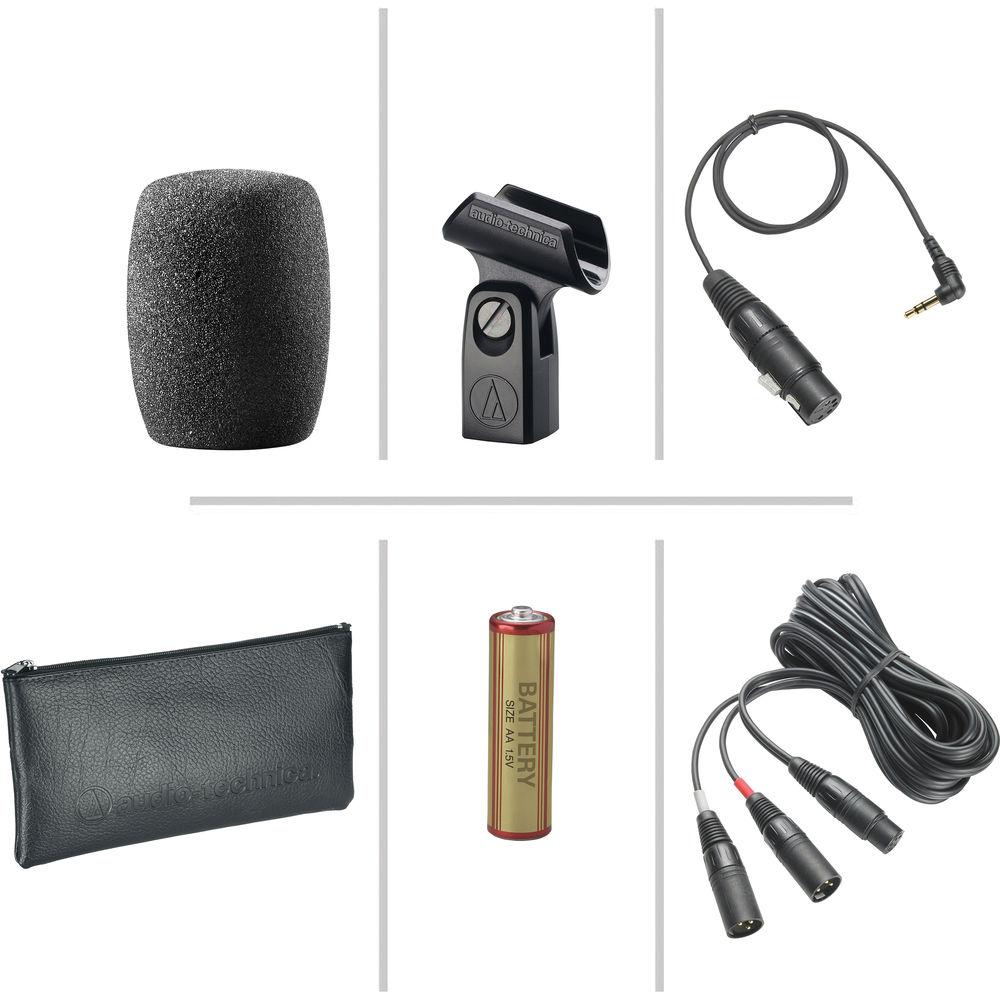

In the Box Audio-Technica AT8022 X/Y Stereo Phantom and Battery Powered Field Microphone 5-Pin XLR to dual 3-Pin XLR Cable (6.5') (2.0 m) 5-Pin to Stereo 1/8" (3.5mm) Mini (2.0') (0.6 m) AT8405a Stand Clamp for 5/8"-27 Threaded Stands Windscreen Soft Protective Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT8022 X Y Stereo Phantom and Battery Powered Field Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT8022 Specs | Transducer | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | X/Y Stereo | | Frequency Response | 20Hz to 15kHz | | Dynamic Range (Typical) | Phantom: 109dB, 1kHz at Max SPL
Battery: 101dB, 1kHz at Max SPL | | Signal-to-Noise Ratio | 75dB, 1kHz at 1Pa | | Maximum Input Sound Level | Phantom: 128dB SPL, 1kHz at 1% T.H.D.
Battery: 120dB SPL, 1kHz at 1% T.H.D. | | Power Requirements | Phantom: 11-52VDC, 7mA typical (both channels total)
Battery: 1.5V AA Battery | | Output Impedance | Phantom: 250 ohms
Battery: 300 ohms | | Output Connectors | 5-pin XLR Output
5-Pin XLR to dual 3-Pin XLR Cable (6.5') (2.0 m) 5-Pin to Stereo 1/8" (3.5mm) Mini (2.0') (0.6 m) | | Pad | None | | Low Frequency Roll-Off | 80Hz, 12dB / octave | | Dimensions (LxDiameter) | 7.32 x 1.87" (186.0 x 47.5mm) | | Weight | 9.5 oz (269g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.5 x 5.3 x 2.9" |
