Product description - Quick Look: Audio Technica AT8024

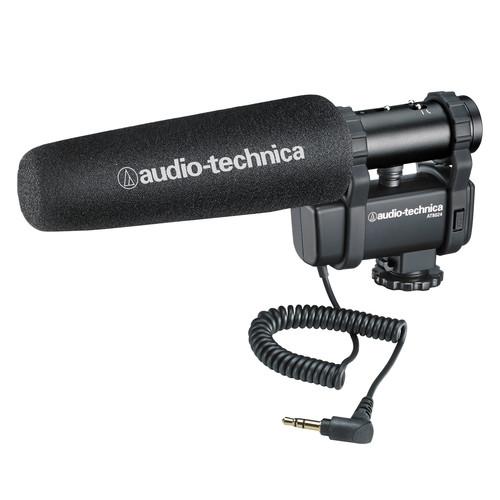

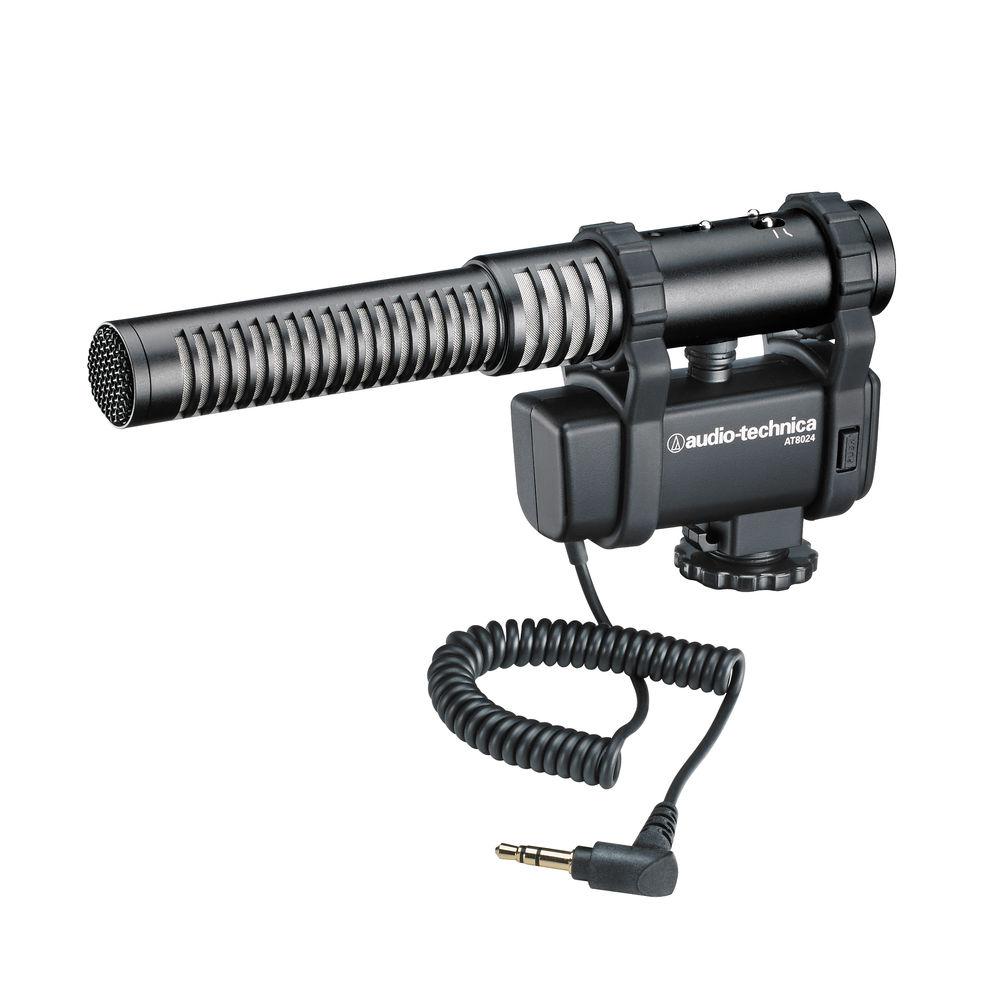

- Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone
For capturing audio the AT8024 Stereo/Mono Camera-Mount Microphone by Audio Technica can be used in several environments, on DSLR and video cameras, for applications such as weddings, conferences, sports events, and more. It features a selectable line-cardioid mono, and internally matrixed mid-side stereo mode and provides the flexibility to focus the recording on a single sound source, or to widen the field for more sonic realism. The AT8024 can deliver much improved audio than the supplied camera's internal microphone.The AT8024 is built with a three-position adjustable input pad (-20 dB, -10 dB, 0 dB) to capture soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation, and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches to DSLRs and shoe-equipped camcorders. A 39" coiled cable with a 1/8" mini-jack, AA battery, windshield, fuzzy windscreen are included. - Designed for use with DSLR and other video cameras, delivering better sound quality than the camera's internal microphone
- Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
- Three-position adjustable input pad and switchable low-frequency roll-off
- Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise

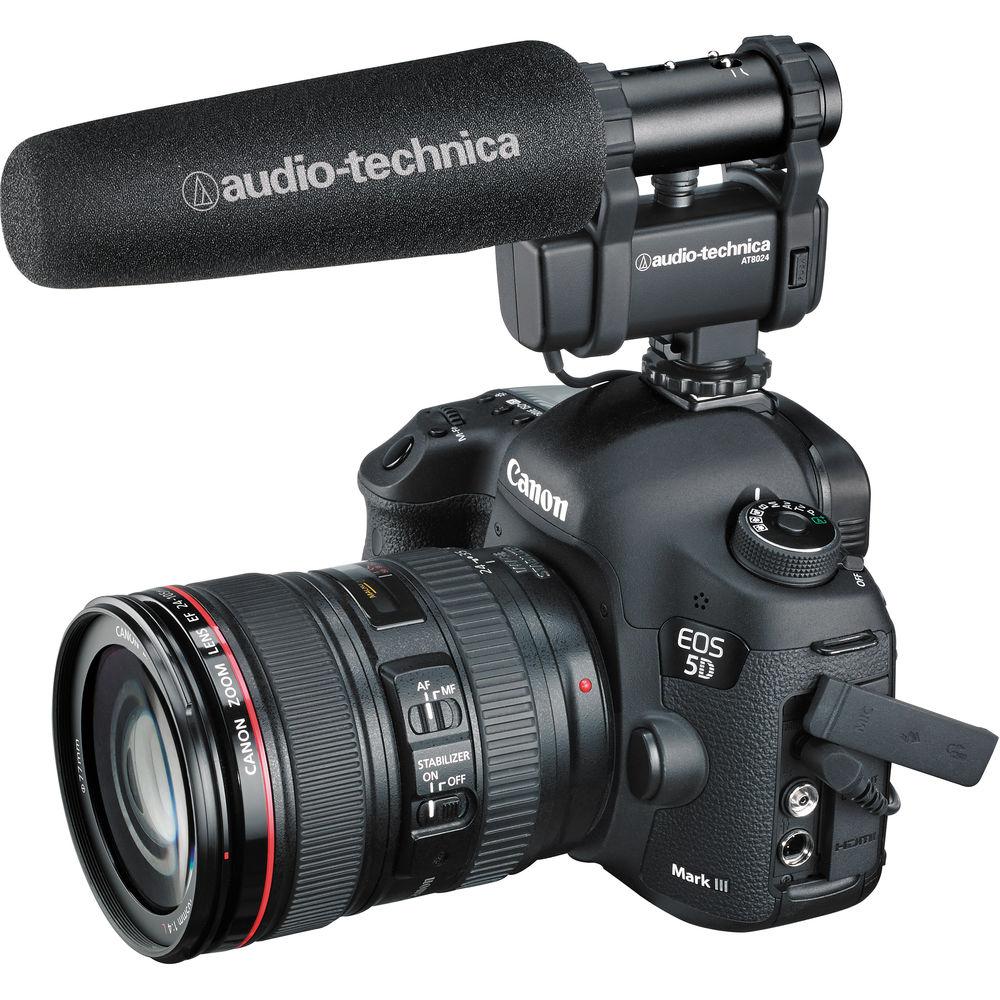

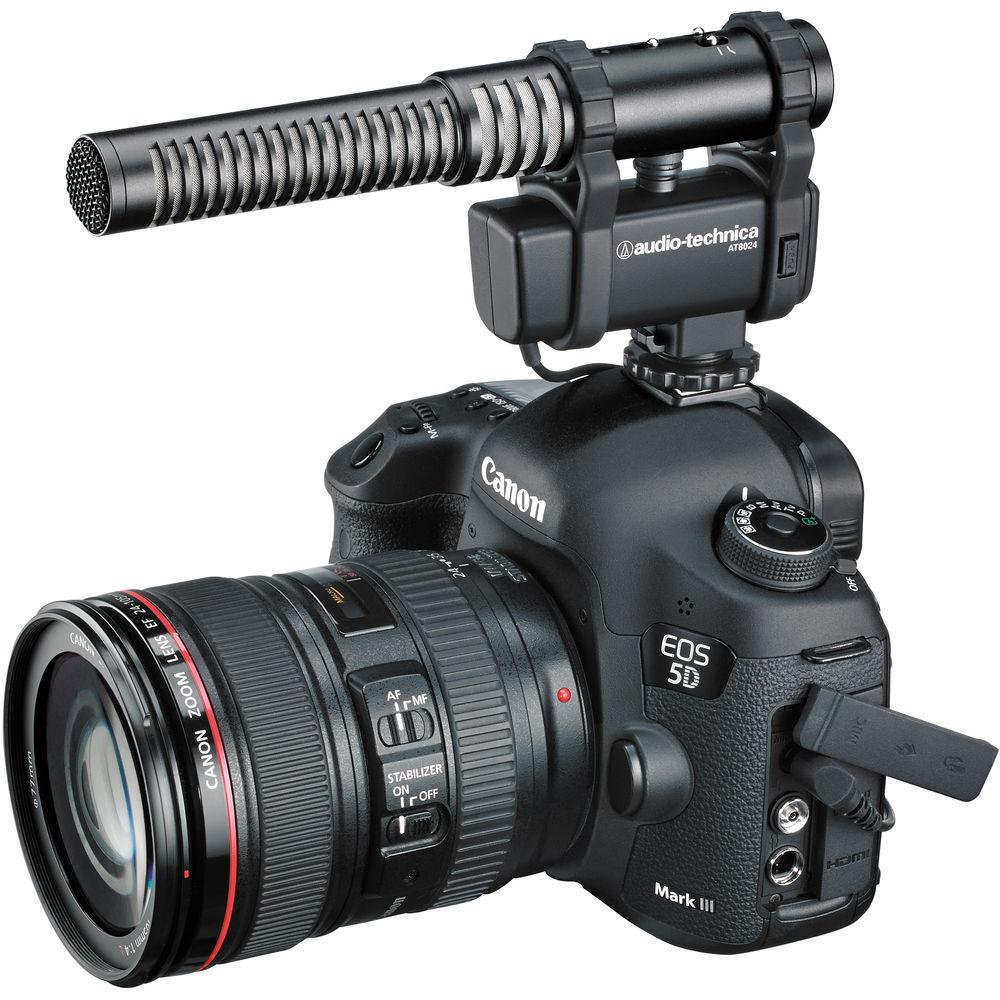

- Compact, lightweight design with integral shoe mount
- Red/green LED power indicator

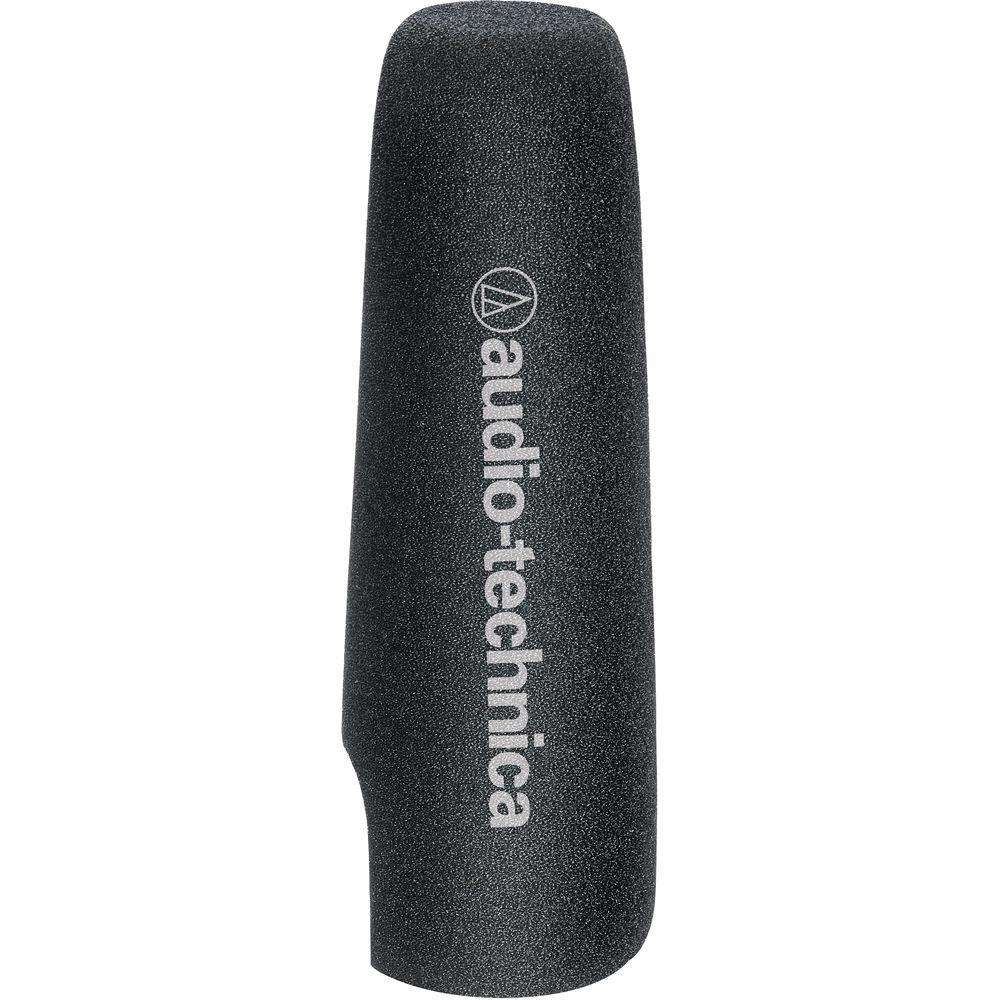

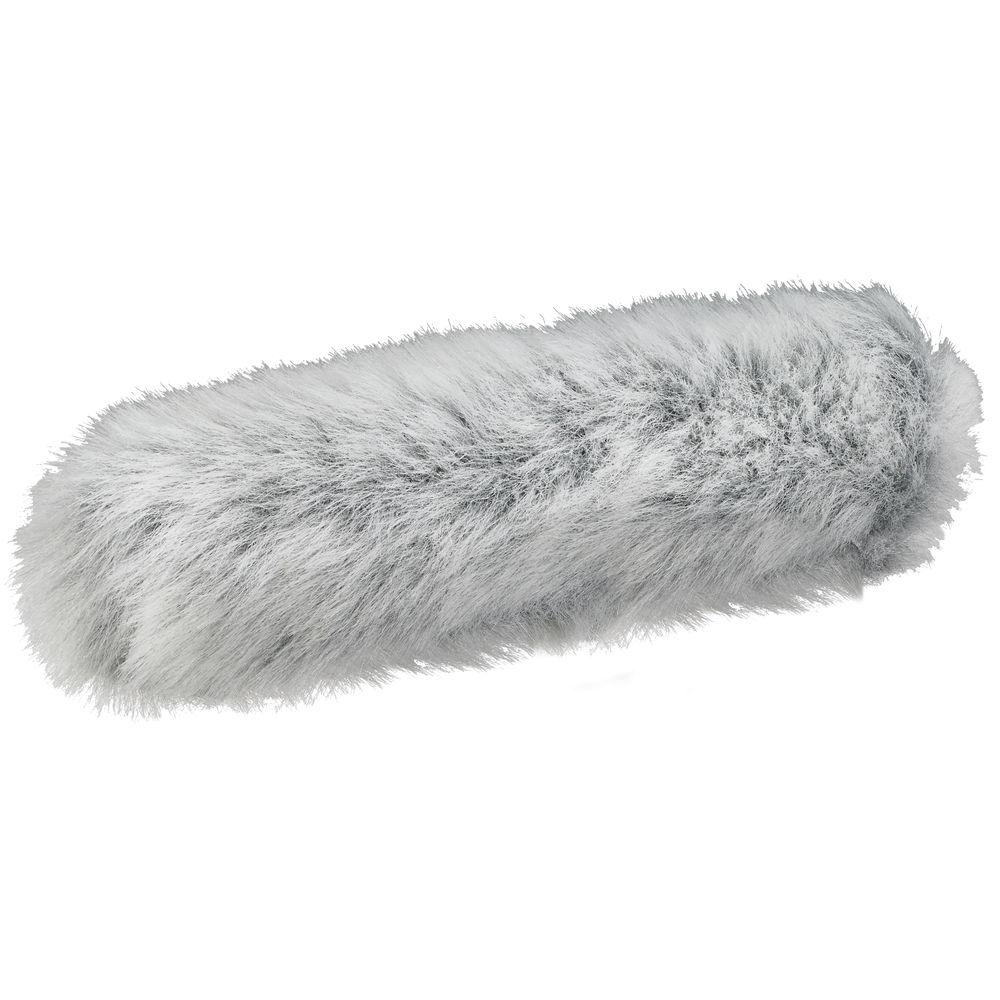

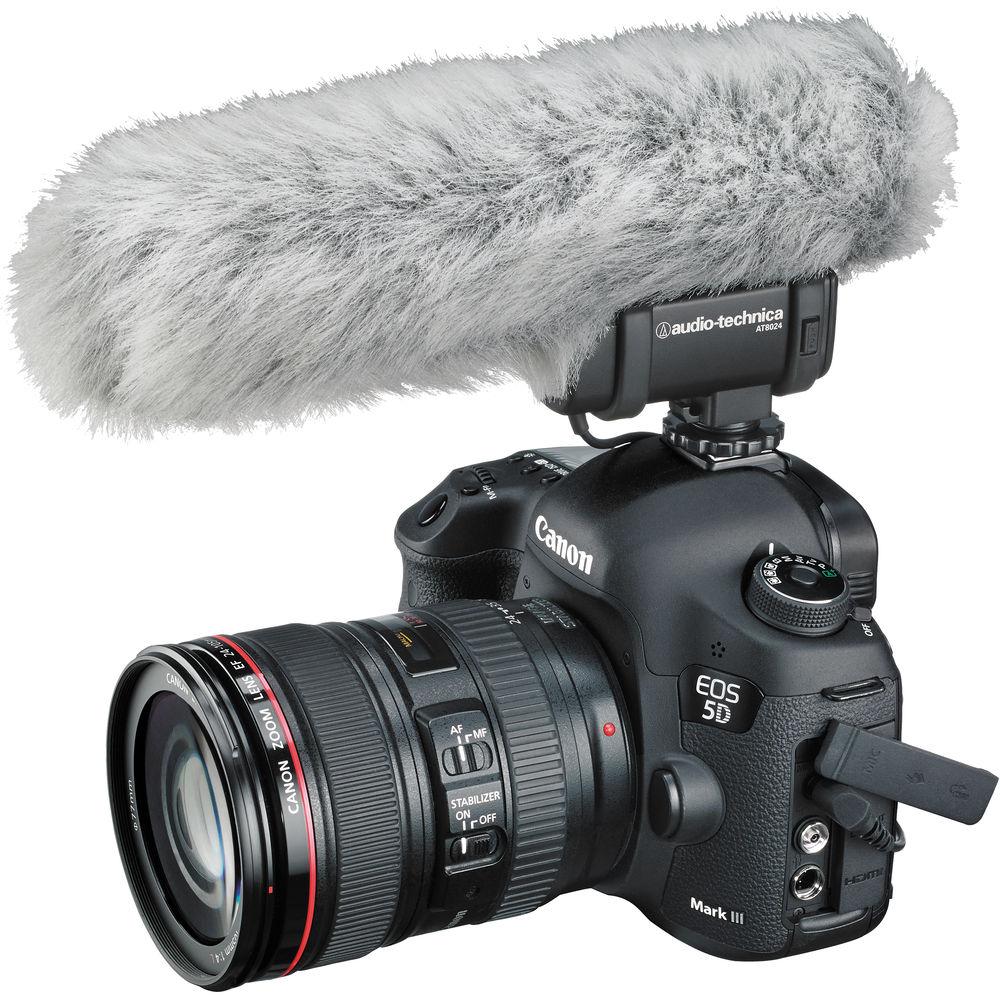

- Includes windscreen, fuzzy windscreen and AA battery
In the Box Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone Windscreen Fuzzy Windscreen AA Battery Limited 1-Year Warranty Specification PDF 502.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT8024 Stereo Mono Camera-Mount Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT8024 Specs | Elements | Fixed-charge back plate permanently polarized condenser | | Polar Pattern | Line-cardioid, L/R stereo
Mono | | Frequency Response | 40 Hz to 15 kHz | | Low Frequency Roll-Off | 80 Hz, 12 dB / octave | | Open Circuit Sensitivity | -37 dB (14.1 mV) re 1V at 1 Pa (mono & L/R stereo) | | Impedance | 50 Ohms | | Maximum Input Level | 128 dB SPL, 1 kHz at 1% T.H.D.
148 dB SPL, with 20 dB pad | | Dynamic Range (Typical) | Mono: 106 dB, 1 kHz at Max SPL
Stereo: 104 dB, 1 kHz at Max SPL | | Signal-to-Noise Ratio | Mono: 72 dB, 1 kHz at 1 Pa
Stereo: 70 dB, 1 kHz at 1 Pa | | Battery Type | 1x 1.5 V (AA) | | Battery Life | 100 hours, typical | | Switches | Mono, M-S Stereo
Three-position input pad
Flat, roll-off | | Output Connector | 1/8" (3.5 mm) stereo mini-plug on cable | | Cable | Permanently attached 7.8 to 39.3" (0.2 to 1 m) coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end | | Dimensions (L x Diam) | 6.8 x 0.9" (172 x 24 mm) | | Weight | 4 oz (114 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 11.8 x 5.3 x 3.0" |
