User Manual for Audio-Technica AT8035 - Shotgun Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT8035 - Shotgun Condenser Microphone
- Product category: Shotgun Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Shotgun Microphones
 |
User manual for the Audio-Technica AT8035 - Shotgun Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

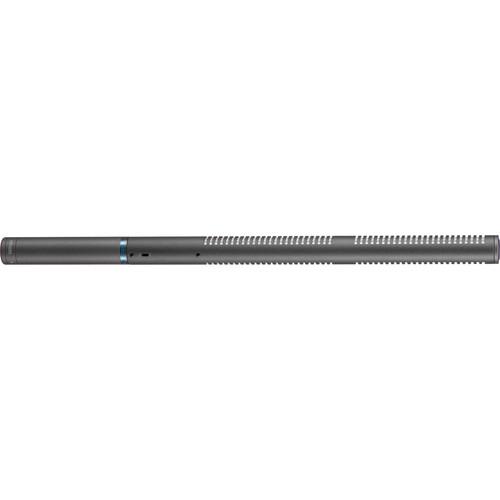

Product description The AT8035 from Audio-Technica is a fixed-charge shotgun condenser microphone with a line + gradient polar pattern well suited for video production, broadcast audio acquisition, wildlife recording, and high-quality sound reinforcement. The microphone requires 11 to 52V phantom power, but may be powered from a 1.5V AA battery.

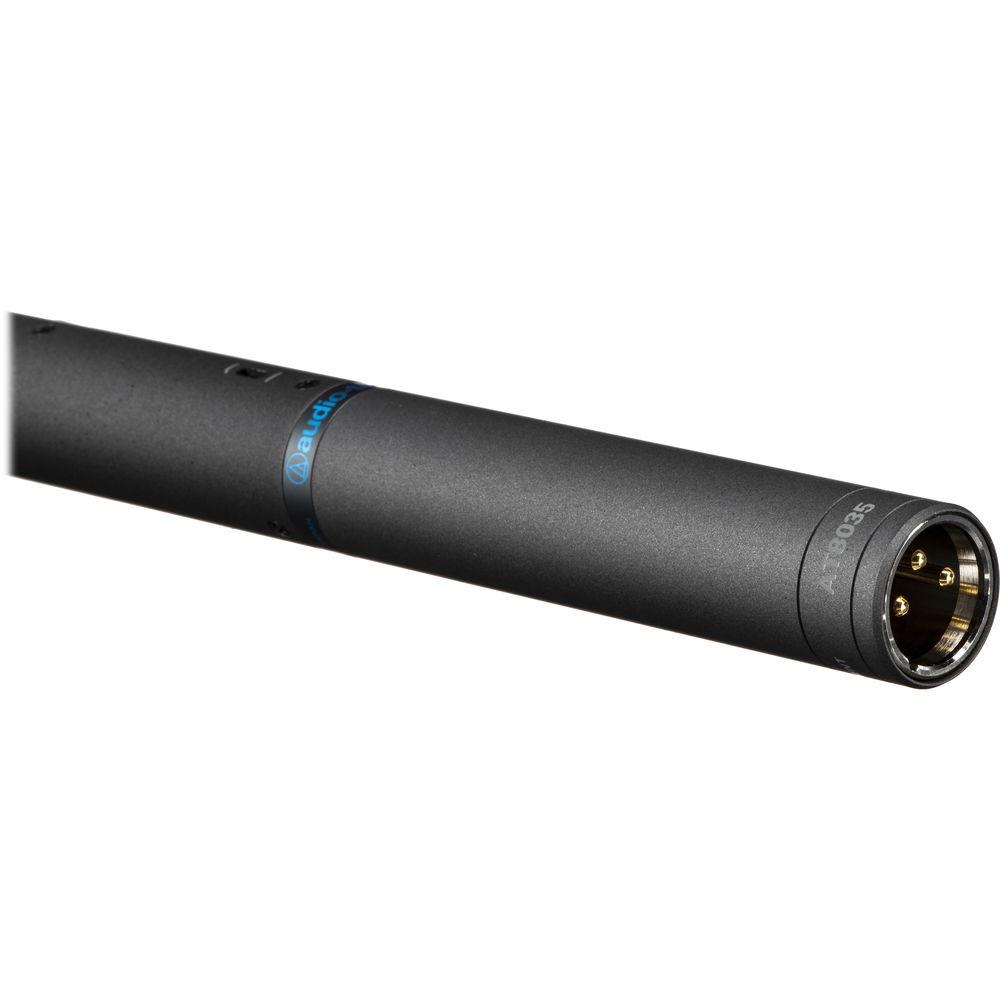

The AT8035 features a highly directional polar pattern that provides a narrow acceptance angle to provide crisp, clear audio reproduction that is desirable for long-distance sound pickup. The microphone offers a frequency response of 40 Hz to 20 kHz and features an 80 Hz low frequency roll-off switch to help eliminate undesired rumble. The microphone is enclosed in a rugged housing and features a standard 3-pin XLRM type connector. The AT8035 ships with a stand clamp for 5/8"-27 threaded stands, a 5/8"-27 to 3/8"-16 threaded adapter, a windscreen, an AA battery, and a protective carrying case. -
- Designed for professional recording, broadcasting and film/TV/video production
- Length is well-suited for ENG, outdoor recording and other specialized uses
- Provides the narrow acceptance angle desirable for long-distance sound pickup
- Excellent sound rejection from the sides and rear of mic
- Switchable low-frequency roll-off
- Operates on battery or phantom power

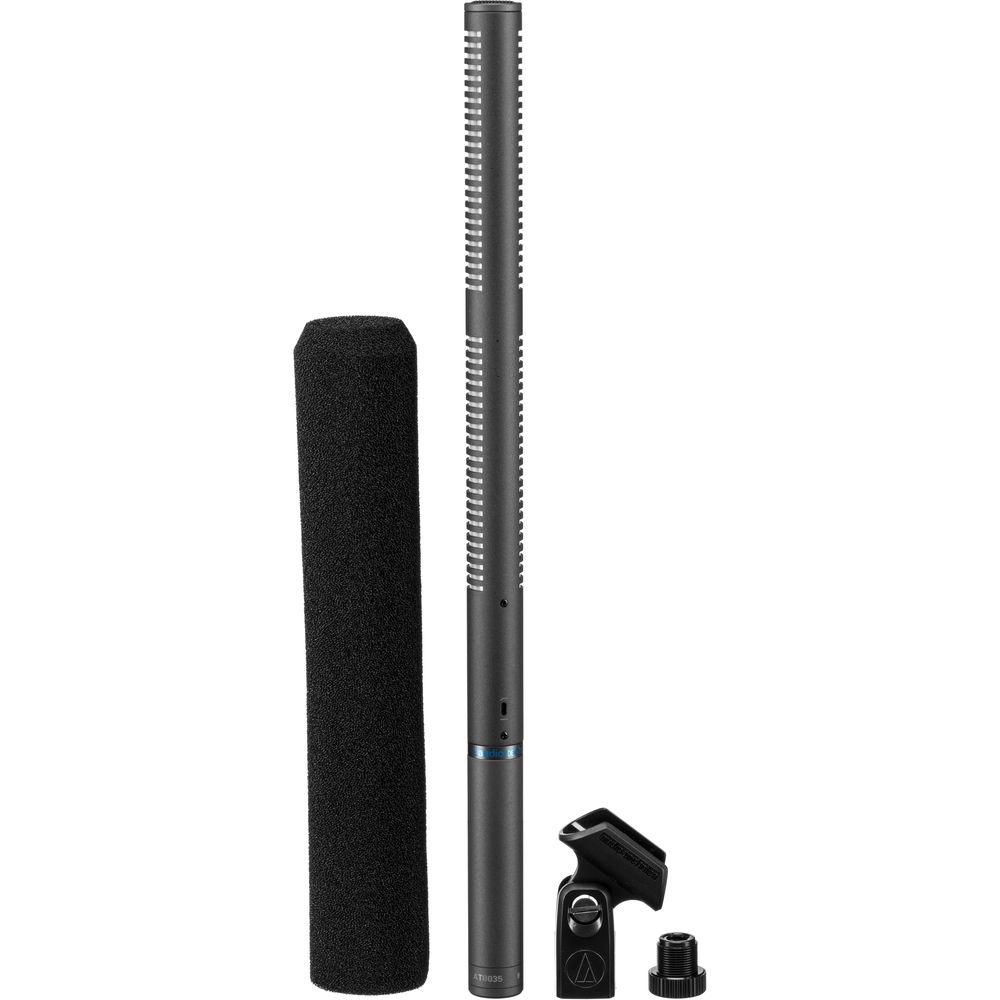

UPC: 042005309122 In the Box Audio-Technica AT8035 - Line + Gradient Shotgun Condenser Microphone AT8405a Stand Clamp for 5/8"-27 Threaded Stands 5/8"-27 to 3/8"-16 Threaded Adapter AT8132 Windscreen 1.5v AA/UM3 Battery Protective Carrying Case Limited 1-Year Warranty Data Sheet PDF 199.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT8035 - Shotgun Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT8035 Specs | Transducer | Fixed-Charged, Back Plate, Permanently Polarized Condenser | | Polar Pattern | Line + Gradient | | Frequency Response | 40 Hz to 20 kHz | | Low Frequency Roll-Off | 80 Hz, 12 dB/octave | | Open Circuit Sensitivity | Phantom: -38 dB (12.5 mV) re 1 V at 1 Pa
Battery: -39 dB (11.2 mV) re 1 V at 1 Pa | | Impedance | Phantom: 250 ohms
Battery: 300 ohms | | Max Input Sound Level (SPL) | Phantom: 132 dB SPL, 1 kHz at 1% THD
Battery: 120 dB SPL, 1 kHz at 1% THD | | Dynamic Range (Typical) | Phantom 110 dB, (1 kHz @ maximum SPL)
Battery 98 dB, (1 kHz @ maximum SPL) | | Signal-to-Noise Ratio | 72 dB, (1 kHz @ 1Pa / A-Weighted) | | Phantom Power Requirements | 11 to 52 VDC
Battery AA (1.5v) | | Battery Type | AA/UM3: 1.5 V | | Battery Current | 0.4 mA / 1200 hours typical (alkaline) | | Output Connectors | XLR-3M Type | | Switch | Flat, Roll-Off | | Dimensions (LxDiameter) | 14.53 x 0.83" (369 X 21mm) | | Weight | 6.0 oz. (170 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 19.5 x 4.6 x 2.5" |
