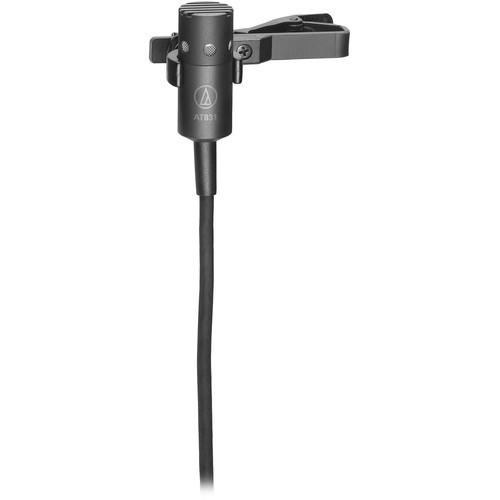

User Manual for Audio-Technica AT831C - Miniature Cardioid Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT831C - Miniature Cardioid Lavalier
- Product category: Microphones for Wireless Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Microphones for Wireless
|
User manual for the Audio-Technica AT831C - Miniature Cardioid Lavalier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description The Audio-Technica AT831C is a miniature cardioid lavalier microphone with a sensitivity and frequency response suitable for professional video, broadcast and sound reinforcement applications. The cardioid polar pattern is effective minimizing off-axis signal, providing high gain-before-feedback while using nearby monitors and speakers.The wide frequency response of 40Hz to 20kHz enables audio signal to be reproduced with accurate detail and minimal noise at low frequencies. The miniature capsule enables the microphone to be hidden underneath clothing and the included windscreen protects against noise caused by plosive signals and wind. - Unterminated Cable
- The AT831C version of the AT831 features an unterminated cable. User's are capable of wiring custom connectors as necessary (refer to wiring diagram in manual).
- Miniature Capsule
- The miniature, unobtrusive capsule allows for easy concealment underneath clothing.
- Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing audio signal at the off-axis sections of the capsule. This provides high gain-before-feedback response while using nearby monitors and speakers.
- High Sensitivity
- The frequency and sensitivity response of the AT831 result in transparent, pristine audio signal reproduction with low noise floor.
UPC: 042005309085 In the Box Audio-Technica AT831C - Miniature Cardioid Lavalier Microphone (AT8417) Clothing Clip (AT8116) Foam Windscreen 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT831C - Miniature Cardioid Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT831C Specs | Transducer | Permanently Polarized Condenser | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz - 20 kHz | | Dynamic Range (Typical) | 101 dB, (@ Maximum SPL) | | Signal-to-Noise Ratio | 65 dB, (A-Weighted) | | Maximum Input Sound Level | 126 dB, (@ 1 kHz 1% THD) | | Power Requirements | Phantom: 9 - 52v DC
Battery: AA (1.5v) | | Output Impedance | 200 Ohms | | Output Connectors | Non Terminated "Pig-Tail" Connection | | Pad | None | | Low Frequency Roll-Off | -6 dB / Octave @ 150 Hz | | Applications | Vocal, Instrument (Especially Guitar) | | Dimensions | Microphone: .98 x .39" (25 x 10 mm) LxDiameter
Power Module: 3.27 x 2.48 x 0.87" (83 x 63 x 22mm) LxWxD
Cable: 6' (1.8 m) Long | | Weight | Microphone: 0.1 oz. (2.8 g) Less Cable and Accessories
Power Module: 5.2 oz. (147 g) | | | | Package Weight | 0.12 lb | | Box Dimensions (LxWxH) | 4.5 x 4.0 x 0.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
