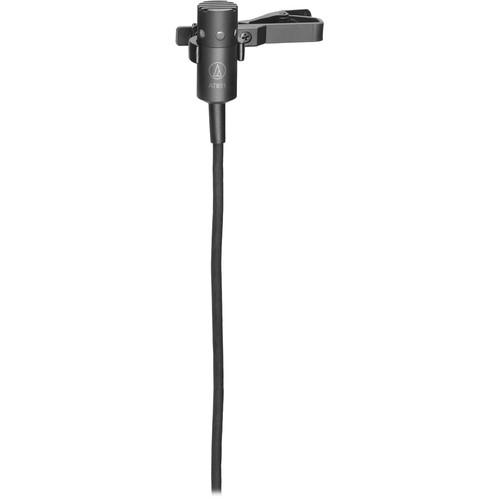

Product description Essential Guide on How to Mic Talent for Video Read More yqrfuauzvffzcuyuauca The AT831R is a miniature condenser microphone with a cardioid polar pattern. It has been designed for hands-free applications in sound reinforcement systems and for use by professional musicians, especially for pickup of acoustic guitar. The AT831R provides improved gain before feedback that normally cannot be achieved with miniature omnidirectional microphones. Close up voice and instrument pickup are crisp and clean, yet full sounding, while suppression of background noise is significantly improved over that of stand mounted full size cardioid microphones. - Clip-on lavalier mic also excels in acoustic guitar applications
- Provides crisp, full-sounding voice and instrument pickup
- Excellent gain before feedback and suppression of background noise
- Operates on phantom power only
- 13.1' (4m) cable permanently attached to mic, TA3F connector at power module
UPC: 042005309115 In the Box Audio-Technica AT831R - Miniature Clip-On Mic (AT8116) Foam Windscreen (AT8417) Clothing Clip (AT8418) UniMount® Microphone Instrument Mount (AT8444) Guitar Adapter (AT8533) In-Line Power Module Protective Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT831R - Miniature Clip-On Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT831R Specs | Transducer | Permanently Polarized Condenser | | Polar Pattern | Cardioid | | Frequency Response | 40 Hz - 20 kHz | | Dynamic Range (Typical) | 112 dB, (@ Maximum SPL 1% THD) | | Signal-to-Noise Ratio | 65 dB, (A-Weighted) | | Maximum Input Sound Level | 141 dB, (@ 1 kHz 1% THD) | | Power Requirements | Phantom, (9 - 52v DC) | | Output Impedance | 200 Ohms | | Output Connectors | TA3F (from Microphone)
XLR-3M Type (from AT8533 Power Module) | | Pad | None | | Low Frequency Roll-Off | None | | Applications | Vocal, Instrument (Especially Guitar) | | Dimensions | Microphone: 0.98 x 0.40" (24.8 x 10.2mm) LxDiameter
Power module: 3.13" (79.5 mm) Long
Cable: 13.1' (4m) Long with TA3F Output Connector (Permanently Attached to Microphone) | | Weight | Microphone: 0.1 oz. (2.8 g) Less Cable and Accessories
Power module: 1.8 oz. (51.4 g) | | | | Package Weight | 1.06 lb | | Box Dimensions (LxWxH) | 10.4 x 4.4 x 1.65" |
