Audio-Technica AT875 Short Condenser Shotgun Microphone

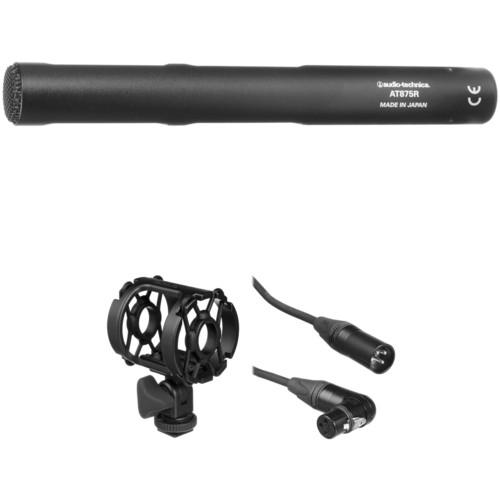

User Manual for Audio-Technica AT875 Short Condenser Shotgun Microphone Kit

• Product category: Shotgun Microphones Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Shotgun Microphones

Product description

• Audio-Technica AT875R Line and Gradient Condenser Microphone The AT875R from Audio-Technica is a line and gradient condenser, phantom powered, short (7") shotgun microphone for capturing audio. It can be used in various environments for applications such as videos, TV broadcasts, and ENG (Electronic News Gathering) productions. The high-performance microphone features smooth, natural-sounding on-axis audio quality and excellent off-axis rejection of sound arriving from the sides and rear of the mic. The AT875R operates on 11 to 52V phantom power, and has a standard XLR output connector and is compatible with some of the smaller professional cameras.
  Short Length
  • The AT875R measures about seven inches in length and is suitable for use with small video cameras
  Excellent Audio Rejection
  • Excellent off-axis audio rejection provides greater range and excellent fidelity in noisy environments
  Smooth Audio Reproduction
  • The AT875R captures nuances and detail with great accuracy
  Phantom Powered
  • The microphone is powered with 11 to 52V phantom power
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229

• AT875R Short Condenser Shotgun Microphone for Video Applications beafeuxrrcuqfzbtwvuatutzxctuuwsewwvqeb
• AT8405 Microphone Stand Clip
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Foam Windscreen
• Soft Protective Pouch
• Limited 5-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT875R Line and Gradient Condenser Microphone

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Polar Pattern	Supercardioid
  Frequency Range	90 Hz to 20 kHz
  Signal to Noise Ratio	74 dB
  Maximum SPL	127 dB SPL
  THD	1%
  Impedance	100 Ohms ± 1%
  Sensitivity	-30 dB
  Dynamic Range	107 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	11 to 52 V
  Length	6.89" / 175.01 mm
  Diameter	0.83" / 21.08 mm
  Weight	2.8 oz / 79 g

  Box Dimensions (LxWxH)	9.6 x 5.2 x 2.9"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"
