User Manual for Audio-Technica AT897 Line and Gradient Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT897 Line and Gradient Condenser
- Product category: Uncategorized Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Uncategorized
 |
User manual for the Audio-Technica AT897 Line and Gradient Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

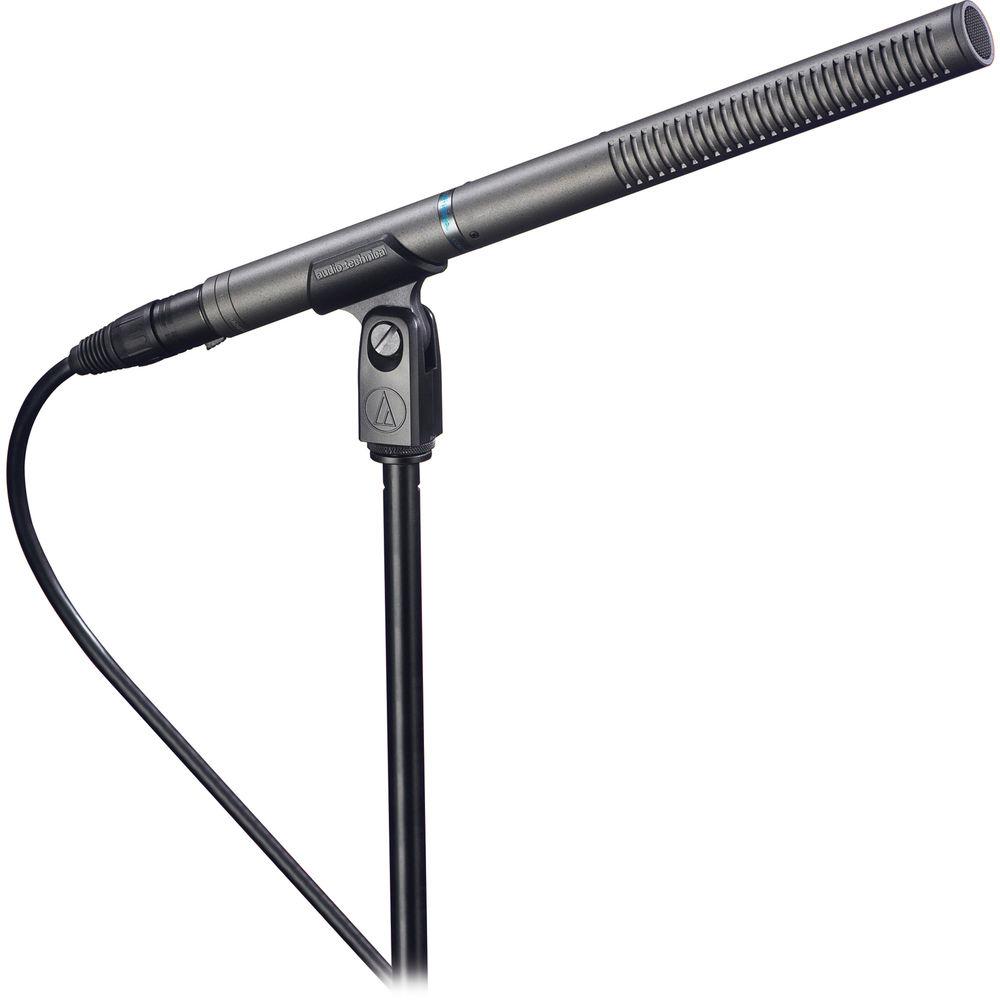

Product description The AT897 Line and Gradient Condenser Microphone from Audio-Technica is a short shotgun condenser microphone that has a low-cut filter and operates on battery or phantom power. It can be used to capture audio in various indoor or outdoor environments for film, broadcast TV, and other video applications. The microphone's short length of eleven inches ensures it remains out of the camera frame, when mounted on a compact consumer video camera. When capturing audio at long range, the microphone's narrow pickup pattern enhances signal reproduction, off-axis sound rejection, and minimizes noise and ambiance, which delivers a natural sound. In addition, a built-in low-cut frequency switch helps to eliminate noise and hum registering in the low-frequency range. This microphone operates on a single 1.5V AA battery or 11 to 52V phantom power, and terminates with a 3-pin XLR connector. It includes a AT8405a stand clamp, a AT8134 foam windscreen, battery, a 5/8"-27 to 3/8"-16 threaded adapter, and a protective carrying case. - Short Lightweight Design

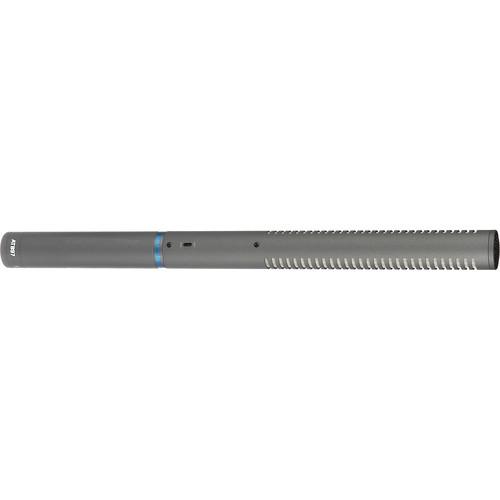

- An unobtrusive length of 11.0" (279.40 mm) ensures that the microphone remains out of the frame when mounted on a compact consumer video camera.
- Excellent Noise Rejection
- The microphone's narrow pickup pattern is desirable for capturing audio signals at long range. Its off-axis sound rejection minimizes noise and ambiance, emphasizing the desired signal.
- Low Cut Filter Switch
- A low-cut frequency switch eliminates noise and hum registering at the low-frequency range.

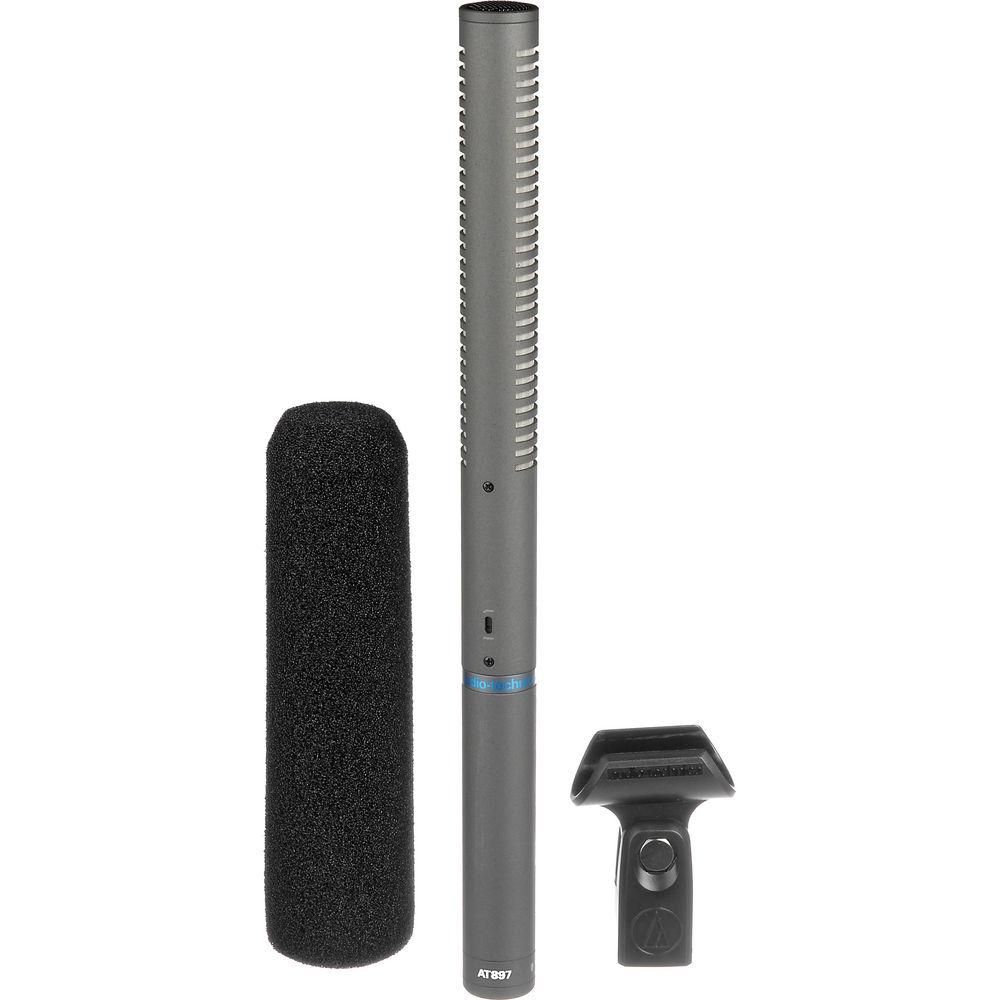

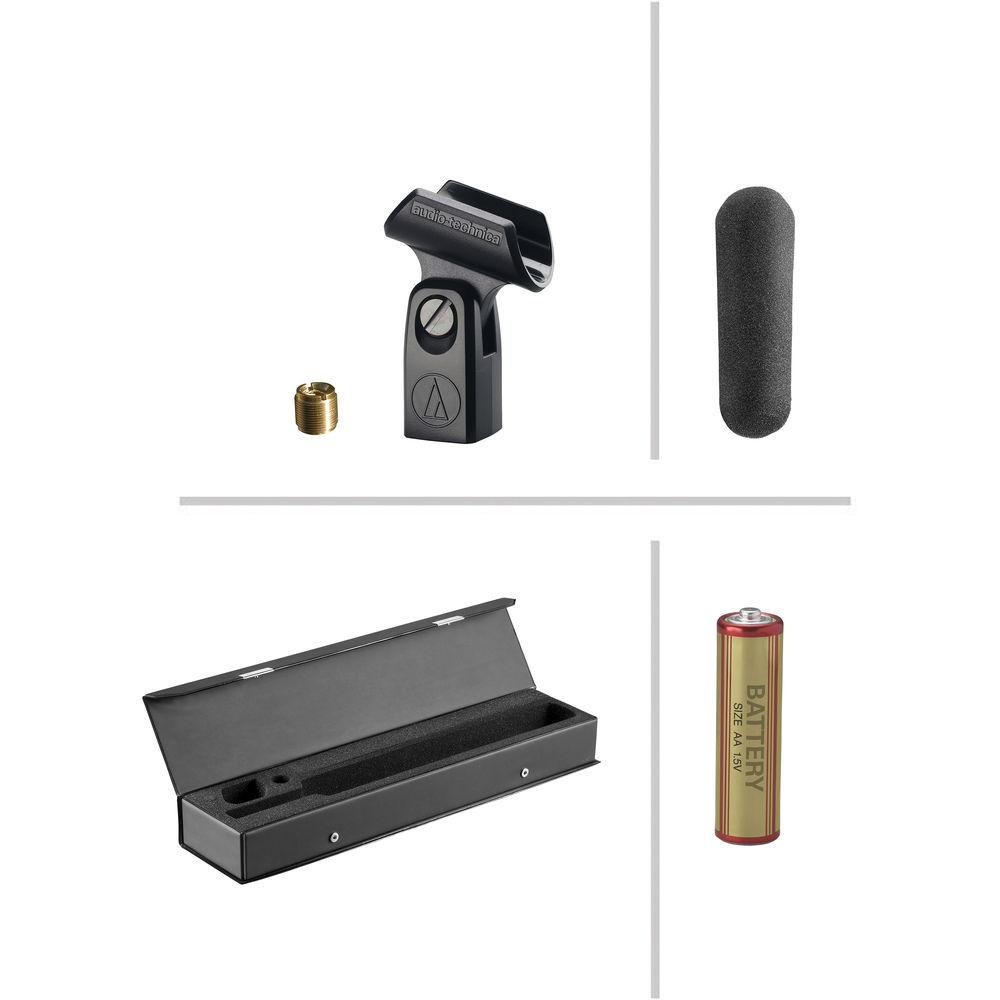

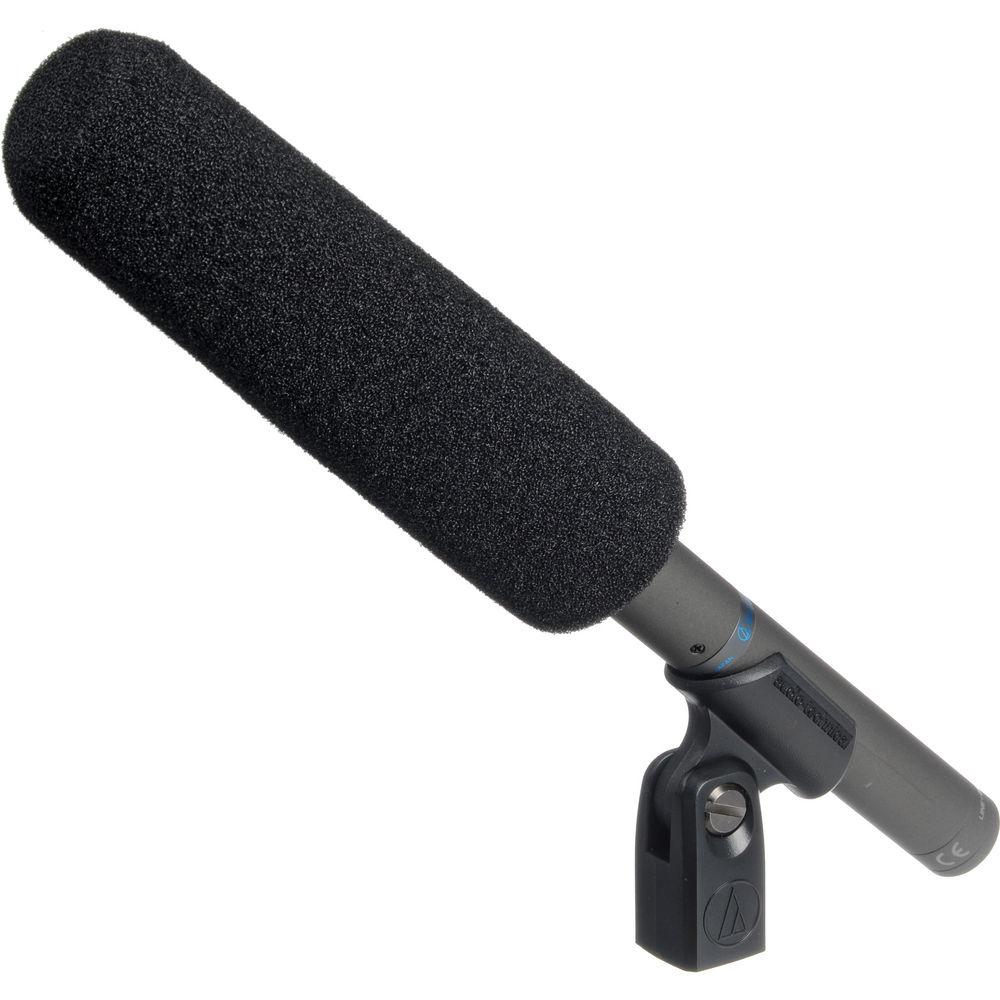

In the Box Audio-Technica AT897 Line and Gradient Condenser Microphone AT8405 Stand Clamp AT8134 Windscreen AA Battery 5/8"-27 to 3/8"-16 Threaded Adapter Protective Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT897 Line and Gradient Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | | | Sound Field | Mono | | Operating Principle | Line Gradient | | Transducer | Condenser | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 77 dB | | Maximum SPL | 129 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Sensitivity | -40 dB | | Low-Cut Filter | 18 dB/Octave @ 80 Hz | | Dynamic Range | 112 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Battery Type | 1 x AA | | Operating Current Consumption | 2.0 mA | | Operating Voltage | 11 to 52 V | | Length | 10.98" / 279 mm | | Diameter | 0.83" / 21 mm | | Weight | 5.11 oz / 145 g |
