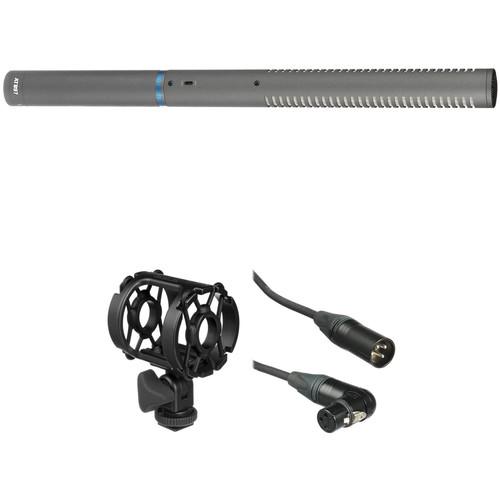

Audio-Technica AT897 - Shotgun Microphone Kit

User Manual for Audio-Technica AT897 - Shotgun Microphone Kit

• Product category: Shotgun Microphones Audio-Technica
• Brand: Audio-Technica
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Audio-Technica Shotgun Microphones

Product description

• Audio-Technica AT897 Line and Gradient Condenser Microphone The AT897 Line and Gradient Condenser Microphone from Audio-Technica is a short shotgun condenser microphone that has a low-cut filter and operates on battery or phantom power. It can be used to capture audio in various indoor or outdoor environments for film, broadcast TV, and other video applications. The microphone's short length of eleven inches ensures it remains out of the camera frame, when mounted on a compact consumer video camera. When capturing audio at long range, the microphone's narrow pickup pattern enhances signal reproduction, off-axis sound rejection, and minimizes noise and ambiance, which delivers a natural sound. In addition, a built-in low-cut frequency switch helps to eliminate noise and hum registering in the low-frequency range. This microphone operates on a single 1.5V AA battery or 11 to 52V phantom power, and terminates with a 3-pin XLR connector. It includes a AT8405a stand clamp, a AT8134 foam windscreen, battery, a 5/8"-27 to 3/8"-16 threaded adapter, and a protective carrying case.
  Short Lightweight Design
  • An unobtrusive length of 11.0" (279.40 mm) ensures that the microphone remains out of the frame when mounted on a compact consumer video camera.
  Excellent Noise Rejection
  • The microphone's narrow pickup pattern is desirable for capturing audio signals at long range. Its off-axis sound rejection minimizes noise and ambiance, emphasizing the desired signal.
  Low Cut Filter Switch
  • A low-cut frequency switch eliminates noise and hum registering at the low-frequency range.
  UPC: 042005132409
• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles The Auray DUSM-1 Universal Shockmount features a four-point suspension to accommodate shotgun and other cylindrical microphones measuring 0.74-0.98" (19-25mm) in diameter. The shockmount is easily angled with its rubberized adjustment knob. There is a built-in shoe for camera mounting, and a 3/8"-16 thread connection at the base mounts the shockmount to boompoles and universal hand-grips. UPC: 847628562776
• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black The black Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable (1.5') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise.

  Premium Performance 3000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Caged type contact and improved ground contact.
  UPC: 847628558229

• AT897 Line and Gradient Condenser Microphone tcuxqtwuyyyqdyd
• AT8405 Stand Clamp
• AT8134 Windscreen
• AA Battery
• 5/8"-27 to 3/8"-16 Threaded Adapter
• Protective Carrying Case
• Limited 5-Year Warranty

• Auray - DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

• Kopul - Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Audio-Technica AT897 Line and Gradient Condenser Microphone

  Sound Field	Mono
  Operating Principle	Line Gradient
  Transducer	Condenser
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	77 dB
  Maximum SPL	129 dB SPL
  THD	1%
  Impedance	200 Ohms
  Sensitivity	-40 dB
  Low-Cut Filter	18 dB/Octave @ 80 Hz
  Dynamic Range	112 dB

  Output Connectors	1 x 3-Pin XLR
  Battery Type	1 x AA
  Operating Current Consumption	2.0 mA
  Operating Voltage	11 to 52 V
  Length	10.98" / 279 mm
  Diameter	0.83" / 21 mm
  Weight	5.11 oz / 145 g

  Box Dimensions (LxWxH)	19.5 x 4.5 x 2.5"

• Auray DUSM-1 Universal Shock Mount for Camera Shoes and Boompoles

  Box Dimensions (LxWxH)	4.65 x 3.2 x 2.65"

• Kopul Premium Performance 3000 Series XLR M to Angled XLR F Microphone Cable - 1.5' (0.45 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female Right-Angle
  Cable Length	1.5' / 0.45 m
  Shielding	95% Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Number of Conductors	2
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)
  Insulation Type	Polyethylene

  Box Dimensions (LxWxH)	4.8 x 3.1 x 0.9"
