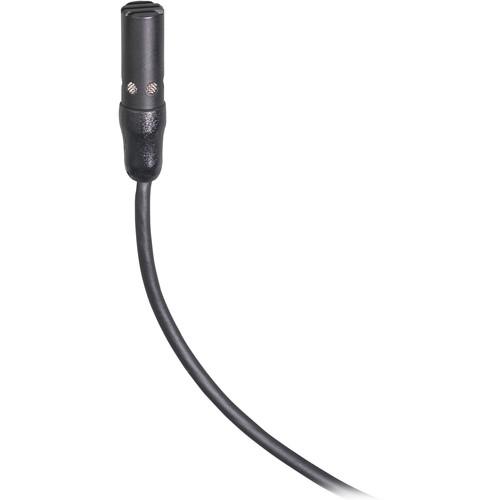

User Manual for Audio-Technica AT898 Cardioid Condenser Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Audio-Technica AT898 Cardioid Condenser Lavalier Microphone
- Product category: Lavalier Microphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Lavalier Microphones
|
User manual for the Audio-Technica AT898 Cardioid Condenser Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|
Product description Essential Guide on How to Mic Talent for Video Read More aurxtrays - Lavalier Microphones Demo
The Audio-Technica AT898 lavalier microphone is designed to be mounted on, or hidden underneath clothing. It's slim low-profile design is ideal for broadcast and theatrical applications. The tailored frequency response accentuates the frequency response of vocals while minimizing low frequency noise. A low-frequency roll-off switch further minimizes noise due to hum, ambiance and proximity effect. The AT898 features a condenser element with a cardioid polar pattern. The cardioid pattern is effective in minimizing noise and ambiance at the off-axis sections of the microphone capsule. The microphone includes the AT8537 phantom power supply module. - Low Profile Design
- The slim, miniature profile of the AT898 is ideal for broadcast, video and performance applications.
- Cardioid Polar Pattern
- The cardioid polar pattern is effective in minimizing noise and off-axis audio that can cause feedback.
- Tailored Frequency Response
- The tailored frequency response minimizes low-frequency noise while accentuating the frequency range of vocals.
- Low Frequency Roll-Off
- A low frequency roll-off switch minimizes noise and low frequency audio caused by ambiance, proximity effect, etc.
- Battery or Phantom Power
- The included AT8537 power supply is capable of either phantom or battery power.
UPC: 042005132744 In the Box Audio-Technica AT898 Cardioid Condenser Lavalier Microphone AT898 Lavalier Microphone AT8537 Power Module AT8439 Cable Clip Clothing Clip Base Viper Clip Base Magnet Clip Base Plate with Lanyard 3 x Single Mic Holders 2 x Double Mic Holders 2 x Windscreens Battery Protective Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT898 Cardioid Condenser Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT898 Specs | Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 200Hz to 15KHz | | Dynamic Range (Typical) | Phantom: 100dB, 1KHz at Max SPL
Battery: 84dB, 1KHz at Max SPL | | Signal-to-Noise Ratio | 63dB, 1KHz at 1 Pa | | Maximum Input Sound Level | Phantom: 131dB SPL, 1KHz at 1% T.H.D.
Battery: 115dB SPL, 1KHz at 1% T.H.D. | | Power Requirements | 11-52VDC, 2 mA typical | | Output Impedance | Phantom: 200 ohms
Battery: 250 ohms | | Output Connectors | Integral 3-pin XLRM-type | | Pad | No | | Low Frequency Roll-Off | 80Hz, 12dB/octave | | Dimensions | 0.92 x 0.21" (23 x 5.3mm) (Length x Diameter) | | Weight | Microphone: 0.03 oz (0.9g)
Power Module: 3.6 oz (102g) | | | | Package Weight | 1.07 lb | | Box Dimensions (LxWxH) | 10.35 x 4.45 x 1.7" |
