Product description Essential Guide on How to Mic Talent for Video Read More - Lavalier Microphones Demo

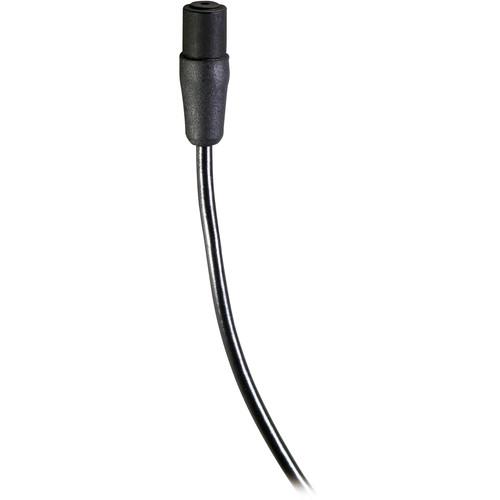

The Audio Technica AT899 is a sub-miniature condenser lavalier microphone designed to deliver high sonic performance in a low-profile, easily concealable package. Intended for interviews, documentary, film, theater, and stage applications, the AT899's omnidirectional pick-up pattern captures evenly around the perimeter of the capsule as well as directly in-line. The microphones 5mm size is ideal in applications requiring minimal visibility. The microphones 9.8' (3 meter) cable is terminated with a 3-pin TA3F output connector, suitable for use with the AT-8537 power module (included). The capsule features a smooth flat 20Hz to 20,000Hz frequency response, capturing a wide range of frequencies and making the microphone versatile. - Sub-Miniature Design
- The AT899 measures only 5mm making it easily concealable for on-camera recording, theatrical and live sound applications.
- Omnidirectional Pattern
- The omnidirectional pick-up pattern captures audio with even sensitivity around the perimeter of the microphone.
- High Sonic Performance
- The element boasts an even, flat frequency response of 20Hz to 20,000Hz with a dynamic range of 108dB (Phantom Power).
- Phantom and Battery Powered
- Includes the AT8537 phantom power supply and XLR connector. The power supply will accept phantom power, or 1.5V AA battery power (included).
In the Box Audio-Technica AT899 - Condenser Lavalier Microphone AT-8537 Power Module AA 1.5V Alkaline Battery AT8438 Microphone Clip Clothing Clip Base Viper Clip Base Magnet Clip Base Plate with Lanyard 3 x Single Mic Holders 2 x Element Covers 2 x Windscreens Carrying Case 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica AT899 - Condenser Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica AT899 Specs | Transducer | Fixed-charge plate, permanently polarized condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20-20,000Hz | | Dynamic Range (Typical) | Phantom: 108dB, 1kHz at Max SPL
Battery: 86dB, 1kHz at Max SPL | | Signal-to-Noise Ratio | 64dB, 1kHz at 1Pa | | Maximum Input Sound Level | Phantom: 138dB SPL, 1kHz at 1% THD
Battery: 116dB SPL, 1kHz at 1% THD | | Power Requirements | Phantom: 11-52V DC, 2mA typical
Battery: 1.5V AA/UM3 | | Output Impedance | Phantom: 200 ohms
Battery: 250 ohms | | Output Connectors | Mic Cable: TA3F output
Power Module: Balanced 3-pin XLR | | Pad | No | | Low Frequency Roll-Off | Low Frequency Roll-Off Switch - frequency curve not specified | | Dimensions | Microphone: 0.63 x 0.20" (16.0 x 5.0mm) (Length x Diameter)
Power Module: 5.71 x 0.83" (145 x 21.0mm)(Length x Diameter) | | Weight | Microphone: 0.02oz (0.5g)
Power Module: 3.6oz (102g) (less cable and accessories) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 10.3 x 4.3 x 1.6" |
