Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier

Search your instruction manual in PDF to download

User Manual for Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier Microphone

Click to enlarge the picture
Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier Microphone Contents of the user manual for the Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier
  • Product category: Microphones for Wireless Audio-Technica
  • Brand: Audio-Technica
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Audio-Technica Microphones for Wireless

User manual for the Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Audio-Technica product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!



Product description

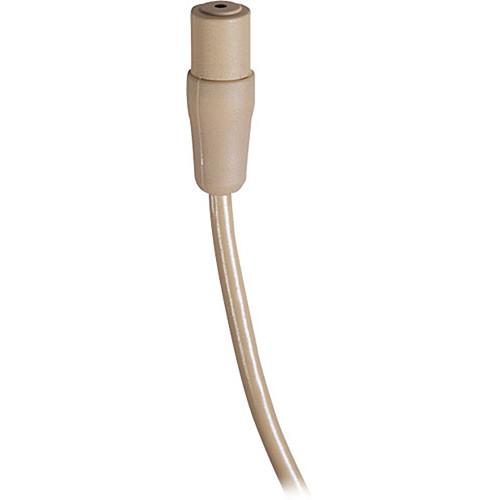

The Audio Technica AT899CTH is a sub-miniature condenser lavalier microphone designed to deliver high sonic performance in a low-profile, easily concealable package. Intended for interviews, documentary, film, theater, and stage applications, the AT 899's omni-directional pick-up pattern captures evenly around the perimeter of the capsule as well as directly in-line. The microphone's 5mm size is ideal in applications requiring minimal visibility, and its 55" (1.4 m) cable is terminated with a pigtail intended for direct use with custom connectors. The capsule features a smooth flat 20 to 20,000Hz frequency response, capturing a wide range of frequencies and making the microphone versatile.
    Sub-Miniature Design
  • The AT 899 measures only 5mm making it easily concealable for on-camera recording, theatrical and live sound applications.
    Omni-Directional Pattern
  • The omni-directional pick-up pattern captures audio with even sensitivity around the perimeter of the microphone.
    High Sonic Performance
  • The element boasts an even, flat frequency response of 20 to 20,000Hz with a dynamic range of 108dB (Phantom Power).
In the Box Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier Microphone (Beige)
  • Windscreen
  • Microphone Clip
  • Carrying Case
  • 1 Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Audio-Technica AT899CTH - Sub-Miniature Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Audio-Technica AT899 Specs

    Transducer Condenser
    Polar Pattern Omnidirectional
    Frequency Response 20Hz - 20kHz
    Dynamic Range (Typical) 86dB, 1kHz at max SPL
    Signal-to-Noise Ratio 64dB, 1kHz at 1 Pa
    Maximum Input Sound Level 116dB SPL, 1kHz at 1% T.H.D.
    Power Requirements Not applicable - powered via Audio-Technica UniPak Transmitters
    Output Impedance 250Ω
    Output Connectors pigtail for custom connectors
    Pad No
    Low Frequency Roll-Off No
    Dimensions (LxDiameter) 0.63 x 0.20" (16 x 5mm) (Length x Diameter)
    Weight 0.02 oz (0.5g)
    Package Weight 0.4 lb
    Box Dimensions (LxWxH) 5.9 x 4.1 x 1.4"
