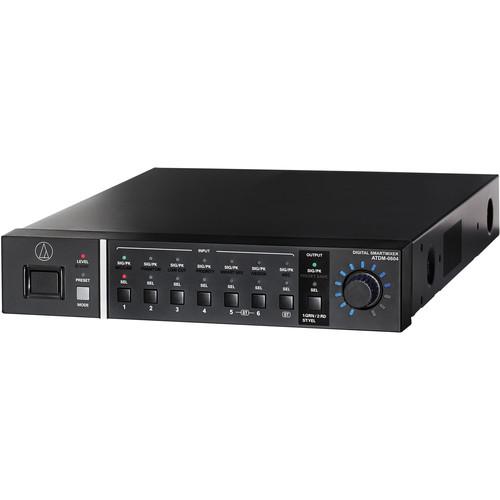

Product description The Audio-Technica ATDM-0604 is an automatic digital smart-mixer that mixes channels automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering, and is well suited for meetings, courtroom proceedings, conferences, soft codec applications, radio and TV broadcasts, and other applications involving the use of multiple microphones or other media inputs.

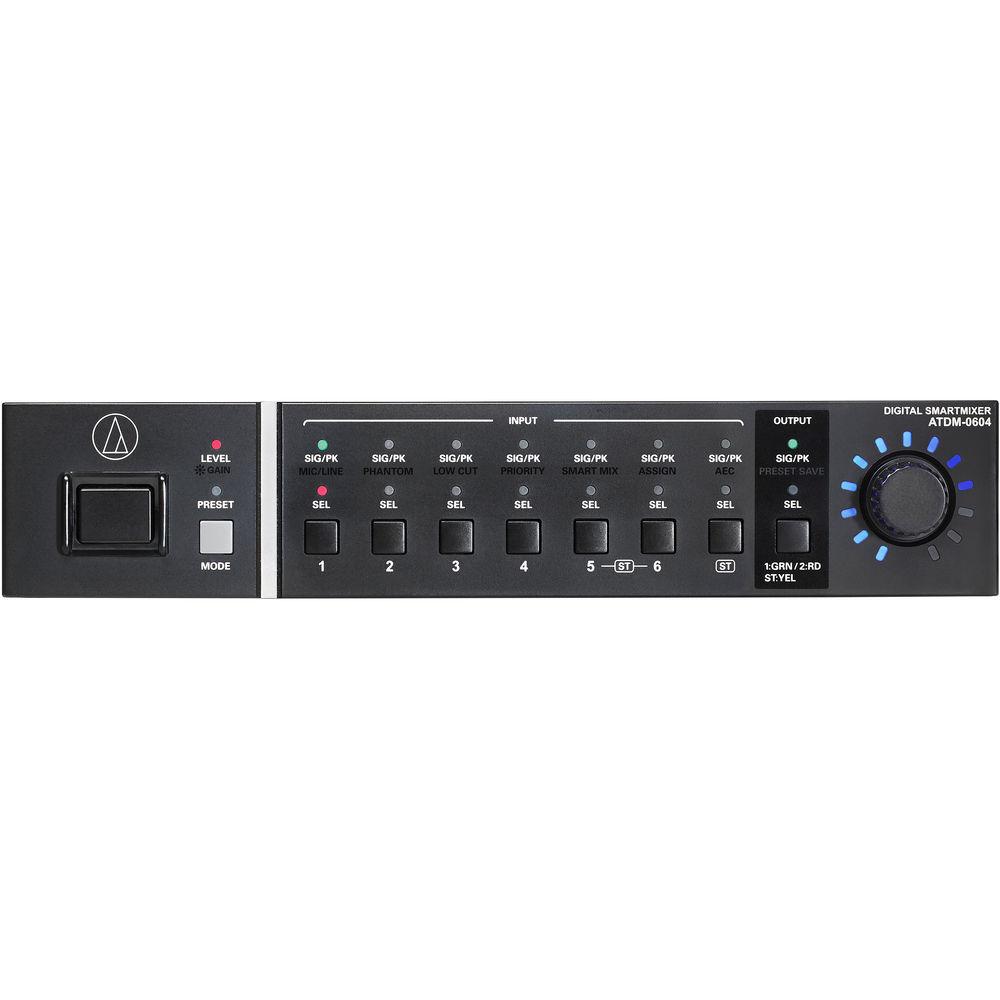

The intuitive controls and LED indicators on the mixer’s front panel allow users to easily adjust input/output and gain levels, set and recall presets, change the IP configuration (auto or static), and engage the low-cut filter, automatic mixing, acoustic echo cancellation (AEC), and phantom power. What's more, the ATDM-0604 includes web remote functionality via Windows PC, Mac, iOS, or Android devices.

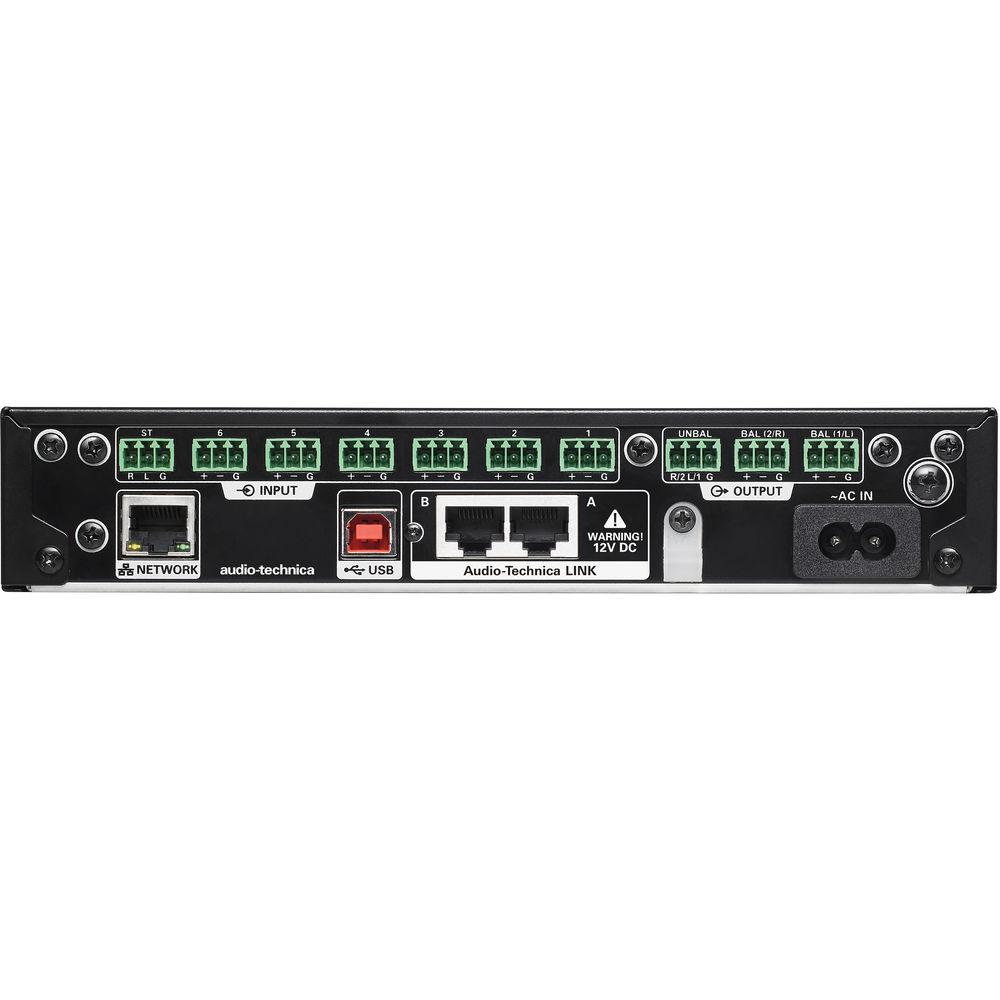

The mixer utilizes Euroblock connectors and is equipped with four balanced microphone inputs, two balanced mic/line inputs, and one unbalanced stereo input, while the outputs offered include two balanced (1/L and 2/R) and two unbalanced outputs. Additional connections include network (Cat5e or better) and USB ports, as well as Audio-Technica Link ports. Up to six mixers can be networked together for an expanded setup. The Audio-Technica ATDM-0604 includes ten Euroblock connectors, rack-mount hardware, rack screws, a power cord, and four rubber feet. -
- Four balanced mic inputs, two balanced Mic/Line inputs, and one stereo unbalanced input
- One stereo and two mono outputs
- Two-channel USB audio interface for soft codec (Skype, WebEx) integration or playback from computer
- Full digital processing on inputs and outputs
- Audio Routing Matrix: 8 x 3
- Six-channel Smart Mix (gate or gain sharing)
- Onboard acoustic echo canceler (AEC) processing
- Front panel direct operation and Web Remote functionality
- IP control for third-party CCS administration
- Up to six mixers can be linked using Cat5e cable

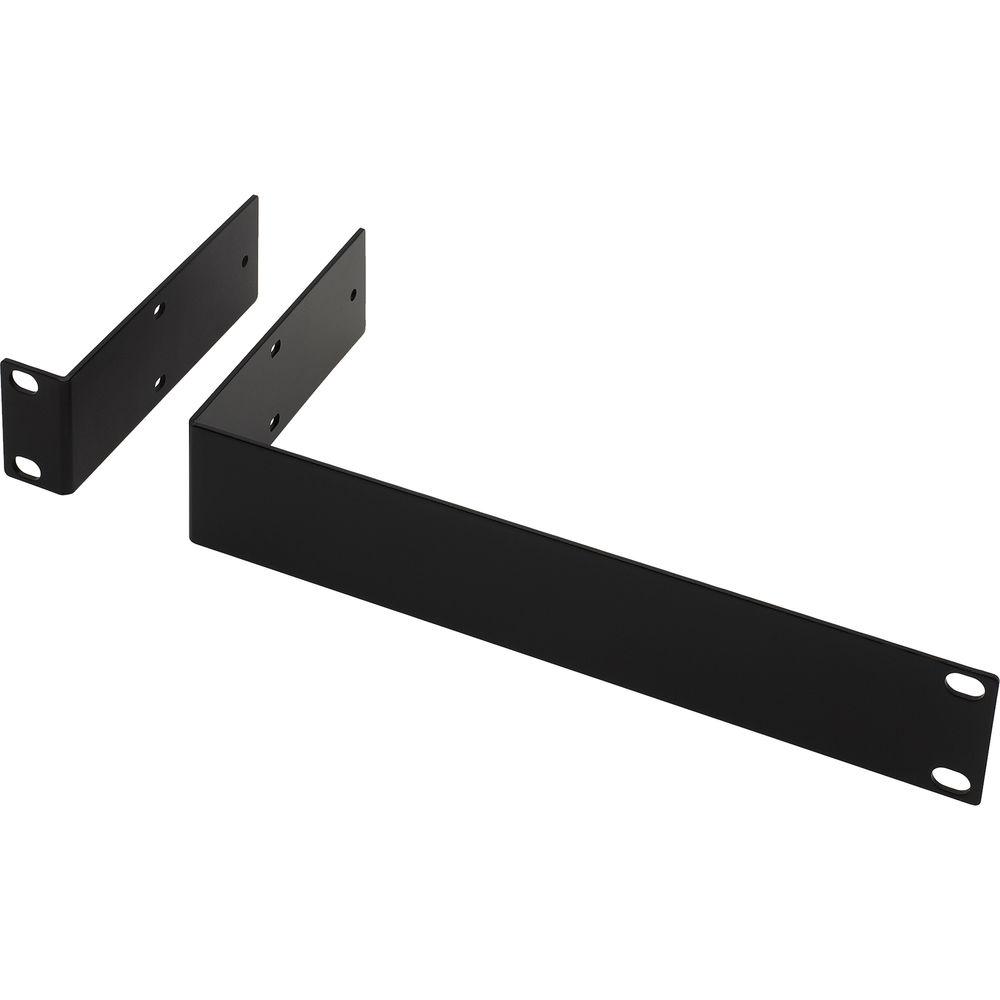

In the Box Audio-Technica ATDM-0604 Digital SmartMixer Power Cord 10 x Euroblock Connectors Rack-Mount Hardware 6 x Rack-Mount Screws 4 x Rubber Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATDM-0604 Digital SmartMixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAudio-Technica ATDM-0604 Specs | Frequency Characteristics | 20 Hz to 20 kHz (Mic -16 dBu): ±1.0 dB
20 Hz to 20 kHz (Mic -60 dBu): +1.0/-2.0 dB
20 Hz to 20 kHz (Line 24 dBu): ±1.0 dB
20 Hz to 20 kHz (Line -40 dBu): +1.0/-2.0 dB | | Dynamic Range | 110 dB or higher, (A-weighted/ST) | | Signal-to-Noise Ratio (SNR) | 90 dB or higher, (A-weighted/ST) | | Headroom | 20 dB or higher | | Input Noise | Input Referred Noise: -126 dBu or less (Rs = 150 Ohms, DIN) | | Common Mode Rejection Ratio | 80 dB or higher, 1 kHz | | Residual Noise | -86 dBu or less, (A-weighted) | | Maximum Gain | 64 dB | | Channel Separation | -80 dB or less (1 kHz unity) | | THD | 0.03% or less (1 kHz unity) | | Analog Inputs | Mic: 0 dBu (maximum)
Mic Unity: -40 dBu
Line: +24 dBu (maximum)
Line Unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV
Stereo: +10 dBV (maximum)
Stereo Unity: -10 dBV / -20 dBV | | Analog Outputs | Unbalanced: +10 dBV / -13 dBV (maximum)
Unbalanced Unity: -10 dBV / -33 dBV
Balanced (1/L and 2/R) +24 dBu / 20 dBV / +10 dBV (maximum)
Balanced (1/L and 2/R Unity) +4 dBu / 0 dBV / -10 dBV | | Phantom Power | +48 VDC | | Pad | -24 dB | | I/O Connector | Input Stereo: Euroblock connectors (3-pin)
Input Mic/Line 5 and 6: Euroblock connectors (3-pin)
Input Mic 1 to 4: Euroblock connectors (3-pin)
Output Unbalanced: Euroblock connectors (3-pin)
Output Balanced 1/L and 2/R: Euroblock connectors (3-pin) | | Indicators | Signal/Peak: 1-point (red/yellow/green)
Peak Indicate: -5 to 0 dB (red)
Peak Hold Time: 2 sec | | Remote Control | IP Protocol: 1 x RJ-45 pc
IP Address: 192.168.33.102 (factory default)
Communication Speed: 100 Mbps | | Link Input/Output | IP Protocol: 2 x RJ-45 pcs
Communication Speed: 100 Mbps | | USB | USB: Type-B
Channel: 1 x Stereo channel input, 1 x stereo channel output (24-bit)
Communication Speed: High-speed (480 Mbps) | | A/D/A Converter | Resolution: 24-bit
Dynamic Range: 115 dB | | Gain | 20 to 60 dB | | Load Impedance | Input
Mic: 1.6 kOhms
Line: 10 kOhms
Output
Balanced and Unbalanced: 150 Ohms | | Input Level | Minimum Value
Mic: -60 dBu
Line: -40 dBu
Nominal Value
Mic: -40 dBu
Line: +4 dBu, 0 dBV, -10 dBV, -20 dBV
ST (L/R): -10 dBV, -20 dBV
Maximum Value
Mic: -20 dBu
Line: +24 dBu
ST (L/R): +20 dBV | | Output Level | Nominal Value
Unbalanced (L/R): -33 dBV, -10 dBV
Balanced 1/L and 2/R: -10 dBV, 0 dBV, +4 dBu
Maximum Value
Unbalanced (L/R): -13 dBV, +10 dBV
Balanced 1/L and 2/R: +10 dBV, +20 dBV, +24 dBu | | Connector Type | Euroblock | | Power | Power Supply: 100 to 240 VAC (50 / 60 Hz)
Power Consumption 17 W | | Temperature & Humidity | Operating Temperature Range: 32 to 104°F / 0 to 40°C Operating Humidity Range: 25 to 85% (with no condensation) | | Dimensions (W × H × D) | 8.5 x 1.7 x 12.8" / 217 x 44 x 326 mm | | Weight | 4.1 lb / 1.9 kg | | | | Package Weight | 6.45 lb | | Box Dimensions (LxWxH) | 16.6 x 12.7 x 4.9" |
