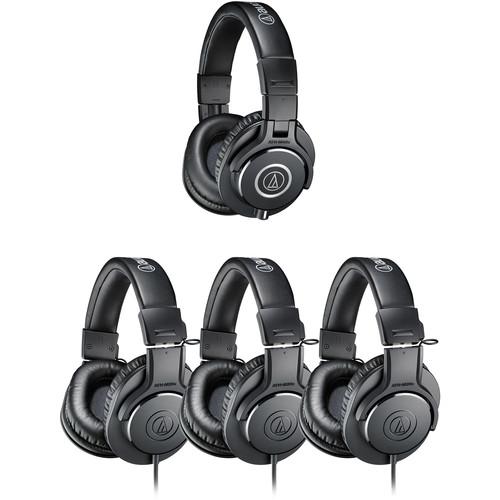

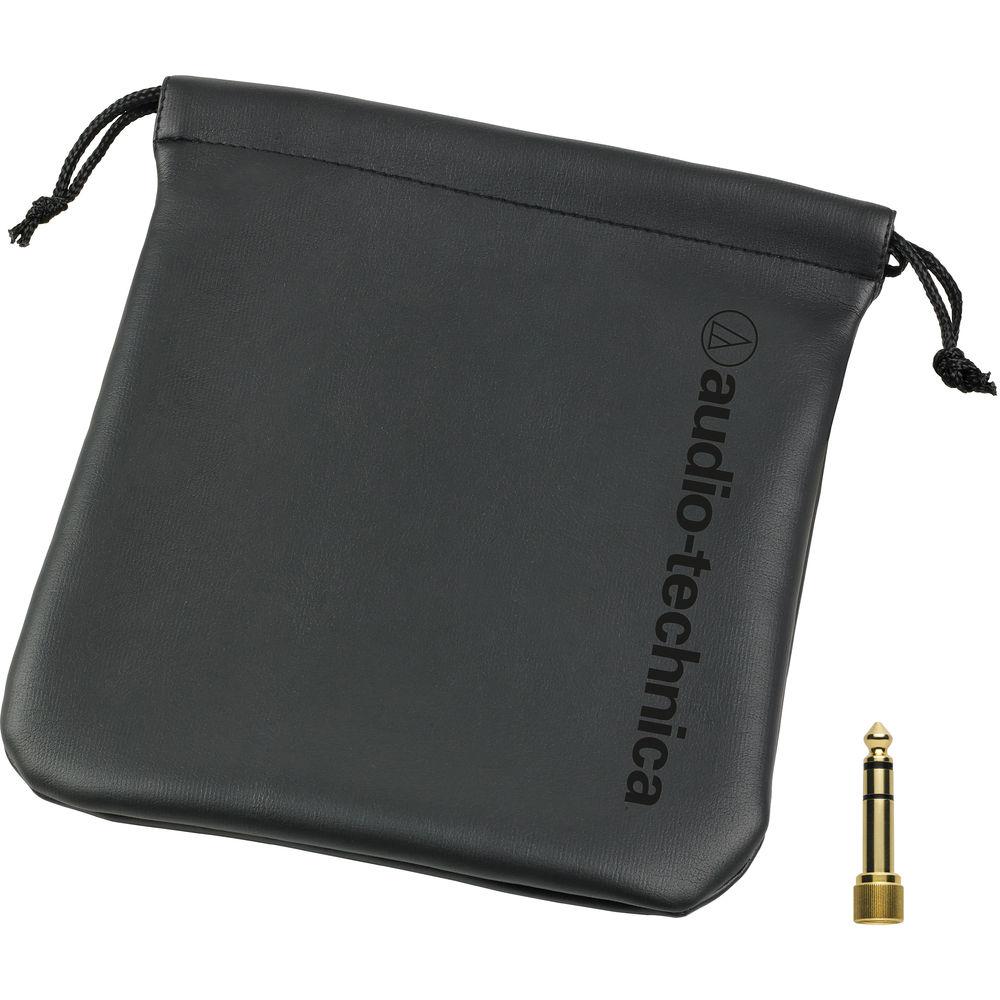

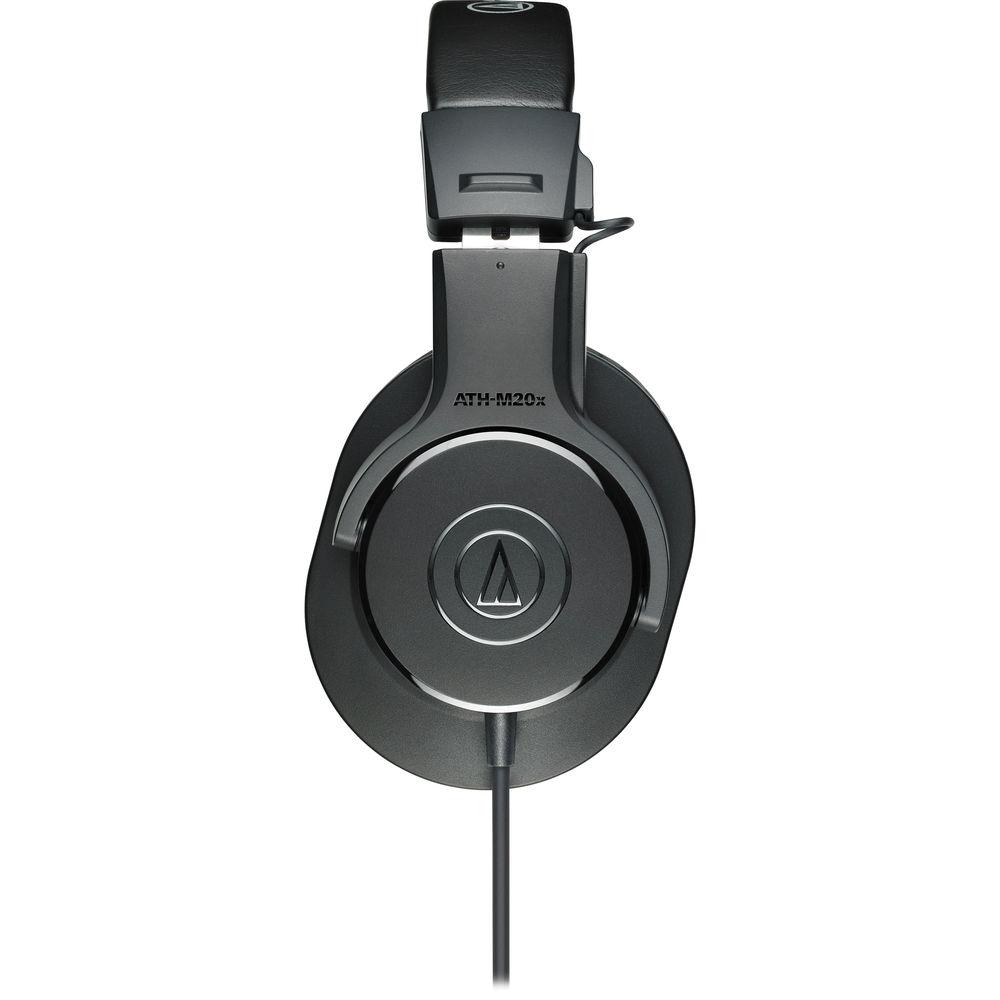

Product description The Audio-Technica ATH-PACK4 is a set of four studio monitor headphones designed to provide wide-range frequency reproduction and minimal bleed for multiple musicians and engineers in recording sessions, rehearsals, and mix referencing. It includes one pair of ATH-M40x headphones, three ATH-M20x headphones, cables, 1/4” adapters, and a protective carry pouch for the ATH-M40x.The headphones in the ATH-PACK4 feature a circumaural, sound-isolating design to minimize bleed. The ATH-M20x headphones offer 40mm Neodymium drivers and a 15 Hz to 20 kHz frequency response; the ATH-M40x utilize 40mm Neodymium drivers and produce 15 Hz to 24 kHz. All four headphones are robust and lightweight to deliver durability and comfort for the wearers. - ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.

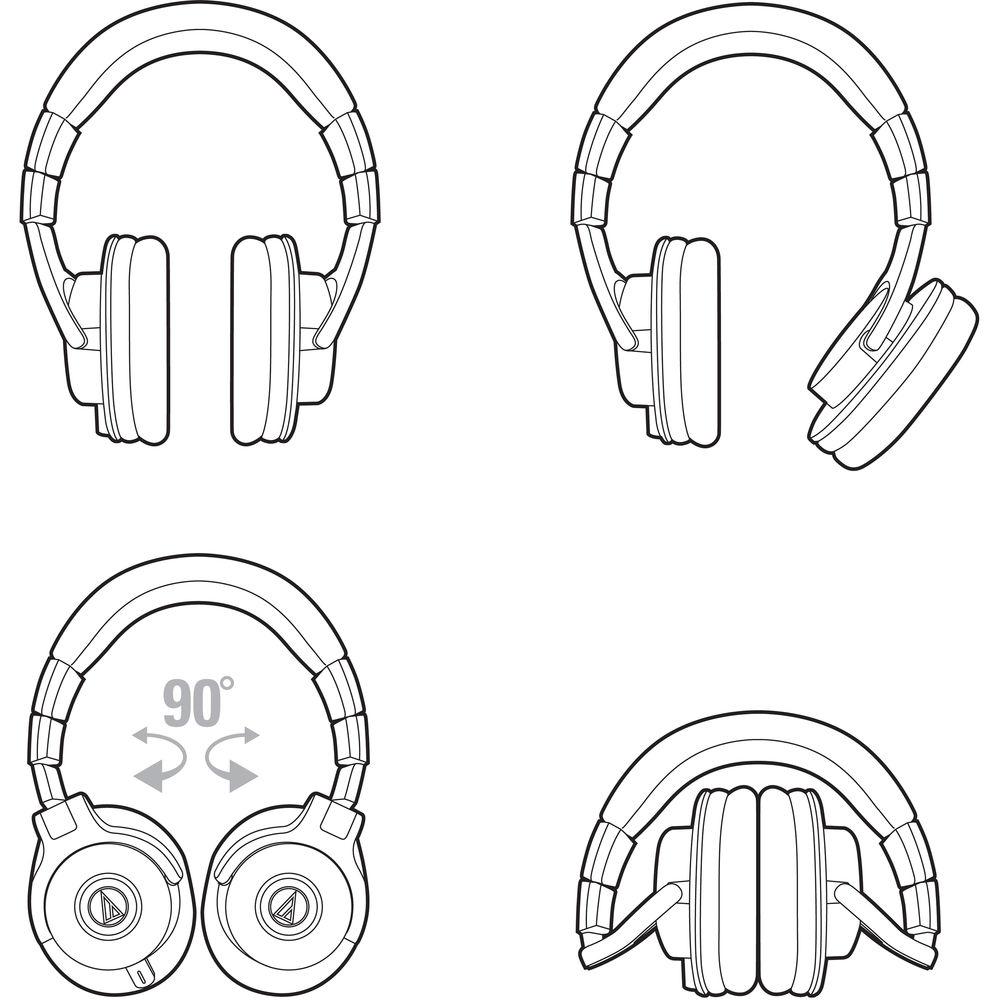

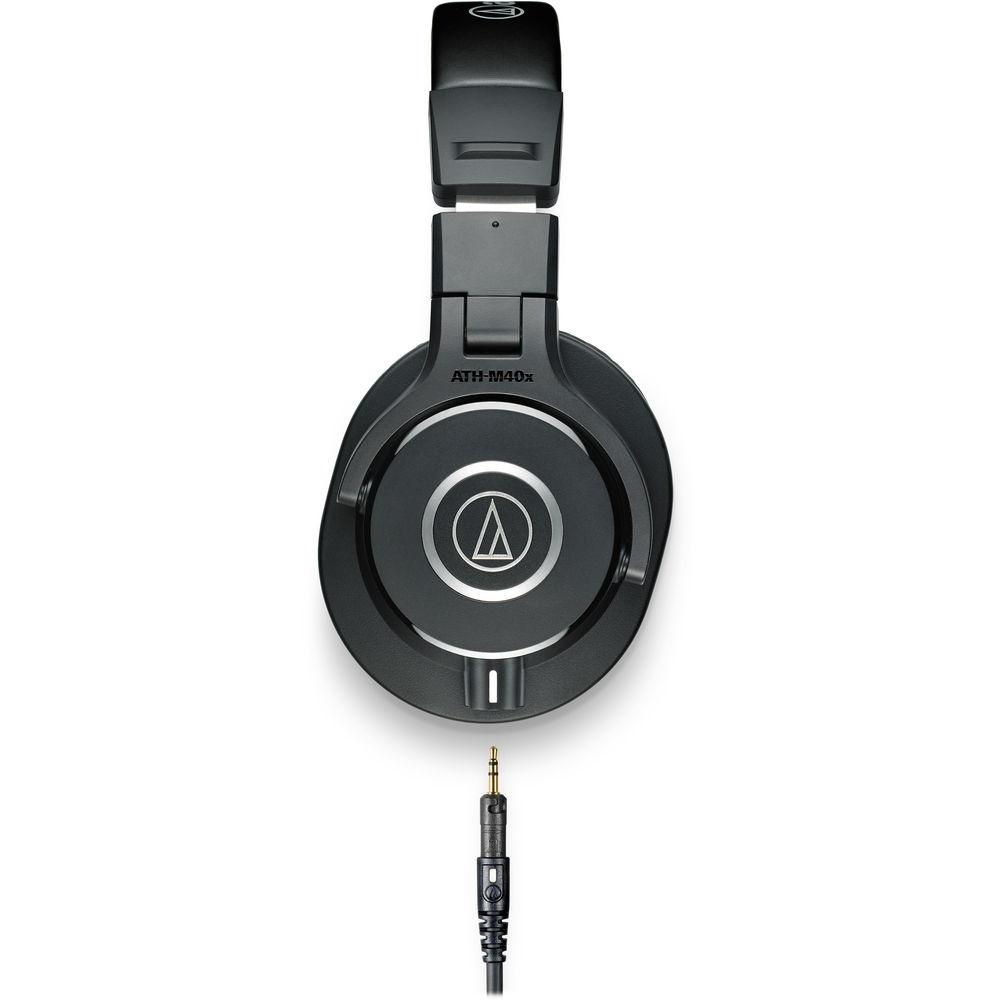

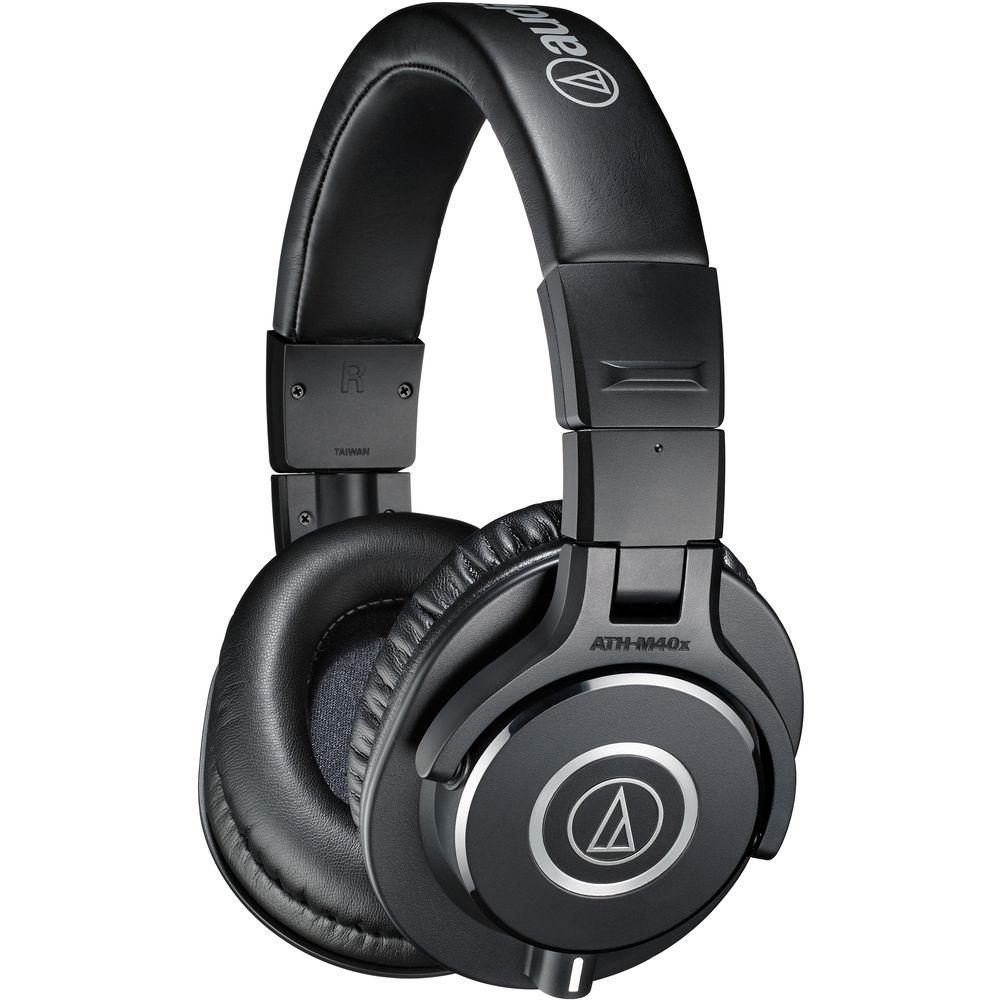

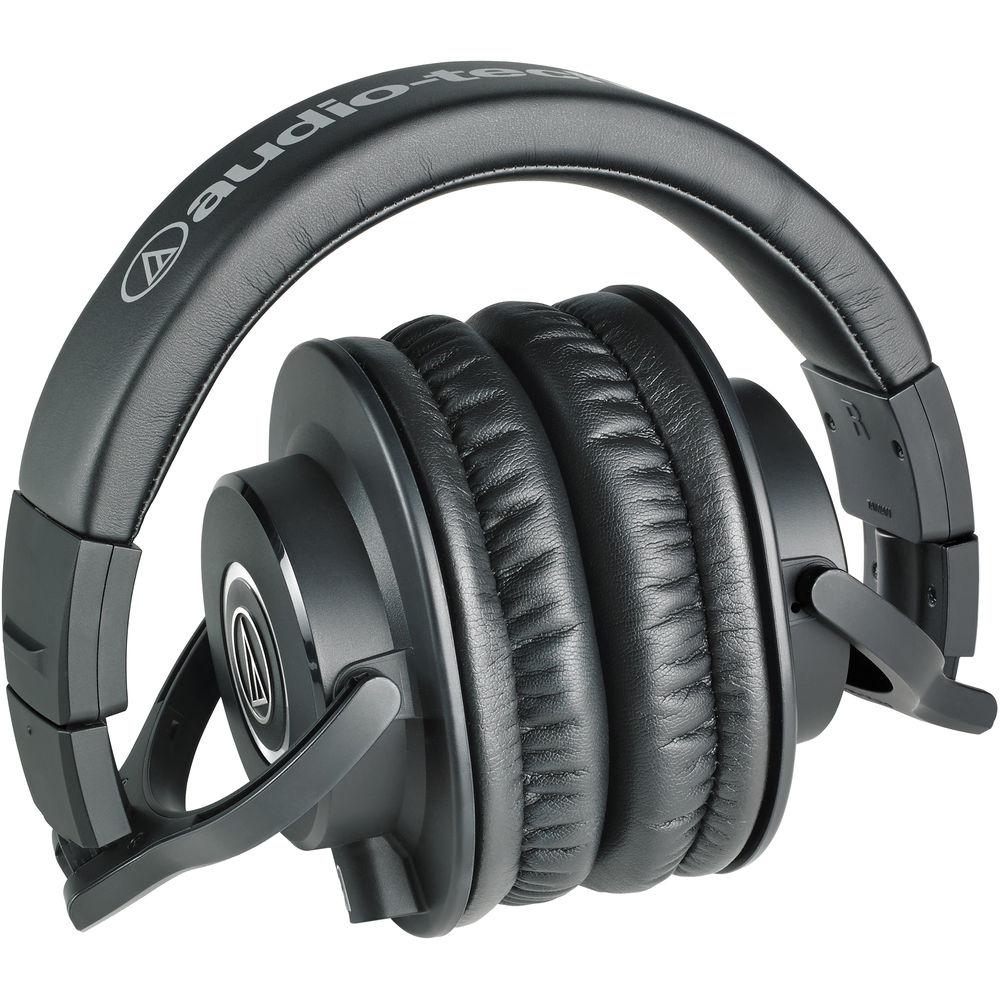

- ATH-M40x Monitor Headphones (Black) The black ATH-M40x Monitor Headphones from Audio Technica are designed for use in studio tracking and mixing and well as for DJ monitoring applications. They feature 40mm Neodymium drivers with copper-clad aluminum voice coils tuned for a flat response. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ear cups on the ATH-M40x can be swiveled up to 90 degrees, allowing for single-ear monitoring. The headphones have a detachable single-sided cable system, and both coiled and straight cables are included. When not in use, the ATH-M40x can be folded down and stored in the included carry pouch.

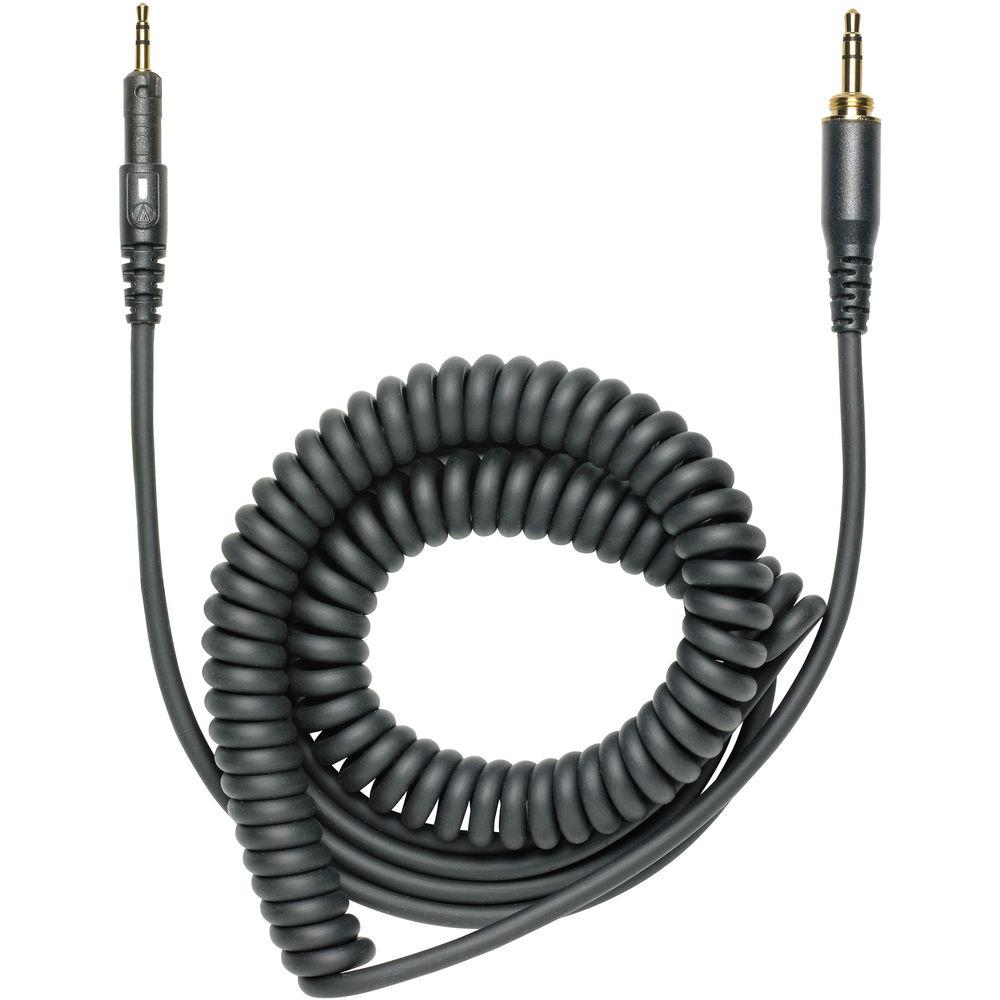

In the Box Bundle Items 3 x ATH-M20x Monitor Headphones (Black) ATH-M40x Monitor Headphones (Black) - 3.9 to 9.8' (1.2 to 3 m) Coiled Cable

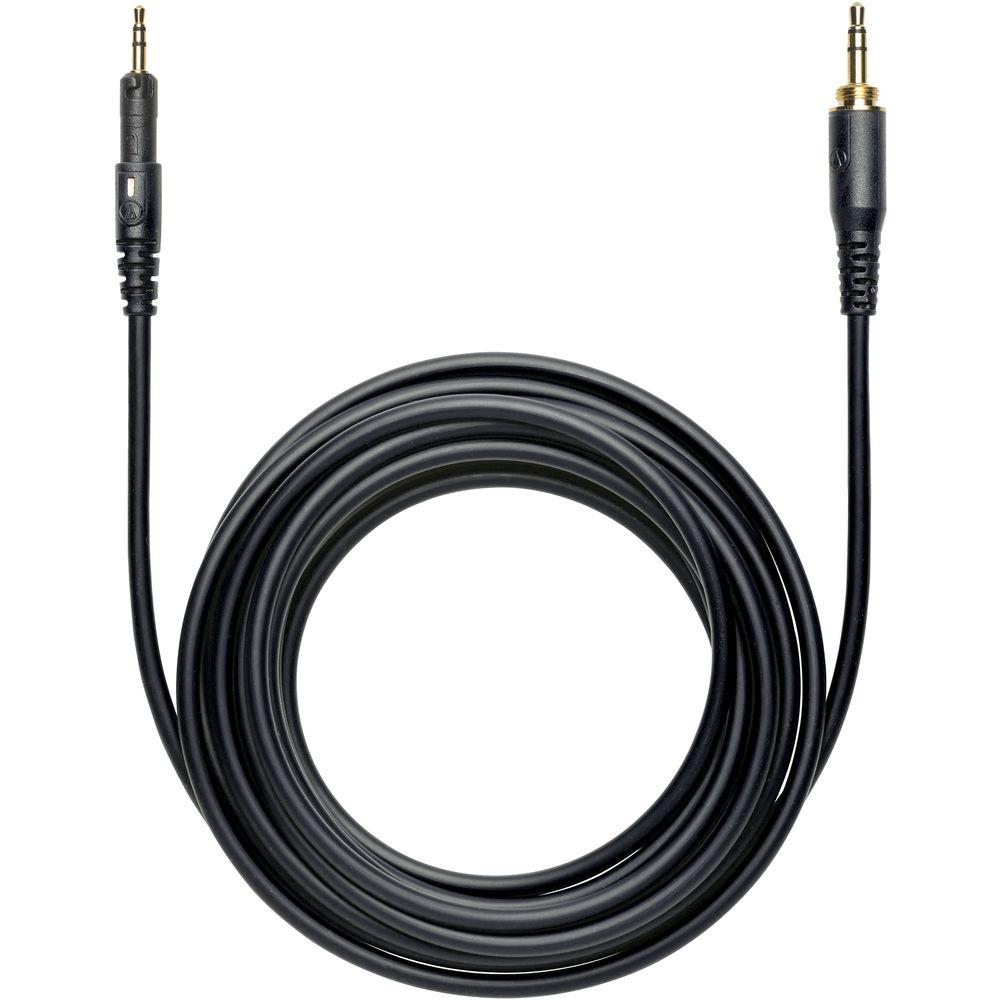

- 9.8' (3 m) Straight Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATH-PACK4 Monitor Headphones Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ATH-M20x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 96 dB | | Impedance | 47 Ohms | | Maximum Power Handling | 700 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 2.9" | - ATH-M40x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Design | Over-Ear (Circumaural) | | | | Frequency Response | 15 Hz to 24 kHz | | Sensitivity | 98 dB | | Impedance | 35 Ohms | | Maximum Power Handling | 1600 mW | | | | Audio Connector | 1/8" (3.5 mm) | | | | Box Dimensions (LxWxH) | 12.2 x 11.9 x 4.9" |
