User Manual for Audio-Technica ATH-PACK5 Monitor Headphones Pack Click to enlarge the picture
Contents of the user manual for the Audio-Technica ATH-PACK5 Monitor Headphones Pack
- Product category: Professional Headphones Audio-Technica
- Brand: Audio-Technica
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Audio-Technica Professional Headphones
|
User manual for the Audio-Technica ATH-PACK5 Monitor Headphones Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Audio-Technica product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Audio-Technica user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Audio-Technica product will considerably shorten its lifespan!
|

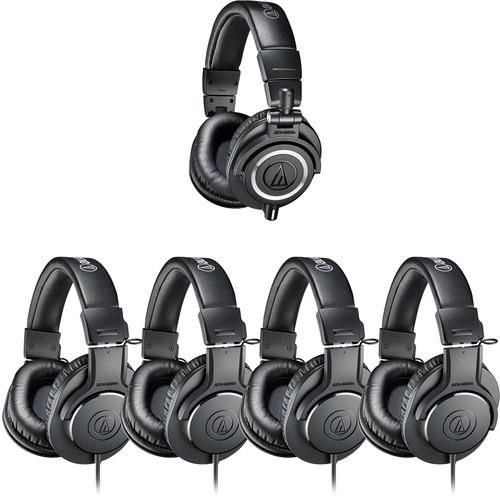

Product description The Audio-Technica ATH-PACK5 is a set of five studio monitor headphones designed to provide wide-range frequency reproduction and minimal bleed for multiple musicians and engineers in recording sessions, rehearsals, and mix referencing. It includes one pair of ATH-M50x headphones, four ATH-M20x headphones, cables, 1/4” adapters, and a protective carry pouch for the ATH-M50x.The headphones in the ATH-PACK5 feature a circumaural, sound-isolating design to minimize bleed. The ATH-M20x headphones offer 40mm Neodymium drivers and a 15 Hz to 20 kHz frequency response; the ATH-M50x utilize 45mm Neodymium drivers and produce 15 Hz to 28 kHz. All five headphones are robust and lightweight to deliver durability and comfort for the wearers. - ATH-M20x Monitor Headphones (Black) The black ATH-M20x Monitor Headphones from Audio Technica are designed for both tracking and mixing applications and feature 40mm Neodymium drivers with copper-clad aluminum wire voice coils tuned for detailed low-frequency reproduction. The headphones have a circumaural, around-the-ear design that provides sound isolation. Their 3-meter long cable has a single-side exit to help reduce tangles while working. A 1/4" adapter is included.
- ATH-M50x Monitor Headphones (Black) The black ATH-M50x Monitor Headphones from Audio Technica are designed for use in critical studio mixing and tracking as well as for DJ monitoring applications. They feature 45mm Neodymium drivers with copper-clad aluminum voice coils that provide an extended frequency response from 15Hz to 28kHz. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ATH-M50x's ear cups can be swiveled 90-degrees, allowing for single-ear monitoring. The headphones have a detachable single-sided cable system, and a 3-meter coiled cable, a 3-meter straight cable, and a 1.2-meter straight cable are included. When not in use, the ATH-M50x can be folded down and stored in the included carry pouch.
In the Box Bundle Items 4 x ATH-M20x Monitor Headphones (Black) ATH-M50x Monitor Headphones (Black) - 3.9 to 9.8' (1.2 to 3 m) Coiled Cable
- 9.8' (3 m) Straight Cable
- 3.9' (1.2 m) Straight Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Audio-Technica ATH-PACK5 Monitor Headphones Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ATH-M20x Monitor Headphones (Black)
| | | Driver Size | 1.6" / 40 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Open-Back | | | | Frequency Response | 15 Hz to 20 kHz | | Sensitivity | 96 dB | | Impedance | 47 Ohms | | Maximum Power Handling | 700 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Cable Length | 9.8' / 2.99 m | | | | Box Dimensions (LxWxH) | 11.7 x 10.2 x 2.9" | - ATH-M50x Monitor Headphones (Black)
| | | Driver Size | 1.8" / 45 mm | | Magnet Type | Neodymium | | Voice Coil | Copper-Clad Aluminum Wire | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 15 Hz to 28 kHz | | Sensitivity | 99 dB | | Impedance | 38 Ohms | | Maximum Power Handling | 1600 mW | | | | Audio Connector | 1/8" (3.5 mm) | | Adapter (Included) | 1/4" (6.3 mm) | | | | Box Dimensions (LxWxH) | 11.5 x 10.2 x 4.1" |
